Matrix Commercial - G1-FW161LS - 2010

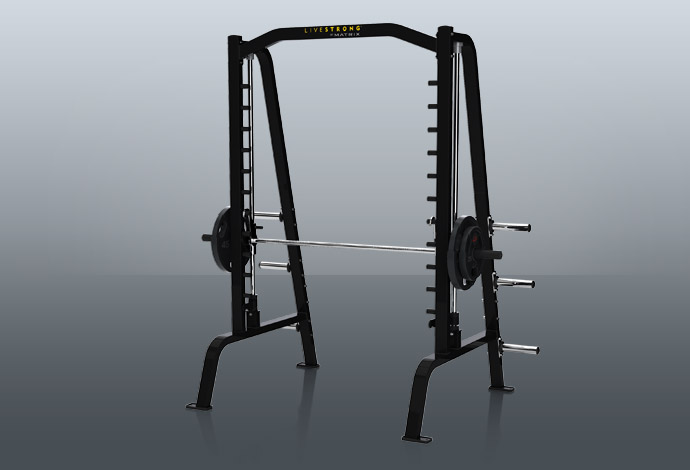

Repair Parts for Matrix Commercial G1-FW161LS FW161E

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW161E

Model Name: G1-FW161LS

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16796.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700235	000754-CA	Z20	Elastomer;Rubber;BL;FW62	No	Model Compatibility List	$9.10 / Each	1
700253	000783-AA	N06	Stopper Pad;Rubber;FW62	No	Model Compatibility List	$1.66 / Each	12,13,14
700685	001791-AA	M16	Fix Block;Weight Lifting Connecting Sleeve;POM;	No	Model Compatibility List	$3.64 / Each	3,10
701162	004079-A3	M12	Ball Bearing;6006ZZ;30X55X13T;;TPI;;;	No	Model Compatibility List	$27.04 / Each
701188	004127-A	N05	Bearing;Dry;LFF-3020;;;;;;	No	Model Compatibility List	$9.10 / Each	8
701490	004533-AB	Z02	Screw;Hex Socket;Round;M8x1.25Px65L	Yes	Model Compatibility List	$1.79 / Each	2
701660	004696-AB	B17	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each
701898	004926-AC	Z04	Nut;Self Locking;M8x1.25P;Cr;Nylon Insert	No	Model Compatibility List	$2.00 / Each
701914	004943-00	Z15	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701968	005007-00	Z09	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
702085	005117-AB	Z06	Washer;Flat;8.2x16.0x2.0T;Chromed	No	Model Compatibility List	$1.33 / Each
702102	005132-00	Z08	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702199	005253-A	M15	Washer;Swivel	No	Model Compatibility List	$3.35 / Each	2
704027	020115-AE	Z03	Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T	No	Model Compatibility List	$9.28 / Each	2
704034	020123-AC	Z05	Screw;Hex Socket;Round;M12x1.75Px20L;Chromed	No	Model Compatibility List	$1.66 / Each	7,2,12,13,14
704206	020479-A	Z07	Washer;Flat;10.2x22.0x2.0T;Chromed	No	Model Compatibility List	$2.00 / Each
705311	040778-BA	M18	Outside Tube;POM;FW62	No	Model Compatibility List	$208.65 / Each	3
705367	048970-BA	B15	Foot Pad;Rubber;GM151	No	Model Compatibility List	$8.42 / Each
705426	049134-BA	B16	Upright Frame Top End Cap	No	Model Compatibility List	$1.66 / Each	9,3
706157	059631-B	V02	Warning Sticker;GM162-KM	No	Model Compatibility List	$9.10 / Each	1
706381	061702-A	Not Shown	Hardware;Semi-Assy;FW161-KM	No	Model Compatibility List	$146.12 / Each	1
706382	061703-AA	AB1	Frame Set;R;Painting;FW161-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
706383	061704-AA	AB2	BaseFrameSet;L;Painting;FW161-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
706384	061732-A	B12	Guide Rail;15Cr;FW161	No	Model Compatibility List	$730.29 / Each	9
706385	061739-BA	B13b	Rubber Sleeve;PU Cover;PU;FW161	No	Model Compatibility List	$13.47 / Each	9,3
706386	061741-A	M19	Boot;Stoped;Rubber;BL;FW161	No	Model Compatibility List	$8.42 / Each	1
706832	066008-A	M17	Connect Cover;POM;FW161	No	Model Compatibility List	$322.14 / Each	9
708486	1000102912	M14	Circlip;External C Type;S-30;BED	No	Model Compatibility List	$2.00 / Each
708487	1000102913	M13	Circlip;Internal C Type;R-47;BED	No	Model Compatibility List	$1.79 / Each	2
708488	1000102914	M10	Circlip;Internal C Type;R-55;BED	No	Model Compatibility List	$1.79 / Each	2
709080	1000109126	Z21	Sung Base;Guide Rod;;painting;;;FW62KM-G	No	Model Compatibility List	$40.53 / Each	3
709175	1000110686	V03	Product Bar Code Sticker;FW161D-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
709566	1000201363	5	Hook Frame Set;Left;SA;R;FW161D-KM ; SERVICE PART;;;	No	Model Compatibility List	$128.13 / Each	3
709567	1000201364	6	Hook Frame Set;Right;FW161D-KM ; SERVICE PART;;;	No	Model Compatibility List	$128.13 / Each	3
709568	1000201365	7	Storage Horn Set;Semi-Assy;;;;FW161D;;SB	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
709569	1000201366	4	Guide Rod Sleeve Set;Left;FW161D-KM ; SER	No	Model Compatibility List	$566.12 / Each	3
709570	1000201367	3	Guide Rod Sleeve Set;Right;FW161D-KM ; SER	No	Model Compatibility List	$566.12 / Each	3
709571	1000201368	AM3	WEIGHT LIFTING ROD;SA;;FW161D-KM ;S	No	Model Compatibility List	$258.54 / Each	3,10
709765	1000202765	V01	Logo Label;;;PET;;;	No	Model Compatibility List	$24.65 / Each	1
709852	1000203852	Z01	Screw;SH;M10x15L;-;HS;-;CHM;BP;G8.8;	No	Model Compatibility List	$3.69 / Each	2
710416	1000210169	2	FRAME WELDING SET;-;-;PAINTING;-;BLACK;F	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
710417	1000210170	AG2	DISASSEMBLY CONNECT SET;-;-;PAINTING;-;B	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
710489	1000210607	1	FRAME WELDING SET;-;R;PAINTING;-;BLACK;F	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
710490	1000210608	AG1	DISASSEMBLY CONNECT SET;-;D;PAINTING;-;B	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
716149	1000333566	M11	Bearing;Linear;KS30-PP;;INA;	No	Model Compatibility List	$250.04 / Each	8
725420	071085	AN1	Stopper Set;Weight lifting mast set ;R;B	No	Model Compatibility List	$0.00 / Each Out Of Stock
725421	071086	AN2	Stopper Set;Weight lifting mast set ;L;B	No	Model Compatibility List	$0.00 / Each Out Of Stock
725422	071087	AM2	Slipping Sleeve Set ;L;Painting;Black;FW	No	Model Compatibility List	$0.00 / Each Out Of Stock
725423	071089	AM1	Slipping sleeve set ;R;Painting;Black;FW	No	Model Compatibility List	$0.00 / Each Out Of Stock
725975	078726	B10	Storage Horn Cover;#48;PVC;FW161	No	Model Compatibility List	$1.66 / Each
726170	080575	AB4	Storage Horn;CR Plate	No	Model Compatibility List	$186.55 / Each
726258	081064	B11	Storage Horn Rubber Ring;Rubber;FW161	No	Model Compatibility List	$23.19 / Each
