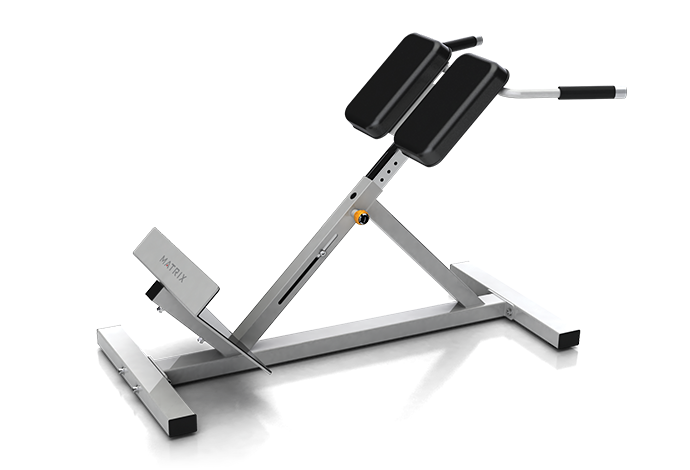

Matrix Commercial - G1-FW162 - 2010

Repair Parts for Matrix Commercial G1-FW162 FW162

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW162

Model Name: G1-FW162

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16797.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700452	001407-A	B09	End-Cover;Square Tube;GM03	No	Model Compatibility List	$1.66 / Each	9,3
701522	004555-AB	Z02	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	Yes	Model Compatibility List	$4.00 / Each
701545	004573-AE	Z09	Screw;Hex Socket;Sink;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each	2
701669	004703-AB	C04	Screw;TH;M8X1.25PX20L;;HS;;ZN;;	No	Model Compatibility List	$1.66 / Each	2
701836	004855-AC	E06	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701914	004943-00	Z07	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
702721	009371-E	E05	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
703880	018940-B	E04	Foam;Grip	No	Model Compatibility List	$8.42 / Each	11
704025	020115-A	Z01	Screw;SH;M10X1.5PX95;;HS;;CHM;;	No	Model Compatibility List	$8.42 / Each	2
704206	020479-A	Z06	Washer;Flat;10.2x22.0x2.0T;Chromed	No	Model Compatibility List	$2.00 / Each
705369	048973-AA	C03	Pad Frame Stabilizer	No	Model Compatibility List	$3.35 / Each	3,12,13,14
705389	049043-AA	C05	Cap;S50.0x75.0;2.0t.3.0t tube	No	Model Compatibility List	$3.35 / Each	9,3
705531	050236-C	Z08	Screw;;10.2XM8X12L;;;;CHM;;SB	No	Model Compatibility List	$3.35 / Each	2
706452	062381-AA	M04	Cap;Square Tube;FW162	No	Model Compatibility List	$3.54 / Each	9,3
706460	062420-A	V04	Decal;ROM Adjustical;with glue;FW162	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3
706469	062520-AA	AM1	Adjustment Set (CR);FW162	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
706497	062820-A	Not Shown	Hardware;FW162	No	Model Compatibility List	$65.91 / Each	1

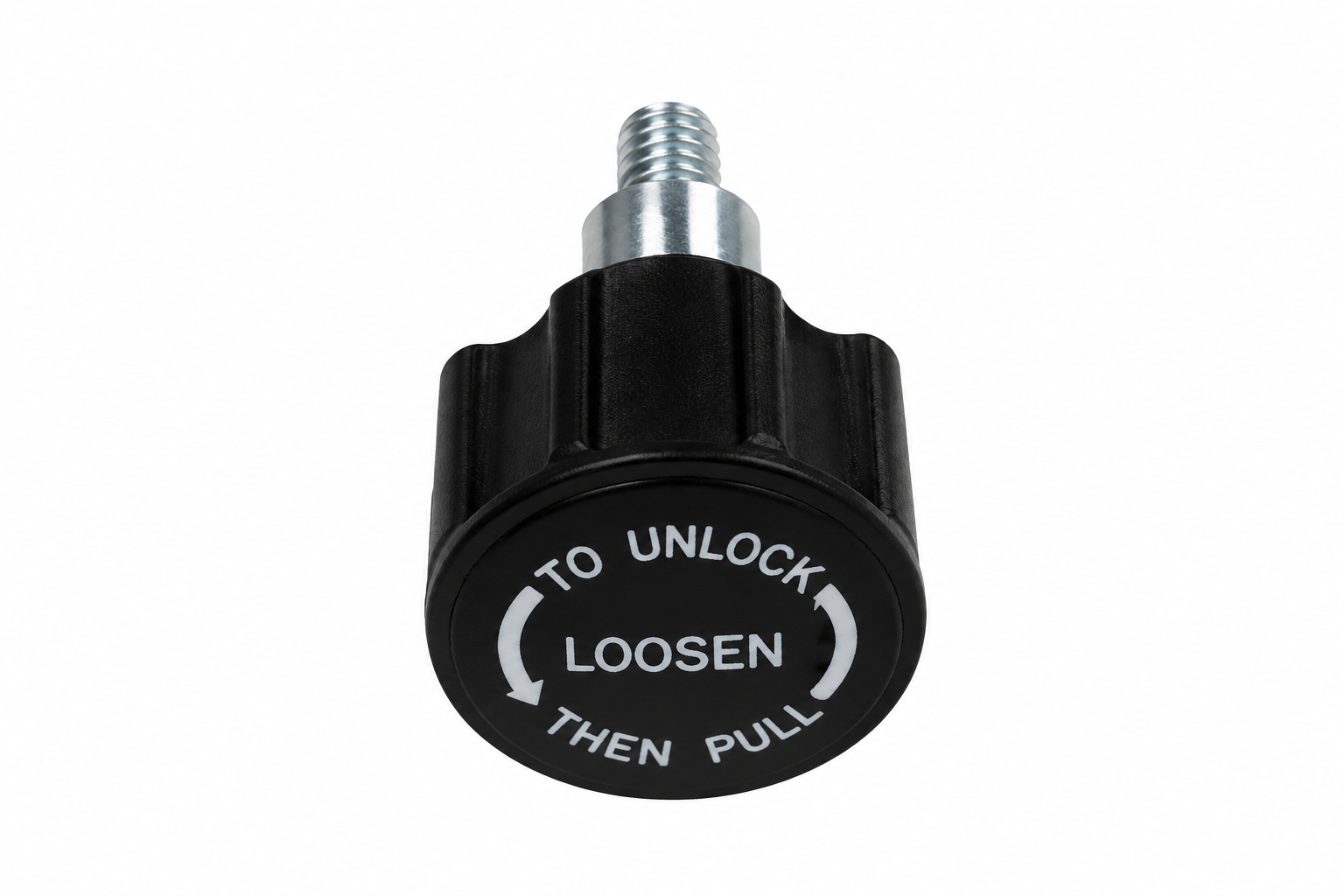

706812	065793-BA	B07	Pull Pin Set;leg Pad;FW165	No	Model Compatibility List	$8.42 / Each	12,13,14
709155	1000110518	V08	Sticker;LOGO;PVC;FW151D-KM	No	Model Compatibility List	$8.42 / Each	1
709176	1000110695	Not Shown	Manual;Assembly;FW162D-KM	No	Model Compatibility List	$15.47 / Each	3
709572	1000201369	1	Frame Set;SA;;FW162D-KM ;SERVICE PART;;;	No	Model Compatibility List	$424.76 / Each	3
709573	1000201370	2	Stabilizer Set;SA;;FW162D-KM ;SERVICE PA	No	Model Compatibility List	$277.24 / Each	1
709574	1000201372	4	Handle Frame Set;SA;;FW162D-KM ;SERVICE PART;;	No	Model Compatibility List	$345.98 / Each	3,11
709575	1000201373	5	Adjustment Frame Set;SA;;FW162D-KM ;SERVICE PART;;	No	Model Compatibility List	$485.00 / Each	3
711116	1000216775	B08	Foot Panel;Painting;FW162	No	Model Compatibility List	$214.32 / Each	7,9,3
727191	087586	Z03	Screw;FH;M10X1.5PX70L;;HS;;CHM;;	No	Model Compatibility List	$3.35 / Each
729118	Part of Kit 1	AB1	Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729138	Part of Kit 2	AC1	Console Mast;Painting;MM330;6027-45-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729165	Part of Kit 4	AE1	Pedal Arm;Left;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J01	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock

View Drawing
