Matrix Commercial - G1-FW165 - 2010

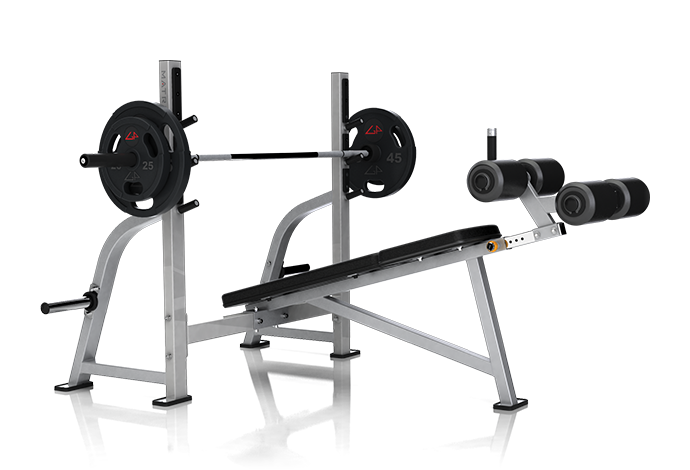

Repair Parts for Matrix Commercial G1-FW165 FW165

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW165

Model Name: G1-FW165

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16800.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700448	001402-A	H28	End Cap;Round	No	Model Compatibility List	$1.79 / Each	9
701465	004518-00	Z03	Screw;SH;M10X1.5PX75L;;HS;;CHM;;	No	Model Compatibility List	$3.64 / Each
701522	004555-AB	Z05	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	Yes	Model Compatibility List	$4.00 / Each
701660	004696-AB	B16	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each
701836	004855-AC	H13	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701914	004943-00	Z02	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
702702	009339-C	H23	Fix Ring;Round Pad;GM03	No	Model Compatibility List	$14.12 / Each	12,13,14
702721	009371-E	H11	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
703872	018876-C	B11	Plastic Pad;FW40	No	Model Compatibility List	$9.10 / Each	9,12,13,14
703897	019118-AA	H24	Cover;Round Pad;Left;GM03	No	Model Compatibility List	$3.35 / Each	9,12,13,14
703898	019119-AA	H25	Cover;Round Pad;Right;GM03	No	Model Compatibility List	$3.64 / Each	9,12,13,14
704027	020115-AE	Z04	Screw;SH;M10X1.5PX95-20L ;;HS;;CHM;;P-T	No	Model Compatibility List	$9.28 / Each	2
704206	020479-A	Z01	Washer;Flat;10.2x22.0x2.0T;Chromed	No	Model Compatibility List	$2.00 / Each
704223	020643-A	Z10	Clamp;External C-Shaped;S-50;BED;	No	Model Compatibility List	$1.79 / Each	4,5,6
705367	048970-BA	B15	Foot Pad;Rubber;GM151	No	Model Compatibility List	$8.42 / Each
705389	049043-AA	B14	Cap;S50.0x75.0;2.0t.3.0t tube	No	Model Compatibility List	$3.35 / Each	9,3
705390	049044-AA	H14	Cap;30x60x3.0t;GM154	No	Model Compatibility List	$1.79 / Each	9
705423	049130-AA	C18	Cover;Square Tube;50X50 ;GM153	No	Model Compatibility List	$1.66 / Each	9,3
705459	049249-00	Z09	Screw;SH;M10X1.5PX65L;;HS;;CHM;;	No	Model Compatibility List	$3.35 / Each
705533	050250-A	H22	Sleeve;Round Pad;60X4.0TX170L;GM152	No	Model Compatibility List	$3.35 / Each	3,12,13,14
706157	059631-B	V01	Warning Sticker;GM162-KM	No	Model Compatibility List	$9.10 / Each	1
706451	062380-AA	B10	Rubber Pad;FW160	No	Model Compatibility List	$37.52 / Each	12,13,14
706452	062381-AA	H21	Cap;Square Tube;FW162	No	Model Compatibility List	$3.54 / Each	9,3
706484	062698-AA	H12	Foam;FW165	No	Model Compatibility List	$10.40 / Each	1
706829	065973-AA	H10	Adjust Tube;Cr Plate;Extrawork;FW165	No	Model Compatibility List	$122.62 / Each	3
706831	065988-A	V09	Decal; Adjustable;FW165	No	Model Compatibility List	$8.42 / Each	7,3
707777	1000095022	Not Shown	Hardware Kit	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
708060	1000098635	C17	Pull Pin;FW165B-KM	No	Model Compatibility List	$16.87 / Each	12,13,14
708657	1000104684	B18	RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8)	No	Model Compatibility List	$3.35 / Each	1
709155	1000110518	V04	Sticker;LOGO;PVC;FW151D-KM	No	Model Compatibility List	$8.42 / Each	1
709181	1000110764	Not Shown	Manual;Assembly;FW165D-KM	No	Model Compatibility List	$15.47 / Each	3
709182	1000110768	V02	Product Bar Code Sticker;FW165D-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
709648	1000201833	1	Frame Set;Right;FW165D-KM;-;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
709649	1000201834	2	Frame Set;Left;FW165D-KM;-;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
709650	1000201835	3	Pad Frame Set;SA;-;FW165D-KM;-;-;	No	Model Compatibility List	$418.57 / Each	3,12,13,14
709651	1000201836	AG1	Connecting Frame Set;SA;-;FW165D-KM;-	No	Model Compatibility List	$204.00 / Each	3
709652	1000201837	4	Adjustment Frame Set;SA;-;FW165D-KM;-;-;	No	Model Compatibility List	$249.89 / Each	3
725975	078726	B10	Storage Horn Cover;#48;PVC;FW161	No	Model Compatibility List	$1.66 / Each
726170	080575	AB4	Storage Horn;CR Plate	No	Model Compatibility List	$186.55 / Each
726258	081064	B11	Storage Horn Rubber Ring;Rubber;FW161	No	Model Compatibility List	$23.19 / Each
728590	095451	B21	Rubber Sleeve;PU Cannula;PU;FW163B-KM	No	Model Compatibility List	$20.12 / Each
728949	991668-AC	B17	Screw;FH;M8X1.25PX30L;;HS;;CHM;;	No	Model Compatibility List	$3.64 / Each	2
729118	Part of Kit 1	AB1	Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729138	Part of Kit 2	AB2	Console Mast;Painting;MM330;6027-45-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729152	Part of Kit 3	AC1	Pedal Arm;Right;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729165	Part of Kit 4	AH1	Pedal Arm;Left;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J06	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
