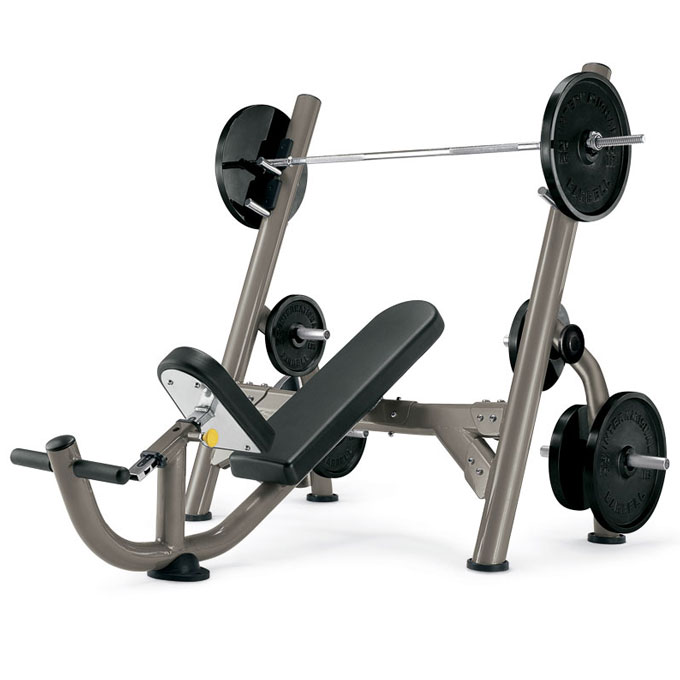

Matrix Commercial - G2-FW14P - 2005

Repair Parts for Matrix Commercial G2-FW14P G2FW14

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G2FW14

Model Name: G2-FW14P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700146	000515-A	E20	Foot pad;Rubber;100;FW10	No	Model Compatibility List	$9.10 / Each
700226	000737-D	B15	Foam;Foot pad	No	Model Compatibility List	$9.10 / Each	9,3,12,13,14
700232	000751-C	E19	Elastomer;;;Rubber;;;;FW10	No	Model Compatibility List	$9.10 / Each	1
700447	001401-A	B17	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	9
700451	001406-A	E06	End Cover;89	No	Model Compatibility List	$1.79 / Each	9
701520	004553-AB	E10	Screw;Round;Hex Socket;M12x1.75Px25L	No	Model Compatibility List	$9.10 / Each
701522	004555-AB	Z10	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	No	Model Compatibility List	$4.00 / Each
701537	004567-AB	E09	Screw;Sink Hex Socket;M8x1.25Px25L	No	Model Compatibility List	$3.64 / Each	2
701661	004697-AD	E08	Screw;Flat Hex Socket;M8x1.25Px25L	No	Model Compatibility List	$3.64 / Each	2
701760	004780-AC	Z06	Screw;Umbrella Hex Scoket;M10x1.5Px25L	No	Model Compatibility List	$4.00 / Each	2
701830	004849-00	E12	Set Screw;M8x1.25Px10L	No	Model Compatibility List	$2.00 / Each	2
701914	004943-00	Z07	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701964	005005-00	B35	Washer;Spring;Lock;8.2x15.4x2.0t	No	Model Compatibility List	$1.59 / Each
701968	005007-00	E15	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
701981	005017-00	Z09	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702010	005046-AC	B34	Washer;Flat;8.4x15.5x2.0t;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702102	005132-00	E14	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702367	006554-C	V01	Decal;Weight	No	Model Compatibility List	$3.35 / Each	7,3
702393	006621-B	V03	Decal;Seat Adjustable;GM02	No	Model Compatibility List	$3.64 / Each	7,3,12,13,14
702505	008234-C	B24	Bushing;Fixed Plate	No	Model Compatibility List	$9.10 / Each
702531	008523-B	Z13	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each
702965	013422-Z1G2	B41	Adjustment Knob Set;Seat;Yellow	No	Model Compatibility List	$36.48 / Each	12,13,14
703874	018882-A	B12	Foot Pad;76.2	No	Model Compatibility List	$18.15 / Each	9,3,12,13,14
704037	020125-A	Z14	Screw;Hex Socket;Round;M10x1.5Px120L;Chromed	No	Model Compatibility List	$10.35 / Each	7,2,12,13,14
704039	020126-DB	B23	Screw;Seat Stopper;M8x1.25Px20L	No	Model Compatibility List	$1.79 / Each	2,12,13,14
704041	020127-A	B33	Screw;Hex Socket;Round;M8X1.25PX12L	No	Model Compatibility List	$1.79 / Each	2
704104	020254-AB	B20	Screw;Hex Socket;Flat;M8x1.25Px30L;Adher	No	Model Compatibility List	$3.35 / Each	2
704877	025636-AA	AB2	Seat Welding Set;FW11	No	Model Compatibility List	$204.72 / Each	12,13,14
705997	058046-A	not shown	Hardware Pack	No	Model Compatibility List	$302.59 / Each	4,5,6
706031	058205-AA	AB1	Main Frame Set - FW14	No	Model Compatibility List	$637.39 / Each	3
706034	058209-AA	AE1	Support Frame Set - Right FW14-G2	No	Model Compatibility List	$1003.44 / Each	3
706035	058210-AA	AE2	Support Frame Set - Left FW14-G2	No	Model Compatibility List	$1003.44 / Each	3
706149	059578-A	not shown	ASSEMBLY MANUAL mx-fw14	No	Model Compatibility List	$16.64 / Each	3
706651	064175-A	not shown	Hardware Kit, FW13/14/15	No	Model Compatibility List	$83.46 / Each	1
706977	067769-AA	E24	Storage Horn Set;FW13;Cr Plate	No	Model Compatibility List	$97.66 / Each	3
707066	1000090006	B19	End Cover;Seat Tube Sleeve	No	Model Compatibility List	$3.64 / Each
707222	1000091269	AG1	Connecting Tube Set	No	Model Compatibility List	$610.22 / Each	3
707974	1000097265	B18	Sleeve;Seat Tube	No	Model Compatibility List	$9.75 / Each	3,12,13,14
709137	1000110295	E18	Weight Storage Horn	No	Model Compatibility List	$93.89 / Each	3
712128	1000226826	E22	Elastomer;Plastic;;	No	Model Compatibility List	$70.77 / Each	9
712129	1000226827	E16	Elastomer;Plastic;;	No	Model Compatibility List	$43.71 / Each	9
712143	1000226886	E23	Hanging Rod;U;FW13;45#	No	Model Compatibility List	$37.78 / Each	3
713615	1000305763	E13	Hanging Rod;;Up;45#;FW13-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
729261	See Pad Matrix	not shown	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
