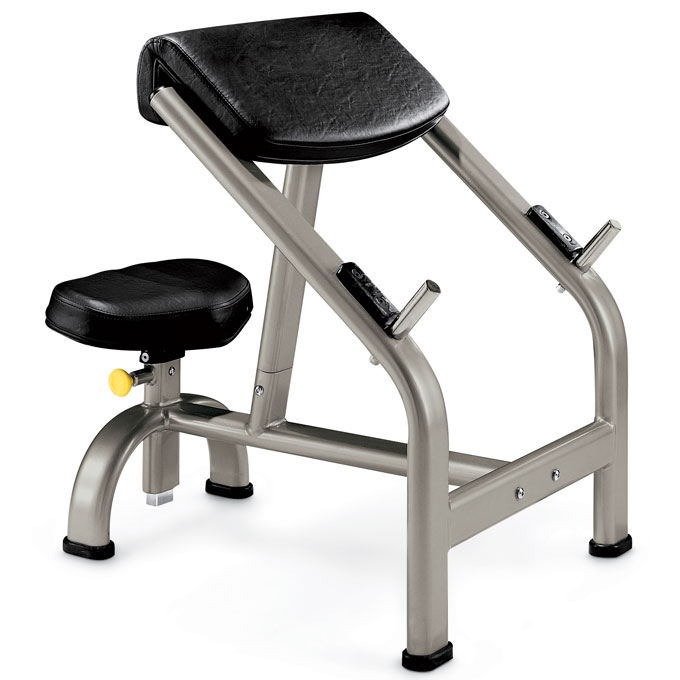

Matrix Commercial - G2-FW40P - 2005

Repair Parts for Matrix Commercial G2-FW40P G2FW40

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G2FW40

Model Name: G2-FW40P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16809.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700145	000514-C	B07	Foot pad;Tube;Rubber;GM07	No	Model Compatibility List	$3.64 / Each
700461	001422-BA	B08	End Cover;Ellipse;40x80x3.0t;MS20	No	Model Compatibility List	$3.64 / Each	9
701522	004555-AB	Z19	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	Yes	Model Compatibility List	$4.00 / Each
701530	004562-00	B11	Bolt;Deck;M8x1.25Px35L	Yes	Model Compatibility List	$5.85 / Each	2
701670	004703-AF	B12	Screw;Flat Hex Socket;M8x1.25Px20L	No	Model Compatibility List	$1.79 / Each
701760	004780-AC	Z05	Screw;Umbrella Hex Scoket;M10x1.5Px25L	No	Model Compatibility List	$4.00 / Each	2
701914	004943-00	Z18	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701939	004975-00	B13	Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8)	No	Model Compatibility List	$1.90 / Each
701968	005007-00	Z11	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
701978	005015-00	Z15	Washer;Spring;SW8 8.2X13.5X2.0T	Yes	Model Compatibility List	$2.00 / Each
702098	005130-00	Z14	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
702102	005132-00	Z12	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702318	005990-E	V04	Decal;Matrix Logo	No	Model Compatibility List	$18.77 / Each	7,3
702411	006656-A	V02	Decal;Serial Number;Aluminum	No	Model Compatibility List	$1.66 / Each	7,3
702414	006663-A	V01	Decal;Seat Pad Adjustable;GM07	No	Model Compatibility List	$3.35 / Each	7,3,12,13,14
702505	008234-C	C17	Bushing;Fixed Plate	No	Model Compatibility List	$9.10 / Each
702965	013422-Z1G2	C13	Adjustment Knob Set;Seat;Yellow	No	Model Compatibility List	$36.48 / Each	12,13,14
703872	018876-C	B09	Plastic Pad;FW40	No	Model Compatibility List	$9.10 / Each	9,12,13,14
704030	020119-A	Z10	Screw;Hex Socket;Round;M12x1.75Px25L;Adh	No	Model Compatibility List	$1.79 / Each	2
704039	020126-DB	C66	Screw;Seat Stopper;M8x1.25Px20L	No	Model Compatibility List	$1.79 / Each	2,12,13,14
704041	020127-A	Z13	Screw;Hex Socket;Round;M8X1.25PX12L	No	Model Compatibility List	$1.79 / Each	2
704044	020129-00	Z09	Screw;Round Hex Socket;M10x1.5Px60L	No	Model Compatibility List	$3.35 / Each	2
704193	020465-AB	Z07	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
704217	020489-A	Z22	Washer;Arc;10.2x20.0x1.5t;Chromed	No	Model Compatibility List	$2.00 / Each
704232	020699-A	V03	Rivet;1/8X12.5L	No	Model Compatibility List	$1.79 / Each	1
704304	022377-B	B10	Stopper Mast;S45C;FW40	No	Model Compatibility List	$30.11 / Each	1
704657	024634-A	KIT	Hardware Pack	No	Model Compatibility List	$115.28 / Each	4,5,6
704698	025367-B	AB1	Frame Set - FW40-G2	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
704861	025590-B	AD1	Support Frame Set - FW40-G2	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
704869	025618-B	AC1	Console Base Set - FW40-G2	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3
704873	025629-AA	AJ1	Seat Pad Set;Painting;FW40	No	Model Compatibility List	$225.11 / Each	12,13,14
707066	1000090006	C16	End Cover;Seat Tube Sleeve	No	Model Compatibility List	$3.64 / Each
707975	1000097266	C08	Sleeve;Seat Tube	No	Model Compatibility List	$12.27 / Each	3,12,13,14
729261	See Pad Matrix	E02	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
