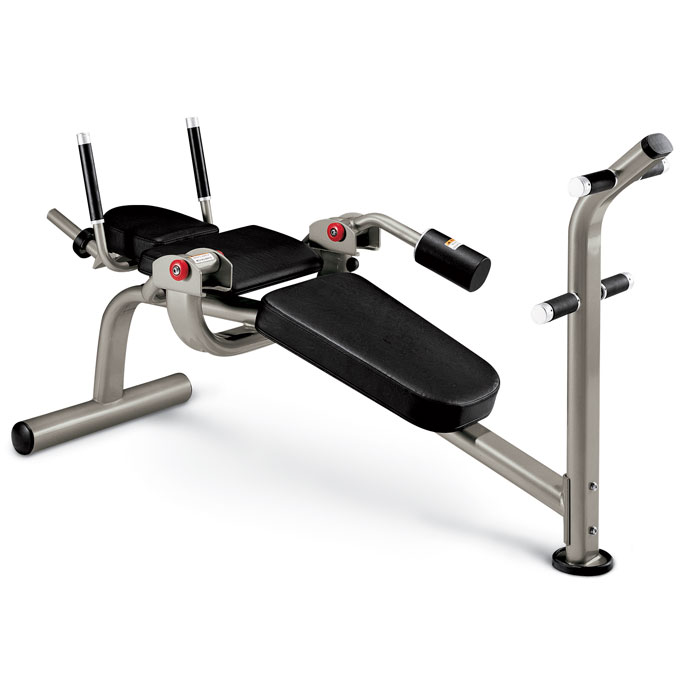

Matrix Commercial - G2-FW50P - 2005

Repair Parts for Matrix Commercial G2-FW50P G2FW50

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G2FW50

Model Name: G2-FW50P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16810.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700151	000521-A	C04	Foot pad;;;Rubber;120;;;GM07	No	Model Compatibility List	$8.42 / Each	9,3,12,13,14
700154	000524-A	B09	Foot pad;Screw Set Leveler;Rubber;FW11	No	Model Compatibility List	$38.32 / Each	2,9,3,12,13,14
700181	000591-C	C06	Foam Grip;31.8x5.0x105L	No	Model Compatibility List	$9.10 / Each
700234	000753-C	K05	Elastomer;Rubber;Upper	No	Model Compatibility List	$3.64 / Each	1
700307	000925-B	K04	End Cap;M38.1x3.0T	No	Model Compatibility List	$1.79 / Each
700308	000926-A	C05	Cap;Tube;PVC;FW91	No	Model Compatibility List	$1.79 / Each	9,3
700398	001240-F	Z18	Pad;Swivel Axle Label;GM03	No	Model Compatibility List	$1.79 / Each	8,12,13,14
700451	001406-A	B07	End Cover;89	No	Model Compatibility List	$1.79 / Each	9
700518	001522-B	E13	Stopper Block;Rubber	No	Model Compatibility List	$3.64 / Each
700526	001529-B	B11	Stopper Bolt;Rubber	No	Model Compatibility List	$1.79 / Each	2
701159	004077-A2	E09	Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
701504	004539-AC	K08	Screw;Round;Hex Socket;M8X1.25PX25L	Yes	Model Compatibility List	$3.64 / Each
701520	004553-AB	Z12	Screw;Round;Hex Socket;M12x1.75Px25L	No	Model Compatibility List	$9.10 / Each
701670	004703-AF	C10	Screw;Flat Hex Socket;M8x1.25Px20L	No	Model Compatibility List	$1.79 / Each
701760	004780-AC	Z11	Screw;Umbrella Hex Scoket;M10x1.5Px25L	No	Model Compatibility List	$4.00 / Each	2
701836	004855-AC	E12	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701914	004943-00	Z10	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701939	004975-00	B08	Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8)	No	Model Compatibility List	$1.90 / Each
701968	005007-00	Z14	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
701970	005009-AB	K10	Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating	No	Model Compatibility List	$2.00 / Each
702085	005117-AB	K09	Washer;Flat;8.2x16.0x2.0T;Chromed	No	Model Compatibility List	$1.33 / Each
702102	005132-00	Z13	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702178	005220-00	Z15	Washer;Wavy;20.7x29.1x.3T	No	Model Compatibility List	$2.00 / Each
702318	005990-E	V07	Decal;Matrix Logo	No	Model Compatibility List	$18.77 / Each	7,3
702710	009355-B	C08	Stopper Mast;Foam;AL6061;GM02	No	Model Compatibility List	$3.64 / Each
702711	009356-B	E11	Stopper Mast;Foam;AL6061;GM03	No	Model Compatibility List	$3.64 / Each
702721	009371-E	E10	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
702722	009372-E	C07	Cap;Grip;GM02	No	Model Compatibility List	$13.36 / Each
703877	018904-CA	E20	Foam;Grip;24x5x260L	No	Model Compatibility List	$8.42 / Each	11
704008	020098-AE	Z07	Screw;Hex Socket;Round;M10x1.5Px70L ;Adh	No	Model Compatibility List	$9.10 / Each	2
704104	020254-AB	B10	Screw;Hex Socket;Flat;M8x1.25Px30L;Adher	No	Model Compatibility List	$3.35 / Each	2
704193	020465-AB	Z08	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
704236	021311-A	not shown	WARNING DECAL	No	Model Compatibility List	$1.66 / Each	7,3
704310	022384-B	Z17	Rotating Axle Center;SCM4;FW50	No	Model Compatibility List	$24.52 / Each	8
704311	022386-B	E19	Balance Plate	No	Model Compatibility List	$195.81 / Each	3
704316	022395-B	B12	Sleeve;Axle;20X40MM	No	Model Compatibility List	$3.64 / Each	8,3
704319	022400-A	E21	Spring Pin;5x30L	No	Model Compatibility List	$3.64 / Each
704411	024072-Z	AE1	HANDLEBAR SET - FW50	No	Model Compatibility List	$1073.51 / Each	11
704412	024075-Z	AC1	Base Frame Set	No	Model Compatibility List	$500.42 / Each	3
704845	025563-AA	AB1	FW50 FRAME WELDING SET(PAINT) .	No	Model Compatibility List	$1169.95 / Each	3
706989	067966-A	K07	Sleeve;POM(BL);FW50	No	Model Compatibility List	$102.93 / Each	3
706995	068145-Z	AK1	WEIGHT PLATE HANGING ROD	No	Model Compatibility List	$215.85 / Each	3
729261	See Pad Matrix	J03	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock

View Drawing
