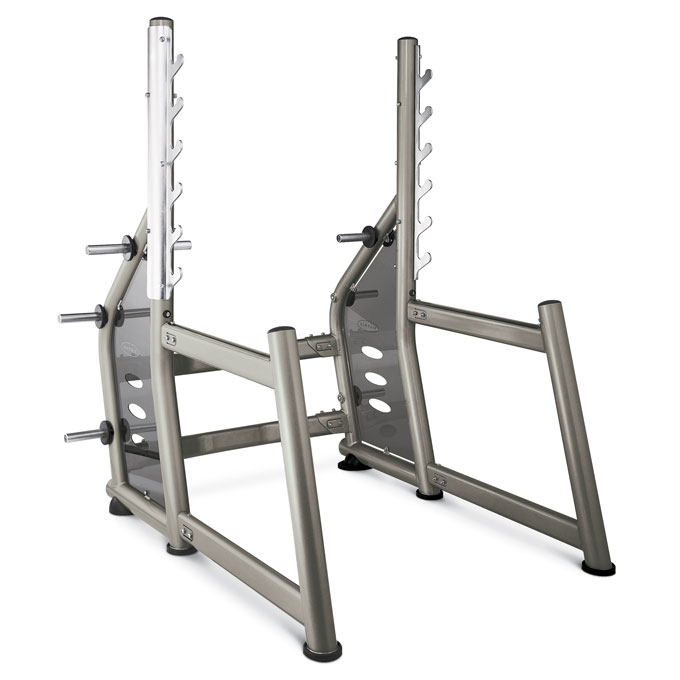

Matrix Commercial - G2-FW72P - 2005

Repair Parts for Matrix Commercial G2-FW72P G2FW72

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G2FW72

Model Name: G2-FW72P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16814.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700146	000515-A	E13	Foot pad;Rubber;100;FW10	No	Model Compatibility List	$9.10 / Each
700154	000524-A	B28	Foot pad;Screw Set Leveler;Rubber;FW11	No	Model Compatibility List	$38.32 / Each	2,9,3,12,13,14
700232	000751-C	B18	Elastomer;;;Rubber;;;;FW10	No	Model Compatibility List	$9.10 / Each	1
700451	001406-A	E12	End Cover;89	No	Model Compatibility List	$1.79 / Each	9
700525	001528-B	E16	Stopper Bolt;Pedal Arm;Rubber	No	Model Compatibility List	$1.79 / Each
701520	004553-AB	B26	Screw;Round;Hex Socket;M12x1.75Px25L	No	Model Compatibility List	$9.10 / Each
701522	004555-AB	G06	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	No	Model Compatibility List	$4.00 / Each
701661	004697-AD	E14	Screw;Flat Hex Socket;M8x1.25Px25L	No	Model Compatibility List	$3.64 / Each	2
701760	004780-AC	G04	Screw;Umbrella Hex Scoket;M10x1.5Px25L	No	Model Compatibility List	$4.00 / Each	2
701790	004805-AB	E08	Screw;Umbrella Hex Scoket;M10x1.5Px65L	No	Model Compatibility List	$9.10 / Each	2
701801	004815-AB	B19	Screw;Umbrella Hex Scoket;M10x1.5Px115L	No	Model Compatibility List	$8.42 / Each	2
701815	004836-00	B29	Set Screw;M8X1.25PX8L	No	Model Compatibility List	$1.66 / Each	2
701841	004859-00	B23	Screw;Umbrella Hex Scoket;M8x1.25Px20L	No	Model Compatibility List	$2.00 / Each	2
701901	004929-00	B25	Nut;Nylon;M8x1.25P;Chromed	No	Model Compatibility List	$2.00 / Each
701914	004943-00	E11	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701939	004975-00	B34	Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8)	No	Model Compatibility List	$1.90 / Each
701968	005007-00	B40	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
701981	005017-00	E10	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702010	005046-AC	B24	Washer;Flat;8.4x15.5x2.0t;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702102	005132-00	B31	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702367	006554-C	V02	Decal;Weight	No	Model Compatibility List	$3.35 / Each	7,3
702531	008523-B	G07	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each
702728	009381-A	B12	Weight Plate Hanging Rod;Storage Horn;38.1x250	No	Model Compatibility List	$34.68 / Each	3
704193	020465-AB	E09a	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
704278	022214-C	B14	Accent Board;Left	No	Model Compatibility List	$238.97 / Each	4,5,6
704279	022215-C	B37	Accent Board;Right	No	Model Compatibility List	$238.97 / Each	4,5,6
704285	022239-B	E07	Board	No	Model Compatibility List	$88.92 / Each	1
704650	024626-A	not shown	Hardware Pack	No	Model Compatibility List	$318.81 / Each	4,5,6
704879	025644-A	B30	Weight Storage Hook;Right;Chromed	No	Model Compatibility List	$479.93 / Each	7,3,12,13,14
705056	033343-AA	AE1	Frame, Support, Polar. Titan.	No	Model Compatibility List	$741.75 / Each	3
705057	033347-AA	AG1	Connecting Tube Set	No	Model Compatibility List	$338.78 / Each	3
709137	1000110295	B11	Weight Storage Horn	No	Model Compatibility List	$93.89 / Each	3
712946	1000231630	Not Shown	Support Seat Set;-;Rear;painting;FW72KM-	No	Model Compatibility List	$344.94 / Each	3,12,13,14
