Replacement Parts for Matrix Commercial G2-FW81P Benches/Racks

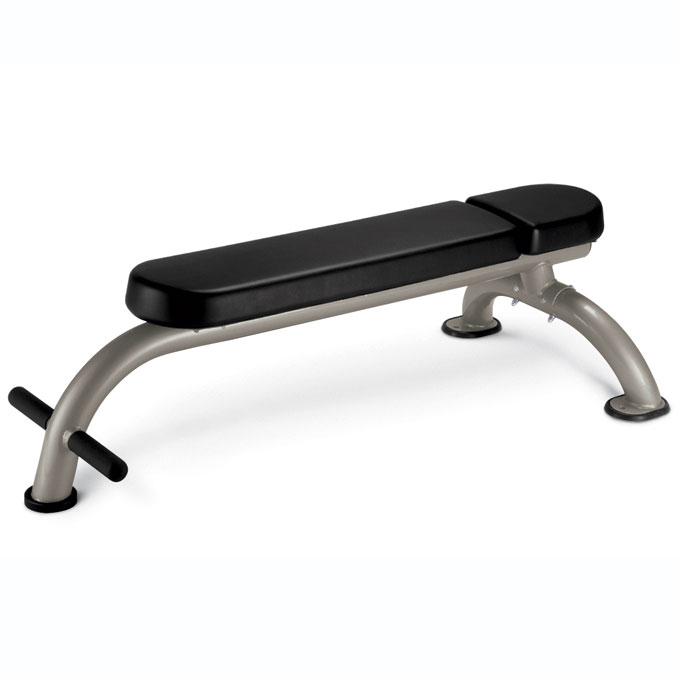

Matrix Commercial - G2-FW81P - 2005

Repair Parts for Matrix Commercial G2-FW81P G2FW81

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G2FW81

Model Name: G2-FW81P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16818.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700140	000509-E	B08	Foot Pad;Rubber;89mm	No	Model Compatibility List	$9.10 / Each	9,3,12,13,14
700166	000554-A	C03	Foot pad;Rubber	No	Model Compatibility List	$14.46 / Each	9,3,12,13,14
700226	000737-D	B13	Foam;Foot pad	No	Model Compatibility List	$9.10 / Each	9,3,12,13,14
700307	000925-B	B12	End Cap;M38.1x3.0T	No	Model Compatibility List	$1.79 / Each
700447	001401-A	B14	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	9
701654	004693-AD	B16	Screw;Flat Hex Socket;M8x1.25Px15L	No	Model Compatibility List	$1.66 / Each
701760	004780-AC	B17	Screw;Umbrella Hex Scoket;M10x1.5Px25L	No	Model Compatibility List	$4.00 / Each	2
701795	004810-AC	C04	Screw;Umbrella Hex Scoket;M8x1.25Px90L	No	Model Compatibility List	$1.33 / Each	2
701964	005005-00	C07	Washer;Spring;Lock;8.2x15.4x2.0t	No	Model Compatibility List	$1.59 / Each
701997	005035-00	C06	Washer;Flat;8.2x18x1.4T	No	Model Compatibility List	$2.00 / Each
702411	006656-A	V11	Decal;Serial Number;Aluminum	No	Model Compatibility List	$1.66 / Each	7,3
702412	006657-D	V02	Decal;Guide Rail;Aluminum D/C, NO REPL: Part will show as orderable until stock is depleted.	No	Model Compatibility List	$8.42 / Each	7,9,3
704168	020393-AB	C05	Nut;AC;M8X1.25P;SS41;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,4,5,6,12,13,14
704232	020699-A	V12	Rivet;1/8X12.5L	No	Model Compatibility List	$1.79 / Each	1
704652	024628-A	not shown	Hardware Pack	No	Model Compatibility List	$64.58 / Each	4,5,6
704842	025558-B	AB1	Main Frame Set, FW81-G2	No	Model Compatibility List	$700.18 / Each	3
704874	025631-B	AC1	Front Foot Frame, FW81-G2	No	Model Compatibility List	$267.28 / Each	9,3
727373	088907	not shown	Manual;Assembly;FW81	No	Model Compatibility List	$17.94 / Each
729261	See Pad Matrix	AP2	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
