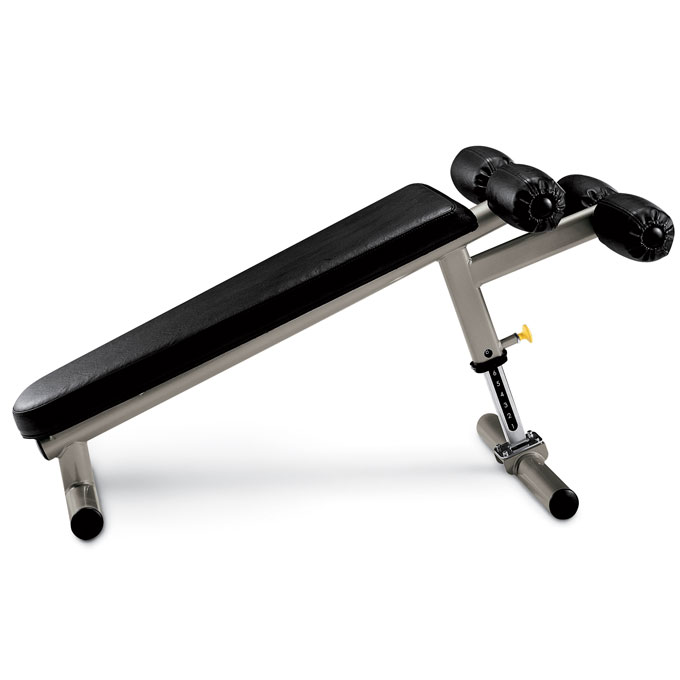

Matrix Commercial - G2-FW83P - 2005

Repair Parts for Matrix Commercial G2-FW83P G2FW83

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G2-FW83P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700447 001401-A Q04 End Cap;76.2 No Model Compatibility List $3.64 / Each

9
Q 700448 001402-A Q03 End Cap;Round No Model Compatibility List $1.79 / Each

9
Q 700454 001410-A Q05 End Cover;Elliptical;40x80 No Model Compatibility List $3.64 / Each

9
Z 701700 004724-AC Z11 Screw;Hex Socket;BH;M8x1.25Px15L;Cr No Model Compatibility List $2.00 / Each

2
Z 701760 004780-AC Z09 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
Z 701978 005015-00 Z16 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

Z 702098 005130-00 Z20 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

V 702318 005990-E V03 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
C 702505 008234-C C65 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

Q 703900 019122-A Q06 End Cover No Model Compatibility List $9.10 / Each

9
Z 704041 020127-A Z13 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
V 704253 021613-B V02 Decal;Angle Adjustic;FW83 No Model Compatibility List $3.64 / Each

7,3
n 704658 024635-A not shown Hardware Pack No Model Compatibility List $51.51 / Each

4,5,6
704699 025368-B AB1 Main Frame Set - FW83-G2 No Model Compatibility List $1098.16 / Each

3
704875 025632-B AH2 Front Stabilizer Set - FW83-G2 No Model Compatibility List $0.00 / Each
Out Of Stock 		1
C 707066 1000090006 C64 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

B 708815 1000106129 B52 Adjustment Pin Assembly;Seat;Yellow Knob No Model Compatibility List $54.73 / Each

3,12,13,14
Adjusting Post 727349 088740 AH1 Adjusting Post No Model Compatibility List $643.42 / Each

729261 See Pad Matrix J21 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
View Drawing
