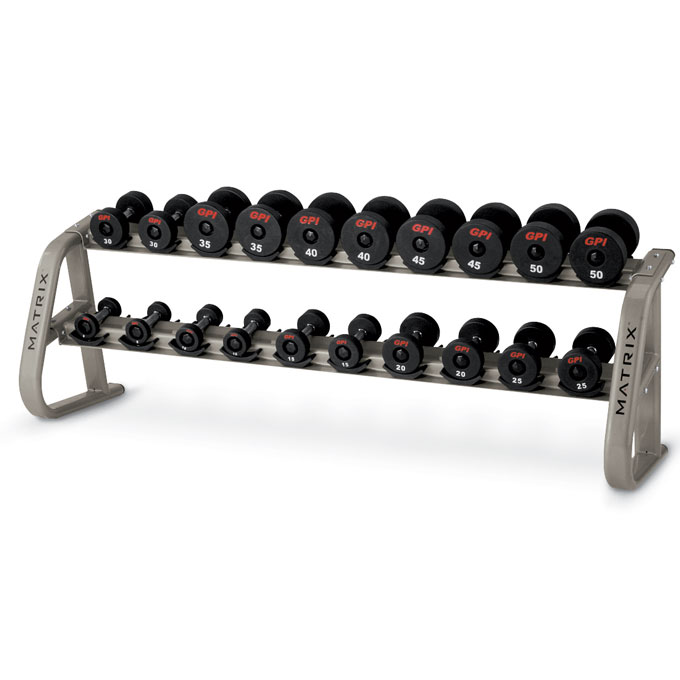

Matrix Commercial - G2-FW91P - 2005

Repair Parts for Matrix Commercial G2-FW91P G2FW91

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G2-FW91P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
G 700249 000776-A G05 Elastomer;E5-09B;FW91 No Model Compatibility List $9.52 / Each

1
G 700308 000926-A G04 Cap;Tube;PVC;FW91 No Model Compatibility List $1.79 / Each

9,3
G 701545 004573-AE G11 Screw;Hex Socket;Sink;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
D 701760 004780-AC D27 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
D 701784 004797-AD D24 Screw;Umbrella Hex Scoket;M10x1.5Px70L No Model Compatibility List $8.42 / Each

2
D 701792 004808-AF D25 Screw;Umbrella Hex Scoket;M10x1.5Px120L No Model Compatibility List $18.23 / Each

2
D 701914 004943-00 D21 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

D 701941 004976-00 D26 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
D 701981 005017-00 D23 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

D 702100 005131-00 D22 Washer;Flat;10.5x18x2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 702318 005990-E V03 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
n 703458 014759-A not shown Hardware Pack No Model Compatibility List $105.56 / Each

4,5,6
703870 018874-BA D30 Foot Pad No Model Compatibility List $1.66 / Each

9,3,12,13,14
V 704232 020699-A V12 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
A 704858 025585-B AD1 SUPPORT FRAME SET - Left FW91-G2- Pol. Titan No Model Compatibility List $816.37 / Each

3
704859 025586-B AD2 SUPPORT FRAME SET - Right FW91-G2- Pol. Titan No Model Compatibility List $816.37 / Each

3
704866 025610-B AG1 Support Frame Set No Model Compatibility List $1.30 / Each

3
705086 035777-A not shown Assembly Manual No Model Compatibility List $11.86 / Each

3
