Replacement Parts for Matrix Commercial G2-FW94P Benches/Racks

Matrix Commercial - G2-FW94P - 2005

Repair Parts for Matrix Commercial G2-FW94P G2FW94

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G2FW94

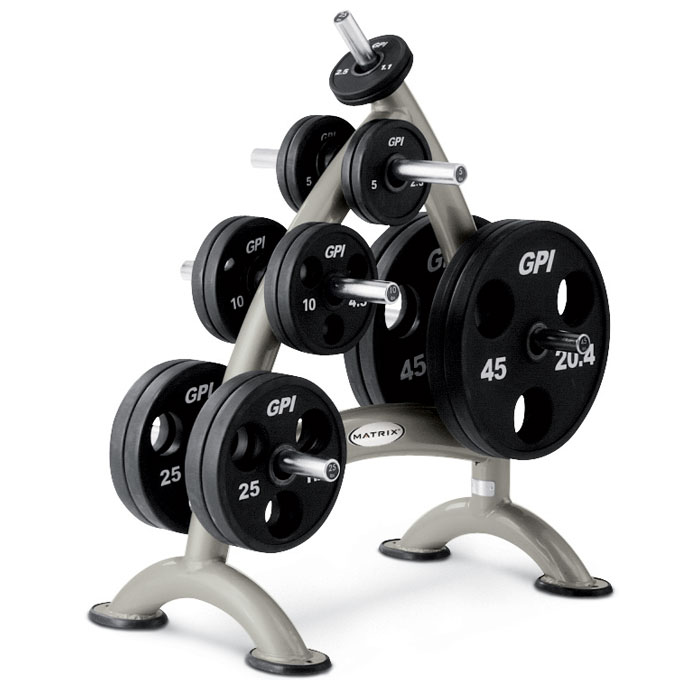

Model Name: G2-FW94P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16823.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700166	000554-A	B12	Foot pad;Rubber	No	Model Compatibility List	$14.46 / Each	9,3,12,13,14
700232	000751-C	B11	Elastomer;;;Rubber;;;;FW10	No	Model Compatibility List	$9.10 / Each	1
700234	000753-C	B09	Elastomer;Rubber;Upper	No	Model Compatibility List	$3.64 / Each	1
701654	004693-AD	B31	Screw;Flat Hex Socket;M8x1.25Px15L	No	Model Compatibility List	$1.66 / Each
701708	004727-AC	B34	Screw;Umbrella Hex Scoket;M8x1.25Px30L;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
701821	004842-AB	B33	Screw;Stopper;M6x1.0Px8.0L	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
702318	005990-E	V02	Decal;Matrix Logo	No	Model Compatibility List	$18.77 / Each	7,3
702367	006554-C	V01	Decal;Weight	No	Model Compatibility List	$3.35 / Each	7,3
702411	006656-A	V11	Decal;Serial Number;Aluminum	No	Model Compatibility List	$1.66 / Each	7,3
703740	015950-AA	B13	Top Weight Horn Housing	No	Model Compatibility List	$54.34 / Each	3
704143	020325-AC	B32	Set Screw;M8X1.25PX15L	No	Model Compatibility List	$1.85 / Each	2
704232	020699-A	V12	Rivet;1/8X12.5L	No	Model Compatibility List	$1.79 / Each	1
704243	021568-B	V03	Decal;Weight;FW94	No	Model Compatibility List	$1.66 / Each	7,3
704844	025560-AA	AB1	MAIN FRAME FW94G2 POLARIZED TITANIUM	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
704967	026822-F	AB3	Weight Storage Horn;Upper	No	Model Compatibility List	$40.66 / Each	3
705088	035780-A	not shown	Assembly Manual	No	Model Compatibility List	$11.86 / Each	3
709137	1000110295	AB2	Weight Storage Horn	No	Model Compatibility List	$93.89 / Each	3
725312	069801	C29	Screw, Flat Hex Socket, M8x1.25Px8L	No	Model Compatibility List	$1.79 / Each

View Drawing
