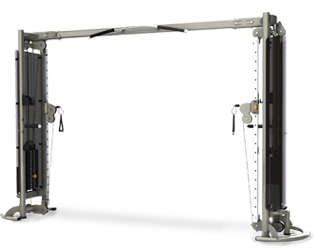

Matrix Commercial - G2-MS20P - 2005

Repair Parts for Matrix Commercial G2-MS20P G2MS20,MS20_1,MS20_2,MS20_3,MS20_4

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G2MS20,MS20_1,MS20_2,MS20_3,MS20_4

Model Name: G2-MS20P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700139	000508-D	B23	Foot Pad;Rubber;60mm	No	Model Compatibility List	$5.15 / Each	9,3,12,13,14
700141	000510-D	B22	Foot Pad;Rubber;76.2mm	No	Model Compatibility List	$5.69 / Each	9,3,12,13,14
700207	000664-AA	G04	Foam Grip;Q31.8X320L	No	Model Compatibility List	$6.14 / Each	11
700236	000755-CA	L04	Elastomer;Incremental Weight Plate	No	Model Compatibility List	$3.95 / Each	3
700256	000791-B	B24	Water Bottle Holder	No	Model Compatibility List	$13.47 / Each	1
700275	000845-F	H15	Sleeve;60x60;Delrin;GM19	No	Model Compatibility List	$3.64 / Each	3
700492	001508-E	K24	Long Guide Rubber Plate;POM	No	Model Compatibility List	$27.48 / Each	3
700497	001513-A	Z13	Rubber Block;Shock Absorb	No	Model Compatibility List	$8.55 / Each	1
700518	001522-B	H22	Stopper Block;Rubber	No	Model Compatibility List	$3.64 / Each
701182	004116-00	K12	Bearing;Dry;Weight Stack	No	Model Compatibility List	$3.64 / Each	8,3,4,5,6
701496	004535-AC	B25	Screw;Hex Socket;Round;M8x1.25Px30L	No	Model Compatibility List	$3.64 / Each	2
701520	004553-AB	Z05	Screw;Round;Hex Socket;M12x1.75Px25L	No	Model Compatibility List	$9.10 / Each
701523	004556-A	B41	Round Hex Socket Screw, M6 x 1.0P x 10L	No	Model Compatibility List	$1.01 / Each	2
701526	004557-AB	Z11	Screw;Hex Socket;Round;M6x1.0Px45L;Adher	No	Model Compatibility List	$1.66 / Each	2
701571	004604-AD	F03	Screw;Hex;M10x1.5Px45L/Tooth15L;Adhere;	No	Model Compatibility List	$3.61 / Each	2
701668	004702-00	B44	Screw;Flat Hex Socket;M8x1.25Px20L	No	Model Compatibility List	$2.00 / Each	2
701693	004720-AC	K17	Screw;Hex Socket;Umbrella;M8x1.25Px20L;	No	Model Compatibility List	$4.00 / Each	2
701805	004819-AB	Z01	Screw;Umbrella Hex Socket;M10x1.5Px95L	No	Model Compatibility List	$10.74 / Each	2
701836	004855-AC	G06	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701911	004938-00	Z12	Nut;Nylon;M6X1.0P;Chromed	No	Model Compatibility List	$2.00 / Each
701914	004943-00	Z04	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701916	004945-00	H21	Nut;Nylon;M12x1.75P;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,12,13,14
701939	004975-00	B31	Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8)	No	Model Compatibility List	$1.90 / Each
701968	005007-00	Z07	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
702025	005058-00	H20	Washer;Flat;12x26x2.0T	No	Model Compatibility List	$2.00 / Each
702102	005132-00	Z06	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702119	005145-AC	K18	Washer;Flat;8.2x19.0x2.0T;Chromed	No	Model Compatibility List	$2.00 / Each
702242	005367-00	K13	C-Clip;External;S-30	No	Model Compatibility List	$4.00 / Each
702308	005847-A	K25	Lanyard;Weight Selection Pin	No	Model Compatibility List	$20.05 / Each	3,12,13,14
702392	006620-D	V03	Decal;Weight Plate;10LBS	No	Model Compatibility List	$27.59 / Each	7,3
702408	006652-B	V05	Incremental Weight Plate Position Decal	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3
702410	006653-C	V06	Decal;Weight Plate	No	Model Compatibility List	$1.33 / Each	7,3
702413	006662-A	V04	Decal;Adjustable	No	Model Compatibility List	$11.83 / Each	7,3
702543	008569-A	H25	Stopper;Pulley Support Plate;MS21 20203T	No	Model Compatibility List	$0.34 / Each	8,3
702654	009247-A	B20	Axle;Swivel;;S45C;10x25L	No	Model Compatibility List	$2.86 / Each
702710	009355-B	G07	Stopper Mast;Foam;AL6061;GM02	No	Model Compatibility List	$3.64 / Each
702719	009365-00	K14	Pin;Spring;10x70L	No	Model Compatibility List	$3.64 / Each	2,12,13,14
702722	009372-E	G05	Cap;Grip;GM02	No	Model Compatibility List	$13.36 / Each
702772	009641-F	K04	Bayonet;Weight Plate;20 Aperture	No	Model Compatibility List	$46.10 / Each	3
703464	014788-E	H14	Metal Pin; Pull Pin	Yes	Model Compatibility List	$36.48 / Each	3,12,13,14
703466	014793D	K10	Weight Plate Seclect Pin w/Red Knob, SCM-21 (Zinc Plating)	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,12,13,14
703708	015836-A	AH1	Pulley Adjustable Tube	No	Model Compatibility List	$208.57 / Each	8,3
703737	015942-AA	K06	Weight Plate Set;10 Lbs;Dry Bearing	No	Model Compatibility List	$42.22 / Each
703902	019153-A	H13	Pull pin knob; Yellow	No	Model Compatibility List	$6.79 / Each	12,13,14
704206	020479-A	Z02	Washer;Flat;10.2x22.0x2.0T;Chromed	No	Model Compatibility List	$2.00 / Each
704235	021244-A	V01	Operation Instruction Decal, MS23-1	No	Model Compatibility List	$11.86 / Each	7,3
704627	024581-A	not shown	Hardware Pack	No	Model Compatibility List	$89.65 / Each	4,5,6
705059	033382-B	AB1	MAIN FRAME SET, MS25(POLARIZED TITANIUM)	No	Model Compatibility List	$3.90 / Each	3
708045	1000098481	L02	Weight Plate, Incremental	No	Model Compatibility List	$95.71 / Each	3
708046	1000098483	L03	Extrawork;Incremental Weight Plate Hook;	No	Model Compatibility List	$35.52 / Each	3
708303	1000101900	AH4	Right Pulley Set	No	Model Compatibility List	$1176.81 / Each	8
710565	1000210973	K09	Guide Rail;19x2000L	No	Model Compatibility List	$273.29 / Each	9
713337	1000301743	F05	Steel Rope-Extrawork;-;-;Press Rope Hand	No	Model Compatibility List	$237.25 / Each	1
720426	1000372591	K10	Adjustable Pin;Weight Plate;;42CrMo;Chro	No	Model Compatibility List	$54.73 / Each	7,3,12,13,14
721052	1000380094	F07	Karabiner Spring Snap;;9(45mmx90mm);Sta	No	Model Compatibility List	$24.91 / Each	2
725354	070350	AK1	Top Weight Plate Set; MS21	No	Model Compatibility List	$262.50 / Each
725583	073572	F17	Pulley; 90mm	No	Model Compatibility List	$44.28 / Each
725584	073573	F21	Pulley; 115mm	Yes	Model Compatibility List	$42.17 / Each
727568	089983	F04	Grip;MS21KM-G3;	No	Model Compatibility List	$48.62 / Each
727579	090123	AG1	Grip Set	No	Model Compatibility List	$258.88 / Each
vis4.5pull	073573		4.5 Inch Pulley Cable (New)	Yes	Model Compatibility List	$36.99 / Each	5,37
vis3.5pull	087513		3.5 Inch Pulley Cable (New)	Yes	Model Compatibility List	$24.99 / Each Out Of Stock	37
