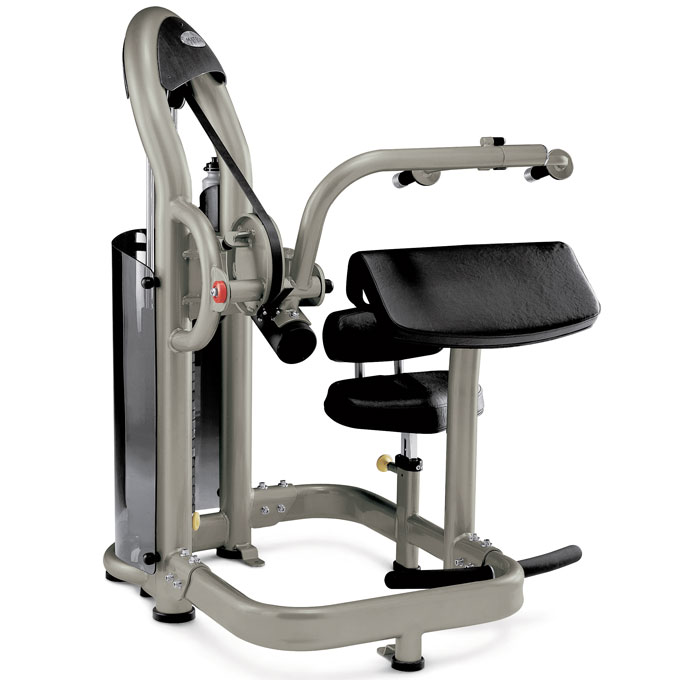

Matrix Commercial - G2-S45P - 2005

Repair Parts for Matrix Commercial G2-S45P G2GM23

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G2-S45P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
G 700139 000508-D G07 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B21 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700141 000510-D C13 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
C 700145 000514-C C10 Foot pad;Tube;Rubber;GM07 No Model Compatibility List $3.64 / Each

B 700162 000542-C B20 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
E 700171 000582-C E11 Foam Grip;25.4x5.0tx100L No Model Compatibility List $5.28 / Each

11
G 700174 000585-F G16 Foam Grip;38.1X3.0TX253L No Model Compatibility List $16.20 / Each

11
B 700256 000791-B B26 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
G 700307 000925-B G17 End Cap;M38.1x3.0T No Model Compatibility List $1.79 / Each

Q 700398 001240-F Q07 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.79 / Each

8,12,13,14
K 700468 001443-B K26 Cap;Bolt Pin;Rubber;GM01 No Model Compatibility List $0.31 / Each

2,9,12,13,14
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
B 700526 001529-B B27 Stopper Bolt;Rubber No Model Compatibility List $1.79 / Each

2
F 700548 001585-F F28 Rubber Stop No Model Compatibility List $1.79 / Each

1
F 701159 004077-A2 F09 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

E 701181 004112-00 E10 Dry Bearing;Flange;LEF-3030 LFF-3030 No Model Compatibility List $6.99 / Each

8
K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
F 701470 004519-AE F14 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

F 701493 004534-AC F15 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

B 701496 004535-AC B29 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
H 701520 004553-AB H33 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

G 701522 004555-AB G15 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

J 701545 004573-AE J08 Screw;Hex Socket;Sink;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
B 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
C 701668 004702-00 C15 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
G 701760 004780-AC G12 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
E 701763 004785-AC E09 Screw;Hex Socket;BH;M12x1.75Px30L;Adhere No Model Compatibility List $9.10 / Each

2
E 701836 004855-AC E21 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

L 701841 004859-00 L09 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
B 701888 004918-00 B40 Nut;Cap;M8x1.25P;BP No Model Compatibility List $0.34 / Each

F 701914 004943-00 F16 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

F 701915 004944-00 F60 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

701939 004975-00 B23 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701968 005007-00 E07 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

L 701980 005016-00 L13 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

G 701981 005017-00 G13 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

F 702057 005084-AB F23 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

E 702102 005132-00 E08 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K19 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
702178 005220-00 H32 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

K 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $27.59 / Each

7,3
V 702406 006650-B V15 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $3.15 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
F 702531 008523-B F11 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
F 702688 009313-B F25 Swivel Axle;SCM4;19X269L;GM14 No Model Compatibility List $39.13 / Each

8
F 702690 009317-CB F22 Balance Plate;SS41;GM03 No Model Compatibility List $123.92 / Each

3
F 702706 009347-B F18 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $9.10 / Each

8,3
E 702713 009358-AA E05 Washer;Swivel Axle;Painting; No Model Compatibility List $20.18 / Each

2,8
K 702719 009365-00 K17 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
E 702721 009371-E E12 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

K 702772 009641-F K03 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
B 702965 013422-Z1G2 B41 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $25.30 / Each

3,4,5,6
K 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

D 703867 018864-AA D24 Cover;Axle No Model Compatibility List $3.41 / Each

8,9
C 704039 020126-DB C50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
C 704041 020127-A C52 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
B 704171 020410-A B32 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
G 704193 020465-AB G14 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

V 704232 020699-A V13 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
V 704245 021582-A V01 OPERATION INSTRUCTION DECAL No Model Compatibility List $15.00 / Each

7,3
V 704248 021589-A V02 Decal;Seat Pad Adjustable;GM23 No Model Compatibility List $8.42 / Each

7,3,12,13,14
704260 021846-A not shown Assembly Manual No Model Compatibility List $8.63 / Each

3
E 704281 022221-A E06 Ring;Exercise Arm;Rubber No Model Compatibility List $24.65 / Each

3
H 704319 022400-A H31 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

704588 024145-Z AG1 BASE fRAME SET(Painting) GM23 No Model Compatibility List $877.01 / Each

3
704589 024146-Z AF1 CAM FRAME SET(Painting) GM23 No Model Compatibility List $795.99 / Each

3
704590 024147-Z AB1 FRAME SET(Painting) GM23 No Model Compatibility List $1.30 / Each

3
704591 024149-Z AC1 LOWER CONNECTING SET(Painting) GM23 No Model Compatibility List $1102.22 / Each

1
n 704648 024611-A not shown Hardware Pack No Model Compatibility List $148.64 / Each

4,5,6
A 704730 025436-AA AJ1 Seat Post;Painting;GM23 No Model Compatibility List $324.17 / Each

12,13,14
J 705053 033303-B J02 Seat Pad fixing plate No Model Compatibility List $153.32 / Each

3,12,13,14
F 705079 035711-A F19 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
A 707046 068985-AA AK1 Painting;Weight Plate;;BL;;;GM07 BLACK No Model Compatibility List $248.12 / Each

3,4,5,6
C 707066 1000090006 C49 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

C 707968 1000097259 C11 Sleeve;Seat Tube No Model Compatibility List $15.99 / Each

3,12,13,14
K 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $165.88 / Each

9
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
Handlebar Set 726879 085769 AE1 Handlebar Set No Model Compatibility List $391.09 / Each

729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
