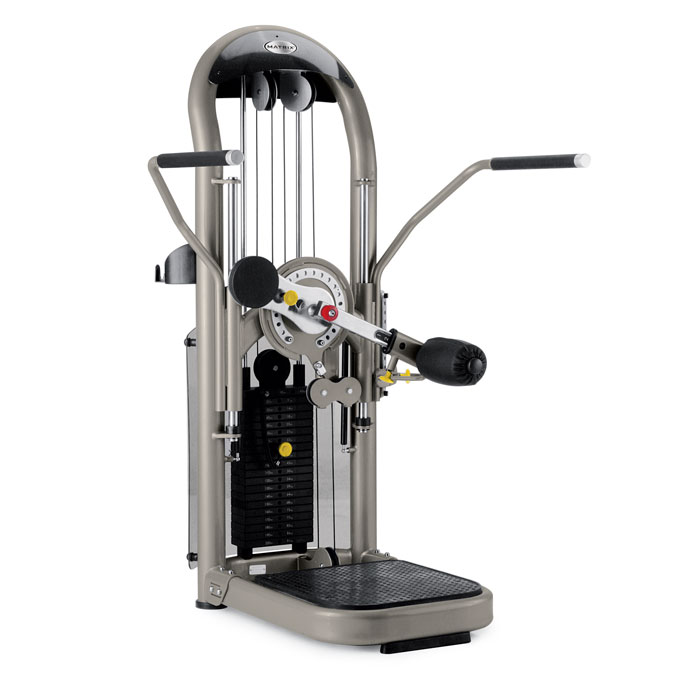

Matrix Commercial - G2-S76P - 2005

Repair Parts for Matrix Commercial G2-S76P G2GM22

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G2-S76P

Version: 2005

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Q 700109 000431-EB Q01 Cover;;;Arcylic;;Light Brown;; ACRYLIC(LOGO) No Model Compatibility List $333.03 / Each

9,4,5,6
B 700139 000508-D B26 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B15 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700162 000542-C C05 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
M 700186 000600-A M19 Foam Grip;31.8x5.0x450L No Model Compatibility List $19.47 / Each

M 700233 000752-A M25 Elastomer;Rubber;GM22 No Model Compatibility List $3.61 / Each

1
B 700256 000791-B B16 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
D 700398 001240-F D09 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.79 / Each

8,12,13,14
H 700448 001402-A H10 End Cap;Round No Model Compatibility List $1.79 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Z 700493 001509-D Z28 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Z 700497 001513-A Z30 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
D 700519 001523-E D39 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

Z 700521 001526-D Z29 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
M 701159 004077-A2 M17 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

K 701182 004116-00 K12 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
C 701496 004535-AC C22 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
D 701501 004538-00 D32 Screw;Hex Socket;Round;M8X1.25PX20L(Chromed) No Model Compatibility List $2.91 / Each

Z 701505 004539-AD Z08 Screw;Round;Hex Socket;M8X1.25PX25L;Chromed No Model Compatibility List $2.00 / Each

Z 701520 004553-AB Z14 Screw;Round;Hex Socket;M12x1.75Px25L No Model Compatibility List $9.10 / Each

Z 701522 004555-AB Z12 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

D 701546 004574-AC D33 Screw;Hex Socket;Sink;M8x1.25Px15L No Model Compatibility List $1.22 / Each

2
Z 701568 004601-AC Z02 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
F 701571 004604-AD F21 Screw;Hex;M10x1.5Px45L/Tooth15L;Adhere; No Model Compatibility List $3.61 / Each

2
B 701668 004702-00 B33 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
Z 701760 004780-AC Z07 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
H 701776 004794-AC H22 Screw;Oval;Hex Socket;M12X1.75PX25L No Model Compatibility List $3.69 / Each

2
M 701836 004855-AC M22 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

K 701841 004859-00 K17 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701855 004875-00 C20 Containing Hex Socket Screw, M8 x 1.25P x 15L No Model Compatibility List $0.31 / Each

2
Z 701857 004879-A Z26 Screw;13x25L;Chromed No Model Compatibility List $1.01 / Each

7,2,12,13,14
Z 701914 004943-00 Z11 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

701939 004975-00 C21 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

H 701978 005015-00 H29 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

Z 701980 005016-00 Z33 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

Z 701981 005017-00 Z10 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

Z 702022 005056-AB Z32 Washer;Flat;13.2X26X2.0T No Model Compatibility List $1.85 / Each

2
Z 702057 005084-AB Z36 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
Z 702102 005132-00 Z24 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K18 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

H 702124 005148-A H07 Washer;Flat;13x35x2.5T;Chromed D/C, NO REPL: Part will show as orderable until stock is depleted. No Model Compatibility List $0.36 / Each

7,2,12,13,14
Z 702146 005180-A Z34 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
Z 702147 005181-A Z35 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
702178 005220-00 D40 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

702231 005356-00 M16 C-Clip;Internal;R-47 No Model Compatibility List $2.00 / Each

702241 005366-00 H21 C-Clip;External;S-25 No Model Compatibility List $1.59 / Each

K 702242 005367-00 K13 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

Z 702250 005377-00 Z31 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V05 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702378 006582-B V01 Decal;Operation Instruction No Model Compatibility List $15.00 / Each

7,3
V 702381 006587-A V01 Decal;Operation Instruction No Model Compatibility List $13.49 / Each

7,3
V 702392 006620-D V04 Decal;Weight Plate;10LBS No Model Compatibility List $27.59 / Each

7,3
V 702402 006630-A V02 Decal;Leg Pad Adjustable;MX-S76;GM22 No Model Compatibility List $2.55 / Each

7,3,12,13,14
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
702438 006866-A not shown Assembly Manual No Model Compatibility List $14.61 / Each

3
H 702505 008234-C H26 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

Z 702523 008450-G Z06 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
Z 702530 008522-C Z12 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
Z 702531 008523-B Z39 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

Z 702545 008585-BB Z27 Fix Base;U-Shaped;Frame;;SPC;5.0t;;;GM22;GM22-D13 No Model Compatibility List $6.19 / Each

3
Z 702546 008589-F Z04 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
B 702547 008592-E B45 Elevation Adjustable Cover, SPC 6.0T(Chromed) No Model Compatibility List $139.13 / Each

7,9,10,12,13,14
H 702662 009277-E H08 Swivel Axle;Foot Pad;50.8X260L;GM22 No Model Compatibility List $76.75 / Each

8,9,3,12,13,14
D 702695 009322-B D06 Balance Plate;SS41;GM22 No Model Compatibility List $91.26 / Each

3
M 702699 009330-I M24 Guide Rail;Elevation;30X820L;GM22 No Model Compatibility List $191.75 / Each

9,10
M 702710 009355-B M20 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

K 702719 009365-00 K14 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
M 702722 009372-E M21 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

M 702758 009554-C M26 Air Shock, 20 KG Route > 320 No Model Compatibility List $39.42 / Each

1
K 702772 009641-F K04 Bayonet;Weight Plate;20 Aperture No Model Compatibility List $46.10 / Each

3
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
H 702965 013422-Z1G2 H05 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
M 702966 013422-ZG2 M18 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
703319 013543-ZG2 AM1 Elevation Welding Set (Polarized Titanium), GM22-G2 No Model Compatibility List $2.60 / Each

10
A 703331 013545-ZG2 AH1 Foot Adjustable Set;Painting No Model Compatibility List $600.89 / Each

9,3
D 703464 014788-E D07 Metal Pin; Pull Pin Yes Model Compatibility List $36.48 / Each

3,12,13,14
K 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

C 703869 018873-A C10 Foot Pad;Pedal;GM22 No Model Compatibility List $109.51 / Each

8,9,3,12,13,14
H 704039 020126-DB H25 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
H 704041 020127-A H27 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
B 704171 020410-A B37 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
Z 704206 020479-A Z09 Washer;Flat;10.2x22.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

Z 704232 020699-A Z01 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
V 704252 021612-A V14 Decal;Adjustic;MX-S76;GM22 No Model Compatibility List $7.31 / Each

7,3
D 704282 022222-C D12 Cam Cover;SUS304;GM22 No Model Compatibility List $178.88 / Each

9
Z 704317 022398-E Z13 Washer;Swivel Axle;SS41; No Model Compatibility List $4.06 / Each

2,8
A 704578 024142-Z AD1 Arm Frame;GM22 No Model Compatibility List $298.64 / Each

3
704583 024143-ZG2 AF1 Cam Frame (Black), GM22 No Model Compatibility List $788.79 / Each

3,4,5,6
n 704644 024605-A not shown Hardware Pack No Model Compatibility List $98.05 / Each

4,5,6
704696 025365-AD AB1 GM22 Frame Set, PGM22G2 (Polarized Titanium) No Model Compatibility List $1.30 / Each

3
A 704715 025386-B AC1 GM22 Frame Set, Base Polarized Titanium No Model Compatibility List $453.05 / Each

3
704809 025511-B C03 Pedal (Paint), PGM22-1 (Polarized Titanium) No Model Compatibility List $339.09 / Each

8,9
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
D 706986 067941-C D08 Cap;25x50x3.0T;GM20 No Model Compatibility List $1.79 / Each

9
A 707058 069023-AA AK1 Top Weight Plate Set No Model Compatibility List $253.40 / Each

3
H 707066 1000090006 H24 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

F 707869 1000096553 F05 Steel Rope;4.8x5289L;GM22 No Model Compatibility List $162.63 / Each

1
H 707973 1000097264 H06 Sleeve;Seat Tube No Model Compatibility List $10.24 / Each

3,12,13,14
Z 708651 1000104676 Z15 E-Shaped Ring;E-24 No Model Compatibility List $0.36 / Each

1
M 716149 1000333566 M15 Bearing;Linear;KS30-PP;;INA; No Model Compatibility List $250.04 / Each

8
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
H 725256 103296 H09 Bushing No Model Compatibility List $9.57 / Each

8
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

Pulley; 115mm 725584 073573 F21 Pulley; 115mm Yes Model Compatibility List $42.17 / Each

Foot Adjustable Set 727232 088006 AH1 Foot Adjustable Set No Model Compatibility List $518.75 / Each

729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4.5 Inch Pulley Cable (New) vis4.5pull 073573 4.5 Inch Pulley Cable (New) Yes Model Compatibility List $36.99 / Each
5,37
3.5 Inch Pulley Cable (New) vis3.5pull 087513 3.5 Inch Pulley Cable (New) Yes Model Compatibility List $24.99 / Each
Out Of Stock 		37
View Drawing
