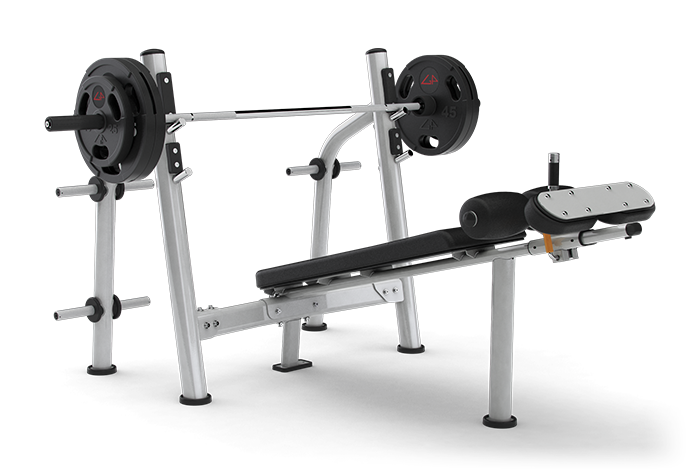

Matrix Commercial - G3-FW15B - 2013

Repair Parts for Matrix Commercial G3-FW15B G3-FW15B,Olympic Decline Bench,G3FW15

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G3-FW15B

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Foot pad;Rubber;100;FW10 700146 000515-A B06 Foot pad;Rubber;100;FW10 No Model Compatibility List $9.10 / Each

Foam Grip;25.4x5.0x75L 700177 000586-F D04 Foam Grip;25.4x5.0x75L No Model Compatibility List $3.35 / Each

11
Elastomer;;;Rubber;;;;FW10 700232 000751-C E16 Elastomer;;;Rubber;;;;FW10 No Model Compatibility List $9.10 / Each

1
Pad;Stopper 700252 000782-B F11 Pad;Stopper No Model Compatibility List $1.79 / Each

12,13,14
End Cap;Front Stabilizer 700359 001129-B L03 End Cap;Front Stabilizer No Model Compatibility List $1.90 / Each

End Cap;Round 700448 001402-A Q06 End Cap;Round No Model Compatibility List $1.79 / Each

9
End Cover;89 700451 001406-A E10 End Cover;89 No Model Compatibility List $1.79 / Each

9
End Cover;Ellipse;40x80x3.0t;MS20 700461 001422-BA Q05 End Cover;Ellipse;40x80x3.0t;MS20 No Model Compatibility List $3.64 / Each

9
Sleeve;Seat Sliding Tube 700479 001465-C D21 Sleeve;Seat Sliding Tube No Model Compatibility List $9.57 / Each

3,12,13,14
Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL 701312 004370-00 N93 Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL No Model Compatibility List $2.00 / Each

701381 004435-00 H06 Screw;FH;M5X0.8PX10L;;PH;;BAN;;BP No Model Compatibility List $2.00 / Each

2
Screw;Hex Socket;Round;M12x1.75Px25L;Cr; 701524 004556-AB Z35 Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.79 / Each

Screw;Hex Socket;8X1.25X20L;Chromed 701660 004696-AB B07 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

Set Screw;M6X1.0PX4L 701836 004855-AC Z06 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

Nut;Nylon;M10x1.5P;Cr Plate; 701914 004943-00 F18 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

701968 005007-00 G28 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

Washer;Flat;13x26x2.5T;Chromed 702102 005132-00 Z03 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Washer;Arc;M10x28x10.5T;SS41 702531 008523-B Z13 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

Stopper Mast;Foam;AL6061;GM03 702711 009356-B C46 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

Cap;Grip;GM03 702721 009371-E C26 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

Bushing;Seat Slide Bar 702747 009486-00 D23 Bushing;Seat Slide Bar No Model Compatibility List $1.90 / Each

8,12,13,14
Cam 702748 009491-E D25 Cam No Model Compatibility List $9.75 / Each

1
Screw;Hex Socket;M10X1.5PX35L;Cr Plate 704137 020304-AC F16 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

Washer;Flat;M10.2X25PX2.0T;Chromed 704193 020465-AB Z03 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

Rivet;1/8X12.5L 704232 020699-A V06 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
INDICATION DECAL--EXTERNAL 704250 021595-A V01 INDICATION DECAL--EXTERNAL No Model Compatibility List $1.66 / Each

7,3
Pressing Slice 704280 022217-A D09 Pressing Slice No Model Compatibility List $9.10 / Each

1
Pressing Plate;Q235L;FW12-D11C 704328 022479-C D11 Pressing Plate;Q235L;FW12-D11C No Model Compatibility List $3.64 / Each

3
704410 024068-Z AD1 FOOT ADJUSTMENT FRAME SET(Painting) No Model Compatibility List $754.75 / Each

9,3
Adjustable Shaft Set 704896 025759-AA AD2 Adjustable Shaft Set No Model Compatibility List $15.65 / Each

3
705063 034325-A E13 Storage Horn Set;-;-;welding;FW10B No Model Compatibility List $74.33 / Each

1
Foot Pad;Rubber;GM151 705367 048970-BA B05 Foot Pad;Rubber;GM151 No Model Compatibility List $8.42 / Each

SCREW;SH;M10X1.5PX120L;;HS;;CHM;; 705461 049252-AB Z13 SCREW;SH;M10X1.5PX120L;;HS;;CHM;; No Model Compatibility List $6.73 / Each

2
Sticker;Weight;A;FW13 706973 067755-B V05 Sticker;Weight;A;FW13 No Model Compatibility List $3.35 / Each

3
Sticker;Weight;Blank;FW13 706974 067756-B V03 Sticker;Weight;Blank;FW13 No Model Compatibility List $3.35 / Each

3
708467 1000102884 E17 Screw;Hex Socket;Stopper;Cone;M8x1.25Px8 No Model Compatibility List $1.79 / Each

2
Screw;Thin Head;M8x1.25Px25L;-;HS;-;CHM; 708474 1000102894 E08 Screw;Thin Head;M8x1.25Px25L;-;HS;-;CHM; No Model Compatibility List $1.79 / Each

2
Circlip;External C Type;S-12;BED 708484 1000102910 C94 Circlip;External C Type;S-12;BED No Model Compatibility List $1.33 / Each

RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) 708657 1000104684 B06 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
Elastomer;Plastic;; 712128 1000226826 E22 Elastomer;Plastic;; No Model Compatibility List $70.77 / Each

9
Elastomer;Plastic;; 712129 1000226827 E09 Elastomer;Plastic;; No Model Compatibility List $43.71 / Each

9
713615 1000305763 E08 Hanging Rod;;Up;45#;FW13-KM; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
CON Tube Set;;;painting;FW13-KM 713616 1000305769 AG1 CON Tube Set;;;painting;FW13-KM No Model Compatibility List $231.50 / Each

3
713627 1000305887 AB1 Frame Set;;;painting;;;FW15-KM; No Model Compatibility List $361.63 / Each

3
726987 086517 H65 Screw;Round Hex Socket;M10x1.5Px25L No Model Compatibility List $3.64 / Each

727480 089543 Not Shown Manual;Assembly;FW15 No Model Compatibility List $17.94 / Each

Hardware;Semi-Assy;FW15KM-G3 727482 089547 Not Shown Hardware;Semi-Assy;FW15KM-G3 No Model Compatibility List $121.37 / Each

728570 095355 2 LEFT SUPPORT FRAME No Model Compatibility List $1.30 / Each

728571 095356 1 RIGHT SUPPORT FRAME No Model Compatibility List $1.30 / Each

Screw;FH;M8X1.25PX30L;;HS;;CHM;; 728949 991668-AC B17 Screw;FH;M8X1.25PX30L;;HS;;CHM;; No Model Compatibility List $3.64 / Each

2
729118 Part of Kit 1 AB2 Stabilizer Frame;Rear;B;Panting;MM330;EP212 No Model Compatibility List $0.00 / Each
Out Of Stock
729138 Part of Kit 2 AC1 Console Mast;Painting;MM330;6027-45- No Model Compatibility List $0.00 / Each
Out Of Stock
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
Screw (New) 941989 004370-00 Screw (New) No Model Compatibility List $12.00 / Each

View Drawing
