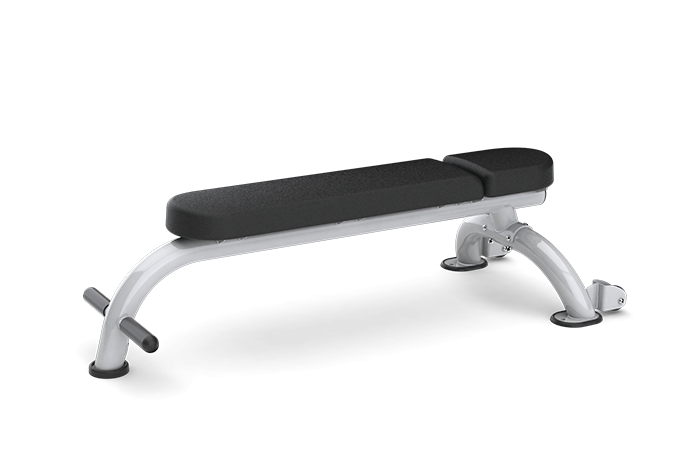

Matrix Commercial - G3-FW81P - 2008

Repair Parts for Matrix Commercial G3-FW81P G3FW81

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3FW81

Model Name: G3-FW81P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700012	000019-F	C16	Wheel;Rubber	No	Model Compatibility List	$17.13 / Each	8
700140	000509-E	B08	Foot Pad;Rubber;89mm	No	Model Compatibility List	$9.10 / Each	9,3,12,13,14
700166	000554-A	C03	Foot pad;Rubber	No	Model Compatibility List	$14.46 / Each	9,3,12,13,14
700226	000737-D	B13	Foam;Foot pad	No	Model Compatibility List	$9.10 / Each	9,3,12,13,14
700307	000925-B	B12	End Cap;M38.1x3.0T	No	Model Compatibility List	$1.79 / Each
700447	001401-A	B14	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	9
701154	004072-A2	C17	Ball Bearing;Flywheel;6002ZZ	No	Model Compatibility List	$11.60 / Each	8
701654	004693-AD	B16	Screw;Flat Hex Socket;M8x1.25Px15L	No	Model Compatibility List	$1.66 / Each
701970	005009-AB	C07	Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating	No	Model Compatibility List	$2.00 / Each
701997	005035-00	C06	Washer;Flat;8.2x18x1.4T	No	Model Compatibility List	$2.00 / Each
702010	005046-AC	C20	Washer;Flat;8.4x15.5x2.0t;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702617	009012-C	C15	Axle;Roller	No	Model Compatibility List	$8.87 / Each	8
704137	020304-AC	B17	Screw;Hex Socket;M10X1.5PX35L;Cr Plate	No	Model Compatibility List	$2.00 / Each
704168	020393-AB	C05	Nut;AC;M8X1.25P;SS41;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,4,5,6,12,13,14
706634	064016-A	Not Shown	hardware set;;2;;FW81/84;;	No	Model Compatibility List	$11.80 / Each	1
708064	1000098708	V02	Decal;AL;PL03	No	Model Compatibility List	$3.35 / Each	7,3
708456	1000102872	C19	Screw;Hex Socket;BH;M8x1.25Px25L;Cr Plat	No	Model Compatibility List	$1.66 / Each	2
708458	1000102874	C04	Screw;Hex Socket;BH;M8x1.25Px95L;Cr Plat	No	Model Compatibility List	$3.02 / Each	2
708485	1000102911	C18	Circlip;External C Type;S-15;BED	No	Model Compatibility List	$1.66 / Each	2
719826	1000366216	V61	Warning Label;Frame;G3FW13;;PC;;English/	No	Model Compatibility List	$0.00 / Each Out Of Stock
720716	1000375071	AC3	Front Foot Frame;;;painting;;Iced Sliver	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
720717	1000375080	1	Frame Set;Semi-Assy;;;;FW81;Iced Sliver;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
725312	069801	C29	Screw, Flat Hex Socket, M8x1.25Px8L	No	Model Compatibility List	$1.79 / Each
727373	088907	not shown	Manual;Assembly;FW81	No	Model Compatibility List	$17.94 / Each
727374	088910	Not Shown	Hardware;Semi-Assy;FW81-AZ2A	No	Model Compatibility List	$53.14 / Each
729012	Order Kit 1	AB1	Console Base Set;Semi-Assy;;;;TM701-1US;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J02	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock

View Drawing
