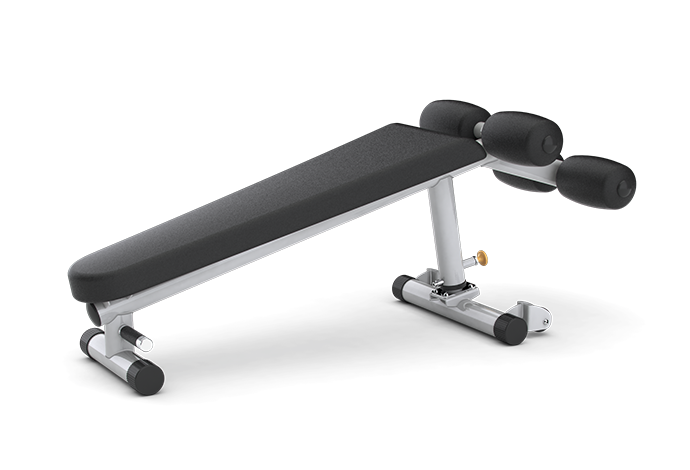

Matrix Commercial - G3-FW83P - 2008

Repair Parts for Matrix Commercial G3-FW83P G3FW83,G3-FW83-02_1,G3-FW83-02_2,G3-FW83-02_3

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3FW83,G3-FW83-02_1,G3-FW83-02_2,G3-FW83-02_3

Model Name: G3-FW83P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700012	000019-F	H14	Wheel;Rubber	No	Model Compatibility List	$17.13 / Each	8
700447	001401-A	B14	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	9
700448	001402-A	B13	End Cap;Round	No	Model Compatibility List	$1.79 / Each	9
700454	001410-A	B15	End Cover;Elliptical;40x80	No	Model Compatibility List	$3.64 / Each	9
701154	004072-A2	H15	Ball Bearing;Flywheel;6002ZZ	No	Model Compatibility List	$11.60 / Each	8
701700	004724-AC	Z11	Screw;Hex Socket;BH;M8x1.25Px15L;Cr	No	Model Compatibility List	$2.00 / Each	2
701761	004781-00	H17	Screw;Hex Socket;BH;M8x1.25Px25L;Adhere;	No	Model Compatibility List	$9.10 / Each
701764	004786-00	B09	Screw;Hex Socket;BH;CrMo;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each
701970	005009-AB	H09	Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating	No	Model Compatibility List	$2.00 / Each
701978	005015-00	B26	Washer;Spring;SW8 8.2X13.5X2.0T	Yes	Model Compatibility List	$2.00 / Each
702010	005046-AC	H08	Washer;Flat;8.4x15.5x2.0t;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702098	005130-00	B20	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
702236	005361-00	H16	C-Clip;External;S-15	No	Model Compatibility List	$2.00 / Each	2
702318	005990-E	V03	Decal;Matrix Logo	No	Model Compatibility List	$18.77 / Each	7,3
702411	006656-A	V11	Decal;Serial Number;Aluminum	No	Model Compatibility List	$1.66 / Each	7,3
702505	008234-C	B65	Bushing;Fixed Plate	No	Model Compatibility List	$9.10 / Each
702617	009012-C	H10	Axle;Roller	No	Model Compatibility List	$8.87 / Each	8
703900	019122-A	B16	End Cover	No	Model Compatibility List	$9.10 / Each	9
703902	019153-A	B52	Pull pin knob; Yellow	No	Model Compatibility List	$6.79 / Each	12,13,14
704039	020126-DB	B66	Screw;Seat Stopper;M8x1.25Px20L	No	Model Compatibility List	$1.79 / Each	2,12,13,14
704041	020127-A	B23	Screw;Hex Socket;Round;M8X1.25PX12L	No	Model Compatibility List	$1.79 / Each	2
704232	020699-A	V13	Rivet;1/8X12.5L	No	Model Compatibility List	$1.79 / Each	1
704253	021613-B	V02	Decal;Angle Adjustic;FW83	No	Model Compatibility List	$3.64 / Each	7,3
704700	025369-AA	AB1	Frame Weld Set;Painting;FW83	No	Model Compatibility List	$1098.16 / Each	3
707066	1000090006	B64	End Cover;Seat Tube Sleeve	No	Model Compatibility List	$3.64 / Each
707084	1000090177	B52	Pull Pin Handle;Orange;TPP;137C;MS10	No	Model Compatibility List	$9.10 / Each	12,13,14,11
708072	1000098872	B29	Pull Pin Set;Seat;Orange Knob	No	Model Compatibility List	$36.48 / Each	12,13,14
708815	1000106129	B29	Adjustment Pin Assembly;Seat;Yellow Knob	No	Model Compatibility List	$54.73 / Each	3,12,13,14
710426	1000210198	J01	BACK PAD;-;PU;BLACK;-;	No	Model Compatibility List	$175.19 / Each	4,5,6,12,13,14
710437	1000210268	J01	BACK PAD;-;PU;RED;-;	No	Model Compatibility List	$361.63 / Each	4,5,6,12,13,14
710443	1000210288	J01	BACK PAD;-;PU;MIST BLUE;-;	No	Model Compatibility List	$361.63 / Each	4,5,6,12,13,14
710450	1000210308	J01	BACK PAD;-;PU;CLAY RED;-;	No	Model Compatibility List	$390.57 / Each	4,5,6,12,13,14
710824	1000214287	J01	PAD SET;SA;BACK PAD;FW83KM-G3;;NO LEATHE	No	Model Compatibility List	$317.38 / Each	4,5,6,12,13,14
725999	079186	D20	Round Pad;200;Black;GM01	No	Model Compatibility List	$54.05 / Each

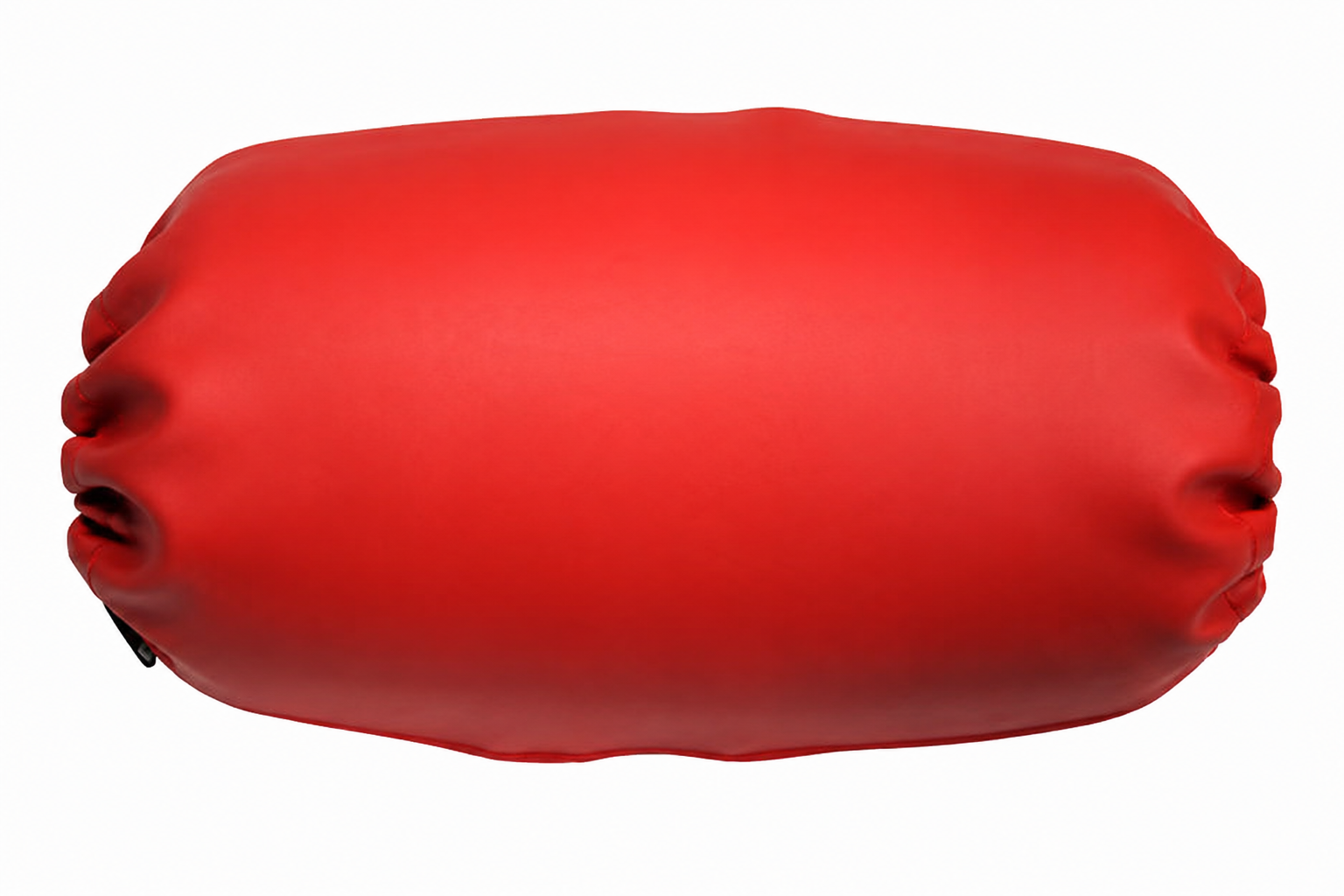

726903	085965	B20	Round Pad;American Beauty Red;200;GM01	No	Model Compatibility List	$58.40 / Each
727264	088184	Not Shown	Assembly Manual;English;MX-H5X-F	No	Model Compatibility List	$20.28 / Each

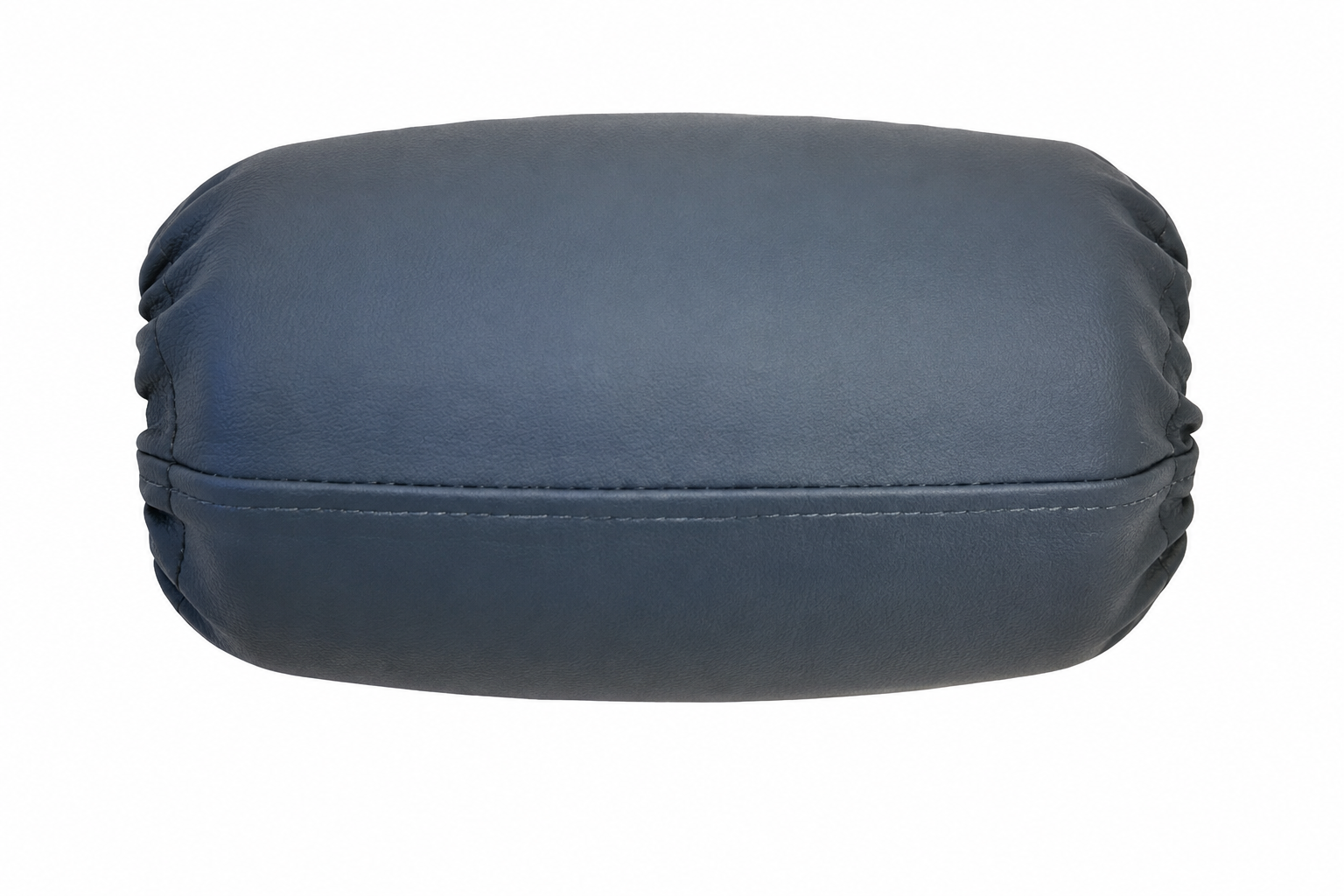

727265	088185	B20	Round Pad;Slate Blue;200;GM01KM	No	Model Compatibility List	$57.43 / Each
727349	088740	AH1	Adjusting Post	No	Model Compatibility List	$643.42 / Each
727432	089164	AH20	Stabilizer Set;F;Painting;FW83KM-G3	No	Model Compatibility List	$382.17 / Each
727435	089168	not shown	Manual;Assembly;FW83	No	Model Compatibility List	$17.94 / Each
727436	089172	not shown	Hardware;Semi-Assy;FW83KM-G3	No	Model Compatibility List	$27.07 / Each
728030	092769	B20	Round Pad;LA Slate Gray;200 #GM01KM-G3	No	Model Compatibility List	$114.89 / Each
728037	092792	21	Entertainment Port Fix Plate Set;U3x-01;	No	Model Compatibility List	$93.29 / Each
728911	098853	B20	Round Pad;No Leather;GM01KM-G3	No	Model Compatibility List	$97.24 / Each
