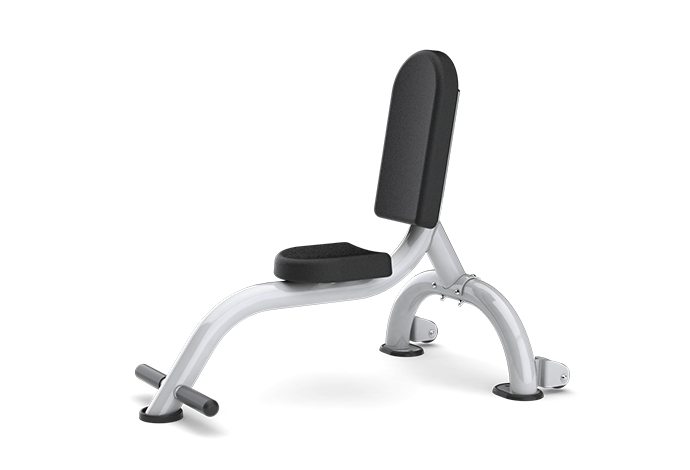

Matrix Commercial - G3-FW84P - 2008

Repair Parts for Matrix Commercial G3-FW84P G3FW84

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3FW84

Model Name: G3-FW84P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700012	000019-F	C16	Wheel;Rubber	No	Model Compatibility List	$17.13 / Each	8
700146	000515-A	B10 /	Foot pad;Rubber;100;FW10	No	Model Compatibility List	$9.10 / Each
700166	000554-A	C05 /	Foot pad;Rubber	No	Model Compatibility List	$14.46 / Each	9,3,12,13,14
700226	000737-D	B32	Foam;Foot pad	No	Model Compatibility List	$9.10 / Each	9,3,12,13,14
700307	000925-B	B31	End Cap;M38.1x3.0T	No	Model Compatibility List	$1.79 / Each
700447	001401-A	B11	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	9
701154	004072-A2	C17	Ball Bearing;Flywheel;6002ZZ	No	Model Compatibility List	$11.60 / Each	8
701654	004693-AD	B33 /	Screw;Flat Hex Socket;M8x1.25Px15L	No	Model Compatibility List	$1.66 / Each
701970	005009-AB	C09 /	Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating	No	Model Compatibility List	$2.00 / Each
702010	005046-AC	C08 /	Washer;Flat;8.4x15.5x2.0t;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702098	005130-00	Z03	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
702617	009012-C	C15	Axle;Roller	No	Model Compatibility List	$8.87 / Each	8
704137	020304-AC	Z01	Screw;Hex Socket;M10X1.5PX35L;Cr Plate	No	Model Compatibility List	$2.00 / Each
704168	020393-AB	Z04	Nut;AC;M8X1.25P;SS41;Chromed	No	Model Compatibility List	$2.00 / Each	7,2,4,5,6,12,13,14
704423	024089-Z	2	Roller Set	No	Model Compatibility List	$40.30 / Each	8
706634	064016-A	Not Shown	hardware set;;2;;FW81/84;;	No	Model Compatibility List	$11.80 / Each	1

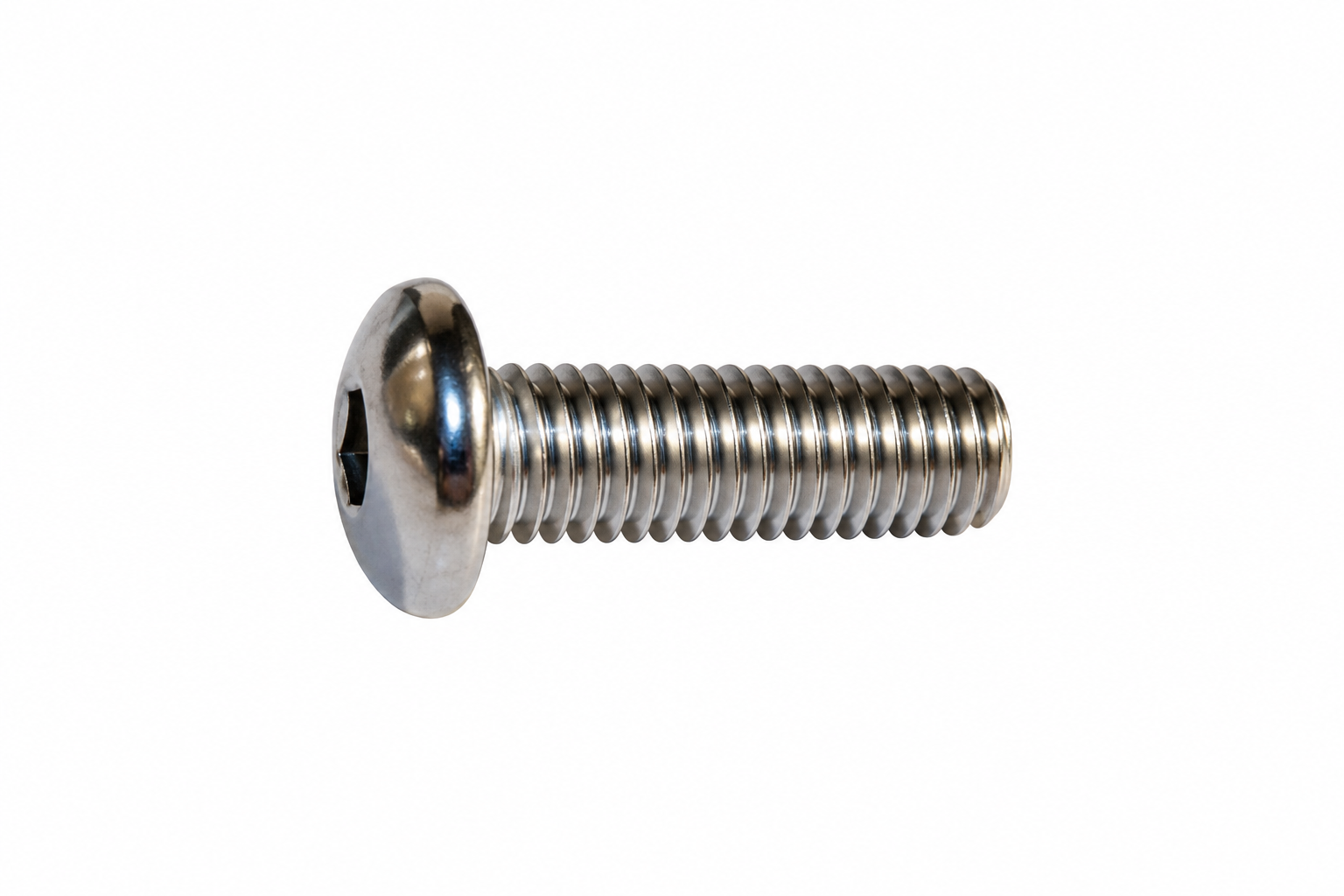

708456	1000102872	C17 /	Screw;Hex Socket;BH;M8x1.25Px25L;Cr Plat	No	Model Compatibility List	$1.66 / Each	2
708458	1000102874	Z02	Screw;Hex Socket;BH;M8x1.25Px95L;Cr Plat	No	Model Compatibility List	$3.02 / Each	2
708485	1000102911	C18	Circlip;External C Type;S-15;BED	No	Model Compatibility List	$1.66 / Each	2
717972	1000349127	1	Frame Weldment;;;Iced Sliver;FW84KM-G3;;0	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
718140	1000349357	AC3	Rear Foot Supt Tube;;;painting;;Iced Sli	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
725312	069801	C29	Screw, Flat Hex Socket, M8x1.25Px8L	No	Model Compatibility List	$1.79 / Each
727427	089142	Not Shown	Manual;Assembly;FW84	No	Model Compatibility List	$17.94 / Each
727428	089146	Not Shown	Hardware;Semi-Assy;FW84KM-G3	No	Model Compatibility List	$70.77 / Each
729012	Order Kit 1	AB1	Console Base Set;Semi-Assy;;;;TM701-1US;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J82	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
