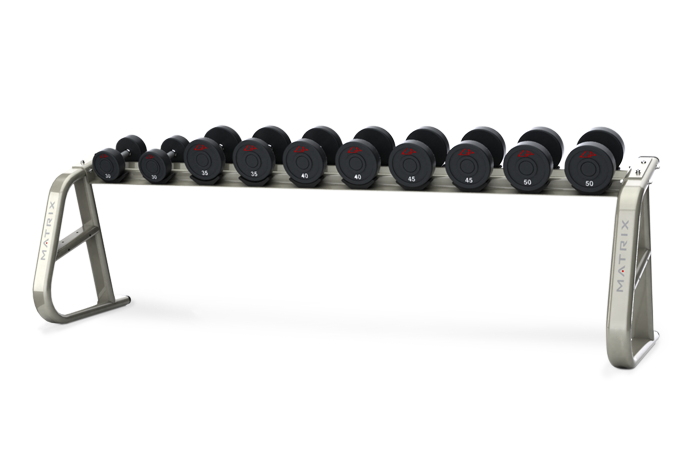

Matrix Commercial - G3-FW90P - 2008

Repair Parts for Matrix Commercial G3-FW90P G3FW90

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Name: G3-FW90P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
G 700249 000776-A G05 Elastomer;E5-09B;FW91 No Model Compatibility List $9.52 / Each

1
D 700308 000926-A D28 Cap;Tube;PVC;FW91 No Model Compatibility List $1.79 / Each

9,3
G 701545 004573-AE G11 Screw;Hex Socket;Sink;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
Z 701760 004780-AC Z08 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
Z 701784 004797-AD Z05 Screw;Umbrella Hex Scoket;M10x1.5Px70L No Model Compatibility List $8.42 / Each

2
Z 701792 004808-AF Z06 Screw;Umbrella Hex Scoket;M10x1.5Px120L No Model Compatibility List $18.23 / Each

2
Z 701914 004943-00 Z02 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

D 701941 004976-00 D26 Insert Nut;Brass;ALS7-1015-1.5(0.5-3.8) No Model Compatibility List $1.90 / Each

2
Z 701981 005017-00 Z04 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

Z 702100 005131-00 Z03 Washer;Flat;10.5x18x2.0T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
V 702318 005990-E V09 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
703870 018874-BA D30 Foot Pad No Model Compatibility List $1.66 / Each

9,3,12,13,14
V 704232 020699-A V02 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
707223 1000091272 AG3 SupportFrameSet;Painting;FW91 No Model Compatibility List $1021.88 / Each

3
N 707824 1000096017 Not Shown Rubber Pad;Fixing;GM40 No Model Compatibility List $2.39 / Each

714884 1000319422 Not Shown Frame Fix Plate;;;painting;;Iced Sliver; No Model Compatibility List $16.87 / Each

727949 092150 not shown Manual;Assembly;FW90 No Model Compatibility List $17.94 / Each

Hardware Set;Semi-Assy;FW90 728049 092887 not shown Hardware Set;Semi-Assy;FW90 No Model Compatibility List $74.44 / Each

728801 097508 AD1 FW90 SUPPORT FRAME WELDING SET No Model Compatibility List $1014.21 / Each

728802 097509 AD2 RIGHT SUPPORT FRAME WELDING SET No Model Compatibility List $1014.21 / Each

View Drawing
