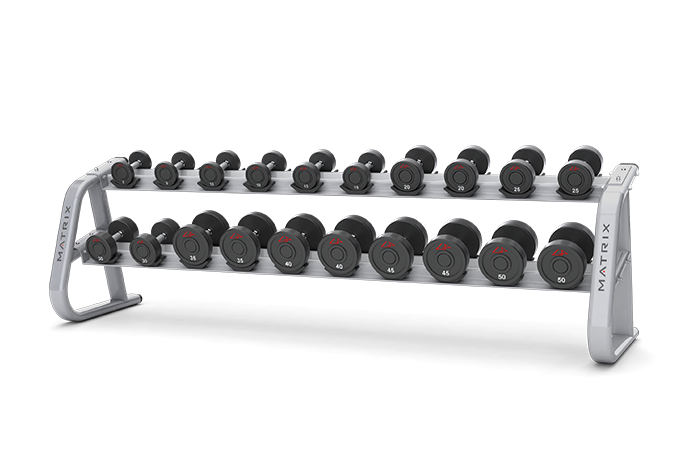

Matrix Commercial - G3-FW91 - 2008

Repair Parts for Matrix Commercial G3-FW91 G3FW91

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3FW91

Model Name: G3-FW91

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700249	000776-A	G05 /	Elastomer;E5-09B;FW91	No	Model Compatibility List	$9.52 / Each	1
700308	000926-A	D28	Cap;Tube;PVC;FW91	No	Model Compatibility List	$1.79 / Each	9,3
701758	004780-00	Z08	Screw;Hex Socket;BH;M10x1.5Px25L;Adhere	No	Model Compatibility List	$2.00 / Each
701914	004943-00	Z02	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701981	005017-00	Z04	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702100	005131-00	Z03	Washer;Flat;10.5x18x2.0T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702296	005499-00	V02 /	Insert Nail;1/8-X7.5L(4-1);	No	Model Compatibility List	$1.66 / Each	1
702318	005990-E	V09 /	Decal;Matrix Logo	No	Model Compatibility List	$18.77 / Each	7,3
703870	018874-BA	D30	Foot Pad	No	Model Compatibility List	$1.66 / Each	9,3,12,13,14
706635	064018-A	Not Shown	hardware set;;2;;FW90/91;;	No	Model Compatibility List	$10.11 / Each	1
707824	1000096017	Not Shown	Rubber Pad;Fixing;GM40	No	Model Compatibility List	$2.39 / Each
708460	1000102876	Z05	Screw;Hex Socket;BH;M10x1.5Px70L;Cr Plat	No	Model Compatibility List	$5.80 / Each	2
708462	1000102878	Z06	Screw;Hex Socket;BH;M10x1.5Px120L;Cr Pla	No	Model Compatibility List	$6.73 / Each	2
708471	004573-AE	G11 /	Screw;FH;M10x25L;-;HS;-;CHM;BP;G10.9;	No	Model Compatibility List	$2.18 / Each	2
708658	1000104685	D26	RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8)	No	Model Compatibility List	$3.35 / Each	1
714884	1000319422	Not Shown	Frame Fix Plate;;;painting;;Iced Sliver;	No	Model Compatibility List	$16.87 / Each
717973	1000349128	1	Support rods;;;Iced Sliver;FW91KM-G3;;Se	No	Model Compatibility List	$219.67 / Each	3
717974	1000349129	2	Support rods;;right;Iced Sliver;FW91KM-G	No	Model Compatibility List	$163.90 / Each	3
718141	1000349360	AG3	Support Rack Set;;M;painting;;Iced Slive	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
727951	092173	Not Shown	Manual;Assembly;FW91	No	Model Compatibility List	$17.94 / Each
729012	Order Kit 1	AD1	Console Base Set;Semi-Assy;;;;TM701-1US;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729024	Order Kit 2	AD2	Motor set;Semi-Assy;;;;TM701-1US;;Servic	No	Model Compatibility List	$0.00 / Each Out Of Stock	10
729745	ZMS4004494	Not Shown	Decal, Dumbbell rack, LA Fit	No	Model Compatibility List	$27.01 / Each Out Of Stock	7,3,4,5,6

View Drawing
