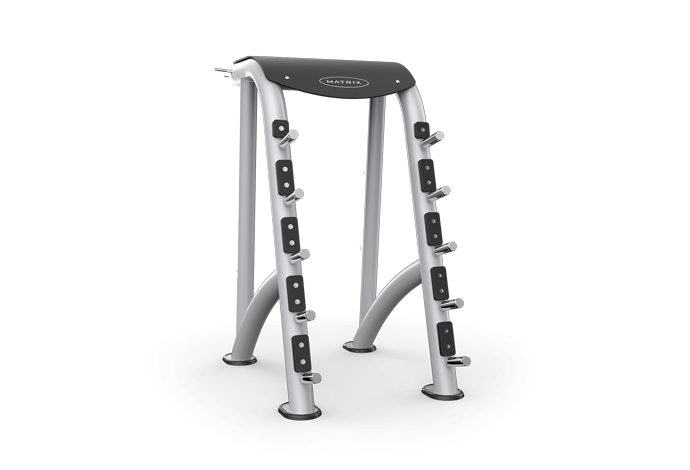

Replacement Parts for Matrix Commercial G3-FW97 Benches/Racks

Matrix Commercial - G3-FW97 - 2008

Repair Parts for Matrix Commercial G3-FW97 G3FW97_1,G3FW97_2,G3FW97_3

Brand: Matrix Commercial

Category: Benches/Racks

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3FW97_1,G3FW97_2,G3FW97_3

Model Name: G3-FW97

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700166	000554-A	B13	Foot pad;Rubber	No	Model Compatibility List	$14.46 / Each	9,3,12,13,14
701653	004693-AC	B17	Screw;Hex Socket;M8x1.25Px15L;Cr	No	Model Compatibility List	$2.44 / Each
701682	004714-AC	B23	Screw;Hex Socket;BH;M6x1.0Px15L;Cr	No	Model Compatibility List	$1.66 / Each	2
701893	004925-00	B24	Nut;Nylon;M6x1.0P;Zinc	No	Model Compatibility List	$2.00 / Each
702731	009384-B	B25	Support Rod;;;SS41;;;;;FW95	No	Model Compatibility List	$3.35 / Each	3
706477	062620-AA	B16	Rubber Pad;Accent;FW95	No	Model Compatibility List	$58.40 / Each	4,5,6,12,13,14
712032	1000225334	B09	Hanging Rod;45#;Cr Plate;FW96	No	Model Compatibility List	$29.30 / Each	3
712129	1000226827	B10	Elastomer;Plastic;;	No	Model Compatibility List	$43.71 / Each	9
717977	1000349132	AB11	Frame set;;;Iced Sliver;FW97KM-G3;;Servi	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
719680	1000363753	V60	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
720234	1000369810	Not Shown	Label set;Semi-Assy;;;English/French;FW9	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
720311	1000371356	V27	Series no. Label;;;;PETP;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
722606	1000395438	B16	Cushion;Accent Plate;;PVC;BL/Black C;3.0	No	Model Compatibility List	$133.48 / Each	3,4,5,6
725312	069801	C29	Screw, Flat Hex Socket, M8x1.25Px8L	No	Model Compatibility List	$1.79 / Each
727510	089676	V41	Manual;Assembly;FW97	No	Model Compatibility List	$17.94 / Each
727511	089685	Not Shown	Label Set;Semi-Assy;FW97-SNAP	No	Model Compatibility List	$0.00 / Each Out Of Stock
728804	097525	AB11	MAIN FRAME SET	No	Model Compatibility List	$2.60 / Each
728949	991668-AC	B19	Screw;FH;M8X1.25PX30L;;HS;;CHM;;	No	Model Compatibility List	$3.64 / Each	2

View Drawing
