Matrix Commercial - G3-MS24 - 2014

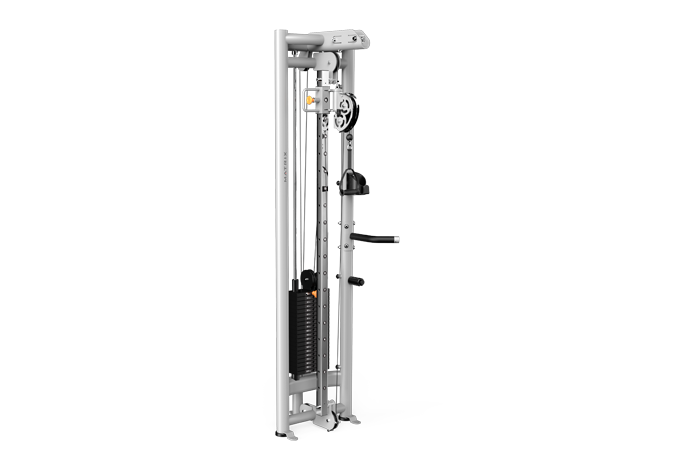

Repair Parts for Matrix Commercial G3-MS24 G3-MS24,G3MS24

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Name: G3-MS24

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700139 000508-D B23 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700141 000510-D B22 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
G 700207 000664-AA G04 Foam Grip;Q31.8X320L No Model Compatibility List $6.14 / Each

11
L 700236 000755-CA L04 Elastomer;Incremental Weight Plate No Model Compatibility List $3.95 / Each

3
B 700256 000791-B B24 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
H 700275 000845-F H15 Sleeve;60x60;Delrin;GM19 No Model Compatibility List $3.64 / Each

3
H 700452 001407-A H12 End-Cover;Square Tube;GM03 No Model Compatibility List $1.66 / Each

9,3
Z 700493 001509-D Z21 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
Z 700497 001513-A Z13 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
H 700518 001522-B H22 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

Z 700521 001526-D Z20 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
B 701496 004535-AC B25 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
Z 701524 004556-AB Z05 Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.79 / Each

Z 701525 004557-A Z11 SCREW;SH;M6X1.0PX45L;;HS;;CHM;; No Model Compatibility List $1.66 / Each

2
K 701694 004720-AH K17 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

Z 701807 004822-AB Z01 Screw;Umbrella Hex Scoket;M10X1.5PX100L No Model Compatibility List $7.93 / Each

2
G 701836 004855-AC G06 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

Z 701911 004938-00 Z12 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $2.00 / Each

F 701914 004943-00 F04 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

H 701916 004945-00 H21 Nut;Nylon;M12x1.75P;Chromed No Model Compatibility List $2.00 / Each

7,2,12,13,14
701939 004975-00 B31 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

K 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
H 702026 005058-AB H20 Washer;Flat;12x26x2T;Chromed No Model Compatibility List $1.66 / Each

7,2,12,13,14
Z 702102 005132-00 Z06 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $27.59 / Each

7,3
V 702409 006652-C V05 Decal;Incremental Weight Plate No Model Compatibility List $4.06 / Each

7,3
V 702410 006653-C V06 Decal;Weight Plate No Model Compatibility List $1.33 / Each

7,3
V 702411 006656-A V12 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
V 702413 006662-A V04 Decal;Adjustable No Model Compatibility List $11.83 / Each

7,3
Z 702531 008523-B Z02 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

H 702543 008569-A H25 Stopper;Pulley Support Plate;MS21 20*20*3T No Model Compatibility List $0.34 / Each

8,3
B 702654 009247-A B20 Axle;Swivel;;S45C;10x25L No Model Compatibility List $2.86 / Each

H 702655 009249-D H16 Axle;Pulley ADJ Sleeve;SCM21;142L;MS21 No Model Compatibility List $37.10 / Each

8,3
G 702710 009355-B G07 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

G 702722 009372-E G05 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

H 702966 013422-ZG2 H13 Adjust Pin Assembly;ROM;Yellow No Model Compatibility List $36.48 / Each

3,12,13,14
H 703464 014788-E H13 Metal Pin; Pull Pin Yes Model Compatibility List $36.48 / Each

3,12,13,14
A 703708 015836-A AH1 Pulley Adjustable Tube No Model Compatibility List $208.57 / Each

8,3
K 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

H 703902 019153-A H14 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
V 704232 020699-A V10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
H 705111 037746-A H26 Stopper;Rubber No Model Compatibility List $4.94 / Each

1
H 707084 1000090177 H14 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
L 708045 1000098481 L02 Weight Plate, Incremental No Model Compatibility List $95.71 / Each

3
L 708046 1000098483 L03 Extrawork;Incremental Weight Plate Hook; No Model Compatibility List $35.52 / Each

3
B 708473 1000102893 B44 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

B 708593 1000104003 B59 Cap;Insert Nut;GM40-KM No Model Compatibility List $2.96 / Each

K 708675 1000104705 K19 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.52 / Each

F 708684 1000104720 F03 Screw;HH;M10x1.5Px45L;P-T15L;CHM;BP;G8.8 No Model Compatibility List $2.18 / Each

2
Z 708686 1000104723 Z31 Washer;FLT;6.2x13.0x1.0t;CHM No Model Compatibility List $0.13 / Each

V 709081 1000109127 V22 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

K 710565 1000210973 K09 Guide Rail;19x2000L No Model Compatibility List $273.29 / Each

9
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
V 711256 1000218630 V24 Warning Label;Pull Pin No Model Compatibility List $1.66 / Each

12,13,14
V 713028 1000232600 V23 Warning Label;-;-;-;PC;-;- No Model Compatibility List $7.28 / Each

1
F 713337 1000301743 F05 Steel Rope-Extrawork;-;-;Press Rope Hand No Model Compatibility List $237.25 / Each

1
Z 713869 1000309031 Z30 Screw;Hex Socket;Button Head;M6X1.0PX45L No Model Compatibility List $1.66 / Each

2
K 717480 1000345425 K28 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $18.23 / Each

N 718155 1000349399 Not Shown Frame Connect Plate;;U;painting;;Iced Sl No Model Compatibility List $476.55 / Each

3
N 718156 1000349400 Not Shown Frame Connect Plate;;D;painting;;Iced Sl No Model Compatibility List $86.16 / Each

3
N 718623 1000352335 Not Shown Hardware Set;Semi-Assy;;;;MS24BKM-G3;; No Model Compatibility List $33.77 / Each

1
718624 1000352336 B58 Cap;Aperture Cap;;PP;;#13.5;MS50CK-G3; No Model Compatibility List $0.00 / Each
Out Of Stock
718966 1000354792 1 Frame Set;Semi-Assy;;;;MS24BKM-G3;Iced S No Model Compatibility List $2.60 / Each

3
2 718967 1000354810 2 Handle set;Semi-Assy;;;;MS24BKM-G3;Iced No Model Compatibility List $168.97 / Each

11
A 718970 1000354828 AH2 Pulley Set;;;painting;;Iced Sliver;MS21- No Model Compatibility List $152.07 / Each

8
3 718971 1000354841 3 Guide base set;Semi-Assy;;;;MS24B-KM;Ice No Model Compatibility List $219.00 / Each

3
718976 1000354879 H27 Sleeve;;;painting;;Iced Sliver;MS21; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
A 719337 1000359936 AK1 Up Weight Plate Set-Exreawork;;;;;MS21; No Model Compatibility List $219.00 / Each

3
N 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
719741 1000364885 Q01 Cover set;Semi-Assy;front;;;MS23KM-G3;; No Model Compatibility List $0.00 / Each
Out Of Stock 		9
N 719742 1000364887 Not Shown Cover set;Semi-Assy;back;;;MS23KM-G3;; No Model Compatibility List $715.47 / Each

9,4,5,6
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
F 721052 1000380094 F07 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
721144 1000380984 Not Shown Instructional Labe;;;;PC;;English;MS24 No Model Compatibility List $15.18 / Each

1
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

Pulley; 115mm 725584 073573 F21 Pulley; 115mm Yes Model Compatibility List $42.17 / Each

Screw;BH;M6X1.0PX10L;;HS;;CHM;;BP 727227 087955 B41 Screw;BH;M6X1.0PX10L;;HS;;CHM;;BP No Model Compatibility List $1.14 / Each

Grip;MS21KM-G3; 727568 089983 F04 Grip;MS21KM-G3; No Model Compatibility List $48.62 / Each

4.5 Inch Pulley Cable (New) vis4.5pull 073573 4.5 Inch Pulley Cable (New) Yes Model Compatibility List $36.99 / Each
5,37
3.5 Inch Pulley Cable (New) vis3.5pull 087513 3.5 Inch Pulley Cable (New) Yes Model Compatibility List $24.99 / Each
Out Of Stock 		37
