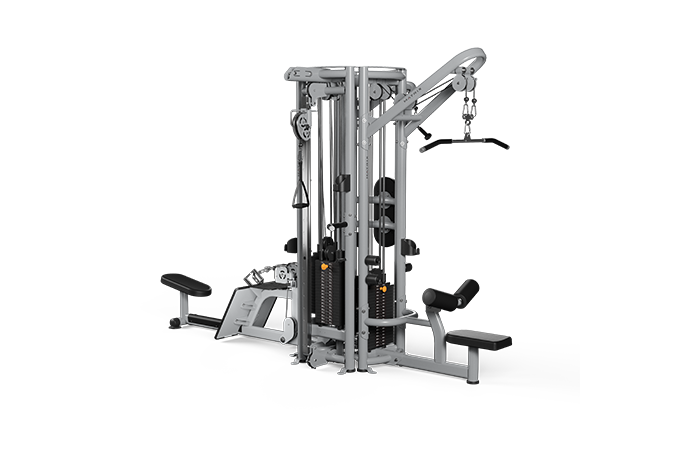

Matrix Commercial - G3-MS40P - 2008

Repair Parts for Matrix Commercial G3-MS40P G3MS40_1,G3MS40_2,G3MS40_3,G3MS40_4,G3MS40_5,G3MS40_6,G3MS40_7,G3MS40_8,G3MS40_9

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3MS40_1,G3MS40_2,G3MS40_3,G3MS40_4,G3MS40_5,G3MS40_6,G3MS40_7,G3MS40_8,G3MS40_9

Model Name: G3-MS40P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700308	000926-A	G09	Cap;Tube;PVC;FW91	No	Model Compatibility List	$1.79 / Each	9,3
700493	001509-D	Z21	Fix Rubber Block;Cover;Rubber;GM01	No	Model Compatibility List	$1.79 / Each	9
700521	001526-D	Z20	Bolt;Cover;M8x1.25Px40L	No	Model Compatibility List	$2.52 / Each	2,9
701496	004535-AC	Z16	Screw;Hex Socket;Round;M8x1.25Px30L	No	Model Compatibility List	$3.64 / Each	2
702004	005042-00	Z02	Washer;Flat;8.2X30.0X2.0T;Black Zinc	Yes	Model Compatibility List	$2.00 / Each
702531	008523-B	Z22	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each
708456	1000102872	Z16	Screw;Hex Socket;BH;M8x1.25Px25L;Cr Plat	No	Model Compatibility List	$1.66 / Each	2
714901	1000319516	AH1	Adjustment set;;;MAT BLACK;GM01-G3;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
715984	1000330384	1	FG Fabricate Set;;;;;MS24;;Service	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
715985	1000330387	2	FG Fabricate Set;;;;;MS51;;Service	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
715986	1000330389	3	FG Fabricate Set;;;;;MS52;;Service	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
715987	1000330391	4	FG Fabricate Set;;;;;MS53;;Service	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
718155	1000349399	AG4	Frame Connect Plate;;U;painting;;Iced Sl	No	Model Compatibility List	$476.55 / Each	3
718156	1000349400	G15	Frame Connect Plate;;D;painting;;Iced Sl	No	Model Compatibility List	$86.16 / Each	3
719338	1000359953	V25	Warning Label;Anti Falling Down;MS24B;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719682	1000363760	V51	Warning Label;Frame;;;PC;;English;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719705	1000364025	V31	Warning Label;Anti Falling Down;MS24B;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719707	1000364027	V36	Warning Label;Anti Falling Down;MS24B;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719708	1000364028	V41	Warning Label;Anti Falling Down;MS24B;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719711	1000364031	V46	Warning Label;Anti Falling Down;MS24B;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719712	1000364032	V51	Warning Label;Anti Falling Down;MS24B;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719714	1000364039	V56	Warning Label;Anti Falling Down;MS24B;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
719734	1000364559	V25	Warning Label;Anti Falling Down;MS24B;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
719741	1000364885	Q01	Cover set;Semi-Assy;front;;;MS23KM-G3;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	9
719742	1000364887	Not Shown	Cover set;Semi-Assy;back;;;MS23KM-G3;;	No	Model Compatibility List	$715.47 / Each	9,4,5,6
720185	1000369167	V60	Warning Label;Frame;;;PC;;English/French	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
720435	1000372784	G01	Horizon Tube;Frame;;painting;;Iced Slive	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
726987	086517	H65	Screw;Round Hex Socket;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each
727077	087060	Not Shown	Hardware;Semi-Assy;MS40-G3	No	Model Compatibility List	$0.00 / Each Out Of Stock

View Drawing
