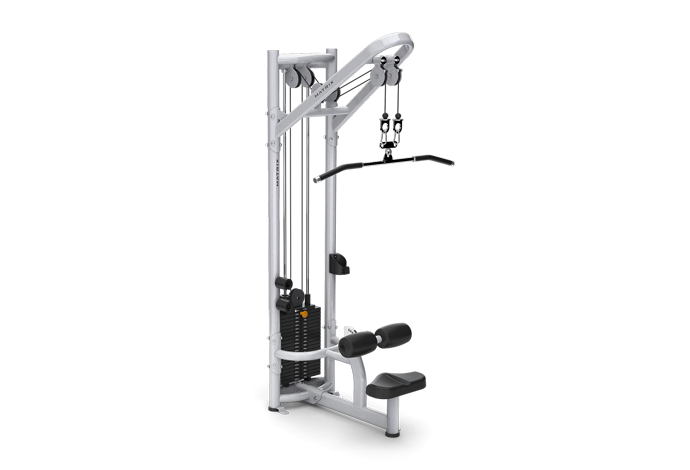

Matrix Commercial - G3-MS51 - 2014

Repair Parts for Matrix Commercial G3-MS51 G3MS51,G3MS51E

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Name: G3-MS51

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700139 000508-D B20 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700141 000510-D B19 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
L 700236 000755-CA L04 Elastomer;Incremental Weight Plate No Model Compatibility List $3.95 / Each

3
B 700256 000791-B B18 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
T 700448 001402-A T12 End Cap;Round No Model Compatibility List $1.79 / Each

9
Z 700497 001513-A Z16 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
T 700519 001523-E T13 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

701159 004077-A2 F09 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

H 701183 004118-00 H08 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
T 701436 004482-AB T31 Screw;Hex Socket;Round;M8x1.25Px20L;Cr No Model Compatibility List $2.00 / Each

Z 701470 004519-AE Z08 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

Z 701496 004535-AC Z01 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
Z 701522 004555-AB Z17 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A Yes Model Compatibility List $4.00 / Each

Z 701524 004556-AB Z10 Screw;Hex Socket;Round;M12x1.75Px25L;Cr; No Model Compatibility List $1.79 / Each

Z 701525 004557-A Z13 SCREW;SH;M6X1.0PX45L;;HS;;CHM;; No Model Compatibility List $1.66 / Each

2
K 701693 004720-AC K17 Screw;Hex Socket;Umbrella;M8x1.25Px20L; No Model Compatibility List $4.00 / Each

2
Z 701911 004938-00 Z14 Nut;Nylon;M6X1.0P;Chromed No Model Compatibility List $2.00 / Each

Z 701914 004943-00 Z07 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

701939 004975-00 B31 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701968 005007-00 Z12 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

K 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
Z 702102 005132-00 Z11 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702318 005990-E V04 Decal;Matrix Logo No Model Compatibility List $18.77 / Each

7,3
V 702382 006610-B V07 Decal;Foot Pad Adjustable;GM01 No Model Compatibility List $3.35 / Each

7,9,3,12,13,14
V 702383 006611-E V03 Decal;Weight Plate;15LBS (Contains decals up to 295lbs) No Model Compatibility List $27.59 / Each

7,3
V 702409 006652-C V05 Decal;Incremental Weight Plate No Model Compatibility List $4.06 / Each

7,3
V 702410 006653-C V06 Decal;Weight Plate No Model Compatibility List $1.33 / Each

7,3
Z 702531 008523-B Z18 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

T 702536 008546-F T10 Leveler Adjustable Cover No Model Compatibility List $93.08 / Each

9,3
F 702654 009247-A F07 Axle;Swivel;;S45C;10x25L No Model Compatibility List $2.86 / Each

H 702671 009289-F H07 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $3.64 / Each

8,4,5,6,12,13,14
F 702711 009356-B F54 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

F 702721 009371-E F53 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

H 702944 013411-Z1G2 H09 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
A 703709 015840-A AT2 Grip Fix Set;R;Painting;MS53 No Model Compatibility List $104.13 / Each

11
K 703738 015943-AA K06 Weight Plate Set;15 Lbs;Dry Bearing No Model Compatibility List $67.57 / Each

8,3
N 703741 015951-AA N11 Grip Hanging Hook;;Dipping;;MS MS51-N11 No Model Compatibility List $17.34 / Each

12,13,14,11
H 703902 019153-A H09 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
Z 704137 020304-AC Z15 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

Z 704193 020465-AB Z05 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

N 704629 024583-A Not Shown Hardware Pack No Model Compatibility List $239.93 / Each

4,5,6
F 705011 029145-AA F56 Foam;25.4x5.0tx476L No Model Compatibility List $25.30 / Each

1
H 707084 1000090177 H09 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
L 708045 1000098481 L02 Weight Plate, Incremental No Model Compatibility List $95.71 / Each

3
L 708046 1000098483 L03 Extrawork;Incremental Weight Plate Hook; No Model Compatibility List $35.52 / Each

3
H 708099 1000099693 H09 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
708119 1000099801 AT1 Painting;Seat Set;;MS51-G2;;;;MS51;MS51- No Model Compatibility List $1254.11 / Each

12,13,14
Z 708451 1000102867 Z04 Screw;Hex Socket;Round;M10x1.5Px100L;Cr No Model Compatibility List $12.95 / Each

2
B 708473 1000102893 B33 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

K 708675 1000104705 K19 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.52 / Each

F 708684 1000104720 F22 Screw;HH;M10x1.5Px45L;P-T15L;CHM;BP;G8.8 No Model Compatibility List $2.18 / Each

2
V 709081 1000109127 V22 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

710566 1000210974 K09 Guide Rail;19x2180L No Model Compatibility List $270.04 / Each

9
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
A 710989 1000215717 AN1 Painting;LowerPullSet;;MS51-G2;;;;MS51;M No Model Compatibility List $884.39 / Each

1
A 711010 1000215795 AT2 Cable Connection Plate No Model Compatibility List $52.21 / Each

3,4,5,6
F 713338 1000301744 F08 Steel Rope-Extrawork;-;-;Press Rope Hand No Model Compatibility List $127.74 / Each
Out Of Stock 		1
A 714798 1000318313 AK1 Up Weight Plate Set-Exreawork;;;;;MS51; No Model Compatibility List $228.12 / Each

3
K 717480 1000345425 K28 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $18.23 / Each

N 718155 1000349399 Not Shown Frame Connect Plate;;U;painting;;Iced Sl No Model Compatibility List $476.55 / Each

3
N 718156 1000349400 Not Shown Frame Connect Plate;;D;painting;;Iced Sl No Model Compatibility List $86.16 / Each

3
A 719669 1000363588 AB5 Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
N 719742 1000364887 Not Shown Cover set;Semi-Assy;back;;;MS23KM-G3;; No Model Compatibility List $715.47 / Each

9,4,5,6
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
720726 1000375528 1 Frame Set;Semi-Assy;;;;MS51KM-G3;Polariz No Model Compatibility List $3.90 / Each

3
4 720729 1000375546 4 STRETCH ADJUSTABLE SET;;;Polarized Titan No Model Compatibility List $109.82 / Each

1
A 720730 1000375576 AN1 Lower Pull Set;;;painting;;Iced Sliver;M No Model Compatibility List $314.31 / Each

1
A 720731 1000375578 AN1 Lower Pull Set;;;painting;;Ti;MS51-G2; No Model Compatibility List $628.65 / Each

1
N 720733 1000375596 N12 Pulley Set;Steel Cable;;painting;;Ti;MS5 No Model Compatibility List $223.05 / Each

8,4,5,6
N 721052 1000380094 N17 Karabiner Spring Snap;;9(45mmx90mm);Sta No Model Compatibility List $24.91 / Each

2
721145 1000380986 Not Shown Instructional Labe;;;;PC;;English;MS51 No Model Compatibility List $15.18 / Each

1
Pulley; 115mm 725584 073573 F21 Pulley; 115mm Yes Model Compatibility List $42.17 / Each

Handlebar Set 726567 083007 F08 Handlebar Set No Model Compatibility List $289.87 / Each

Screw Set;M6X1.0PX5L;BP;POT 726707 084241 Z06 Screw Set;M6X1.0PX5L;BP;POT No Model Compatibility List $0.39 / Each

Screw;BH;M6X1.0PX10L;;HS;;CHM;;BP 727227 087955 B41 Screw;BH;M6X1.0PX10L;;HS;;CHM;;BP No Model Compatibility List $1.14 / Each

Grip;MS21KM-G3; 727568 089983 F04 Grip;MS21KM-G3; No Model Compatibility List $48.62 / Each

728981 Not Available V51 Sticker;Instruction;L; No Model Compatibility List $0.00 / Each
Out Of Stock
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
729024 Order Kit 2 AF7 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AF1 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729261 See Pad Matrix J02 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
4.5 Inch Pulley Cable (New) vis4.5pull 073573 4.5 Inch Pulley Cable (New) Yes Model Compatibility List $36.99 / Each
Out Of Stock 		5,37
3.5 Inch Pulley Cable (New) vis3.5pull 087513 3.5 Inch Pulley Cable (New) Yes Model Compatibility List $24.99 / Each
Out Of Stock 		37
