Matrix Commercial - G3-MSFT3P - 2008

Repair Parts for Matrix Commercial G3-MSFT3P G3MS10D

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3MS10D

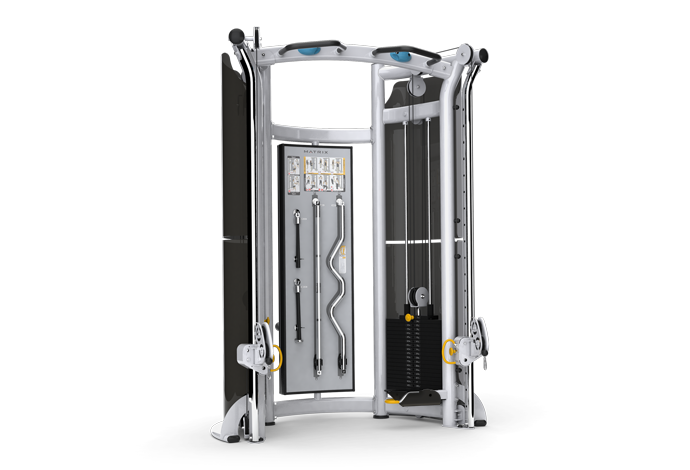

Model Name: G3-MSFT3P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700122	000454-H	H16	Cover;Snug;S45C;Cr Plate;GM01	No	Model Compatibility List	$9.10 / Each	9,3
700140	000509-E	B36	Foot Pad;Rubber;89mm	No	Model Compatibility List	$9.10 / Each	9,3,12,13,14
700451	001406-A	B38	End Cover;89	No	Model Compatibility List	$1.79 / Each	9
700461	001422-BA	G04	End Cover;Ellipse;40x80x3.0t;MS20	No	Model Compatibility List	$3.64 / Each	9
700492	001508-E	K12	Long Guide Rubber Plate;POM	No	Model Compatibility List	$27.48 / Each	3
700493	001509-D	Z18	Fix Rubber Block;Cover;Rubber;GM01	No	Model Compatibility List	$1.79 / Each	9
700497	001513-A	Z17	Rubber Block;Shock Absorb	No	Model Compatibility List	$8.55 / Each	1
700518	001522-B	B30	Stopper Block;Rubber	No	Model Compatibility List	$3.64 / Each
700520	001525-B	B37	Rubber Pad;Stopper	No	Model Compatibility List	$1.79 / Each	12,13,14
700521	001526-D	Z19	Bolt;Cover;M8x1.25Px40L	No	Model Compatibility List	$2.52 / Each	2,9
701164	004080-A2	H17	BEARING;BALL;6203ZZ;#17X#40X12T;;TPI;;;	No	Model Compatibility List	$6.73 / Each
701182	004116-00	K03	Bearing;Dry;Weight Stack	No	Model Compatibility List	$3.64 / Each	8,3,4,5,6
701407	004460-AF	B53	Screw;SH;M6X1.0PX20L;;HS;;CHM;;	No	Model Compatibility List	$0.31 / Each
701436	004482-AB	Z11	Screw;Hex Socket;Round;M8x1.25Px20L;Cr	No	Model Compatibility List	$2.00 / Each
701525	004557-A	Z14	SCREW;SH;M6X1.0PX45L;;HS;;CHM;;	No	Model Compatibility List	$1.66 / Each	2
701664	004699-00	H30	Screw;Hex Socket;M8X1.25PX15L	Yes	Model Compatibility List	$1.79 / Each
701682	004714-AC	B60	Screw;Hex Socket;BH;M6x1.0Px15L;Cr	No	Model Compatibility List	$1.66 / Each	2
701694	004720-AH	K16	Screw;Hex Socket;Oval;M8X1.25PX20L	No	Model Compatibility List	$2.00 / Each
701706	004727-00	B57	Screw;Hex Socket;BH;M8x1.25Px30L	No	Model Compatibility List	$1.59 / Each	2
701899	004926-AE	B55	NUT;NLK;M8X1.25P;;BZN;;	No	Model Compatibility List	$2.57 / Each	2
701911	004938-00	Z15	Nut;Nylon;M6X1.0P;Chromed	No	Model Compatibility List	$2.00 / Each
701914	004943-00	B64	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701939	004975-00	B39	Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8)	No	Model Compatibility List	$1.90 / Each
701963	005004-AE	B61	Washer;Spring;SW6 6.1x12.2x1.5t;Chromed	No	Model Compatibility List	$1.85 / Each	7,2,12,13,14
701981	005017-00	Z04	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702001	005040-AC	K18	Washer;Flat;f8.5xf19.0x1.5t;;White Zinc;	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
702013	005048-00	Z62	Washer;Flat;8.2x15.0x1.2T	No	Model Compatibility List	$2.00 / Each
702047	005075-AB	B54	Washer;Flat;6.2X16.0X2.0T;Chromed	No	Model Compatibility List	$1.66 / Each	7,2,12,13,14
702098	005130-00	F35	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
702238	005363-00	H18	C-Clip;External;S-17	No	Model Compatibility List	$1.79 / Each
702239	005364-00	B52	C-Clip;External;S-19	No	Model Compatibility List	$1.66 / Each	2
702242	005367-00	K14	C-Clip;External;S-30	No	Model Compatibility List	$4.00 / Each
702308	005847-A	K13	Lanyard;Weight Selection Pin	No	Model Compatibility List	$20.05 / Each	3,12,13,14
702531	008523-B	Z20	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each
702543	008569-A	H27	Stopper;Pulley Support Plate;MS21 20203T	No	Model Compatibility List	$0.34 / Each	8,3
702654	009247-A	F60	Axle;Swivel;;S45C;10x25L	No	Model Compatibility List	$2.86 / Each
702656	009250-A	E05	Grip;Both Hands	No	Model Compatibility List	$126.59 / Each	11
702657	009251-A	E06	Grip;Both Hands	No	Model Compatibility List	$100.41 / Each	11
703902	019153-A	H28	Pull pin knob; Yellow	No	Model Compatibility List	$6.79 / Each	12,13,14
704142	020325-AB	G15	SCREW;SET;M8X1.25PX15L;;;;CHM;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
704193	020465-AB	B62	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
704232	020699-A	Q10	Rivet;1/8X12.5L	No	Model Compatibility List	$1.79 / Each	1
707084	1000090177	H28	Pull Pin Handle;Orange;TPP;137C;MS10	No	Model Compatibility List	$9.10 / Each	12,13,14,11
707376	1000092352	AF5	Furniture Hook SetTwo;Exrta-Work;BED Bla	No	Model Compatibility List	$29.02 / Each	1
707411	1000092567	K10	Nut;HX;M16X1.5P;SS41;CHM;;	No	Model Compatibility List	$2.03 / Each	2
707820	1000096012	F40	Bearing;TAPERED ROLLER;1203;40X17X12T;	No	Model Compatibility List	$64.84 / Each	8
707835	1000096176	F36	Screw;Oval;M5x15L;-;HS;-;BED;-;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
707836	1000096178	Z10	Screw;BH;M5x20L;-;HS;-;BED;-;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock
707837	1000096179	AQ1	FurniTure Hook Set;Exrta-work;BED;MS10	No	Model Compatibility List	$14.59 / Each	1
707842	1000096289	Z30	Screw;SH;M10x110L-15L;-;HS;-;CHM;BP;G12.	No	Model Compatibility List	$5.90 / Each	2
708097	1000099634	AB7	Rear Cover Set;Painting ;MS10	No	Model Compatibility List	$27.01 / Each	9
708450	1000102866	G11	Screw;Hex Socket;Round;M10x1.5Px80L;Cr P	No	Model Compatibility List	$0.86 / Each	2
708473	1000102893	B58	Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl	No	Model Compatibility List	$1.38 / Each
708564	1000103439	AF2	Furniture Overlay Set;Painting;MS10	No	Model Compatibility List	$1.30 / Each	1
708656	1000104683	F12	RVN;NLS7-580-5.7;Pattern;YZN	No	Model Compatibility List	$0.96 / Each	1
708660	1000104688	H25	Screw;RND;M10x1.5Px110L;HS;G8.8;CHM;BP	No	Model Compatibility List	$0.81 / Each	2
708675	1000104705	Z01	Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8	No	Model Compatibility List	$0.52 / Each
709081	1000109127	V25	Decal;Pinch Point ;MS21KM-G3	No	Model Compatibility List	$1.77 / Each
709136	1000110291	Z08	Screw;SH;M10x1.5Px90L;P-T20L;HS;CHM;G12.	No	Model Compatibility List	$7.28 / Each	2
709703	1000202125	E09	Foot Belt;Market;MS10	No	Model Compatibility List	$23.56 / Each	9,15,3
709788	1000203197	B63	SCREW;SH;M10X1.5PX50L-30L;HALF THREAD;HS	No	Model Compatibility List	$1.66 / Each	7,2,12,13,14
709852	1000203852	Z02	Screw;SH;M10x15L;-;HS;-;CHM;BP;G8.8;	No	Model Compatibility List	$3.69 / Each	2
709966	1000205179	K05	Guide Rod;Exrta-Work;Cr;MS10	No	Model Compatibility List	$240.16 / Each	3
710376	1000209816	K02	Weight Plate;20P;Black;MS10	No	Model Compatibility List	$118.27 / Each	3,4,5,6
710720	1000212618	K11	Adjust set;Semi-Assy;;Service;;GM30C;;	No	Model Compatibility List	$63.86 / Each	1
711256	1000218630	V23	Warning Label;Pull Pin	No	Model Compatibility List	$1.66 / Each	12,13,14
711693	1000222321	V05	Label;Weight Plate;20P;MS10	No	Model Compatibility List	$34.89 / Each	3
712000	1000224884	V22	Instructional Labe;Long Bars;;;;;French;	No	Model Compatibility List	$376.84 / Each	1
713284	1000300639	H31	SADDLE TYPE TIE MOUNT,Saddle Type Tie,-,	No	Model Compatibility List	$15.18 / Each	2
713335	1000474091	F22	Steel Rope Transmission Set;Semi-Assy;-;	No	Model Compatibility List	$145.99 / Each
714425	1000314672	8	Acessory;;;FurniTure Hook Set A;;MS10;;	No	Model Compatibility List	$30.39 / Each	4,5,6
714426	1000314683	9	Acessory;;;FurniTure Hook Set B;;MS10;;	No	Model Compatibility List	$47.29 / Each	4,5,6
714427	1000314685	10	Acessory;;;FurniTure Hook Set C;;MS10;;	No	Model Compatibility List	$47.29 / Each	4,5,6
714428	1000314687	11	Acessory;;;FurniTure Hook Set D;;MS10;;	No	Model Compatibility List	$38.84 / Each	4,5,6
714786	1000318294	AK1	Up Weight Plate Set-Exreawork;;;;;MS10;	No	Model Compatibility List	$219.67 / Each	3
717480	1000345425	Z16	Stopper Ring;Guide Rod;;;Chrome;GM41;;	No	Model Compatibility List	$18.23 / Each
717990	1000349152	1	Frame set;;right;Iced Sliver;MS10KM-G3;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717991	1000349153	2	Frame set;;left;Iced Sliver;MS10KM-G3;;S	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717992	1000349154	3	Pulldown Grip Set;;;Iced Sliver;MS10KM-G	No	Model Compatibility List	$0.00 / Each Out Of Stock	11
717993	1000349155	5	Pulley Set;;;Iced Sliver;MS10KM-G3;;Serv	No	Model Compatibility List	$98.54 / Each	8
718157	1000349406	7	TV Rack Set;;U;painting;;Iced Sliver;MS1	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
718158	1000349407	B56	Pulley Fixing Plate;;;painting;;Iced Sli	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,3
718159	1000349408	AB6	Pedal Set;;;painting;;Iced Sliver;MS10KM	No	Model Compatibility List	$152.07 / Each	8,9
718160	1000349409	AG1	Fixed Set;;;Painting;;Iced Sliver;MS10KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
718161	1000349410	AG2	Connecting Set;;M;Painting;;Iced Sliver;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
718162	1000349411	AG3	Traverse Tube;Frame;;Painting;;Iced Sliv	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
718163	1000349412	AG4	Connecting Set;;U;Painting;;Iced Sliver;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
718164	1000349413	AH3	Elevation Set;;R;painting;;Iced Sliver;M	No	Model Compatibility List	$0.00 / Each Out Of Stock	10
718165	1000349414	AH7	Elevation Set;;L;painting;;Iced Sliver;M	No	Model Compatibility List	$0.00 / Each Out Of Stock	10
718166	1000349415	AK2	Double Pully Set;;;Painting;;Iced Sliver	No	Model Compatibility List	$0.00 / Each Out Of Stock	1

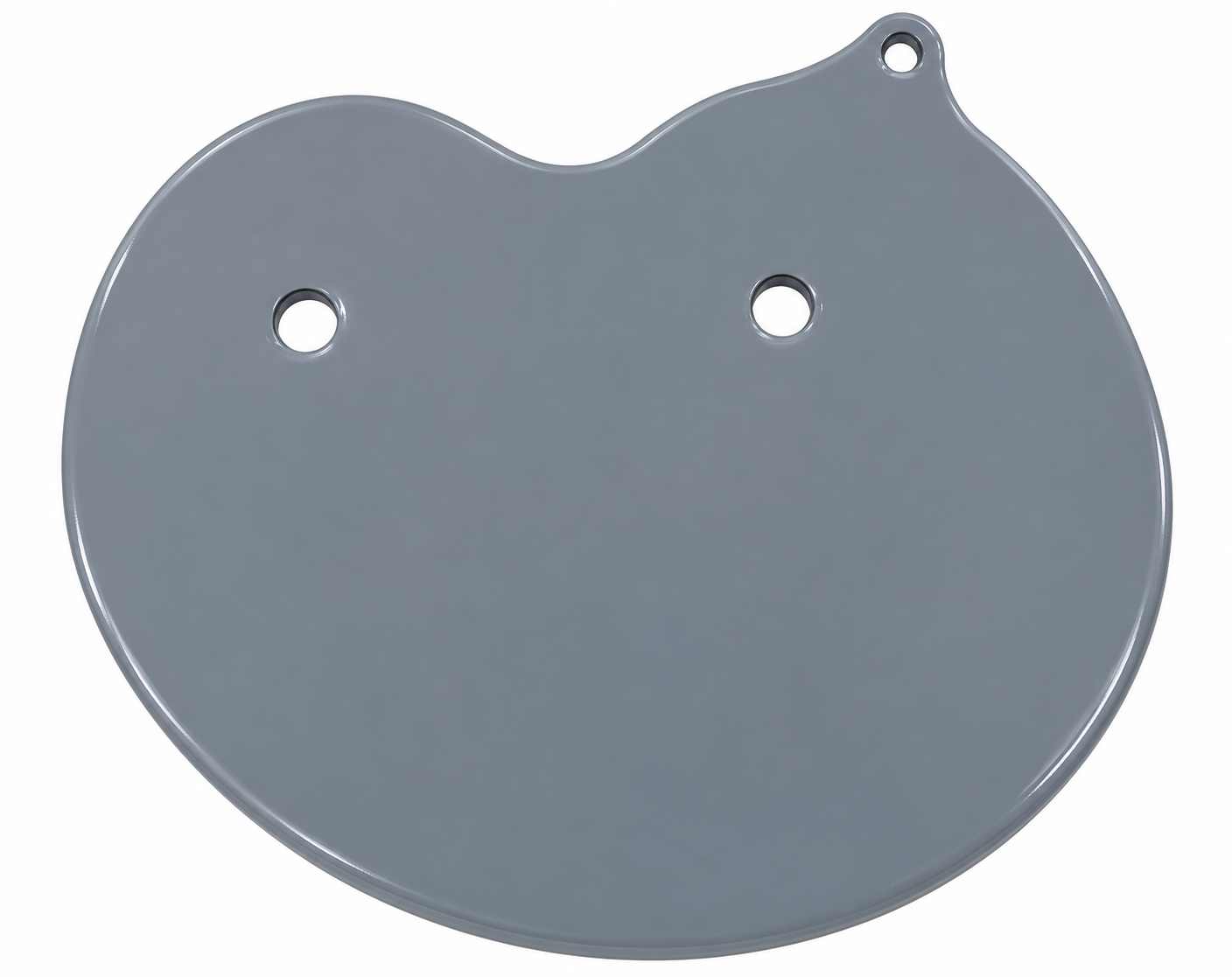

718167	1000349416	H56	sliding wheel protect piece;;L;painting;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	8

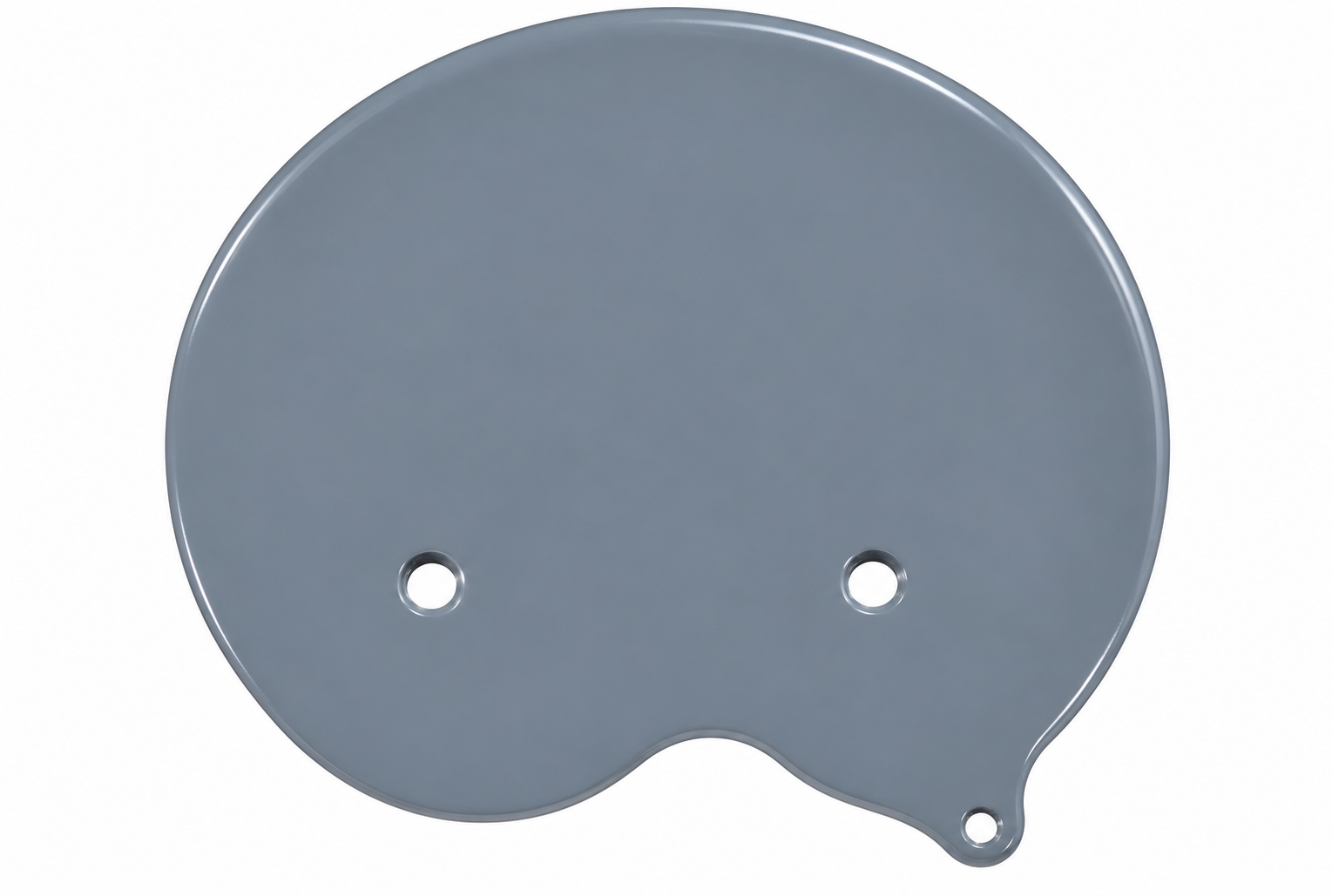

718168	1000349417	H55	sliding wheel protect piece;;R;painting;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	8
718169	1000349418	B31	Fixing Plate;Cover;;Painting;;Iced Slive	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
719669	1000363588	Not Shown	Stopper set;Guide Rod;;painting;;;MS20;	No	Model Compatibility List	$35.46 / Each	3
720426	1000372591	K11	Adjustable Pin;Weight Plate;;42CrMo;Chro	No	Model Compatibility List	$54.73 / Each	7,3,12,13,14
720983	1000379201	Not Shown	Pin set;;;Heavy kit group;Only for MS10	No	Model Compatibility List	$72.98 / Each	4,5,6,12,13,14
721052	1000380094	F21	Karabiner Spring Snap;;9(45mmx90mm);Sta	No	Model Compatibility List	$24.91 / Each	2
721375	1000382798	AH6	Cover;;;painting;;Iced Sliver;MS10;	No	Model Compatibility List	$67.57 / Each	9
722253	1000390144	B49	Air Stick;;10KG;180L;;;MS10;	No	Model Compatibility List	$18.56 / Each	1
722410	1000391893	Not Shown	Cover;;;PVC;BL/Black C;;MS10B;	No	Model Compatibility List	$50.67 / Each	9,4,5,6
724679	1000423122	AB7	Fixed Set;AIR SHOCK;;painting;;Iced Sliv	No	Model Compatibility List	$11.80 / Each	1
725135	101994	V22	Illustration Decal;Long Bars;English;MS	No	Model Compatibility List	$719.34 / Each	7,3
725196	102613	Z21	SCREW;;M8X1.25PX30L;;;;BAN;;COVER	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,9
725197	102614	AH8	Grip ADJ Set;Cr Plate;Dipping137C;MS10	No	Model Compatibility List	$48.85 / Each	3,12,13,14,11
725198	102619	4	Pulley Roller Set	No	Model Compatibility List	$355.37 / Each	8
725444	071337	B18	Cap;Insert Nut;ABS;MS151-KM	No	Model Compatibility List	$0.31 / Each
725583	073572	F17	Pulley; 90mm	No	Model Compatibility List	$44.28 / Each
725584	073573	F21	Pulley; 115mm	Yes	Model Compatibility List	$42.17 / Each
726607	083458	Z62	Washer;Lock;8.2x13.5x2.0t	No	Model Compatibility List	$2.00 / Each
726987	086517	H65	Screw;Round Hex Socket;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each
727227	087955	B41	Screw;BH;M6X1.0PX10L;;HS;;CHM;;BP	No	Model Compatibility List	$1.14 / Each
727568	089983	F04	Grip;MS21KM-G3;	No	Model Compatibility List	$48.62 / Each
728141	093310	AF4	Furniture Hook Set;Exrta-Work;BED Black;	No	Model Compatibility List	$29.02 / Each
728143	093315	AB3	ADJ Tube Set;R;Exrta-Work;Cr;MS10	No	Model Compatibility List	$748.44 / Each
728144	093318	AB4	ADJ Tube Set;L;Exrta-Work;Cr;MS10	No	Model Compatibility List	$748.44 / Each
728153	093328	B48	Fixing Axle;Pedal;MS10	No	Model Compatibility List	$6.29 / Each
728154	093329	B49	Air Shock;Market;180Lx10KG;MS10	No	Model Compatibility List	$24.65 / Each
728155	093330	B50	Grip;Pedal;Cr Plate;Dipping137C;MS10	No	Model Compatibility List	$36.69 / Each
728156	093333	E04	Foam;25.4x5.0Tx666L;MS10	No	Model Compatibility List	$36.48 / Each
728157	093334	E07	Triceps Rope;Market;MS10	No	Model Compatibility List	$140.50 / Each
728158	093337	AE2	Grip;BaseBall Rod;Market;MS10	No	Model Compatibility List	$182.49 / Each
728159	093342	AE4	GripGolf Ball RodMarket;MS10	No	Model Compatibility List	$196.35 / Each
728160	093343	AE5	Grip;One;Long;Market;MS10	No	Model Compatibility List	$266.89 / Each
728161	093344	AE6	Grip;Two;Long;Market;MS10	No	Model Compatibility List	$299.96 / Each
728162	093345	F02	Paper Strip Seal;side;PVC;Black;MS10	No	Model Compatibility List	$33.46 / Each
728164	093366	G09	Climbing Hold;L;Market;MS10	No	Model Compatibility List	$70.85 / Each
728165	093367	G10	Climbing Hold;R;Market;MS10	No	Model Compatibility List	$65.60 / Each
728170	093380	H13	Swivel Axle;Two;45#;MS10	No	Model Compatibility List	$10.14 / Each
728173	093388	K01	Top Weight Plate;10P;BL WrinkleMS10	No	Model Compatibility List	$270.84 / Each
728174	093392	K04	ADJ Rod;Weight Plate;SS41;14 Hole;MS10	No	Model Compatibility List	$62.87 / Each
728175	093393	K08	Spring Pin;65Mn;16x70L;MS10	No	Model Compatibility List	$6.03 / Each
728177	093399	V02	Illustration Decal;Short Bars;English;MS	No	Model Compatibility List	$719.34 / Each
728179	093406	Not Shown	Hardware Kit;Semi-Assy;MS10	No	Model Compatibility List	$260.49 / Each
728263	0000093892	11	Swing Arm Set;Left;A5X-03;US;EP79	Yes	Model Compatibility List	$299.00 / Each
728264	093893	F01	Cap;ABS;Black;MS10	No	Model Compatibility List	$28.29 / Each
728265	093896	F08	Fixing Sleeve;Grip;ABS;Black;MS10	No	Model Compatibility List	$5.69 / Each
728266	093902	H08	Eccentric Axle;Roller Pulley;MS10	No	Model Compatibility List	$12.58 / Each
728267	093903	H09	Fixing Axle;Roller Pulley;MS10	No	Model Compatibility List	$7.62 / Each
728268	093910	Q01	Cover;;front;Acrylic;Light Brown;1950L;M	No	Model Compatibility List	$0.00 / Each Out Of Stock
728269	093911	Q02	Cover;Rear-Up;Acrylic;Light Brown;MS10	No	Model Compatibility List	$677.43 / Each
728270	093912	V10	Decal;Swirl Spring;H5x-F;	No	Model Compatibility List	$1.66 / Each
728271	093913	6	Pull Pin Set;Semi-Assy;MS10	No	Model Compatibility List	$30.24 / Each
728272	093914	H29	Fixing Axle;45#;MS10	No	Model Compatibility List	$5.67 / Each
728280	093992	AF3	Furniture Hook Set;Exrta-Work;BED Black;	No	Model Compatibility List	$8.53 / Each
728404	094572	AP1	Console Cable Set;Console Wire+CORD;RB85	No	Model Compatibility List	$50.67 / Each
728583	095416	P58	Screw;BH;M4X0.7PX25L;;PH;Z.P.B;;;	No	Model Compatibility List	$0.88 / Each
728597	095489	F32	Housing;ADJ;POM;MS10	No	Model Compatibility List	$18.85 / Each
728746	096468	G14	Fixing Block;ADJ;AL;MS10	No	Model Compatibility List	$9.54 / Each
728747	096469	F31	Spring;;;;;	No	Model Compatibility List	$7.62 / Each
728748	096471	F33	Screw;SH;M8X1.25PX45L-32L;;;;;;P-T	No	Model Compatibility List	$5.49 / Each
729012	Order Kit 1	AB1	Console Base Set;Semi-Assy;;;;TM701-1US;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729024	Order Kit 2	AB2	Motor set;Semi-Assy;;;;TM701-1US;;Servic	No	Model Compatibility List	$0.00 / Each Out Of Stock	10
729027	Order Kit 3	AE1	Sleeve Set;Semi-Assy;;;;TM658E-2KM;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
vis4.5pull	073573		4.5 Inch Pulley Cable (New)	Yes	Model Compatibility List	$36.99 / Each Out Of Stock	5,37
vis3.5pull	087513		3.5 Inch Pulley Cable (New)	Yes	Model Compatibility List	$24.99 / Each Out Of Stock	37

View Drawing

Chat with us

Matrix Commercial - G3-MSFT3P - 2008

Exploded Diagrams

general Info

Customer Service

About us

Address
