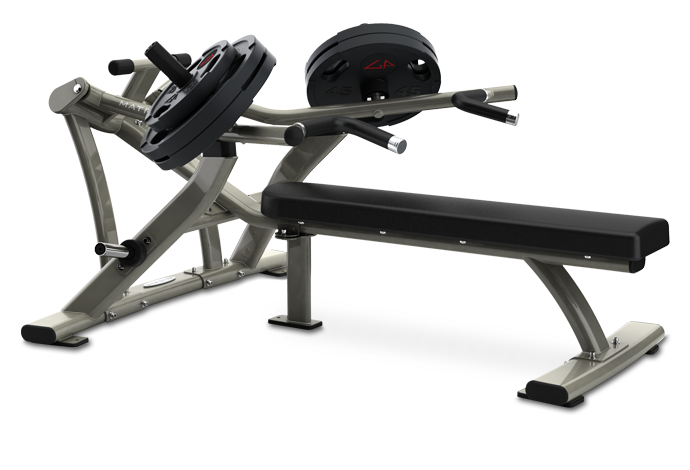

Matrix Commercial - G3-PL13P - 2008

Repair Parts for Matrix Commercial G3-PL13P G3PL13,G3PL02_1,G3PL02_2,G3PL02_3

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3PL13,G3PL02_1,G3PL02_2,G3PL02_3

Model Name: G3-PL13P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700309	000926-AA	Q01	Cap;Tube;BL;FW91	No	Model Compatibility List	$1.66 / Each	9,3
700450	001405-A	Q05	End Cover;60	No	Model Compatibility List	$1.66 / Each	9
700685	001791-AA	M16	Fix Block;Weight Lifting Connecting Sleeve;POM;	No	Model Compatibility List	$3.64 / Each	3,10
701159	004077-A2	D19	Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
701436	004482-AB	C17	Screw;Hex Socket;Round;M8x1.25Px20L;Cr	No	Model Compatibility List	$2.00 / Each
701505	004539-AD	Z08	Screw;Round;Hex Socket;M8X1.25PX25L;Chromed	No	Model Compatibility List	$2.00 / Each
701522	004555-AB	Z05	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	No	Model Compatibility List	$4.00 / Each
701660	004696-AB	Z04	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each
701836	004855-AC	D05	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701914	004943-00	Z18	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701943	004978-00	C27	Insert Nut;Hex;NHS-1015-4.0(M10x1.5P)	No	Model Compatibility List	$1.66 / Each
701968	005007-00	D17	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
701981	005017-00	Z10	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702014	005048-AC	C18	Washer;Flat;8.2x15.0x1.2T;Chromed	No	Model Compatibility List	$2.00 / Each
702102	005132-00	D16	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702318	005990-E	V02	Decal;Matrix Logo	No	Model Compatibility List	$18.77 / Each	7,3
702530	008522-C	D12	Washer;Swivel Axle;;;SS41;;Cr;;;	No	Model Compatibility List	$3.64 / Each	2,8
702531	008523-B	Z06	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each
702710	009355-B	D21	Stopper Mast;Foam;AL6061;GM02	No	Model Compatibility List	$3.64 / Each
702722	009372-E	D14	Cap;Grip;GM02	No	Model Compatibility List	$13.36 / Each
704137	020304-AC	Z02	Screw;Hex Socket;M10X1.5PX35L;Cr Plate	No	Model Compatibility List	$2.00 / Each
704189	020459-00	D27	Washer;Flat;10.2X28.5X3.0T	No	Model Compatibility List	$1.85 / Each	2
704193	020465-AB	Z03	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
706373	061531-AA	C10	Leveler;Foot Pad;FW151	No	Model Compatibility List	$14.56 / Each	9,3,12,13,14
707072	1000090022	V09	Sticker ;Weight ;PL02	No	Model Compatibility List	$1.66 / Each	3
707073	1000090024	C28	Screw;PH;M10X1.5PX30L;;;;;;SP	No	Model Compatibility List	$8.42 / Each	2
707078	1000090043	V14	Sticker ;Storage;PL02	No	Model Compatibility List	$1.66 / Each	1
707824	1000096017	Z101	Rubber Pad;Fixing;GM40	No	Model Compatibility List	$2.39 / Each
708453	1000102869	D18	Screw;Hex Socket;Round;M12x1.75Px25L;Cr	No	Model Compatibility List	$3.43 / Each	2
708591	1000103978	M01	CON Tube;weight lifting;Outer	No	Model Compatibility List	$120.02 / Each	3,10
708592	1000103979	M02	CON Tube;weight lifting;Inner	No	Model Compatibility List	$212.71 / Each	3,10
708654	1000104681	Z19	Circlip;External C Type;S-20;BAN	No	Model Compatibility List	$1.77 / Each	2
708658	1000104685	C29	RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8)	No	Model Compatibility List	$3.35 / Each	1
709078	1000108924	D26	Screw;RND;M10x1.5Px20L;HS;CHM;BP;G8.8	No	Model Compatibility List	$9.10 / Each
710215	1000207633	D20	Swivel Axle;20cm;PL01	No	Model Compatibility List	$76.96 / Each	8
718289	1000350094	AC5	Support Set;Frame;;painting;;Iced Sliver	No	Model Compatibility List	$86.16 / Each	3
718290	1000350098	AC2	base set;;;painting;;Iced Sliver;PL02;Se	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
718291	1000350100	AB1	Frame Set;;;painting;;Iced Sliver;PL02;S	No	Model Compatibility List	$427.54 / Each	3
718292	1000350101	1	Pedal Arm set;Semi-Assy;left;;;PL02;Iced	No	Model Compatibility List	$371.77 / Each	8,9,3
718293	1000350102	2	Pedal Arm set;Semi-Assy;right;;;PL02;Ice	No	Model Compatibility List	$371.77 / Each	8,9,3
718294	1000350103	4	Stabilizer set;Semi-Assy;;;;PL02;Iced Sl	No	Model Compatibility List	$101.37 / Each	1
718295	1000350104	3	Frame Set;Semi-Assy;back;;;PL02;Iced Sli	No	Model Compatibility List	$1149.17 / Each	3,4,5,6
726987	086517	H65	Screw;Round Hex Socket;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each
726992	086532	N46	Fix Plate;15 Inch;0.8t;TM503;	No	Model Compatibility List	$40.64 / Each
726994	086541	D08	Foam;GripPL02	No	Model Compatibility List	$22.62 / Each
726995	086543	Not Shown	Hardware;Semi-Assy;PL02	No	Model Compatibility List	$128.99 / Each
727016	086683	G01	Cap;Tube;Elliptical;PL01	No	Model Compatibility List	$3.35 / Each
728180	093469	AB2	Storage Horn;Extrawork;Cr;PL01	No	Model Compatibility List	$132.08 / Each
728181	093473	B16	Buffer Pad;PU;Black;PL01	No	Model Compatibility List	$63.18 / Each
728183	093488	D13	Fixing Ring;Swivel Arm;PL01	No	Model Compatibility List	$11.73 / Each
728409	094594	C14	Stopper PadR;PL02	No	Model Compatibility List	$72.77 / Each
729118	Part of Kit 1	AD1	Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729138	Part of Kit 2	AD2	Console Mast;Painting;MM330;6027-45-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729152	Part of Kit 3	AB3	Pedal Arm;Right;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729165	Part of Kit 4	AC1	Pedal Arm;Left;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J01	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
