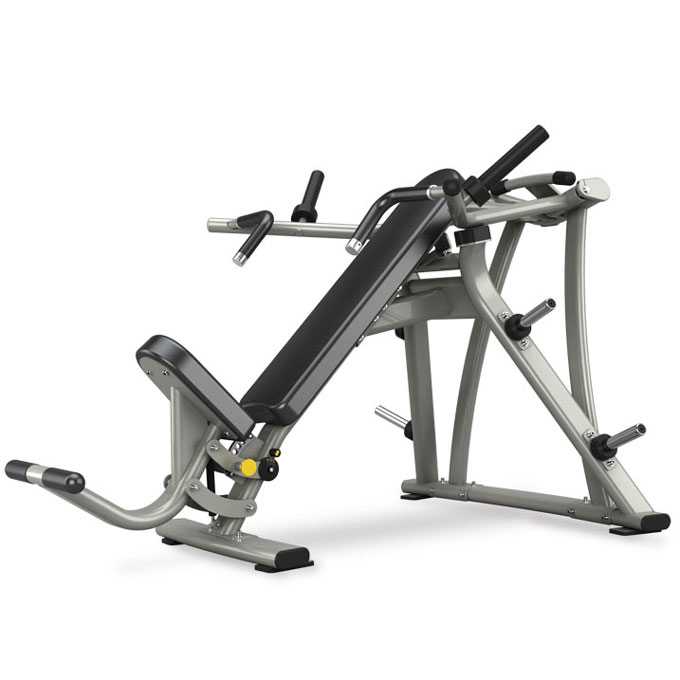

Matrix Commercial - G3-PL14P - 2008

Repair Parts for Matrix Commercial G3-PL14P G3PL14,G3PL01

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3PL14,G3PL01

Model Name: G3-PL14P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700450	001405-A	Q05	End Cover;60	No	Model Compatibility List	$1.66 / Each	9
700519	001523-E	D27	Rubber Stop;CAM	No	Model Compatibility List	$3.64 / Each
700685	001791-AA	M16	Fix Block;Weight Lifting Connecting Sleeve;POM;	No	Model Compatibility List	$3.64 / Each	3,10
701159	004077-A2	D18	Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
701431	004479-ABX	Z04	Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A	No	Model Compatibility List	$2.00 / Each
701505	004539-AD	Z09	Screw;Round;Hex Socket;M8X1.25PX25L;Chromed	No	Model Compatibility List	$2.00 / Each
701660	004696-AB	Z05	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each
701836	004855-AC	D10	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701943	004978-00	B26	Insert Nut;Hex;NHS-1015-4.0(M10x1.5P)	No	Model Compatibility List	$1.66 / Each
701968	005007-00	D16	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
701981	005017-00	Z10	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702014	005048-AC	B16	Washer;Flat;8.2x15.0x1.2T;Chromed	No	Model Compatibility List	$2.00 / Each
702102	005132-00	D15	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702530	008522-C	D12	Washer;Swivel Axle;;;SS41;;Cr;;;	No	Model Compatibility List	$3.64 / Each	2,8
702531	008523-B	Z06	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each
702710	009355-B	D21	Stopper Mast;Foam;AL6061;GM02	No	Model Compatibility List	$3.64 / Each
702722	009372-E	D09	Cap;Grip;GM02	No	Model Compatibility List	$13.36 / Each
702944	013411-Z1G2	B29	Adjust Pin Assembly;Yellow Knob	No	Model Compatibility List	$31.64 / Each	3,12,13,14
703902	019153-A	B29	Pull pin knob; Yellow	No	Model Compatibility List	$6.79 / Each	12,13,14
704034	020123-AC	D17	Screw;Hex Socket;Round;M12x1.75Px20L;Chromed	No	Model Compatibility List	$1.66 / Each	7,2,12,13,14
704189	020459-00	D28	Washer;Flat;10.2X28.5X3.0T	No	Model Compatibility List	$1.85 / Each	2
704193	020465-AB	Z02	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
705562	050468-A	T11	Bushing;Brass	No	Model Compatibility List	$3.64 / Each	8
707073	1000090024	C28	Screw;PH;M10X1.5PX30L;;;;;;SP	No	Model Compatibility List	$8.42 / Each	2
707084	1000090177	B29	Pull Pin Handle;Orange;TPP;137C;MS10	No	Model Compatibility List	$9.10 / Each	12,13,14,11
708099	1000099693	B29	Pull Pin Set;Orange Knob	No	Model Compatibility List	$73.92 / Each	12,13,14
708449	1000102865	Z08	Screw;Hex Socket;Round;M10x1.5Px70L;Cr P	No	Model Compatibility List	$8.42 / Each	2
708591	1000103978	M01	CON Tube;weight lifting;Outer	No	Model Compatibility List	$120.02 / Each	3,10
708592	1000103979	M02	CON Tube;weight lifting;Inner	No	Model Compatibility List	$212.71 / Each	3,10
708654	1000104681	Z19	Circlip;External C Type;S-20;BAN	No	Model Compatibility List	$1.77 / Each	2
708658	1000104685	C29	RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8)	No	Model Compatibility List	$3.35 / Each	1
709078	1000108924	D26	Screw;RND;M10x1.5Px20L;HS;CHM;BP;G8.8	No	Model Compatibility List	$9.10 / Each
709507	1000200848	V02	Logo Label;MATRIX;BLACK WORD/WHITE BASE;	No	Model Compatibility List	$3.35 / Each	3,4,5,6
710311	1000209198	D19	Swivel Axle;17cm long;PL01	No	Model Compatibility List	$83.12 / Each	8
712011	1000225006	V14	Decal;Weight;;;;;French;PL01KM-G3	No	Model Compatibility List	$3.02 / Each	7,3
717994	1000349156	2	Swivel arm set;;right;Iced Sliver;PL01K	No	Model Compatibility List	$371.77 / Each	3
717995	1000349157	1	Swivel arm set;;left;Iced Sliver;PL01KM	No	Model Compatibility List	$371.77 / Each	3
717996	1000349158	3	Link Set;seat;;Iced Sliver;PL01KM-G3;;Se	No	Model Compatibility List	$287.27 / Each	3,12,13,14
717997	1000349159	4	Base Set;;;Iced Sliver;PL01KM-G3;;Servic	No	Model Compatibility List	$1111.99 / Each	3
717998	1000349160	5	seat set;;;Iced Sliver;PL01KM-G3;;Servic	No	Model Compatibility List	$202.77 / Each	12,13,14
717999	1000349161	6	Stabilizer Tube Set;;;Iced Sliver;PL01KM	No	Model Compatibility List	$101.37 / Each	3
718171	1000349427	AB1	Frame Set;;;painting;;Iced Sliver;PL01KM	No	Model Compatibility List	$777.37 / Each	3
718172	1000349428	AC3	Swivel Arm Connect Tube;;;painting;;Iced	No	Model Compatibility List	$270.37 / Each	3
718173	1000349429	AC4	ConnectingTube;;Front-Rear;painting;;Ice	No	Model Compatibility List	$135.17 / Each	3
718175	1000349431	AC5	Frame Set;;;painting;;Iced Sliver;PL06KM	No	Model Compatibility List	$844.97 / Each	3
726987	086517	H65	Screw;Round Hex Socket;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each
726994	086541	D08	Foam;GripPL02	No	Model Compatibility List	$22.62 / Each
727015	086682	B09	Stopper;Pad;PL01	No	Model Compatibility List	$17.55 / Each
727016	086683	G01	Cap;Tube;Elliptical;PL01	No	Model Compatibility List	$3.35 / Each
727021	086712	T08	Swivel Plate;Seat;PL01	No	Model Compatibility List	$54.55 / Each
727022	086713	T12	Cap;ADJ Base PL01	No	Model Compatibility List	$3.35 / Each
727027	086732	G04	Foam;For50.8 Food Pad;PL01	No	Model Compatibility List	$17.76 / Each
727050	086902	T09	Swivel Mandrel;Seat ;PL01	No	Model Compatibility List	$27.79 / Each
727052	086904	R01	Air Shock;18kg;125L;PL01	No	Model Compatibility List	$31.88 / Each
728180	093469	AB2	Storage Horn;Extrawork;Cr;PL01	No	Model Compatibility List	$132.08 / Each
728181	093473	B16	Buffer Pad;PU;Black;PL01	No	Model Compatibility List	$63.18 / Each
728182	093485	C22	Fixing Plate;Seat ADJPL01	No	Model Compatibility List	$15.42 / Each
728183	093488	D13	Fixing Ring;Swivel Arm;PL01	No	Model Compatibility List	$11.73 / Each
729118	Part of Kit 1	AD2	Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729138	Part of Kit 2	AD1	Console Mast;Painting;MM330;6027-45-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729152	Part of Kit 3	AC2	Pedal Arm;Right;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729165	Part of Kit 4	AC7	Pedal Arm;Left;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729172	Part of Kit 5	AT1	Swing Arm Set;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
729191	Part of Kit 6	AC1	Vertical Stabilizer Arm;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J30	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
