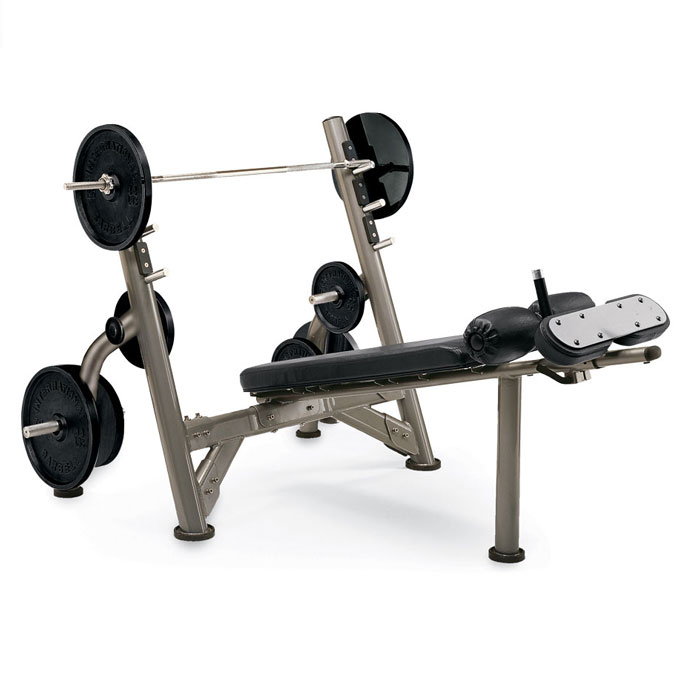

Matrix Commercial - G3-PL15P - 2010

Repair Parts for Matrix Commercial G3-PL15P G3PL15

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3PL15

Model Name: G3-PL15P

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16889.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700146	000515-A	B25	Foot pad;Rubber;100;FW10	No	Model Compatibility List	$9.10 / Each
700175	000586-B	D24	Foam;;;Elastomer;25.4x5.0tx105L;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
700232	000751-C	E14	Elastomer;;;Rubber;;;;FW10	No	Model Compatibility List	$9.10 / Each	1
700252	000782-B	B11	Pad;Stopper	No	Model Compatibility List	$1.79 / Each	12,13,14
700359	001129-B	D30	End Cap;Front Stabilizer	No	Model Compatibility List	$1.90 / Each
700448	001402-A	D22	End Cap;Round	No	Model Compatibility List	$1.79 / Each	9
700451	001406-A	E10	End Cover;89	No	Model Compatibility List	$1.79 / Each	9
700461	001422-BA	B15	End Cover;Ellipse;40x80x3.0t;MS20	No	Model Compatibility List	$3.64 / Each	9
700479	001465-C	D21	Sleeve;Seat Sliding Tube	No	Model Compatibility List	$9.57 / Each	3,12,13,14
701312	004370-00	B20	Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL	No	Model Compatibility List	$2.00 / Each
701520	004553-AB	E18	Screw;Round;Hex Socket;M12x1.75Px25L	No	Model Compatibility List	$9.10 / Each
701522	004555-AB	Z10	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	Yes	Model Compatibility List	$4.00 / Each
701661	004697-AD	B08	Screw;Flat Hex Socket;M8x1.25Px25L	No	Model Compatibility List	$3.64 / Each	2
701760	004780-AC	D35	Screw;Umbrella Hex Scoket;M10x1.5Px25L	No	Model Compatibility List	$4.00 / Each	2
701817	004837-AB	D28	Screw;Settle;M8x1.25Px8.2L;Adhere;	No	Model Compatibility List	$1.79 / Each	2
701836	004855-AC	D26	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701838	004856-A	E17	Set Screw;M8x1.25Px8L	No	Model Compatibility List	$1.66 / Each	2
701914	004943-00	Z07	Nut;Nylon;M10x1.5P;Cr Plate;	No	Model Compatibility List	$2.00 / Each
701939	004975-00	E11	Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8)	No	Model Compatibility List	$1.90 / Each
701968	005007-00	E21	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
701981	005017-00	Z09	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702102	005132-00	E19	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702234	005359-00	D33	C-Clip;External;S-12	No	Model Compatibility List	$2.00 / Each
702411	006656-A	V02	Decal;Serial Number;Aluminum	No	Model Compatibility List	$1.66 / Each	7,3
702531	008523-B	Z22	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each
702711	009356-B	D25	Stopper Mast;Foam;AL6061;GM03	No	Model Compatibility List	$3.64 / Each
702721	009371-E	D23	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
702747	009486-00	D12	Bushing;Seat Slide Bar	No	Model Compatibility List	$1.90 / Each	8,12,13,14
702748	009491-E	D18	Cam	No	Model Compatibility List	$9.75 / Each	1
703982	020058-AB	D31	Screw;Phillip;Sink;M5x0.8Px5L;Adhere;	No	Model Compatibility List	$1.79 / Each	2
704037	020125-A	Z14	Screw;Hex Socket;Round;M10x1.5Px120L;Chromed	No	Model Compatibility List	$10.35 / Each	7,2,12,13,14
704193	020465-AB	Z08	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
704232	020699-A	V03	Rivet;1/8X12.5L	No	Model Compatibility List	$1.79 / Each	1
704250	021595-A	V04	INDICATION DECAL--EXTERNAL	No	Model Compatibility List	$1.66 / Each	7,3
704280	022217-A	D09	Pressing Slice	No	Model Compatibility List	$9.10 / Each	1
704328	022479-C	D11	Pressing Plate;Q235L;FW12-D11C	No	Model Compatibility List	$3.64 / Each	3
704410	024068-Z	AD1	FOOT ADJUSTMENT FRAME SET(Painting)	No	Model Compatibility List	$754.75 / Each	9,3
704896	025759-AA	AD2	Adjustable Shaft Set	No	Model Compatibility List	$15.65 / Each	3
706973	067755-B	V05	Sticker;Weight;A;FW13	No	Model Compatibility List	$3.35 / Each	3
706974	067756-B	V06	Sticker;Weight;Blank;FW13	No	Model Compatibility List	$3.35 / Each	3
706977	067769-AA	E24	Storage Horn Set;FW13;Cr Plate	No	Model Compatibility List	$97.66 / Each	3
707222	1000091269	AG1	Connecting Tube Set	No	Model Compatibility List	$610.22 / Each	3
707612	1000093682	AB1	Frame Set;Bench	No	Model Compatibility List	$943.12 / Each	3
709137	1000110295	E13	Weight Storage Horn	No	Model Compatibility List	$93.89 / Each	3
712128	1000226826	E20	Elastomer;Plastic;;	No	Model Compatibility List	$70.77 / Each	9
712129	1000226827	E09	Elastomer;Plastic;;	No	Model Compatibility List	$43.71 / Each	9
712143	1000226886	E23	Hanging Rod;U;FW13;45#	No	Model Compatibility List	$37.78 / Each	3
713615	1000305763	E08	Hanging Rod;;Up;45#;FW13-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
727480	089543	Not Shown	Manual;Assembly;FW15	No	Model Compatibility List	$17.94 / Each
727482	089547	Not Shown	Hardware;Semi-Assy;FW15KM-G3	No	Model Compatibility List	$121.37 / Each
728570	095355	2	LEFT SUPPORT FRAME	No	Model Compatibility List	$1.30 / Each
728571	095356	1	RIGHT SUPPORT FRAME	No	Model Compatibility List	$1.30 / Each
728949	991668-AC	E16	Screw;FH;M8X1.25PX30L;;HS;;CHM;;	No	Model Compatibility List	$3.64 / Each	2
729261	See Pad Matrix	J31	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
941989	004370-00	B20	Screw (New)	No	Model Compatibility List	$12.00 / Each

View Drawing
