Matrix Commercial - G3-PL33P - 2010

Repair Parts for Matrix Commercial G3-PL33P G3PL33,G3PL08

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3PL33,G3PL08

Model Name: G3-PL33P

Version: 2010

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700447	001401-A	D11	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	9
700448	001402-A	Q05	End Cap;Round	No	Model Compatibility List	$1.79 / Each	9
700685	001791-AA	M16	Fix Block;Weight Lifting Connecting Sleeve;POM;	No	Model Compatibility List	$3.64 / Each	3,10
701159	004077-A2	D18	Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
701183	004118-00	H08	Bearing;Dry;Flange;LEF-2015 LFF-2015	No	Model Compatibility List	$3.64 / Each	8
701522	004555-AB	Z01	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	No	Model Compatibility List	$4.00 / Each
701836	004855-AC	D10	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701968	005007-00	Z09	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
701981	005017-00	Z03	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702014	005048-AC	B31	Washer;Flat;8.2x15.0x1.2T;Chromed	No	Model Compatibility List	$2.00 / Each
702102	005132-00	Z08	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702530	008522-C	D12	Washer;Swivel Axle;;;SS41;;Cr;;;	No	Model Compatibility List	$3.64 / Each	2,8
702531	008523-B	Z04	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each
702671	009289-F	H07	Adjustable Axle;Back Pad ;GM03	No	Model Compatibility List	$3.64 / Each	8,4,5,6,12,13,14
702711	009356-B	D16	Stopper Mast;Foam;AL6061;GM03	No	Model Compatibility List	$3.64 / Each
702721	009371-E	D17	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
702944	013411-Z1G2	H13	Adjust Pin Assembly;Yellow Knob	No	Model Compatibility List	$31.64 / Each	3,12,13,14
703902	019153-A	H13	Pull pin knob; Yellow	No	Model Compatibility List	$6.79 / Each	12,13,14
704034	020123-AC	D22	Screw;Hex Socket;Round;M12x1.75Px20L;Chromed	No	Model Compatibility List	$1.66 / Each	7,2,12,13,14
704137	020304-AC	Z06	Screw;Hex Socket;M10X1.5PX35L;Cr Plate	No	Model Compatibility List	$2.00 / Each
704189	020459-00	Z12	Washer;Flat;10.2X28.5X3.0T	No	Model Compatibility List	$1.85 / Each	2
704193	020465-AB	Z02	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
704232	020699-A	V05	Rivet;1/8X12.5L	No	Model Compatibility List	$1.79 / Each	1
706373	061531-AA	B26	Leveler;Foot Pad;FW151	No	Model Compatibility List	$14.56 / Each	9,3,12,13,14
707073	1000090024	B22	Screw;PH;M10X1.5PX30L;;;;;;SP	No	Model Compatibility List	$8.42 / Each	2
707078	1000090043	Not Shown	Sticker ;Storage;PL02	No	Model Compatibility List	$1.66 / Each	1
707084	1000090177	H13	Pull Pin Handle;Orange;TPP;137C;MS10	No	Model Compatibility List	$9.10 / Each	12,13,14,11
707946	1000097206	Z11	Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP	No	Model Compatibility List	$2.00 / Each
708064	1000098708	V21	Decal;AL;PL03	No	Model Compatibility List	$3.35 / Each	7,3
708099	1000099693	H13	Pull Pin Set;Orange Knob	No	Model Compatibility List	$73.92 / Each	12,13,14
708453	1000102869	Z07	Screw;Hex Socket;Round;M12x1.75Px25L;Cr	No	Model Compatibility List	$3.43 / Each	2

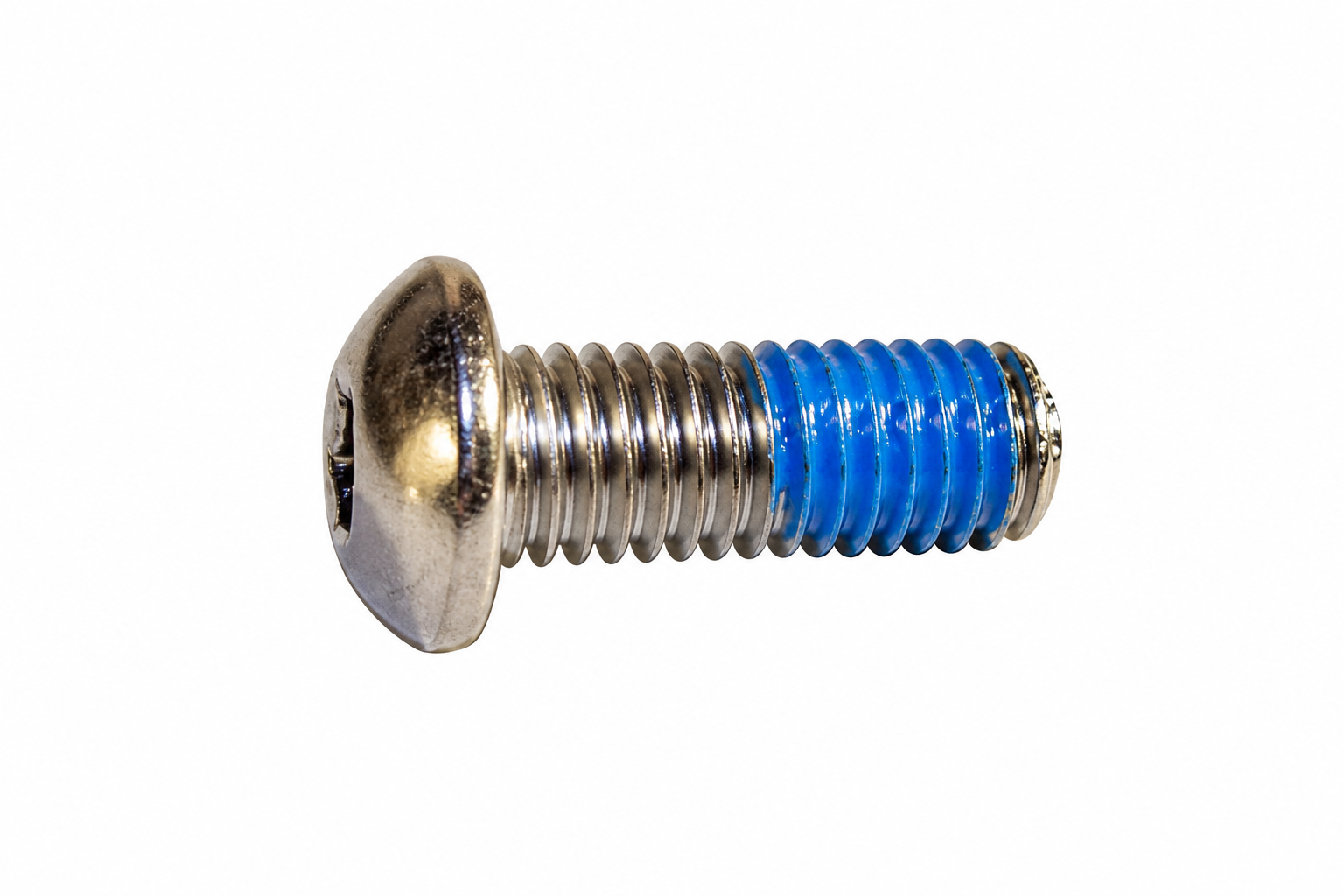

708459	1000102875	D40	Screw;Hex Socket;BH;M10x1.5Px25L;Cr Plat	No	Model Compatibility List	$3.35 / Each
708591	1000103978	M01	CON Tube;weight lifting;Outer	No	Model Compatibility List	$120.02 / Each	3,10
708592	1000103979	M02	CON Tube;weight lifting;Inner	No	Model Compatibility List	$212.71 / Each	3,10
708654	1000104681	Z19	Circlip;External C Type;S-20;BAN	No	Model Compatibility List	$1.77 / Each	2
708658	1000104685	B23	RVN;Pattern;YZN;ALS7-1015-1.5(0.5-3.8)	No	Model Compatibility List	$3.35 / Each	1
709078	1000108924	Z05	Screw;RND;M10x1.5Px20L;HS;CHM;BP;G8.8	No	Model Compatibility List	$9.10 / Each
709507	1000200848	V22	Logo Label;MATRIX;BLACK WORD/WHITE BASE;	No	Model Compatibility List	$3.35 / Each	3,4,5,6
710215	1000207633	D15	Swivel Axle;20cm;PL01	No	Model Compatibility List	$76.96 / Each	8
718008	1000349174	1	Frame set;;;Iced Sliver;PL08KM-G3;;Servi	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
718009	1000349175	4	Stabilizer Tube Set;;;Iced Sliver;PL08KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
718010	1000349176	5	Foot Adjustable Set;;;Iced Sliver;PL08KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
718011	1000349177	6	pedal arm set;;left;Iced Sliver;PL08KM-G	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,9,3
718179	1000349451	D20	block;Swivel Arm;;painting;;Iced Sliver;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
718180	1000349453	AC1	SEAT PAD ADJ SET;;;painting;;Iced Sliver	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
719372	1000360750	7	Pedal Arm set;Semi-Assy;right;;Iced Sliv	No	Model Compatibility List	$316.00 / Each	8,9,3
725312	069801	C29	Screw, Flat Hex Socket, M8x1.25Px8L	No	Model Compatibility List	$1.79 / Each
727015	086682	B09	Stopper;Pad;PL01	No	Model Compatibility List	$17.55 / Each
727016	086683	G01	Cap;Tube;Elliptical;PL01	No	Model Compatibility List	$3.35 / Each
728180	093469	AB2	Storage Horn;Extrawork;Cr;PL01	No	Model Compatibility List	$132.08 / Each
728181	093473	B16	Buffer Pad;PU;Black;PL01	No	Model Compatibility List	$63.18 / Each
728183	093488	D13	Fixing Ring;Swivel Arm;PL01	No	Model Compatibility List	$11.73 / Each
728689	095995	D08	Foam;Grip;24.0x5;PL08	No	Model Compatibility List	$11.31 / Each
728690	095997	Not Shown	Manual;Assembly Guide;PL08	No	Model Compatibility List	$0.00 / Each Out Of Stock
729118	Part of Kit 1	AB1	Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729165	Part of Kit 4	AC2	Pedal Arm;Left;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729172	Part of Kit 5	AH1	Swing Arm Set;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
729191	Part of Kit 6	AD1	Vertical Stabilizer Arm;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729194	Part of Kit 7	AD2	Incline Arm;Left;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J02	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
