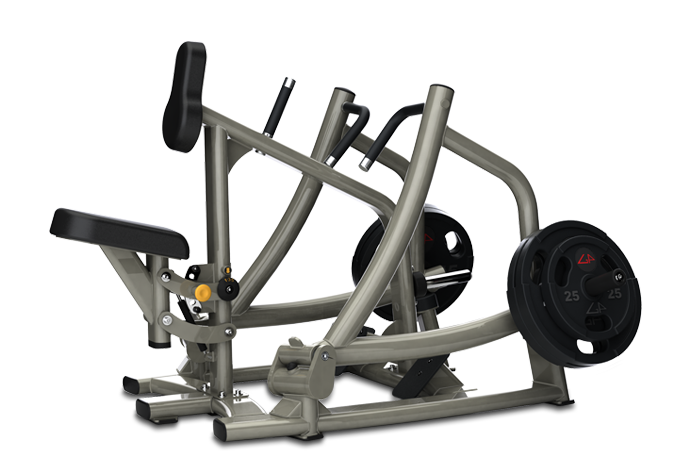

Matrix Commercial - G3-PL34-02 - 2013

Repair Parts for Matrix Commercial G3-PL34-02 G3-PL34-02,Plate Loaded Seated Row,G3PL34

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G3-PL34-02,Plate Loaded Seated Row,G3PL34

Model Name: G3-PL34-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16892.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700308	000926-A	B10	Cap;Tube;PVC;FW91	No	Model Compatibility List	$1.79 / Each	9,3
700447	001401-A	B09	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	9
700519	001523-E	G39	Rubber Stop;CAM	No	Model Compatibility List	$3.64 / Each
700685	001791-AA	M16	Fix Block;Weight Lifting Connecting Sleeve;POM;	No	Model Compatibility List	$3.64 / Each	3,10
701159	004077-A2	E17	Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
701431	004479-ABX	F10	Screw;Hex Socket;Round;M8x1.25Px15L;Cr;A	No	Model Compatibility List	$2.00 / Each
701524	004556-AB	Z35	Screw;Hex Socket;Round;M12x1.75Px25L;Cr;	No	Model Compatibility List	$1.79 / Each
701660	004696-AB	B07	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each
701939	004975-00	F03	Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8)	No	Model Compatibility List	$1.90 / Each
701968	005007-00	G28	Washer;Spring;12.2x21.5x3.0t	No	Model Compatibility List	$2.00 / Each
701981	005017-00	B41	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
702102	005132-00	Z03	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702411	006656-A	V04	Decal;Serial Number;Aluminum	No	Model Compatibility List	$1.66 / Each	7,3
702530	008522-C	F21	Washer;Swivel Axle;;;SS41;;Cr;;;	No	Model Compatibility List	$3.64 / Each	2,8
702711	009356-B	C46	Stopper Mast;Foam;AL6061;GM03	No	Model Compatibility List	$3.64 / Each
702721	009371-E	C26	Cap;Grip;GM03	No	Model Compatibility List	$15.34 / Each
703879	018940-A	I05	Foam;Grip;24X5.0tx150L	No	Model Compatibility List	$8.42 / Each
704137	020304-AC	F16	Screw;Hex Socket;M10X1.5PX35L;Cr Plate	No	Model Compatibility List	$2.00 / Each
704193	020465-AB	Z03	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
704232	020699-A	V06	Rivet;1/8X12.5L	No	Model Compatibility List	$1.79 / Each	1
706373	061531-AA	B06	Leveler;Foot Pad;FW151	No	Model Compatibility List	$14.56 / Each	9,3,12,13,14
707073	1000090024	C28	Screw;PH;M10X1.5PX30L;;;;;;SP	No	Model Compatibility List	$8.42 / Each	2
707078	1000090043	V13	Sticker ;Storage;PL02	No	Model Compatibility List	$1.66 / Each	1
707946	1000097206	F11	Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP	No	Model Compatibility List	$2.00 / Each
708063	1000098705	B29	Bushing;26x20x20L;GM41	No	Model Compatibility List	$10.32 / Each	8
708099	1000099693	H09	Pull Pin Set;Orange Knob	No	Model Compatibility List	$73.92 / Each	12,13,14
708465	1000102881	B27	Screw;Hex Socket;Stopper;Cone;M6x1.0Px4L	No	Model Compatibility List	$1.66 / Each	2
708591	1000103978	M01	CON Tube;weight lifting;Outer	No	Model Compatibility List	$120.02 / Each	3,10
708592	1000103979	M02	CON Tube;weight lifting;Inner	No	Model Compatibility List	$212.71 / Each	3,10
708654	1000104681	Z15	Circlip;External C Type;S-20;BAN	No	Model Compatibility List	$1.77 / Each	2
710215	1000207633	D20	Swivel Axle;20cm;PL01	No	Model Compatibility List	$76.96 / Each	8
710582	1000211104	C24	PEDAL;-;L;PAINTING;-;BLACK;PL07;	No	Model Compatibility List	$84.47 / Each	8,9,4,5,6
710583	1000211105	B39	PEDAL;-;M;PAINTING;-;BLACK;PL07;	No	Model Compatibility List	$84.47 / Each	8,9,4,5,6
713028	1000232600	V23	Warning Label;-;-;-;PC;-;-	No	Model Compatibility List	$7.28 / Each	1
714864	1000318784	D26	Hanging Rod;Pedal Arm;;40CRMO;Chrome;PL0	No	Model Compatibility List	$74.80 / Each	7,8,9,3,12,13,14
715562	1000326151	Not Shown	Manual Set;Assembly;;;PL07B;;	No	Model Compatibility List	$11.80 / Each	3
715563	1000326154	Not Shown	hardware set;;;;PL07B;	No	Model Compatibility List	$118.27 / Each	1
715564	1000326160	V08	Marking;;70x42;Black Word/Silver Base;;;	No	Model Compatibility List	$1.66 / Each	3,4,5,6
715965	1000329693	D14	Foam;;;24x5.0tx333L;Grip;2;PL07B	No	Model Compatibility List	$16.87 / Each	11
717225	1000343097	5	seat set;;;Iced Sliver;PL07B;;SERVICE	No	Model Compatibility List	$209.53 / Each	12,13,14
717226	1000343118	1	Frame set;;;Iced Sliver;PL07B;;SERVICE	No	Model Compatibility List	$675.97 / Each	3
717227	1000343138	2	Base Set;;;Iced Sliver;PL07B;;SERVICE	No	Model Compatibility List	$1182.97 / Each	3
717228	1000343167	4	pedal arm set;;right;Iced Sliver;PL07B;;	No	Model Compatibility List	$473.17 / Each	8,9,3
717229	1000343188	3	pedal arm set;;left;Iced Sliver;PL07B;;S	No	Model Compatibility List	$473.17 / Each	8,9,3
719680	1000363753	V15	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
725312	069801	C29	Screw, Flat Hex Socket, M8x1.25Px8L	No	Model Compatibility List	$1.79 / Each
726707	084241	Z06	Screw Set;M6X1.0PX5L;BP;POT	No	Model Compatibility List	$0.39 / Each
726987	086517	H65	Screw;Round Hex Socket;M10x1.5Px25L	No	Model Compatibility List	$3.64 / Each
727015	086682	B09	Stopper;Pad;PL01	No	Model Compatibility List	$17.55 / Each
727016	086683	G01	Cap;Tube;Elliptical;PL01	No	Model Compatibility List	$3.35 / Each
727019	086708	AC5	Pull Pin;Fixing Set;; Painting ;PL01	No	Model Compatibility List	$133.25 / Each
727021	086712	T08	Swivel Plate;Seat;PL01	No	Model Compatibility List	$54.55 / Each
727022	086713	T12	Cap;ADJ Base PL01	No	Model Compatibility List	$3.35 / Each
727050	086902	T09	Swivel Mandrel;Seat ;PL01	No	Model Compatibility List	$27.79 / Each
727051	086903	V03	Indication Decal;PL01	No	Model Compatibility List	$1.66 / Each
727052	086904	R01	Air Shock;18kg;125L;PL01	No	Model Compatibility List	$31.88 / Each
728180	093469	AB2	Storage Horn;Extrawork;Cr;PL01	No	Model Compatibility List	$132.08 / Each
728181	093473	B16	Buffer Pad;PU;Black;PL01	No	Model Compatibility List	$63.18 / Each
728182	093485	C22	Fixing Plate;Seat ADJPL01	No	Model Compatibility List	$15.42 / Each
728183	093488	D13	Fixing Ring;Swivel Arm;PL01	No	Model Compatibility List	$11.73 / Each
728185	093501	V08	Warning sticker;small;GM40-KM	No	Model Compatibility List	$1.66 / Each
728779	097335	C17	Rubber PadBlack;PL07KM-G3	No	Model Compatibility List	$8.42 / Each
729012	Order Kit 1	4	Console Base Set;Semi-Assy;;;;TM701-1US;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729024	Order Kit 2	AM01	Motor set;Semi-Assy;;;;TM701-1US;;Servic	No	Model Compatibility List	$0.00 / Each Out Of Stock	10
729027	Order Kit 3	AH03	Sleeve Set;Semi-Assy;;;;TM658E-2KM;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
729261	See Pad Matrix	J01	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
