Matrix Commercial - G3-PL77P - 2008

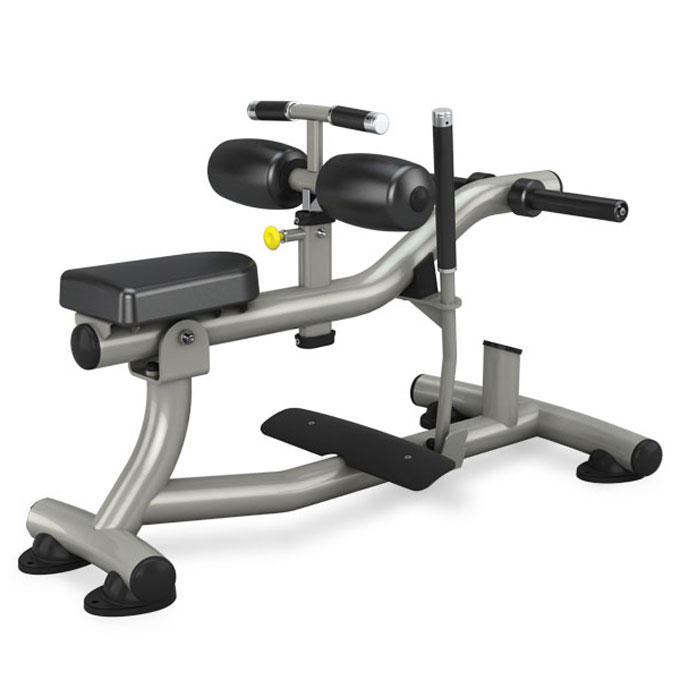

Repair Parts for Matrix Commercial G3-PL77P G3PL03

Brand: Matrix Commercial

Category: Plate Loaded

Type: Strength Systems

Model Name: G3-PL77P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Catalog #
MPN
Part List Key
Quantity On Model
Part Description
Notes
Available Used
Model Compatibility List
New price
718016 1000349183 1 Frame set;;;Iced Sliver;PL03KM-G3;;Servi No Model Compatibility List $0.00 / Each
Out Of Stock 		3
718017 1000349184 2 pedal arm set;;Big;Iced Sliver;PL03KM-G3 No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
718018 1000349185 3 pedal arm set;;Small;Iced Sliver;PL03KM- No Model Compatibility List $0.00 / Each
Out Of Stock 		8,9,3
707656 1000094060 4 Elevation Set;Cr Plate;PL03 No Model Compatibility List $287.27 / Each

3,10
729012 Order Kit 1 AB1 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
729024 Order Kit 2 AD1 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
729027 Order Kit 3 AD2 Sleeve Set;Semi-Assy;;;;TM658E-2KM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
Stopper Pad;PU;PL03 727029 086768 B13 Stopper Pad;PU;PL03 No Model Compatibility List $25.32 / Each

Pedal;PL03 727030 086769 B14 Pedal;PL03 No Model Compatibility List $106.65 / Each

B 700521 001526-D B15 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
B 707657 1000094061 B16 Pad Block;Painting;PL03 No Model Compatibility List $23.63 / Each

12,13,14
B 700399 001243-C B17 Washer;Back Pad;POM;GM07 No Model Compatibility List $3.35 / Each

2,4,5,6,12,13,14
B 700154 000524-A B19 Foot pad;Screw Set Leveler;Rubber;FW11 No Model Compatibility List $38.32 / Each

2,9,3,12,13,14
B 708657 1000104684 B20 RVN;Pattern;YZN;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $3.35 / Each

1
B 708477 1000102897 B21 Screw;Thin Head;M8x1.25Px30L;-;HS;-;CHM; No Model Compatibility List $2.37 / Each

2
B 708469 1000102887 B24 Screw;Hex Socket;Countersunk;M8x1.25Px16 No Model Compatibility List $2.18 / Each

2
B 700526 001529-B B26 Stopper Bolt;Rubber No Model Compatibility List $1.79 / Each

2
StopperRubberPL03 727749 090781 B27 StopperRubberPL03 No Model Compatibility List $1.66 / Each

Screw, Flat Hex Socket, M8x1.25Px8L 725312 069801 C29 Screw, Flat Hex Socket, M8x1.25Px8L No Model Compatibility List $1.79 / Each

Swivel Arm Axle;20x138.4L;PL03 727031 086775 D12 Swivel Arm Axle;20x138.4L;PL03 No Model Compatibility List $22.72 / Each

D 702965 013422-Z1G2 D13 Adjustment Knob Set;Seat;Yellow No Model Compatibility List $36.48 / Each

12,13,14
D 703902 019153-A D13 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
D 708071 1000098871 D13 Pull Pin Set;Seat;Orange Knob No Model Compatibility List $40.64 / Each

12,13,14
707978 1000097380 D14 Sleeve;Seat Tube No Model Compatibility List $12.92 / Each

3,12,13,14
Support Rubber Plate;Pedal Arm;PL03 727033 086784 D15 Support Rubber Plate;Pedal Arm;PL03 No Model Compatibility List $41.83 / Each

D 707084 1000090177 D16 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
D 700451 001406-A D17 End Cover;89 No Model Compatibility List $1.79 / Each

9
Sleeve TubeHorn;Black;50x260L;PL03 727838 091250 D19 Sleeve TubeHorn;Black;50x260L;PL03 No Model Compatibility List $119.44 / Each

Rubber PadHornBlack;PL03 727839 091251 D20 Rubber PadHornBlack;PL03 No Model Compatibility List $23.43 / Each

horn;30x651L;PL03 727032 086778 D21 horn;30x651L;PL03 No Model Compatibility List $94.72 / Each

D 700685 001791-AA D22 Fix Block;Weight Lifting Connecting Sleeve;POM; No Model Compatibility List $3.64 / Each

3,10
D 707066 1000090006 D23 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

D 702505 008234-C D24 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

701159 004077-A2 D25 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

D 702706 009347-B D26 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $9.10 / Each

8,3
D 704041 020127-A D27 Screw;Hex Socket;Round;M8X1.25PX12L No Model Compatibility List $1.79 / Each

2
D 702112 005139-AB D28 Washer;Flat;8.2x16.0x1.4T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
D 704039 020126-DB D29 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
D 704301 022372-C D30 Axle;Swivel ArmSupt Tube;SCM4;FW77 No Model Compatibility List $16.64 / Each

8,3
D 700199 000627-CA D32 Foam;Black;31.8x5.0tx340L No Model Compatibility List $29.30 / Each

4,5,6
D 701183 004118-00 D34 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8

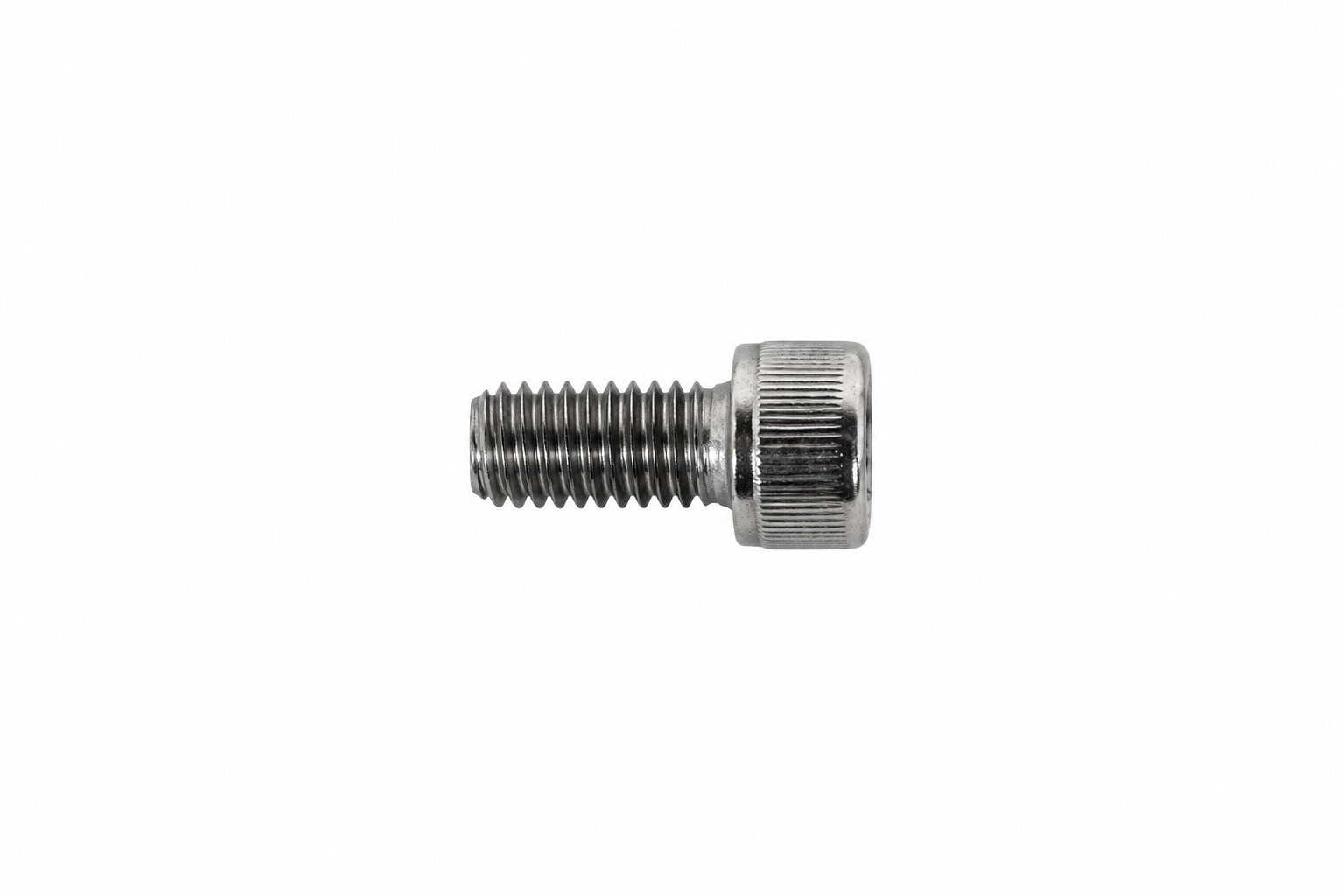

701499 004536-AC D35 Screw;SH;M8X1.25PX15L;;HS;;CHM;; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
D 701836 004855-AC D36 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

729261 See Pad Matrix J02 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
M 700200 000628-AA M07 Foam;C,31.8x5.0tx150L No Model Compatibility List $10.95 / Each

1
M 700448 001402-A M08 End Cap;Round No Model Compatibility List $1.79 / Each

9
M 702710 009355-B M09 Stopper Mast;Foam;AL6061;GM02 No Model Compatibility List $3.64 / Each

M 702722 009372-E M10 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

N 706633 064015-A Not Shown Hardware; No Model Compatibility List $31.72 / Each

1
Hard Ware Kit;Semi-Assy;PL03 727035 086794 Not Shown Hard Ware Kit;Semi-Assy;PL03 No Model Compatibility List $38.53 / Each

728408 094583 Not Shown Manual;Assembly Guide;PL03 No Model Compatibility List $15.63 / Each

V 707244 1000091590 V01 Sticker;Weight;PL03 No Model Compatibility List $1.66 / Each

3
Label;ADJPL03 727034 086792 V02 Label;ADJPL03 No Model Compatibility List $3.35 / Each

V 709507 1000200848 V18 Logo Label;MATRIX;BLACK WORD/WHITE BASE; No Model Compatibility List $3.35 / Each

3,4,5,6
V 708064 1000098708 V22 Decal;AL;PL03 No Model Compatibility List $3.35 / Each

7,3
Z 708473 1000102893 Z01 Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl No Model Compatibility List $1.38 / Each

Z 708464 1000102880 Z02 Screw;Hex Socket;BH;M12x1.75Px30L;Cr Pla No Model Compatibility List $5.04 / Each

2
701968 005007-00 Z03 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

Z 702102 005132-00 Z04 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
Z 708710 1000105038 Z05 Pin;Spring;5x30L;OXIDIZE No Model Compatibility List $3.64 / Each

2,12,13,14
Z 704137 020304-AC Z06 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

Z 708466 1000102883 Z07 Screw;Hex Socket;Stopper;Cone;M6x1.0Px6L No Model Compatibility List $1.66 / Each

2
726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each
