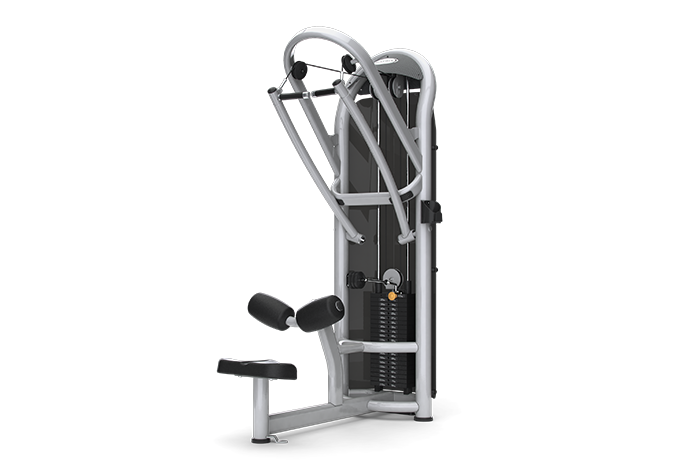

Matrix Commercial - G3-S33P - 2008

Repair Parts for Matrix Commercial G3-S33P G3GM26

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Name: G3-S33P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700139 000508-D B34 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B35 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
B 700141 000510-D B33 Foot Pad;Rubber;76.2mm No Model Compatibility List $5.69 / Each

9,3,12,13,14
B 700162 000542-C B32 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
Z 700256 000791-B Z09 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
D 700448 001402-A D16 End Cap;Round No Model Compatibility List $1.79 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
B 700493 001509-D B53 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
B 700497 001513-A B68 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
B 700519 001523-E B31 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

B 700521 001526-D B54 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
D 701160 004078-A2 D09 Ball Bearing;6005ZZ;Z25XZ47X12T;;TPI;;; Yes Model Compatibility List $19.14 / Each

H 701183 004118-00 H08 Bearing;Dry;Flange;LEF-2015 LFF-2015 No Model Compatibility List $3.64 / Each

8
F 701190 004133-00 F04 Bearing;Lower Link Arm End;;PHS 12(M12x1.75P);Huei Yes Model Compatibility List $18.51 / Each

8,9,3
701288 004356-00 B48 Screw;Phillip;BH;M4x0.7Px12L;Gap; No Model Compatibility List $2.00 / Each

701513 004549-00 B59 Screw;Hex Socket;Round;M10x1.5Px55L;Cr; No Model Compatibility List $6.27 / Each

B 701567 004601-AB B45 Screw;Hex;M5x0.8Px15L;Black Zinc; No Model Compatibility List $0.91 / Each

2,4,5,6
B 701660 004696-AB B36 Screw;Hex Socket;8X1.25X20L;Chromed No Model Compatibility List $2.00 / Each

K 701694 004720-AH K17 Screw;Hex Socket;Oval;M8X1.25PX20L No Model Compatibility List $2.00 / Each

D 701836 004855-AC D13 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

K 701881 004909-00 K12 Nut;Hex;M12x1.75P;Chrome Plated No Model Compatibility List $2.13 / Each

7,2,3,12,13,14
K 701914 004943-00 K21 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

701939 004975-00 B67 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701968 005007-00 H12 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

K 702000 005040-00 K18 Washer;Flat;Diam.8.5xDiam.19.0x1.5T;;Bla No Model Compatibility List $1.85 / Each

2
B 702056 005084-00 B63 Washer;Flat;5.3X10.0X1.0T;Chromed No Model Compatibility List $2.00 / Each

702076 005109-00 X35 Washer;Flat;8.5x25x1.5T;Black Zinc No Model Compatibility List $1.59 / Each

2,4,5,6
H 702102 005132-00 H11 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
B 702146 005180-A B49 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702407 006651-B V15 Decal;Weight Plate;5P No Model Compatibility List $3.41 / Each

7,3
B 702523 008450-G B47 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
B 702536 008546-F B43 Leveler Adjustable Cover No Model Compatibility List $93.08 / Each

9,3
B 702546 008589-F B46 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
H 702671 009289-F H07 Adjustable Axle;Back Pad ;GM03 No Model Compatibility List $3.64 / Each

8,4,5,6,12,13,14
D 702711 009356-B D11 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

D 702712 009357-C D08 Washer;Swivel Axle;SS41; No Model Compatibility List $14.90 / Each

2,8
D 702721 009371-E D12 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

702830 011176-00 D18 Washer;Flat;30.3x45.0x2.0t;BED; No Model Compatibility List $1.61 / Each

2
H 702944 013411-Z1G2 H09 Adjust Pin Assembly;Yellow Knob No Model Compatibility List $31.64 / Each

3,12,13,14
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703686 015806-AA L07 Increment Weight Plate;5LBS No Model Compatibility List $36.30 / Each

3
K 703737 015942-AA K08 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

H 703902 019153-A H09 Pull pin knob; Yellow No Model Compatibility List $6.79 / Each

12,13,14
B 704001 020090-00 B44 Screw;Hex Socket;Round;M10x1.25Px20L;Chromed No Model Compatibility List $4.00 / Each

K 704023 020112-A K20 Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15) No Model Compatibility List $1.33 / Each

Z 704137 020304-AC Z02 Screw;Hex Socket;M10X1.5PX35L;Cr Plate No Model Compatibility List $2.00 / Each

X 704166 020379-00 X34 Nut;Hex;M8X1.25P;SS41;CHM;; No Model Compatibility List $1.01 / Each

K 704193 020465-AB K22 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

Q 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
H 707084 1000090177 H09 Pull Pin Handle;Orange;TPP;137C;MS10 No Model Compatibility List $9.10 / Each

12,13,14,11
707926 1000096994 D15 Screw;SH;M12x40L;-;HS;-;CHM;BP;G12.9; No Model Compatibility List $3.35 / Each

2
H 708099 1000099693 H09 Pull Pin Set;Orange Knob No Model Compatibility List $73.92 / Each

12,13,14
708445 1000102861 B65 Screw;Hex Socket;Round;M6x1.0Px25L;Cr Pl No Model Compatibility List $1.38 / Each

H 708453 1000102869 H10 Screw;Hex Socket;Round;M12x1.75Px25L;Cr No Model Compatibility List $3.43 / Each

2
B 708454 1000102870 B62 Screw;Hex Socket;BH;M5x0.8Px16L;Cr Plate No Model Compatibility List $0.42 / Each

2,3
708457 1000102873 X32 Screw;Hex Socket;BH;M8x1.25Px40L;Cr Plat No Model Compatibility List $1.66 / Each

2
B 708483 1000102909 B50 Washer;Internal Teeth;5.3x10.0x0.6t;BE No Model Compatibility List $0.10 / Each

2
K 708486 1000102912 K15 Circlip;External C Type;S-30;BED No Model Compatibility List $2.00 / Each

B 708489 1000102915 B52 Circlip;E Type;;E-15;Cr Plate No Model Compatibility List $0.86 / Each

708645 1000104661 D17 Nut;HAC;M12x1.75P;CST;CHM0 No Model Compatibility List $0.60 / Each

2,4,5,6
B 708656 1000104683 B37 RVN;NLS7-580-5.7;Pattern;YZN No Model Compatibility List $0.96 / Each

1
K 708675 1000104705 K06 Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $0.52 / Each

K 708711 1000105039 K16 Pin;Spring;10X70;OXIDIZE No Model Compatibility List $3.54 / Each

2,12,13,14
708849 1000106229 F03 Steel Rope 1;Exrta-Work;Steel Rope #serv No Model Compatibility List $83.93 / Each

1
K 710557 1000210965 K09 Guide Rail;19x1890L No Model Compatibility List $262.03 / Each

9
714742 1000317753 K03 Weight Plate;;Up;SPHC;;GM26; No Model Compatibility List $0.00 / Each
Out Of Stock 		3
716625 1000337889 V08 LOGO Label;Cap;Planet Fitness;Black Word No Model Compatibility List $13.49 / Each

9,4,5,6
Q 716649 1000338414 Q02 Superstructure group;Semi-Assy;;;;GM01;P No Model Compatibility List $64.19 / Each

1
K 717480 1000345425 K05 Stopper Ring;Guide Rod;;;Chrome;GM41;; No Model Compatibility List $18.23 / Each

718055 1000349229 AB1 Frame set;;;Iced Sliver;GM26;;Service No Model Compatibility List $0.00 / Each
Out Of Stock 		3
A 718056 1000349230 AD1 Swivel arm set;;left;Iced Sliver;GM26;; No Model Compatibility List $405.57 / Each

3
A 718057 1000349231 AD2 Swivel arm set;;right;Iced Sliver;GM26; No Model Compatibility List $405.57 / Each

3
718058 1000349232 AH1 Foot Adjustable Set;;;Iced Sliver;GM26;; No Model Compatibility List $270.37 / Each

9,3
718226 1000349552 AK1 Pulley Fixing Set;;;painting;;Iced Slive No Model Compatibility List $38.84 / Each

8
718227 1000349553 D07 Pulley Fixing Plate;;;painting;;Iced Sli No Model Compatibility List $38.84 / Each

8,3
719571 1000362603 Q01 Cover set;;Big;;;GM01;; No Model Compatibility List $621.89 / Each

9
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
N 722491 1000392912 Not Shown Support set;Semi-Assy;;Black Matte;;;GM1 No Model Compatibility List $6.73 / Each

3,4,5,6
Pulley; 90mm 725583 073572 F17 Pulley; 90mm No Model Compatibility List $44.28 / Each

Pulley; 115mm 725584 073573 F21 Pulley; 115mm Yes Model Compatibility List $42.17 / Each

Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

WASHER;FLT;Diam.8.2XDiam.38.0X2.0T;SPHC 726517 082535 X33 WASHER;FLT;Diam.8.2XDiam.38.0X2.0T;SPHC No Model Compatibility List $1.66 / Each

726607 083458 Z62 Washer;Lock;8.2x13.5x2.0t No Model Compatibility List $2.00 / Each

Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

Cover set;Semi-Assy;GM01 726868 085728 7 Cover set;Semi-Assy;GM01 No Model Compatibility List $81.28 / Each

727860 091677 B29 Stopper Block, Swivel Arm;L;Black;GM26 No Model Compatibility List $58.50 / Each

727861 091678 B30 Stopper Block, Swivel Arm;R;Black;GM26 No Model Compatibility List $58.50 / Each

727862 091687 D06 Washer;TAPER;25.5X39.6X0.5X1.3;SPHC ;; No Model Compatibility List $1.01 / Each

727863 091689 D10 Grip for AD1 or AD2 No Model Compatibility List $10.04 / Each

ADJ Rod;Weight Plate;Exrta-Work;CrPlate 727864 091696 K04 ADJ Rod;Weight Plate;Exrta-Work;CrPlate No Model Compatibility List $78.18 / Each

727865 091697 V03 Decal;Weight Plate;GM26 No Model Compatibility List $49.89 / Each

727866 091700 V01 Illustration Decal;GM26 No Model Compatibility List $28.99 / Each

727867 091704 AC15 Grip;Sensor GriP;R;US;H5x-F; No Model Compatibility List $0.00 / Each
Out Of Stock
727890 091881 B66 Screw;SH;M8X1.25PX30L;;HS;;CHM;; No Model Compatibility List $1.20 / Each

729261 See Pad Matrix J02 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
729643 ZMS4003255 Not Shown Decal, QR, G3-S33 Div Lat Pull No Model Compatibility List $5.90 / Each

7,3
4.5 Inch Pulley Cable (New) vis4.5pull 073573 4.5 Inch Pulley Cable (New) Yes Model Compatibility List $36.99 / Each
5,37
3.5 Inch Pulley Cable (New) vis3.5pull 087513 3.5 Inch Pulley Cable (New) Yes Model Compatibility List $24.99 / Each
Out Of Stock 		37
View Drawing
