Matrix Commercial - G3-S50P - 2008

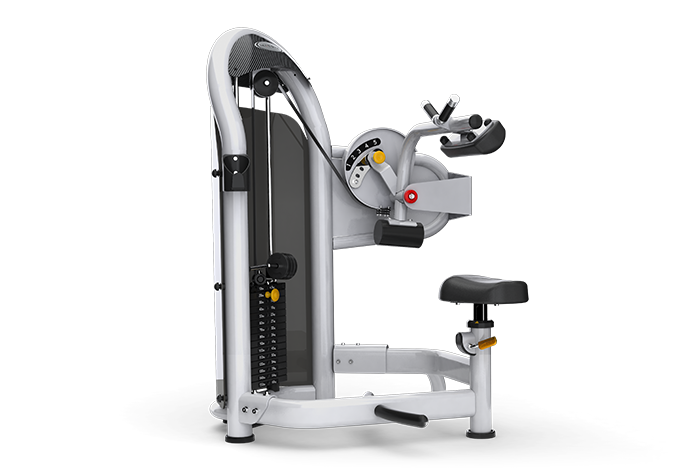

Repair Parts for Matrix Commercial G3-S50P G3GM07

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Name: G3-S50P

Version: 2008

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
B 700139 000508-D B31 Foot Pad;Rubber;60mm No Model Compatibility List $5.15 / Each

9,3,12,13,14
B 700140 000509-E B24 Foot Pad;Rubber;89mm No Model Compatibility List $9.10 / Each

9,3,12,13,14
C 700145 000514-C C16 Foot pad;Tube;Rubber;GM07 No Model Compatibility List $3.64 / Each

B 700162 000542-C B23 Foot pad;Weight Plate;Rubber;GM01 No Model Compatibility List $25.51 / Each

9,3,12,13,14
D 700169 000580-C D16 Foam Grip;25.4 x 5.0T x 84L Yes Model Compatibility List $4.47 / Each

11
C 700174 000585-F C20 Foam Grip;38.1X3.0TX253L No Model Compatibility List $16.20 / Each

11
B 700256 000791-B B37 Water Bottle Holder No Model Compatibility List $13.47 / Each

1
Q 700307 000925-B Q09 End Cap;M38.1x3.0T No Model Compatibility List $1.79 / Each

Q 700398 001240-F Q08 Pad;Swivel Axle Label;GM03 No Model Compatibility List $1.79 / Each

8,12,13,14
J 700399 001243-C J11 Washer;Back Pad;POM;GM07 No Model Compatibility List $3.35 / Each

2,4,5,6,12,13,14
Q 700448 001402-A Q04 End Cap;Round No Model Compatibility List $1.79 / Each

9
K 700492 001508-E K24 Long Guide Rubber Plate;POM No Model Compatibility List $27.48 / Each

3
Q 700493 001509-D Q05 Fix Rubber Block;Cover;Rubber;GM01 No Model Compatibility List $1.79 / Each

9
K 700494 001510-B K11 Grommet;Guide Rod No Model Compatibility List $1.79 / Each

2,3
Q 700496 001512-C Q03 Cover;Pulley;ABS;GM01 ABS No Model Compatibility List $1.79 / Each

8,9
K 700497 001513-A K07 Rubber Block;Shock Absorb No Model Compatibility List $8.55 / Each

1
L 700517 001521-E L08 Stopper Block;Incremental Rubber No Model Compatibility List $2.44 / Each

1
B 700518 001522-B B29 Stopper Block;Rubber No Model Compatibility List $3.64 / Each

F 700519 001523-E F23 Rubber Stop;CAM No Model Compatibility List $3.64 / Each

Q 700521 001526-D Q06 Bolt;Cover;M8x1.25Px40L No Model Compatibility List $2.52 / Each

2,9
J 700524 001527-G J12 Stopper Bolt;Back Pad;GM07 No Model Compatibility List $3.35 / Each

2,4,5,6,12,13,14
F 701159 004077-A2 F15 Ball Bearing;6004ZZ;20X42X12T;;SKF;;; No Model Compatibility List $20.05 / Each

K 701182 004116-00 K14 Bearing;Dry;Weight Stack No Model Compatibility List $3.64 / Each

8,3,4,5,6
J 701187 004126-A J14 Dry Bearing;Flange;LEF-1015 LFF-1015 No Model Compatibility List $3.35 / Each

8
J 701437 004482-AC J17 Screw;Hex Socket;Round;M8x1.25Px20L;BED; No Model Compatibility List $2.00 / Each

F 701470 004519-AE F17 Screw;Round;Hex Socket;M10x1.5Px80L No Model Compatibility List $4.94 / Each

F 701493 004534-AC F18 Screw;Hex Socket;Round;M5x0.8Px35L No Model Compatibility List $2.18 / Each

B 701496 004535-AC B28 Screw;Hex Socket;Round;M8x1.25Px30L No Model Compatibility List $3.64 / Each

2
C 701522 004555-AB C36 Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A No Model Compatibility List $4.00 / Each

F 701545 004573-AE F20 Screw;Hex Socket;Sink;M10x1.5Px25L No Model Compatibility List $3.64 / Each

2
B 701568 004601-AC B33 Screw;Hex;M5x0.8Px15L No Model Compatibility List $1.22 / Each

2
B 701668 004702-00 B32 Screw;Flat Hex Socket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
L 701674 004708-AD L14 Screw;Umbrella Hex Scoket;M5x0.8Px16L No Model Compatibility List $1.79 / Each

2
C 701760 004780-AC C24 Screw;Umbrella Hex Scoket;M10x1.5Px25L No Model Compatibility List $4.00 / Each

2
D 701836 004855-AC D18 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

L 701841 004859-00 L09 Screw;Umbrella Hex Scoket;M8x1.25Px20L No Model Compatibility List $2.00 / Each

2
701887 004917-00 B52 Nut;Cap;M8x1.25P;Black Zinc No Model Compatibility List $0.75 / Each

2,9,4,5,6
F 701914 004943-00 F19 Nut;Nylon;M10x1.5P;Cr Plate; No Model Compatibility List $2.00 / Each

F 701915 004944-00 F30 Nut;Nylon;M5x0.8P;Chromed No Model Compatibility List $1.79 / Each

701939 004975-00 B26 Insert Nut;Brass;ALS7-8125-3.8(0.5-3.8) No Model Compatibility List $1.90 / Each

701968 005007-00 F29 Washer;Spring;12.2x21.5x3.0t No Model Compatibility List $2.00 / Each

L 701978 005015-00 L11 Washer;Spring;SW8 8.2X13.5X2.0T Yes Model Compatibility List $2.00 / Each

F 701980 005016-00 F27 Washer;Spring;5.1x9.3x1.3t;Chromed No Model Compatibility List $2.00 / Each

C 701981 005017-00 C23 Washer;Spring;SW10 10.2X18.4X2.5T;Chromed No Model Compatibility List $1.33 / Each

F 702057 005084-AB F26 Washer;Flat;5.3x10x1.0T;Zinc Plating No Model Compatibility List $0.34 / Each

2
L 702098 005130-00 L10 Washer;Flat;8.4x15.5x1.6T;Chromed No Model Compatibility List $2.00 / Each

F 702102 005132-00 F28 Washer;Flat;13x26x2.5T;Chromed No Model Compatibility List $1.79 / Each

7,2,12,13,14
K 702119 005145-AC K19 Washer;Flat;8.2x19.0x2.0T;Chromed No Model Compatibility List $2.00 / Each

B 702146 005180-A B51 Washer;Sawtooth;INT;4.3X8X0.5T;;BAN; No Model Compatibility List $0.34 / Each

2
B 702147 005181-A B50 Washer;5.3x10x0.6T No Model Compatibility List $0.31 / Each

2
702178 005220-00 F32 Washer;Wavy;20.7x29.1x.3T No Model Compatibility List $2.00 / Each

K 702242 005367-00 K15 C-Clip;External;S-30 No Model Compatibility List $4.00 / Each

K 702250 005377-00 K13 Clamp;E-Shaped Ring;E-15 No Model Compatibility List $0.65 / Each

K 702308 005847-A K25 Lanyard;Weight Selection Pin No Model Compatibility List $20.05 / Each

3,12,13,14
V 702316 005984-G V08 Decal;Upper Cover No Model Compatibility List $25.51 / Each

7,9,3
V 702385 006613-B V06 Decal;Angle Adjustic;MX-S50;GM07 No Model Compatibility List $3.64 / Each

7,3
V 702392 006620-D V03 Decal;Weight Plate;10LBS No Model Compatibility List $27.59 / Each

7,3
V 702406 006650-B V15 Decal;Weight Plate;2.5P;GM06 No Model Compatibility List $3.15 / Each

7,3
V 702411 006656-A V11 Decal;Serial Number;Aluminum No Model Compatibility List $1.66 / Each

7,3
V 702414 006663-A V02 Decal;Seat Pad Adjustable;GM07 No Model Compatibility List $3.35 / Each

7,3,12,13,14
C 702505 008234-C C51 Bushing;Fixed Plate No Model Compatibility List $9.10 / Each

F 702520 008448-D F12 Fix Plate;Pulley;;SPC;;BED;;GM01 No Model Compatibility List $3.15 / Each

8,3
B 702523 008450-G B44 Upper Cover Snug Plate;L Shaped Bracket;SPC Thickness: 1.5mm No Model Compatibility List $1.53 / Each

2,9,3,4,5,6
F 702530 008522-C F24 Washer;Swivel Axle;;;SS41;;Cr;;; No Model Compatibility List $3.64 / Each

2,8
D 702531 008523-B D32 Washer;Arc;M10x28x10.5T;SS41 No Model Compatibility List $9.10 / Each

F 702537 008547-D F16 Cover;Cam;;SUS304;;Plate;;GM07 No Model Compatibility List $117.62 / Each

9,3
B 702546 008589-F B42 Fixing Horn Plate;Cover;D;SPC;;Zn Plate No Model Compatibility List $1.01 / Each

9,3
K 702646 009219-D K05 Connecting Axle;Belt;SS41;Zn Plate(BL);GM01 No Model Compatibility List $6.79 / Each

8,15,3
J 702677 009298-C J13 Swivel Axle;Back Pad ;SCM4;?10x87L;Zn Pl No Model Compatibility List $6.29 / Each

8,4,5,6,12,13,14
D 702690 009317-CB D14 Balance Plate;SS41;GM03 No Model Compatibility List $123.92 / Each

3
F 702706 009347-B F21 Sleeve;Axle;;SS41;8mm;Cr Plate;;;GM03 SS41 No Model Compatibility List $9.10 / Each

8,3
D 702711 009356-B D19 Stopper Mast;Foam;AL6061;GM03 No Model Compatibility List $3.64 / Each

K 702719 009365-00 K17 Pin;Spring;10x70L No Model Compatibility List $3.64 / Each

2,12,13,14
D 702721 009371-E D17 Cap;Grip;GM03 No Model Compatibility List $15.34 / Each

K 702774 009643-F K03 Bayonet;Weight Plate;15 Aperture No Model Compatibility List $49.09 / Each

3
Q 702959 013420-ZG2-2 Q02 Upper Cover Set No Model Compatibility List $73.92 / Each

9
703061 013455-KMG2 AJ1 SEAT POST SET(PAINTING) GM07 No Model Compatibility List $552.14 / Each

12,13,14
A 703459 014780-H AF4 Pulley Set;GM01 No Model Compatibility List $91.23 / Each

8
A 703640 015771-A AL1 Weight Storage Horn Set No Model Compatibility List $37.62 / Each

3
A 703641 015772-A AL2 Incremental Weight Adjustment Rod;GM01 No Model Compatibility List $34.40 / Each

3
L 703685 015805-AA L07 Incremental Weight Plate;2.5LBS;Painting;Black;GM06 No Model Compatibility List $25.30 / Each

3,4,5,6
K 703737 015942-AA K06 Weight Plate Set;10 Lbs;Dry Bearing No Model Compatibility List $42.22 / Each

D 703867 018864-AA D24 Cover;Axle No Model Compatibility List $3.41 / Each

8,9
704031 020119-ZA F33 Screw;Hex Socket;Round;M12x1.75Px25L; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
C 704039 020126-DB C50 Screw;Seat Stopper;M8x1.25Px20L No Model Compatibility List $1.79 / Each

2,12,13,14
B 704171 020410-A B35 Insert Nut;NLS7-580-5.7 No Model Compatibility List $9.13 / Each

2
C 704193 020465-AB C22 Washer;Flat;M10.2X25PX2.0T;Chromed No Model Compatibility List $1.79 / Each

Q 704232 020699-A Q10 Rivet;1/8X12.5L No Model Compatibility List $1.79 / Each

1
F 704305 022379-A F10 Axle;Swivel Arm;SCM4;19X270L SCM4;GM07 No Model Compatibility List $61.54 / Each

8,3
D 704319 022400-A D21 Spring Pin;5x30L No Model Compatibility List $3.64 / Each

J 705053 033303-B J02 Seat Pad fixing plate No Model Compatibility List $153.32 / Each

3,12,13,14
F 705079 035711-A F22 Belt;Flat;Kevlar **Order BY THE FOOT, e.g. 8 ft = qty 8** No Model Compatibility List $13.68 / Each

9,15,3
B 706954 067544-A B43 Screw;Phillip;M4X0.7PX12L No Model Compatibility List $2.00 / Each

2
C 707066 1000090006 C49 End Cover;Seat Tube Sleeve No Model Compatibility List $3.64 / Each

C 707966 1000097257 C18 Sleeve;Seat Tube No Model Compatibility List $19.50 / Each

3,12,13,14
708072 1000098872 B30 Pull Pin Set;Seat;Orange Knob No Model Compatibility List $36.48 / Each

12,13,14
C 708091 1000099499 C52 Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP No Model Compatibility List $1.66 / Each

2
B 708815 1000106129 B30 Adjustment Pin Assembly;Seat;Yellow Knob No Model Compatibility List $54.73 / Each

3,12,13,14
708864 1000106806 KIT Stability Leg;Frame No Model Compatibility List $195.08 / Each

3
K 710558 1000210966 K09 Guide Rail;19x1280L No Model Compatibility List $165.88 / Each

9
K 710720 1000212618 K10 Adjust set;Semi-Assy;;Service;;GM30C;; No Model Compatibility List $63.86 / Each

1
V 713028 1000232600 V20 Warning Label;-;-;-;PC;-;- No Model Compatibility List $7.28 / Each

1
Q 719572 1000362618 Q01 Cover set;Semi-Assy;;Arcylic;;GM06;;incl No Model Compatibility List $505.28 / Each

9
N 719669 1000363588 Not Shown Stopper set;Guide Rod;;painting;;;MS20; No Model Compatibility List $35.46 / Each

3
K 720426 1000372591 K10 Adjustable Pin;Weight Plate;;42CrMo;Chro No Model Compatibility List $54.73 / Each

7,3,12,13,14
725308 069638 not shown Manual;Assembly;GM07 No Model Compatibility List $17.65 / Each

Placard Holder 725996 079123 B46 Placard Holder No Model Compatibility List $34.94 / Each

Screw;Hex Socket;Umbrella;;;M8x1.25Px18L 726047 079527 B47 Screw;Hex Socket;Umbrella;;;M8x1.25Px18L No Model Compatibility List $2.18 / Each

Sticker;Cover;Up;AL;SNAP-GM01 726620 083532 V08 Sticker;Cover;Up;AL;SNAP-GM01 No Model Compatibility List $25.56 / Each

726786 084823 V01 Illustration Decal;ENG;GM07 No Model Compatibility List $33.46 / Each

726872 085740 AC1 BASE SET No Model Compatibility List $354.41 / Each

726873 085741 AF1 CAM FRAME SET No Model Compatibility List $0.00 / Each
Out Of Stock
726874 085743 AD1 SWIVEL ARM SET No Model Compatibility List $276.61 / Each

726887 085791 4 Cover Set;Upper;Snap Badged No Model Compatibility List $96.33 / Each

727158 087486 AK1 Top Weight Plate Set;Semi-Assy;GM07-G3 No Model Compatibility List $242.87 / Each

728586 095423 AJ4 CUSHION SET No Model Compatibility List $514.70 / Each

728587 095424 AB1 MAIN FRAME SET No Model Compatibility List $1.30 / Each

729256 See B30 B41 Pull Pin Knob No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
729261 See Pad Matrix J01 Elbow Pad;;PU;Black;;FW213-KM; No Model Compatibility List $0.00 / Each
Out Of Stock
