Brand: Matrix Commercial
Category: Single Station
Type: Strength Systems

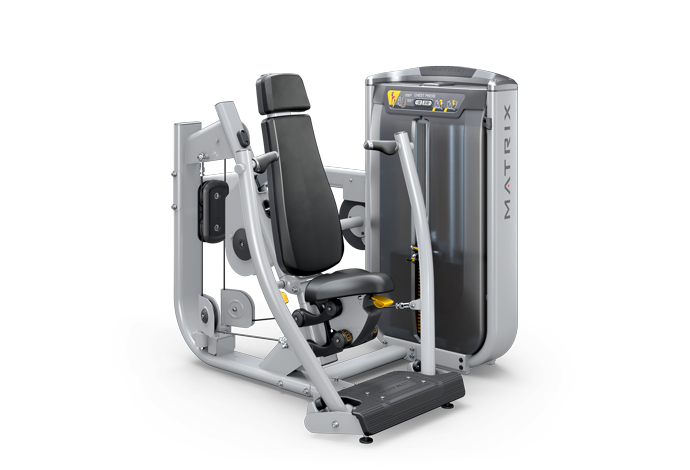

Model Name: G7-S13-02
Version: 2018
"Used Only" - contact us if interested in used or refurbished parts. Send us mail:
X
Image |
Catalog # |
MPN |
Part List Key |
Quantity On Model |
Part Description |
Notes |
Available Used |
Model Compatibility List |
New price |
|---|---|---|---|---|---|---|---|---|---|
|
|
|||||||||
| 724181 | 1000416167 | 1 | Sliding Pulley Set;Semi-Assy;;Iced Slive | No | Model Compatibility List | $479.93 / Each |
|||
| 724778 | 1000427167 | 1 | Sliding Pulley Set;Semi-Assy;;Planet Fit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724184 | 1000416228 | 2 | Pedal Arm set;Semi-Assy;left;Iced Sliver | No | Model Compatibility List | $324.45 / Each |
|||
| 724784 | 1000427180 | 2 | Pedal Arm set;Semi-Assy;left;Planet Fitn | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724185 | 1000416250 | 3 | Pedal Arm set;Semi-Assy;right;Iced Slive | No | Model Compatibility List | $324.45 / Each |
|||
| 724786 | 1000427184 | 3 | Pedal Arm set;Semi-Assy;right;Planet Fit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724186 | 1000416274 | 4 | Swivel Axle Set;Semi-Assy;;Iced Sliver;; | No | Model Compatibility List | $795.96 / Each |
|||
| 724788 | 1000427187 | 4 | Swivel Axle Set;Semi-Assy;;Planet Fitnes | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724194 | 1000416338 | 5 | Seat Adjustable Set;Semi-Assy;;Iced Sliv | No | Model Compatibility List | $184.18 / Each |
|||
| 724796 | 1000427201 | 5 | Seat Adjustable Set;Semi-Assy;;Planet Fi | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724164 | 1000416029 | AB1 | Frame Set;;;painting;;Iced Sliver;GM118- | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724773 | 1000427154 | AB1 | Frame Set;;;painting;;Planet Fitness Pur | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723910 | 1000413364 | AC4 | Fixed Set;Rotate;M;;;Iced Sliver;GM114; | No | Model Compatibility List | $16.87 / Each |
|||
| 724815 | 1000427268 | AC4 | Fixed Set;Rotate;M;;;Planet Fitness Purp | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724165 | 1000416036 | AC11 | Base Set-Exreawork;bushing;;;Iced Sliver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724774 | 1000427160 | AC11 | Base Set-Exreawork;bushing;;;;GM118B;??? | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724178 | 1000416143 | AC12 | Slider Bar Arm Sub;BACK PAD;;;;Iced Sliv | No | Model Compatibility List | $54.05 / Each |
|||
| 724782 | 1000427175 | AC12 | Slider Bar Arm Sub;BACK PAD;;;;Planet Fi | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724197 | 1000416358 | AD01 | pedal arm set;Assembly;left;Iced Sliver; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724785 | 1000427182 | AD01 | pedal arm set;Assembly;left;;GM118B-KM;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724198 | 1000416366 | AD02 | pedal arm set;Assembly;right;Iced Sliver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724787 | 1000427185 | AD02 | pedal arm set;Assembly;right;;GM118B-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724183 | 1000416197 | AF3 | Pulley Fixing Set;Pulley;;;;Iced Sliver; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724780 | 1000427171 | AF3 | Pulley Fixing Set;Pulley;;;;Planet Fitne | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724199 | 1000416372 | AF21 | Transmission system Set;Assembly;;Iced S | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724789 | 1000427188 | AF21 | Transmission system Set;Assembly;;;GM118 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724182 | 1000416177 | AF41 | Fixing Base Set;;;Iced Sliver;GM118-KM;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724779 | 1000427168 | AF41 | Fixing Base Set;;;Iced Sliver;GM118B-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724191 | 1000416317 | AG1 | Disassembly connect set;;D;;;Iced Sliver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724793 | 1000427198 | AG1 | Disassembly connect set;;D;;;Planet Fitn | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724192 | 1000416324 | AG2 | Disassembly connect set;;U;;;Iced Sliver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724794 | 1000427199 | AG2 | Disassembly connect set;;U;;;Planet Fitn | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724179 | 1000416153 | AG3 | Pedal Arm Con Set;;;painting;;Iced Slive | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724783 | 1000427178 | AG3 | Pedal Arm Con Set;;;painting;;Planet Fit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 710580 | 1000211102 | AJ2 | Seat Grip Set | No | Model Compatibility List | $71.92 / Each |
|||
| 724180 | 1000416160 | AJ3 | Back Pad Fix Set;;;painting;;Iced Sliver | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723896 | 1000413258 | AJ11 | Seat Bushing Fabricate Drawing;Semi-Assy | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724863 | 1000427469 | AJ11 | Seat ADJ Set;Assembly;;include bushing;G | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 728707 | 096088 | AK1 | Weght Plate Set;12.5P;GM41 | No | Model Compatibility List | $67.57 / Each |
|||
| 723129 | 1000404084 | AL2 | Incremental Weight Plate Set;Semi-Assy;; | No | Model Compatibility List | $91.23 / Each |
|||
| 707434 | 1000092654 | AL4 | ADJ Base Three;Incremental Weight Plate; | No | Model Compatibility List | $75.37 / Each |
|||
| 709875 | 1000204186 | AL7 | Top Weight Plate Set | No | Model Compatibility List | $379.65 / Each |
|||
| 723860 | 1000412812 | AZ9 | Label set;;;;Silver Gray;Advanced config | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723861 | 1000412813 | AZ9 | Label set;;;;Orange;Advanced configurati | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723862 | 1000412814 | AZ9 | Label set;;;;Brown;Advanced configuratio | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723863 | 1000412815 | AZ9 | Label set;;;;Pink;Advanced configuration | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723864 | 1000412816 | AZ9 | Label set;;;;Gray;Advanced configuration | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 716192 | 1000334510 | B10 | Fixing Plate;;down;NBR;;;GM40; | No | Model Compatibility List | $16.87 / Each |
|||
| 723943 | 1000413515 | B11 | Fixing Rack;BRACKET COVER;U;;;Iced Slive | No | Model Compatibility List | $10.11 / Each |
|||
| 724818 | 1000427276 | B11 | Fixing Rack;BRACKET COVER;U;;;Planet Fit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723482 | 1000407026 | B12 | Stopper Plate;Steel Rope;2;PA66+GF30%;;9 | No | Model Compatibility List | $16.87 / Each |
|||
| 723941 | 1000413504 | B13 | Fix Base;Pulley;;painting;;Iced Sliver;G | No | Model Compatibility List | $37.15 / Each |
|||
| 724817 | 1000427273 | B13 | Fix Base;Pulley;;painting;;Planet Fitnes | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723935 | 1000413485 | B14 | Fixing Rack Cover;;D;;;Iced Sliver;GM113 | No | Model Compatibility List | $33.77 / Each |
|||
| 724812 | 1000427250 | B14 | Fixing Rack Cover;;D;;;Planet Fitness Pu | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 701970 | 005009-AB | B15 | Washer;Spring;SW8 8.2x15.4x2T;Zinc Plating | No | Model Compatibility List | $2.00 / Each |
|||
| 709064 | 1000108796 | B18 | Screw;RND;M10x1.5Px55L;HS;CHM;BP;G12.9 | No | Model Compatibility List | $3.95 / Each |
|||
| 701691 | 004719-AB | B19 | Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9 | No | Model Compatibility List | $0.39 / Each |
|||
 |
704193 | 020465-AB | B23 | Washer;Flat;M10.2X25PX2.0T;Chromed | No | Model Compatibility List | $1.79 / Each |
||
 |
702119 | 005145-AC | B25 | Washer;Flat;8.2x19.0x2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
708730 | 1000105174 | B27 | Nut;Nylon;M10x1.5P;G12.9;CHM | No | Model Compatibility List | $1.79 / Each |
||
 |
708563 | 1000103438 | B28 | Screw;Cross;BH;Tapped;4x10L;A Class;ke | No | Model Compatibility List | $0.57 / Each |
||
 |
701660 | 004696-AB | B29 | Screw;Hex Socket;8X1.25X20L;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
713740 | 1000307173 | B31 | Plastic Cover;Nut;;;;;; | No | Model Compatibility List | $1.66 / Each |
||
| 707831 | 1000096026 | B32 | Fixing Base;Sensor;ABS;GM40 | No | Model Compatibility List | $8.32 / Each |
|||
 |
707864 | 1000096531 | B33 | Speed Sensor Wire;1200mm(2.5-5P);GM40 | No | Model Compatibility List | $21.84 / Each |
||
| 707861 | 1000096514 | B34 | Control Board;Matrix;H102;S1.60;GM40 | No | Model Compatibility List | $50.67 / Each |
|||
| 723685 | 1000411806 | B36 | Manipulate Overlay;;;;;GM111 | No | Model Compatibility List | $2.18 / Each |
|||
 |
701851 | 004870-00 | B37 | Screw;Plain Tapping;Rail Lock;5x15L | No | Model Compatibility List | $1.59 / Each |
||
| 705313 | 040816-A | B38 | Screw;Phillip;BH;Tapped;3x8L; | No | Model Compatibility List | $2.00 / Each |
|||
| 704079 | 020196-A | B39 | Screw;Phillip;BH;Tapped;3x6L;;Zn-BL | No | Model Compatibility List | $4.00 / Each |
|||
| 723939 | 1000413494 | B44 | Support Board;Cover;Reat-Up;;;Iced Slive | No | Model Compatibility List | $25.32 / Each |
|||
| 724813 | 1000427251 | B44 | Support Board;Cover;Reat-Up;;;Planet Fit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
702299 | 005811-00 | B62 | Cable Tie;Nylon;Black;160L | No | Model Compatibility List | $1.51 / Each |
||
| 711205 | 1000217603 | B63 | STOPPER PIECE;INDUCTOR;-;SPHC;ZH;GM40; | No | Model Compatibility List | $3.35 / Each |
|||
| 717402 | 1000344796 | B65 | Insulator;PET;12Wx40Lx0.2T;GM Battery ca | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 700570 | 001679-00 | B66 | Tie Strap;Adhesive;Nylon;66;HC-101;W | No | Model Compatibility List | $2.81 / Each |
|||
| 708032 | 1000098050 | C17 | Pulley Cover;Small;Base;ABS;GM40 | No | Model Compatibility List | $8.79 / Each |
|||
| 722845 | 1000398921 | C19 | Pulley Cover;Base;Big;ABS/PA757;Deep Gre | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724195 | 1000416345 | C21 | PEDAL;;D;painting;;Iced Sliver;GM118-KM; | No | Model Compatibility List | $97.99 / Each |
|||
| 724798 | 1000427203 | C21 | PEDAL;;D;painting;;Planet Fitness Purple | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723281 | 1000406193 | C22 | Pull Pin;ADJ;;42CrMo;White Zinc;GM118-KM | No | Model Compatibility List | $23.63 / Each |
|||
| 724189 | 1000416303 | C24 | Fixing Plate;Pulley;;painting;;Iced Sliv | No | Model Compatibility List | $6.73 / Each |
|||
| 724791 | 1000427196 | C24 | Fixing Plate;Pulley;;painting;;Planet Fi | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723076 | 1000403317 | C25 | Axle, central;back pad;;45#;Anti-rust oi | No | Model Compatibility List | $23.63 / Each |
|||
| 723068 | 1000403218 | C26 | Space Plate;Base;;POM;;45x58x6.0T;GM118- | No | Model Compatibility List | $3.02 / Each |
|||
 |
709067 | 1000108799 | C31 | Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $3.56 / Each |
||
| 720723 | 1000375328 | C33 | Cap;Elliptical;;TPU;;Diam.50x150x3T;GM10 | No | Model Compatibility List | $10.11 / Each |
|||
| 724174 | 1000416114 | C34 | ConnectingTube;Rod End Bearing;;;;Iced S | No | Model Compatibility List | $37.15 / Each |
|||
| 724777 | 1000427166 | C34 | ConnectingTube;Rod End Bearing;;;;Planet | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724190 | 1000416310 | C35 | Sleeve;;;painting;;Iced Sliver;GM118-KM; | No | Model Compatibility List | $1.33 / Each |
|||
| 724792 | 1000427197 | C35 | Sleeve;;;painting;;Planet Fitness Purple | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724177 | 1000416131 | C38 | Stopper;;;painting;;Iced Sliver;GM118-KM | No | Model Compatibility List | $2.18 / Each |
|||
| 724781 | 1000427173 | C38 | Stopper;;;painting;;Planet Fitness Purpl | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 726162 | 080409 | C38 | Screw;TH;M6X1.0PX25L;;HS;;;;; | No | Model Compatibility List | $1.66 / Each |
|||
| 726610 | 083463 | C38 | Screw;TH;M8X1.25PX25L;;HS;;CHM;;BP | No | Model Compatibility List | $1.66 / Each |
|||
| 723326 | 1000406374 | C41 | Rubber Pad;Foot Pad;;SBR;;638.5x299.5x84 | No | Model Compatibility List | $136.86 / Each |
|||
| 723325 | 1000406367 | C43 | Cap Ring;;;NBR;;90x50x60;GM118-KM; | No | Model Compatibility List | $8.42 / Each |
|||
 |
720322 | 1000371560 | C44 | Cap;Elliptical;;TPU;;Diam.50.0xDiam.100. | No | Model Compatibility List | $6.73 / Each |
||
| 723483 | 1000407033 | C45 | Spring;Compression;1.8x13.8x57L;65Mn;W | No | Model Compatibility List | $3.02 / Each |
|||
 |
708402 | 1000102675 | C46 | Stopper Block;Pull Pin;GM43 | No | Model Compatibility List | $7.02 / Each |
||
| 723124 | 1000404050 | C47 | Grip;Adjustable Handle;down;ABS/PA746;Ye | No | Model Compatibility List | $11.80 / Each |
|||
| 708062 | 1000098704 | C50 | Stopper Pad;Black;GM43 | No | Model Compatibility List | $8.24 / Each |
|||
 |
702006 | 005043-7 | C51 | Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro | No | Model Compatibility List | $1.66 / Each |
||
| 722653 | 1000397041 | C52 | Chain;Transmission;;;CHM;;PITCH 12.7 | No | Model Compatibility List | $10.11 / Each |
|||
| 702167 | 005207-A | C53 | Washer;Flat;Diam.20.2xDiam.30.0x2.0T;Tef | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 720325 | 1000371600 | C56 | Key;Flat;6x6x7.5;S45C;Zinc;GM107 | No | Model Compatibility List | $2.18 / Each |
|||
| 716193 | 1000334511 | C57 | Rubber Foot Pad;Base;;NBR;;;GM40; | No | Model Compatibility List | $10.11 / Each |
|||
| 713764 | 1000307771 | C58 | Pin;Spring;Diam.X3.0X14L;;BED; | No | Model Compatibility List | $1.33 / Each |
|||
| 708385 | 1000102555 | C59 | Screw;PH;M10x1.5Px40L-15L;MT;G12.9;BLK A | No | Model Compatibility List | $0.10 / Each |
|||
 |
708449 | 1000102865 | C60 | Screw;Hex Socket;Round;M10x1.5Px70L;Cr P | No | Model Compatibility List | $8.42 / Each |
||
| 709113 | 1000109833 | C62 | Screw;RND;M10x25L;-;HS;-;CHM;BP;G12.9; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723125 | 1000404051 | C68 | Grip;Adjustable Handle;up;ABS/PA746;Yell | No | Model Compatibility List | $8.42 / Each |
|||
 |
701981 | 005017-00 | C80 | Washer;Spring;SW10 10.2X18.4X2.5T;Chromed | No | Model Compatibility List | $1.33 / Each |
||
| 723077 | 1000403319 | D06 | SLEEVE;Pedal Arm;;20#;White Zinc;GM118;D | No | Model Compatibility List | $10.11 / Each |
|||
| 723078 | 1000403320 | D09 | Axle, central;Pedal Arm;;20CrMo;White Zi | No | Model Compatibility List | $47.29 / Each |
|||
 |
701836 | 004855-AC | D13 | Set Screw;M6X1.0PX4L | No | Model Compatibility List | $1.79 / Each |
||
| 723611 | 1000410426 | D15 | Washer;Plastic;Diam.17.6xDiam.36.0x2.0T; | No | Model Compatibility List | $3.02 / Each |
|||
| 702178 | 005220-00 | D19 | Washer;Wavy;20.7x29.1x.3T | No | Model Compatibility List | $2.00 / Each |
|||
| 723522 | 1000407605 | D27 | Cap;Base;back;TPU;;;GM114; | No | Model Compatibility List | $6.73 / Each |
|||
| 723049 | 1000402785 | D34 | Fixing Ring;Grip;;;Chrome;ADC12; | No | Model Compatibility List | $20.25 / Each |
|||
| 723050 | 1000402787 | D35 | Cap;Grip;Diam.41.8x28.8L;;Chrome;ADC12; | No | Model Compatibility List | $20.25 / Each |
|||
| 709189 | 1000110802 | D36 | Grip;Pedal Arm ;wrap rubber;GM40-KM | No | Model Compatibility List | $15.52 / Each |
|||
| 725265 | 103406 | D38 | Washer;Flat;8.2x20.0x1.8t;Cr Plat; | No | Model Compatibility List | $0.21 / Each |
|||
 |
709069 | 1000108801 | D49 | Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $1.79 / Each |
||
| 724081 | 1000414737 | E06 | Bearing;Rod End;SAL10T/K;M10;;Left-hand | No | Model Compatibility List | $16.87 / Each |
|||
| 724082 | 1000414738 | E07 | Bearing;Rod End;SA10T/K;M10;;Right-hand | No | Model Compatibility List | $16.87 / Each |
|||
| 726881 | 085774 | E08 | Nut;HX;M10X1.5P;SS41;CHM;; | No | Model Compatibility List | $0.86 / Each |
|||
| 708355 | 1000102211 | E09 | Nut;Hex;Left Knob;M10x1..5P;Cr | No | Model Compatibility List | $0.81 / Each |
|||
| 701772 | 004793-00 | F02 | Screw;Button Head;M10X1.5PX15L;;Hex Sock | No | Model Compatibility List | $3.02 / Each |
|||
| 723222 | 1000405545 | F03 | Cover;Pulley;mid;ABS/PA757;Gray/80435;15 | No | Model Compatibility List | $13.49 / Each |
|||
| 724126 | 1000415375 | F07 | Pulley Fixing Set;Pulley;Big;;;Iced Sliv | No | Model Compatibility List | $25.32 / Each |
|||
| 724892 | 1000427549 | F07 | Pulley Fixing Set;Pulley;Big;;;Planet Fi | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 722683 | 1000397609 | F11 | Pulley;;;NYLON 66+G30%(Anti-fire);Black; | No | Model Compatibility List | $55.74 / Each |
|||
| 723074 | 1000403297 | F12 | Cam;Steel Rope;Little;VHMWPE;Deep Grey;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723080 | 1000403324 | F13 | Steel Rope-Extrawork;Steel Rope;;Press R | No | Model Compatibility List | $97.99 / Each |
|||
| 723079 | 1000403323 | F15 | Steel Rope-Extrawork;Steel Rope;;Press R | No | Model Compatibility List | $138.55 / Each |
|||
| 722735 | 1000398255 | F18 | Cam;;left;VHMWPE;Deep Grey;;GM114; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
710685 | 1000212388 | F19 | Fixing Plate;Cable Head-;45#;BED;GM40; | No | Model Compatibility List | $21.53 / Each |
||
| 723552 | 1000408107 | F21 | Ring;Protect;Side;ABS PA757S;;Diam.146x1 | No | Model Compatibility List | $5.04 / Each |
|||
| 709061 | 1000108793 | F22 | Screw;RND;M5x0.8Px10L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.21 / Each |
|||
| 724187 | 1000416288 | F24 | Fixing Plate;;R;painting;;Iced Sliver;GM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724188 | 1000416295 | F26 | Fixing Plate;Cam;;painting;;Iced Sliver; | No | Model Compatibility List | $3.02 / Each |
|||
| 724790 | 1000427190 | F26 | Fixing Plate;Cam;;painting;;Planet Fitne | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 712322 | 1000228417 | F29 | Screw;FH;M5x30L;-;PH;-;WZN;BP;-; | No | Model Compatibility List | $2.18 / Each |
|||
| 722982 | 1000402051 | F31 | Stopper Plate;Cam Stopper;;PA66;;;GM124; | No | Model Compatibility List | $3.02 / Each |
|||
| 723584 | 1000409299 | F32 | Screw;Flat Head;M4x0.7P-30L;;Hex Socket; | No | Model Compatibility List | $1.33 / Each |
|||
 |
706885 | 066570-00 | F33 | Nut;NLK;M4X0.7P;;BZN;; | No | Model Compatibility List | $1.79 / Each |
||
| 724575 | 1000422325 | F34 | Bearing;Rod End;SI14TK/K;M14X2.P;;??;?? | No | Model Compatibility List | $25.32 / Each |
|||
| 724193 | 1000416331 | G16 | Cover;Cam;;painting;;Iced Sliver;GM118-K | No | Model Compatibility List | $6.73 / Each |
|||
| 724795 | 1000427200 | G16 | Cover;Cam;;painting;;Planet Fitness Purp | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
708446 | 1000102862 | G17 | Screw;Hex Socket;Round;M8x1.25Px30L;Cr P | No | Model Compatibility List | $2.00 / Each |
||
| 719513 | 1000362248 | G18 | Stopper Block;;;SBR;BL/Black C;;PL08B-KM | No | Model Compatibility List | $6.73 / Each |
|||
| 723954 | 1000413637 | G20 | Fixing Plate;CON Tube;;;;Iced Sliver;GM1 | No | Model Compatibility List | $40.53 / Each |
|||
| 724838 | 1000427313 | G20 | Fixing Plate;CON Tube;;;;Planet Fitness | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
702086 | 005118-00 | G21 | Washer;Flat;8.4x17.0x1.0T;Black Zinc | No | Model Compatibility List | $2.00 / Each |
||
| 700152 | 000522-D | G24 | Leveler | Yes | Model Compatibility List | $11.60 / Each |
|||
 |
1003512 | 000522-D | G24 | Foot Leveler | Yes | Model Compatibility List | $15.99 / Each |
||
| 702106 | 005135-A | G26 | WASHER;FLT;Diam.8.5XDiam.35.0X2.0T;;; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723069 | 1000403240 | H02 | Axle, Swivel;Adjustable Grip;;20#;Anti-r | No | Model Compatibility List | $6.73 / Each |
|||
| 723070 | 1000403242 | H03 | Limit Axle;Adjustment;;20#;White Zinc;GM | No | Model Compatibility List | $6.73 / Each |
|||
| 724166 | 1000416051 | H04 | Connect Plate;Grip;;painting;;Iced Slive | No | Model Compatibility List | $32.08 / Each |
|||
| 724775 | 1000427162 | H04 | Connect Plate;Grip;;painting;;Planet Fit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723071 | 1000403244 | H05 | Plastic Sleeve;Adjust Plate;;PA6;;Diam.2 | No | Model Compatibility List | $5.04 / Each |
|||
| 723073 | 1000403274 | H06 | Air Stick;;12KG;Diam.18X388L;;;GM118; | No | Model Compatibility List | $23.63 / Each |
|||
| 724170 | 1000416073 | H11 | Connecting Plate-Extrawork;;;;Iced Slive | No | Model Compatibility List | $37.15 / Each |
|||
| 724776 | 1000427163 | H11 | Connecting Plate-Extrawork;;;;Iced Slive | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
704204 | 020478-AC | H36 | Washer;Flat;10.2X20.0X2.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
| 728927 | 099030 | J10 | ADJ Plate;Seat;ZG20;GM40 | No | Model Compatibility List | $99.45 / Each |
|||
| 723072 | 1000403271 | J11 | Location Board;Back Pad Adjustable;;SUS3 | No | Model Compatibility List | $33.77 / Each |
|||
| 717511 | 1000345659 | J12 | Cap;Elliptical;;TPU;BL/Black C;Diam.50.0 | No | Model Compatibility List | $15.18 / Each |
|||
| 728928 | 099035 | J13 | Axle;Pull Pin;42CrMo;GM40 | No | Model Compatibility List | $42.43 / Each |
|||
| 728929 | 099036 | J14 | Axle Sleeve;Pull Pin;42CrMo;GM40 | No | Model Compatibility List | $16.64 / Each |
|||
| 708983 | 1000107893 | J15 | Screw;FH;M6x1.0Px12L;HS;CHM;G8.8 | No | Model Compatibility List | $3.87 / Each |
|||
 |
728614 | 0000095638 | J15 | Foot Pad;Adjustable;M12X58H;12.9;EP304; | Yes | Model Compatibility List | $33.85 / Each |
||
| 709696 | 1000202036 | J16 | SCREW;RND;-;-;-;SEAT ADJ;-; | No | Model Compatibility List | $6.73 / Each |
|||
| 722839 | 1000398860 | J18 | CON Rod;Seat Adjustment;ADC12;;Black Mat | No | Model Compatibility List | $48.98 / Each |
|||
| 707428 | 1000092642 | J20 | Spring;RCL;;4130CrMo;Spray teflon;GM40 | No | Model Compatibility List | $106.00 / Each |
|||
| 728914 | 098972 | J21 | Spring;EXT;;SWP;ZNC;GM40 | No | Model Compatibility List | $1.79 / Each |
|||
| 729261 | See Pad Matrix | J27 | Elbow Pad;;PU;Black;;FW213-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
707439 | 1000092669 | J28 | Plastic Cover;Back Pad;GM40 | No | Model Compatibility List | $65.42 / Each |
||
| 707440 | 1000092670 | J29 | Plastic Cover;Head pad;GM40 | No | Model Compatibility List | $19.79 / Each |
|||
| 728703 | 096046 | J32 | Axle;CON Rod;45#;GM40 | No | Model Compatibility List | $19.53 / Each |
|||
| 707982 | 1000097385 | J33 | Stopper Sleeve;CON Rod Axle;ABS;GM40 | No | Model Compatibility List | $2.57 / Each |
|||
| 728731 | 096216 | J35 | Stopper Sleeve;WASHER;GM40 | No | Model Compatibility List | $0.21 / Each |
|||
 |
701911 | 004938-00 | J39 | Nut;Nylon;M6X1.0P;Chromed | No | Model Compatibility List | $2.00 / Each |
||
| 708027 | 1000097850 | J40 | SCREW;SH;M8X1.25PX95L;;HS;;CHM;;G12.9 | No | Model Compatibility List | $3.35 / Each |
|||
 |
701901 | 004929-00 | J41 | Nut;Nylon;M8x1.25P;Chromed | No | Model Compatibility List | $2.00 / Each |
||
| 708565 | 1000103444 | J43 | Cover;Seat;GM40-KM | No | Model Compatibility List | $4.65 / Each |
|||
| 702217 | 005330-00 | J44 | Tinnamen Nut | Yes | Model Compatibility List | $1.59 / Each |
|||
| 701618 | 004636-AD | J45 | Screw;BH;4X15L;SM;PH;;CHM;;POT | No | Model Compatibility List | $0.81 / Each |
|||
| 723984 | 1000413887 | K02 | Incremental Adjustable Rod-Exreawork;Inc | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 709517 | 1000200981 | K07 | Guide Rod;Weight plate | No | Model Compatibility List | $124.83 / Each |
|||
| 723566 | 1000408504 | K09 | Fixing Axle;Steel Rope Head;Short;45#;Ch | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723925 | 1000413459 | K11 | Fixing Plate;Cam;D;;;Iced Sliver;GM114; | No | Model Compatibility List | $3.02 / Each |
|||
| 724830 | 1000427305 | K11 | Fixing Plate;Cam;D;;;Planet Fitness Purp | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
703901 | 019151-AA | K12 | Rubber Bumper;Weight Stack | Yes | Model Compatibility List | $8.00 / Each |
||
| 709718 | 1000202352 | K13 | Cushion;Guide Rod | No | Model Compatibility List | $8.42 / Each |
|||
 |
702250 | 005377-00 | K14 | Clamp;E-Shaped Ring;E-15 | No | Model Compatibility List | $0.65 / Each |
||
| 723922 | 1000413439 | K16 | Fixing Plate;Cam;;;;Iced Sliver;GM114; | No | Model Compatibility List | $10.11 / Each |
|||
| 724895 | 1000427564 | K16 | Fixing Plate;Cam;;;;Planet Fitness Purpl | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723356 | 1000406464 | K62 | Socket;Power Switch;;PA66+G20%;;110x58x1 | No | Model Compatibility List | $6.73 / Each |
|||
| 728931 | 099053 | L03 | ADJ Base;R;Incremental Weight Plate;GM40 | No | Model Compatibility List | $1.98 / Each |
|||
| 728933 | 099056 | L07 | U;Cover;IncrementalWeightPlate;20#;GM40 | No | Model Compatibility List | $23.50 / Each |
|||
| 728930 | 099052 | L12 | ADJ Base;L;Incremental Weight Plate;GM40 | No | Model Compatibility List | $23.50 / Each |
|||
| 708408 | 1000102696 | L13 | Dial;GM41 | No | Model Compatibility List | $3.95 / Each |
|||
| 707833 | 1000096167 | L15 | Axle Sleeve Two;Weight Plate;Rubber;GM40 | No | Model Compatibility List | $9.62 / Each |
|||
| 728937 | 099064 | L17 | Sleeve;D;IncrementalWeight Plate;POM;GM4 | No | Model Compatibility List | $5.64 / Each |
|||
| 722732 | 1000398249 | L18 | Handle Set;Assembly;;Incremental weight | No | Model Compatibility List | $47.29 / Each |
|||
| 707826 | 1000096021 | L21 | Screw;SET;M10X1.5P | No | Model Compatibility List | $0.81 / Each |
|||
| 714882 | 1000319417 | L30 | Fixing Rack;Counte;;painting;;Iced Slive | No | Model Compatibility List | $13.49 / Each |
|||
| 724837 | 1000427312 | L30 | Fixing Rack;Counte;;painting;;Planet Fit | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 713056 | 1000232864 | L31 | PERMANENT MAGNET;-;1500##;##; | No | Model Compatibility List | $7.28 / Each |
|||
| 707828 | 1000096023 | L32 | Half-moon Key;20#;GM40 | No | Model Compatibility List | $0.88 / Each |
|||
| 709070 | 1000108803 | L33 | Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.34 / Each |
|||
| 709071 | 1000108804 | L36 | Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.70 / Each |
|||
 |
708649 | 1000104672 | L37 | Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM; | No | Model Compatibility List | $0.60 / Each |
||
 |
708675 | 1000104705 | L38 | Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8 | No | Model Compatibility List | $0.52 / Each |
||
| 725362 | 070571 | L38 | Washer;Flat;5.2X10.0X1.5T;;CHM; | No | Model Compatibility List | $0.49 / Each |
|||
| 711206 | 1000217605 | L40 | PLASTIC COVER;HEAD PLATE;TPC;;;;GM40; | No | Model Compatibility List | $20.41 / Each |
|||
 |
717480 | 1000345425 | L41 | Stopper Ring;Guide Rod;;;Chrome;GM41;; | No | Model Compatibility List | $18.23 / Each |
||
| 707435 | 1000092656 | L43 | Nut;HX;M10X1.5PX10L;SS41;CHM;; | No | Model Compatibility List | $0.86 / Each |
|||
| 702240 | 005365-00 | L45 | C-Clip;External;S-20 | No | Model Compatibility List | $1.79 / Each |
|||
 |
708484 | 1000102910 | L45 | Circlip;External C Type;S-12;BED | No | Model Compatibility List | $1.33 / Each |
||
| 709076 | 1000108910 | L46 | Washer;Flat;12.5x23x1.0t;CHM | No | Model Compatibility List | $1.33 / Each |
|||
| 710475 | 1000210485 | L50 | SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8; | No | Model Compatibility List | $1.66 / Each |
|||
 |
702056 | 005084-00 | L51 | Washer;Flat;5.3X10.0X1.0T;Chromed | No | Model Compatibility List | $2.00 / Each |
||
 |
722734 | 1000398254 | L59 | Adjustment Pin Assembly;Assembly;;weight | No | Model Compatibility List | $123.34 / Each |
||
| 723075 | 1000403312 | Not Shown | hardware set;Assembly;;;GM118-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723083 | 1000403356 | Not Shown | Manual set;Semi-Assy;;;;;GM118-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724138 | 1000415609 | Not Shown | Manual;Assembly;;NA/EU;;GM118 | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724361 | 1000418478 | Not Shown | Manual set;Semi-Assy;;;;;GM118-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 724363 | 1000418483 | Not Shown | Manual set;Semi-Assy;;;;;GM118-KM; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 722682 | 1000397599 | Q01 | Stopper Plate;Steel Rope;;PA66+GF30%;;13 | No | Model Compatibility List | $32.08 / Each |
|||
| 728920 | 098985 | Q02 | Weight Stack Shield;Front;ABS;GM40 | No | Model Compatibility List | $147.63 / Each |
|||
| 723548 | 1000408040 | Q03 | Stopper Plate;Steel Rope;;PA66+GF30%;;14 | No | Model Compatibility List | $16.87 / Each |
|||
| 728923 | 098988 | Q04 | Cover;Front;ABS;GM40 | No | Model Compatibility List | $147.63 / Each |
|||
| 707829 | 1000096024 | Q08 | Fixing Base;PC;GM40 | No | Model Compatibility List | $3.35 / Each |
|||
 |
709072 | 1000108805 | Q14 | Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9 | No | Model Compatibility List | $1.79 / Each |
||
| 722970 | 1000401872 | Q26 | Hanging Hook;Main Tube;;TPU;Black 6C;;GM | No | Model Compatibility List | $27.01 / Each |
|||
| 722702 | 1000397883 | Q93 | Cover;;back;ABS/PA757;Limpid;1104.8x648. | No | Model Compatibility List | $184.18 / Each |
|||
| 722703 | 1000397892 | Q94 | Decorte Cover;;up;ABS/PA757;Deep Grey;33 | No | Model Compatibility List | $15.18 / Each |
|||
| 722704 | 1000397899 | Q95 | Cover;Frame;Bright Silver;Up;Painting;AD | No | Model Compatibility List | $224.74 / Each |
|||
| 724713 | 1000424165 | Q95 | Cover;Frame;U;painting;;Black Matte;GM11 | No | Model Compatibility List | $174.04 / Each |
|||
| 722707 | 1000397915 | Q96 | Kettle Plate;;mid;TPU;426C/80393;113.0x7 | No | Model Compatibility List | $6.73 / Each |
|||
| 722706 | 1000397914 | Q97 | Kettle Plate;;right;ABS;;252.6x121.0x16. | No | Model Compatibility List | $16.87 / Each |
|||
| 722705 | 1000397910 | Q98 | Kettle Plate;;left;ABS;;252.6x121.0x16.0 | No | Model Compatibility List | $16.87 / Each |
|||
| 722701 | 1000397869 | Q99 | Cover;;up;ABS/PA757;Deep Grey;740.0x173. | No | Model Compatibility List | $47.29 / Each |
|||
| 723081 | 1000403354 | V01 | Instructional Labe;Cover;;;PC;Front;Engl | No | Model Compatibility List | $33.77 / Each |
|||
| 724366 | 1000418544 | V01 | Instructional Labe;Cover;;;PC;Front;Fren | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 723082 | 1000403355 | V03 | Instructional Labe;Cover;;;PC;Rear;Engli | No | Model Compatibility List | $33.77 / Each |
|||
| 723691 | 1000411819 | V04 | Direction Label;Back Pad Adjustable;15x1 | No | Model Compatibility List | $3.02 / Each |
|||
| 723678 | 1000411770 | V07 | EN LABEL;;;;PETP;;;GM118 | No | Model Compatibility List | $1.33 / Each |
|||
| 702325 | 006078-00 | V08 | Decal;Grounding;TM08 | No | Model Compatibility List | $1.90 / Each |
|||
 |
709081 | 1000109127 | V09 | Decal;Pinch Point ;MS21KM-G3 | No | Model Compatibility List | $1.77 / Each |
||
| 723682 | 1000411799 | V12 | Direction Label;Seat ADJ Tube;55X20mm;;P | No | Model Compatibility List | $2.18 / Each |
|||
| 723683 | 1000411801 | V13 | Spec Label;Seat ADJ Tube;55X20mm;;PC;Rig | No | Model Compatibility List | $2.18 / Each |
|||
| 723679 | 1000411786 | V15 | Spec Label;Weight Plate;10LBS;;PC;;;GM11 | No | Model Compatibility List | $16.87 / Each |
|||
| 723686 | 1000411812 | V16 | Direction Label;Incremental Weight Plate | No | Model Compatibility List | $3.02 / Each |
|||
| 723567 | 1000408760 | V17 | Bar Code Label;;;;;;;GM118-KM | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 719682 | 1000363760 | V51 | Warning Label;Frame;;;PC;;English; | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
| 719683 | 1000363766 | V51 | Warning Label;Frame;;;PC;;French;GM40 | No | Model Compatibility List | $5.04 / Each |
|||
 |
712934 | 1000231572 | Z02 | SCREW;SH;M10X1.5PX20L;;;HS;BP;CHM; | No | Model Compatibility List | $2.00 / Each |
||
| 723595 | 1000410042 | Z03 | Screw;Socket Head;M8X1.25PX70L;;Hex Sock | No | Model Compatibility List | $2.18 / Each |
|||
 |
708662 | 1000104691 | Z04 | Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP | No | Model Compatibility List | $3.64 / Each |
||
| 722709 | 1000397921 | Z06 | Screw;Socket Head;M10X1.5PX180L-35L;;Hex | No | Model Compatibility List | $6.73 / Each |
|||
 |
705105 | 035882-AB | Z07 | Screw;SH;M8x1.25Px75L;MT;HS;G12.9;CHM;P- | No | Model Compatibility List | $9.10 / Each |
||
| 703996 | 020081-00 | Z17 | Screw;SH;M8X1.25PX60L;;HS;;;;G12.9 | No | Model Compatibility List | $1.01 / Each |
|||
 |
708448 | 1000102864 | Z18 | Screw;Hex Socket;Round;M10x1.5Px60L;Cr P | No | Model Compatibility List | $8.14 / Each |
||
| 705696 | 055200-AB | Z19 | Screw;Hex;M10X1.5PX25L;;HE;;CHM;; | No | Model Compatibility List | $9.10 / Each |
|||
| 701412 | 004462-Z | Z21 | Screw;Hex Socket;Round;M6x1.0Px15L; | No | Model Compatibility List | $1.33 / Each |
|||
| 717691 | 1000346841 | Z22 | Stopper Plate;Bearing;;SPHC;?35.0x5.0T;; | No | Model Compatibility List | $3.02 / Each |
|||
| 701767 | 004789-AC | Z23 | Screw;BH;M10X1.5PX75L;;HS;;CHM;;G12.9 | No | Model Compatibility List | $3.69 / Each |
|||
 |
702531 | 008523-B | Z25 | Washer;Arc;M10x28x10.5T;SS41 | No | Model Compatibility List | $9.10 / Each |
||
 |
701470 | 004519-AE | Z26 | Screw;Round;Hex Socket;M10x1.5Px80L | No | Model Compatibility List | $4.94 / Each |
||
 |
719240 | 1000358289 | Z29 | Screw;Socket Head;M4x0.7Px8L;;Hex Socket | No | Model Compatibility List | $1.66 / Each |
||
 |
704110 | 020256-AD | Z34 | Screw;BH;M5X0.8PX10L;;HS;;CHM;; | No | Model Compatibility List | $0.70 / Each |
||
| 714884 | 1000319422 | Z100 | Frame Fix Plate;;;painting;;Iced Sliver; | No | Model Compatibility List | $16.87 / Each |
|||
| 724839 | 1000427314 | Z100 | Frame Fix Plate;;;painting;;Planet Fitne | No | Model Compatibility List | $0.00 / Each Out Of Stock |
|||
 |
707824 | 1000096017 | Z101 | Rubber Pad;Fixing;GM40 | No | Model Compatibility List | $2.39 / Each |
||
6114 Madison Ct.
Morton Grove, IL 60053
847-309-2818
Hydra Fitness Exchange © 2025. All Rights Reserved.
