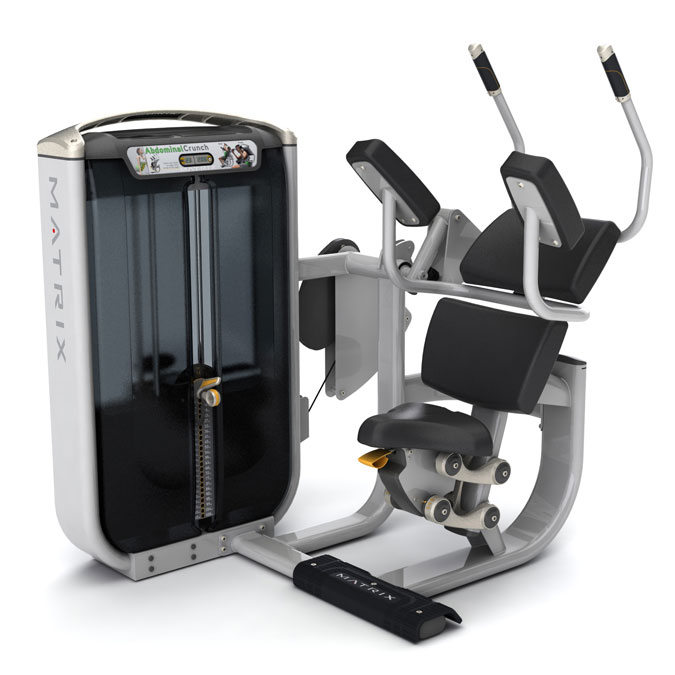

Matrix Commercial - G7-S51 PY - 2009

Repair Parts for Matrix Commercial G7-S51 PY G7GM48

Brand: Matrix Commercial

Category: Single Station

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

G7GM48

Model Name: G7-S51 PY

Version: 2009

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price

715138	1000320968	1	Frame set;;;Iced Sliver;GM48-KM;;Service	No	Model Compatibility List	$697.94 / Each	3
714891	1000319463	2	Down Cover Set;Fixing Frame;;Iced Sliver	No	Model Compatibility List	$6.73 / Each	9,3
714892	1000319468	3	Upper Cover Set;Fixing Frame;;Iced Slive	No	Model Compatibility List	$10.11 / Each	9,3
714900	1000319508	4	Movable Pulley Fixing Set;;;Iced Sliver;	No	Model Compatibility List	$168.97 / Each	8
709028	1000108348	5	Accent Plate Set;D;PP;GM40(service)	No	Model Compatibility List	$34.19 / Each	3,4,5,6
715139	1000320969	6	Base Set;;;Iced Sliver;GM48-KM;;Service	No	Model Compatibility List	$348.11 / Each	3
715140	1000320970	7	Support Set;;;Iced Sliver;GM48-KM;;Servi	No	Model Compatibility List	$346.42 / Each	3
708185	1000100988	8	Lower Connecting Frame Set;GM48-KK	No	Model Compatibility List	$104.65 / Each	3
715141	1000320972	9	pedal arm set;;down;Iced Sliver;GM48-KM;	No	Model Compatibility List	$395.43 / Each	8,9,3
709048	1000108698	10	Grip Set;Arm;GM42	No	Model Compatibility List	$101.37 / Each	3,11

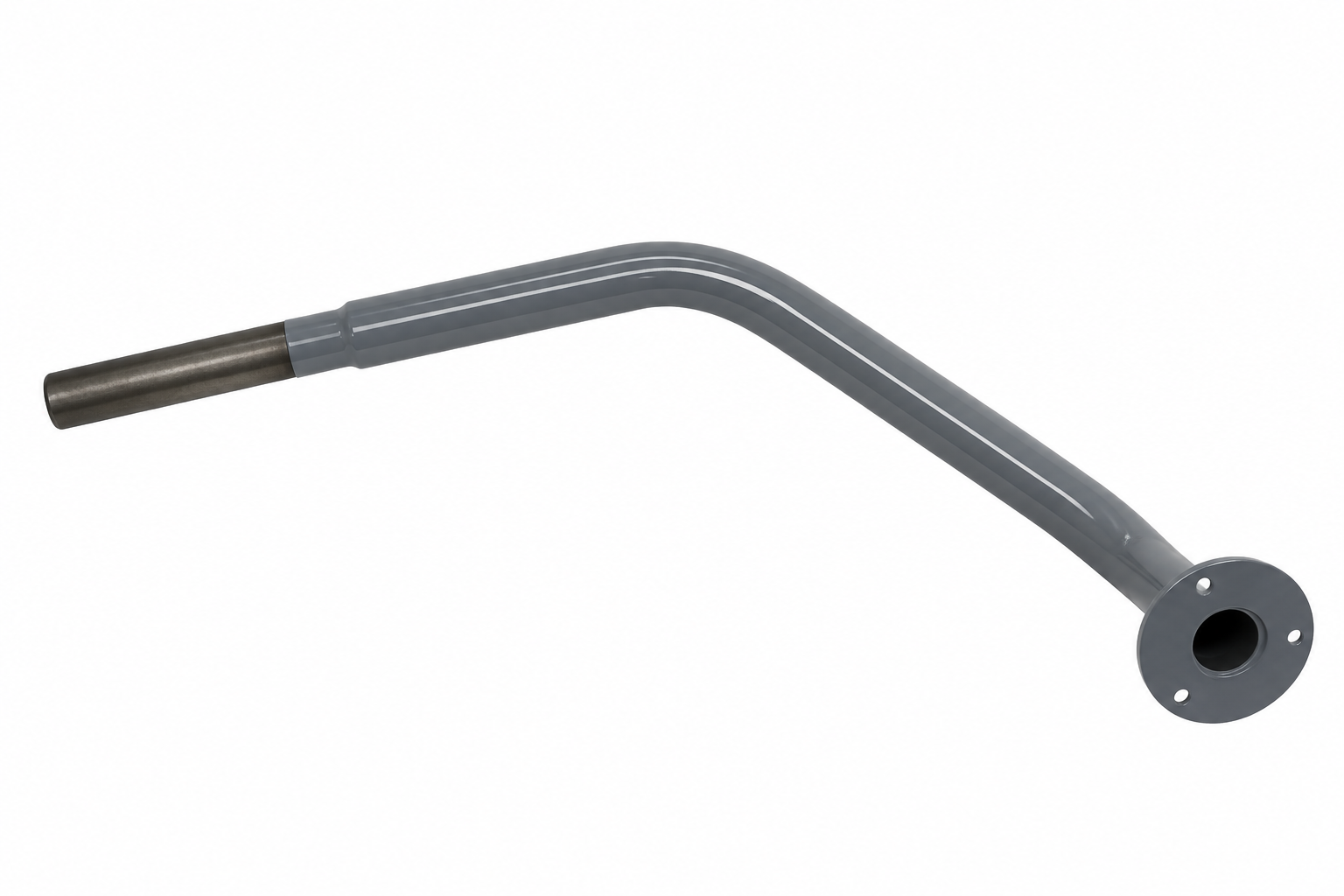

715142	1000320974	12	dal arm set;;right;Iced Sliver;GM48-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
715143	1000320975	13	Swivel Axle Set;;;Iced Sliver;GM48-KM;;S	No	Model Compatibility List	$109.82 / Each	8
714899	1000319503	14	Seat ADJ Set;;Down;Iced Sliver;GM40-KM;;	No	Model Compatibility List	$104.75 / Each	12,13,14
709025	1000108344	15	Incremental Weight Pin Set;GM41(service)	No	Model Compatibility List	$72.49 / Each	3,12,13,14
709052	1000108738	16	Upper Cover Set;Weight Stack;ABS;GM40(service)-5	No	Model Compatibility List	$58.37 / Each	9,3,4,5,6
709024	1000108343	17	Weight Stack Shield;Rear;ABS;GM40(service)	No	Model Compatibility List	$349.83 / Each	3,4,5,6
709027	1000108347	18	Repetition Counter Set;PC;GM40(service)	No	Model Compatibility List	$139.36 / Each	1
709026	1000108345	19	Handle;Weight Stack;ADC12;GM40(service)	No	Model Compatibility List	$224.48 / Each	3,4,5,6,11
729032	Order Kit 7	AC2	Cover;Motor;U;painting;;Bright silver;TM	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,10
729033	Order Kit 8	AC3	Arm Rest set;;RD;painting;;;EP580-2KM;DM	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
715103	1000320932	AC5	Movable Pulley Fixing Set;;;Iced Sliver;	No	Model Compatibility List	$64.19 / Each	8
729034	Order Kit 9	AD1	Arm Rest set;;LU;painting;DM515 matte;;E	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
708143	1000100510	AD2	Swivel Axle Set;Painting;GM48-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	8
715024	1000320755	AD2	Swive Axle Set;;;painting;;Iced Sliver;G	No	Model Compatibility List	$0.00 / Each Out Of Stock	8
729016	Order Kit 12	AD5	pedal arm set;;R;painting;DM515 matte;;E	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,9,3
715144	1000320976	AF2	CAM SET;;;Iced Sliver;GM48-KM;;Service	No	Model Compatibility List	$43.91 / Each	1
708868	1000106849	AG1	Upper Connect Frame Set;Base;Painting;GM48-KM(servic	No	Model Compatibility List	$142.04 / Each	3
729019	Order Kit 14	AJ1	Fixing Base;Spring;POM;AR01	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,3
710580	1000211102	AJ2	Seat Grip Set	No	Model Compatibility List	$71.92 / Each
707381	1000092375	AK1	Weight Plate;10 P;SPHC;GM48	No	Model Compatibility List	$59.12 / Each
709875	1000204186	AL3	Top Weight Plate Set	No	Model Compatibility List	$379.65 / Each
707434	1000092654	AL4	ADJ Base Three;Incremental Weight Plate;	No	Model Compatibility List	$75.37 / Each
729274	ZMD4003169	Arm Kit	G7 Ab-Crunch H-Bar rework Kit	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
708006	1000097557	B10	Down Cover;Fixing Frame;Painting;GM40-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
714876	1000319387	B11	Fixing Rack;Cover;U;painting;;Iced Slive	No	Model Compatibility List	$6.73 / Each	9,4,5,6
713422	1000302405	B12	Fix Base;Pulley;-;painting;GM40-KM	No	Model Compatibility List	$84.47 / Each	8,3
714890	1000319458	B12	Slide Pulley Fixing Base;;;painting;;Ice	No	Model Compatibility List	$84.47 / Each	8,3
728916	098978	B13	Fixing Plate;Pulley;Right;SPHC;GM40	No	Model Compatibility List	$5.54 / Each
728913	098970	B15	Fixing Block;Pulley;SPHC;GM40	No	Model Compatibility List	$19.45 / Each
709041	1000108501	B16	Bushing;CON Rod;Peadel Arm;painting;GM40	No	Model Compatibility List	$2.78 / Each
716192	1000334510	B17	Fixing Plate;;down;NBR;;;GM40;	No	Model Compatibility List	$16.87 / Each
708593	1000104003	B19	Cap;Insert Nut;GM40-KM	No	Model Compatibility List	$2.96 / Each
701513	004549-00	B21	Screw;Hex Socket;Round;M10x1.5Px55L;Cr;	No	Model Compatibility List	$6.27 / Each
704193	020465-AB	B22	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
704004	020096-00	B24	Screw;Hex Socket;Round;M8x1.25Px15L;Chromed	Yes	Model Compatibility List	$9.99 / Each
702098	005130-00	B25	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
701691	004719-AB	B26	Screw;BH;M8X1.25PX12L;;HS;;CHM;;G12.9	No	Model Compatibility List	$0.39 / Each
708563	1000103438	B28	Screw;Cross;BH;Tapped;4x10L;A Class;ke	No	Model Compatibility List	$0.57 / Each
701660	004696-AB	B29	Screw;Hex Socket;8X1.25X20L;Chromed	No	Model Compatibility List	$2.00 / Each
707831	1000096026	B32	Fixing Base;Sensor;ABS;GM40	No	Model Compatibility List	$8.32 / Each
707864	1000096531	B33	Speed Sensor Wire;1200mm(2.5-5P);GM40	No	Model Compatibility List	$21.84 / Each
707861	1000096514	B34	Control Board;Matrix;H102;S1.60;GM40	No	Model Compatibility List	$50.67 / Each
707879	1000096575	B36	Overlay;Manipulate;GM40	No	Model Compatibility List	$2.44 / Each	1
701851	004870-00	B37	Screw;Plain Tapping;Rail Lock;5x15L	No	Model Compatibility List	$1.59 / Each
705313	040816-A	B38	Screw;Phillip;BH;Tapped;3x8L;	No	Model Compatibility List	$2.00 / Each
704079	020196-A	B39	Screw;Phillip;BH;Tapped;3x6L;;Zn-BL	No	Model Compatibility List	$4.00 / Each
708719	1000105068	B40	RVN;HX;NKHS-10;YZN	No	Model Compatibility List	$2.24 / Each	1
704023	020112-A	B42	Screw;Hex Socket;Round;M10x1.5Px50L(Tooth15)	No	Model Compatibility List	$1.33 / Each
702299	005811-00	B62	Cable Tie;Nylon;Black;160L	No	Model Compatibility List	$1.51 / Each
700570	001679-00	B66	Tie Strap;Adhesive;Nylon;66;HC-101;W	No	Model Compatibility List	$2.81 / Each
728938	099065	C13	Cap;ABS;GM40	No	Model Compatibility List	$4.94 / Each
707821	1000096013	C15	Cap Two;ABS;GM40	No	Model Compatibility List	$4.19 / Each	9
708032	1000098050	C17	Pulley Cover;Small;Base;ABS;GM40	No	Model Compatibility List	$8.79 / Each
709219	1000111191	C20	Elbow Pad;Black;Vesicant;GM48-KM	No	Model Compatibility List	$40.14 / Each
709231	1000111361	C20	Elbow Pad;Vesicant;Clay Red;GM48-KM	No	Model Compatibility List	$37.15 / Each	12,13,14
709232	1000111362	C20	Elbow Pad;Vesicant;Slate Blue;GM48-KM	No	Model Compatibility List	$37.15 / Each	12,13,14
709233	1000111363	C20	Elbow Pad;Vesicant;No Leather;GM48-KM	No	Model Compatibility List	$27.01 / Each	12,13,14
709234	1000111364	C20	Elbow Pad;American Beauty Red;Vesicant;G	No	Model Compatibility List	$40.14 / Each	12,13,14
709260	1000111541	C20	Elbow Pad;;PU,Vesicant;Graphite Gray;;GM	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
709262	1000111543	C20	Elbow Pad;;PU,Vesicant;Graphite Gray+All	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
709264	1000111545	C20	Elbow Pad;;PU,Vesicant;Alloy Gray+Hazeln	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
708144	1000100526	C21	Back pad;Black;Vesicant;GM48-KM	No	Model Compatibility List	$108.13 / Each
709014	1000108263	C21	Back Pad;Vesicant;Clay Red;GM48-KM	No	Model Compatibility List	$108.13 / Each	4,5,6,12,13,14
709016	1000108280	C21	Back Pad;Vesicant;Slate Blue;GM48-KM	No	Model Compatibility List	$108.13 / Each	4,5,6,12,13,14
709018	1000108297	C21	Back Pad;Vesicant;No Leather;GM48-KM	No	Model Compatibility List	$81.09 / Each	4,5,6,12,13,14
709185	1000110791	C21	Back Pad;American Beauty Red;Vesicant;GM	No	Model Compatibility List	$86.16 / Each	4,5,6,12,13,14
709259	1000111540	C21	Back Pad;;PU,Vesicant;Graphite Gray;GM48	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
709261	1000111542	C21	Back Pad;;PU,Vesicant;Graphite Gray+Allo	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
709263	1000111544	C21	Back Pad;;PU,Vesicant;Alloy Gray+Hazelnu	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
715365	1000324536	C21	Back Pad;;PU,Vesicant;wheat;;GM48-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
717173	1000342677	C21	Back Pad;;PU;Vesicant;Hazelnut;;GM48-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,4,5,6,12,13,14
709067	1000108799	C30	Screw;RND;M8x1.25Px25L;HS;CHM;BP;G8.8	No	Model Compatibility List	$3.56 / Each
716193	1000334511	C32	Rubber Foot Pad;Base;;NBR;;;GM40;	No	Model Compatibility List	$10.11 / Each
726162	080409	C38	Screw;TH;M6X1.0PX25L;;HS;;;;;	No	Model Compatibility List	$1.66 / Each
708720	1000105069	C40	RVN;HX;NHS-610-3.0;YZN	No	Model Compatibility List	$0.88 / Each	1
701162	004079-A3	C41	Ball Bearing;6006ZZ;30X55X13T;;TPI;;;	No	Model Compatibility List	$27.04 / Each
708058	1000098627	C47	Cap;ABS;Black;50X100;GM45	No	Model Compatibility List	$2.89 / Each	9,4,5,6
708473	1000102893	C48	Screw;Hex Socket;Flat;M8x1.25Px20L;Cr Pl	No	Model Compatibility List	$1.38 / Each
700145	000514-C	C58	Foot pad;Tube;Rubber;GM07	No	Model Compatibility List	$3.64 / Each
709198	1000110841	D11	Grip;Pedal Arm ;wrap rubber;GM42-KM	No	Model Compatibility List	$16.74 / Each
728725	096208	D12	Adjustment Handle Lower Stopper Ring	No	Model Compatibility List	$12.30 / Each
728726	096209	D15	Cap;Grip;Peadal Arm;ADC12;GM42	No	Model Compatibility List	$15.11 / Each
714760	1000317876	D20	End Cap;;;PP;;Diam.X50.8;;	No	Model Compatibility List	$2.18 / Each	9
707822	1000096014	D24	Bushing;15x19x20T;GM40	No	Model Compatibility List	$4.65 / Each
704145	020329-00	D26	Set Screw;M6X1.0PX12L	No	Model Compatibility List	$0.21 / Each
708737	1000105205	D28	Axle;Swivel Axle;42CrMo;GM48-KM	No	Model Compatibility List	$15.31 / Each	8
708048	1000098549	D33	Bushing;30x25x20mm;GM44	No	Model Compatibility List	$10.82 / Each	8
701159	004077-A2	D41	Ball Bearing;6004ZZ;20X42X12T;;SKF;;;	No	Model Compatibility List	$20.05 / Each
710178	1000207188	D58	WASHER;DSP;Diam.20.4XDiam.40.0X1.5T;50CR	No	Model Compatibility List	$3.35 / Each	2
710179	1000207189	D59	SHIM;BEARING;-;SPHC;-;-;Cr	No	Model Compatibility List	$1.66 / Each	8
708352	1000102208	E05	Bousing;Bearing;Rod end;welding;GM48-KM	No	Model Compatibility List	$6.73 / Each	8,9,3
708353	1000102209	E06	Bearing Rod End;Left THREAD(EXTERNAL);M10;;	No	Model Compatibility List	$28.16 / Each	7,8,9,3,12,13,14
708354	1000102210	E07	Bearing Rod End;Right THREAD(EXTERNAL);M10;;	No	Model Compatibility List	$28.16 / Each	7,8,9,3,12,13,14
726881	085774	E08	Nut;HX;M10X1.5P;SS41;CHM;;	No	Model Compatibility List	$0.86 / Each
708355	1000102211	E09	Nut;Hex;Left Knob;M10x1..5P;Cr	No	Model Compatibility List	$0.81 / Each	2
708356	1000102212	E10	Special Screw;20CrMo;GM48-KM	No	Model Compatibility List	$5.46 / Each	2
709132	1000110228	E13	Washer;Flat;Diam.10.2xDiam.15.0x3.5T;SPH	No	Model Compatibility List	$1.66 / Each	2
718550	1000351348	E21	Peadal Arm Adjustable Fixing Base;Handle	No	Model Compatibility List	$67.57 / Each	3,11
715641	1000327458	E22	Fixing Plate;Grip;;;;;GM48;	No	Model Compatibility List	$3.28 / Each	3,11
715642	1000327459	E23	Location Ring;Square;6x6x12;	No	Model Compatibility List	$3.28 / Each	1
713650	1000306132	F02	Cam;Steel Rope;Big;UHMWPE;GM48	No	Model Compatibility List	$330.33 / Each	1
708869	1000106852	F04	Steel Rope-;-;2562MM;	No	Model Compatibility List	$81.15 / Each	1
727689	090443	F04	Key;Flat;10X8X20L;GM30	No	Model Compatibility List	$2.52 / Each
708357	1000102213	F05	Stopper Plate;cam;outside;welding;GM48-	No	Model Compatibility List	$25.32 / Each	3
708358	1000102214	F06	Snug Plate;cam;welding;GM48-KM	No	Model Compatibility List	$79.40 / Each	3
708363	1000102226	F08	Bousing;Cover Layering;welding;GM48-KM	No	Model Compatibility List	$6.73 / Each	9
707159	1000090792	F09	RingCamGM44	No	Model Compatibility List	$2.57 / Each	1
707158	1000090791	F10	Cap;ABS;rGM44	No	Model Compatibility List	$5.46 / Each	9
710684	1000212387	F11	Fixing Plate;Cable Head;-;45#;BED;GM41;	No	Model Compatibility List	$15.96 / Each	3,4,5,6
721912	1000386459	F12	Screw;Hex Head;M8x1.25Px25L;;;;Chrome;Bl	No	Model Compatibility List	$5.04 / Each	7,2,12,13,14
725583	073572	F17	Pulley; 90mm	No	Model Compatibility List	$44.28 / Each
728736	096282	G04	Pedal;Painting;GM48	No	Model Compatibility List	$111.51 / Each
710457	1000210341	G14	Rubber;Foot Pad;GM48-KM	No	Model Compatibility List	$69.55 / Each	9,3,12,13,14
727687	1000487589	H08	Stopper BlockRubber;GM30	No	Model Compatibility List	$2.73 / Each	1
728927	099030	J10	ADJ Plate;Seat;ZG20;GM40	No	Model Compatibility List	$99.45 / Each
728928	099035	J13	Axle;Pull Pin;42CrMo;GM40	No	Model Compatibility List	$42.43 / Each
728929	099036	J14	Axle Sleeve;Pull Pin;42CrMo;GM40	No	Model Compatibility List	$16.64 / Each
709696	1000202036	J16	SCREW;RND;-;-;-;SEAT ADJ;-;	No	Model Compatibility List	$6.73 / Each
728940	099090	J18	CON Rod;Seat Adjustment;ADC12;;;ADC12	No	Model Compatibility List	$40.53 / Each
707428	1000092642	J20	Spring;RCL;;4130CrMo;Spray teflon;GM40	No	Model Compatibility List	$106.00 / Each
728914	098972	J21	Spring;EXT;;SWP;ZNC;GM40	No	Model Compatibility List	$1.79 / Each
709013	1000108255	J27	Seat Pad;Vesicant;Clay Red;GM40-KM	No	Model Compatibility List	$114.89 / Each	12,13,14
709015	1000108272	J27	Seat Pad;Vesicant;Slate Blue;GM40-KM	No	Model Compatibility List	$114.89 / Each	12,13,14
709017	1000108289	J27	Seat Pad;Vesicant;No Leather;GM40-KM	No	Model Compatibility List	$48.98 / Each
709184	1000110783	J27	Seat Pad;American Beauty Red;Vesicant;G	No	Model Compatibility List	$111.51 / Each	12,13,14
709255	1000111514	J27	Seat Pad;;PU,Vesicant;Graphite Gray;GM40	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
709256	1000111517	J27	Seat Pad; Graphite Gray / Alloy Gray; Ve	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
709257	1000111520	J27	Seat Pad;;PU,Vesicant;Alloy Gray+Hazelnu	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
715364	1000324528	J27	Seat Pad;;PU,Vesicant;wheat;;GM40-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
717172	1000342669	J27	Seat Pad;;PU;;Hazelnut;	No	Model Compatibility List	$0.00 / Each Out Of Stock	2,12,13,14
718274	1000349872	J27	Seat Pad;;PU,Vesicant;;Uph Royal Blue;GM	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
718275	1000349890	J27	Seat Pad;;PU,Vesicant;;Light Brown;GM40-	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
719126	1000356160	J27	Seat Pad;;PU;Vesicant;Alloy Gray;;GM40-K	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
728723	096186	J27	Seat Set;BL;Semi-Assy;GM40-KM	No	Model Compatibility List	$310.93 / Each
728703	096046	J32	Axle;CON Rod;45#;GM40	No	Model Compatibility List	$19.53 / Each
707982	1000097385	J33	Stopper Sleeve;CON Rod Axle;ABS;GM40	No	Model Compatibility List	$2.57 / Each
728731	096216	J35	Stopper Sleeve;WASHER;GM40	No	Model Compatibility List	$0.21 / Each
701911	004938-00	J39	Nut;Nylon;M6X1.0P;Chromed	No	Model Compatibility List	$2.00 / Each
708027	1000097850	J40	SCREW;SH;M8X1.25PX95L;;HS;;CHM;;G12.9	No	Model Compatibility List	$3.35 / Each
701901	004929-00	J41	Nut;Nylon;M8x1.25P;Chromed	No	Model Compatibility List	$2.00 / Each
708565	1000103444	J43	Cover;Seat;GM40-KM	No	Model Compatibility List	$4.65 / Each
702217	005330-00	J44	Tinnamen Nut	Yes	Model Compatibility List	$1.59 / Each
957398	005330-00	J44	Gear Rower Retainer Clip (New)	Yes	Model Compatibility List	$11.99 / Each
701618	004636-AD	J45	Screw;BH;4X15L;SM;PH;;CHM;;POT	No	Model Compatibility List	$0.81 / Each
728934	099059	K02	ADJ Rod;Weight Plate;20#;GM40	No	Model Compatibility List	$109.64 / Each
709517	1000200981	K07	Guide Rod;Weight plate	No	Model Compatibility List	$124.83 / Each
703901	019151-AA	K08	Rubber Bumper;Weight Stack	Yes	Model Compatibility List	$8.00 / Each
709718	1000202352	K13	Cushion;Guide Rod	No	Model Compatibility List	$8.42 / Each
702250	005377-00	K14	Clamp;E-Shaped Ring;E-15	No	Model Compatibility List	$0.65 / Each
728706	096086	L01	Weight Plate;Incremental;3P;HT200;GM41	No	Model Compatibility List	$87.33 / Each
707431	1000092646	L02	Axle Sleeve;Guide Rod;23X20X15L;GM40	No	Model Compatibility List	$5.46 / Each
728931	099053	L03	ADJ Base;R;Incremental Weight Plate;GM40	No	Model Compatibility List	$1.98 / Each
728933	099056	L07	U;Cover;IncrementalWeightPlate;20#;GM40	No	Model Compatibility List	$23.50 / Each
728930	099052	L12	ADJ Base;L;Incremental Weight Plate;GM40	No	Model Compatibility List	$23.50 / Each
708408	1000102696	L13	Dial;GM41	No	Model Compatibility List	$3.95 / Each
707833	1000096167	L15	Axle Sleeve Two;Weight Plate;Rubber;GM40	No	Model Compatibility List	$9.62 / Each	8,3
728937	099064	L17	Sleeve;D;IncrementalWeight Plate;POM;GM4	No	Model Compatibility List	$5.64 / Each
709202	1000111004	L18	Handle set;Semi-Assy;;Incremental Weight	No	Model Compatibility List	$21.89 / Each	3,11
707826	1000096021	L21	Screw;SET;M10X1.5P	No	Model Compatibility List	$0.81 / Each
714882	1000319417	L30	Fixing Rack;Counte;;painting;;Iced Slive	No	Model Compatibility List	$13.49 / Each
707827	1000096022	L31	Magnet;Counte;GM40	No	Model Compatibility List	$1.98 / Each	8
707828	1000096023	L32	Half-moon Key;20#;GM40	No	Model Compatibility List	$0.88 / Each
709070	1000108803	L33	Screw;RND;M5x0.8Px12L;HS;CHM;BP;G8.8	No	Model Compatibility List	$0.34 / Each
709069	1000108801	L34	Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8	No	Model Compatibility List	$1.79 / Each
709071	1000108804	L36	Screw;BH;M5x0.8Px15L;HS;CHM;BP;G8.8	No	Model Compatibility List	$0.70 / Each
708649	1000104672	L37	Screw;BH;M5x0.8Px10L;HS;CST;CST;CST;CHM;	No	Model Compatibility List	$0.60 / Each
708675	1000104705	L38	Screw;RND;M6x1.0Px15L;HS;CHM;BP;G8.8	No	Model Compatibility List	$0.52 / Each
725362	070571	L38	Washer;Flat;5.2X10.0X1.5T;;CHM;	No	Model Compatibility List	$0.49 / Each
728936	099063	L40	Cover;Incremental Weight Plate;PC;GM40	No	Model Compatibility List	$20.33 / Each
717480	1000345425	L41	Stopper Ring;Guide Rod;;;Chrome;GM41;;	No	Model Compatibility List	$18.23 / Each
707435	1000092656	L43	Nut;HX;M10X1.5PX10L;SS41;CHM;;	No	Model Compatibility List	$0.86 / Each
708484	1000102910	L45	Circlip;External C Type;S-12;BED	No	Model Compatibility List	$1.33 / Each
709076	1000108910	L46	Washer;Flat;12.5x23x1.0t;CHM	No	Model Compatibility List	$1.33 / Each
710475	1000210485	L50	SCREW;SET;M5X0.8PX6L;FLAT POINT;HS;G8.8;	No	Model Compatibility List	$1.66 / Each
702056	005084-00	L51	Washer;Flat;5.3X10.0X1.0T;Chromed	No	Model Compatibility List	$2.00 / Each
720427	1000372592	L59	Adjustable Pin Set;;;Weight plate;GM40;;	No	Model Compatibility List	$109.49 / Each	3,12,13,14
708186	1000101000	Not Shown	Hardware Kit Set;GM48-KM	No	Model Compatibility List	$150.67 / Each	1
710572	1000211061	Not Shown	Direction Label;SEAT ADJUSTABLE;-;PC;;;	No	Model Compatibility List	$8.42 / Each	12,13,14
729626	ZMS4003238	Not Shown	Decal, QR, G7-S51 Abdominal	No	Model Compatibility List	$5.90 / Each	7,3
728922	098987	Q01	Cover;Up;ABS;GM40	No	Model Compatibility List	$38.84 / Each
728920	098985	Q02	Weight Stack Shield;Front;ABS;GM40	No	Model Compatibility List	$147.63 / Each
728919	098984	Q03	Cover;Rear;ABS;GM40	No	Model Compatibility List	$152.07 / Each
728923	098988	Q04	Cover;Front;ABS;GM40	No	Model Compatibility List	$147.63 / Each
728921	098986	Q05	Grip;Up Cover;ADC12;GM40	No	Model Compatibility List	$196.01 / Each
728918	098980	Q06	Kettle Base;ABS;GM40	No	Model Compatibility List	$34.89 / Each
707829	1000096024	Q08	Fixing Base;PC;GM40	No	Model Compatibility List	$3.35 / Each
707830	1000096025	Q09	Decal Plate;U;GM40	No	Model Compatibility List	$70.10 / Each	7,3
709072	1000108805	Q14	Screw;RND;M8x1.25Px20L;HS;CHM;BP;G12.9	No	Model Compatibility List	$1.79 / Each
713028	1000232600	V02	Warning Label;-;-;-;PC;-;-	No	Model Compatibility List	$7.28 / Each	1
710040	1000206252	V03	Decal;Weight Plate;10P;GM40	No	Model Compatibility List	$56.94 / Each	7,3
728185	093501	V08	Warning sticker;small;GM40-KM	No	Model Compatibility List	$1.66 / Each
726956	086226	V09	Nameplate;Motor Cover;LOGO;T5X-02;	No	Model Compatibility List	$42.28 / Each
708187	1000101002	V11	InstructionLabel;Front;GM48-KM	No	Model Compatibility List	$77.01 / Each	1
708188	1000101003	V12	InstructionLabel;behind;GM48-KM	No	Model Compatibility List	$77.01 / Each	1
701465	004518-00	Z01	Screw;SH;M10X1.5PX75L;;HS;;CHM;;	No	Model Compatibility List	$3.64 / Each
708662	1000104691	Z02	Screw;RND;M10x1.5Px30L;HS;G12.9;CHM;BP	No	Model Compatibility List	$3.64 / Each
701981	005017-00	Z03	Washer;Spring;SW10 10.2X18.4X2.5T;Chromed	No	Model Compatibility List	$1.33 / Each
709078	1000108924	Z04	Screw;RND;M10x1.5Px20L;HS;CHM;BP;G8.8	No	Model Compatibility List	$9.10 / Each
708386	1000102584	Z05	Screw;Hex;M10x1.5Px20L;Cr Plate;G12.9	No	Model Compatibility List	$1.38 / Each
713759	1000307576	Z06	Washer;Flat;Diam.51XDiam.75X1.0T;Teflon;	No	Model Compatibility List	$3.35 / Each	2
709861	1000204046	Z07	Washer;Flat;6.4X14.0X3.0T;Chromed	No	Model Compatibility List	$1.79 / Each
701720	004739-AC	Z08	Screw;BH;M8X1.25PX65L;;HS;;CHM;;	No	Model Compatibility List	$1.20 / Each	2
708096	1000099593	Z12	Screw;SH;M10X1.5PX12L;;HS;;CHM;;BP	No	Model Compatibility List	$2.57 / Each	2
704127	020294-00	Z13	SCREW;BH;M10X1.5PX20L;;HS;;CHM;;	No	Model Compatibility List	$1.85 / Each
702531	008523-B	Z15	Washer;Arc;M10x28x10.5T;SS41	No	Model Compatibility List	$9.10 / Each
709063	1000108795	Z17	Screw;RND;M8x1.25Px60L;HS;CHM;BP;G8.8	No	Model Compatibility List	$3.46 / Each	2
701416	004466-00	Z23	Screw;Hex Socket;Round;M6x1.0Px12L;Adher	No	Model Compatibility List	$1.46 / Each
708677	1000104708	Z26	Screw;BH;M6x1.0Px15L;HS;CST;CHM;BP;G8.8	No	Model Compatibility List	$0.60 / Each
701836	004855-AC	Z50	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
708051	1000098555	Z61	Washer;Flat;30.3X45X2.0T;SPHC ;WZN;	No	Model Compatibility List	$0.70 / Each
708052	1000098556	Z62	Washer;Wavy;30.5X39.2X0.4T;;;	No	Model Compatibility List	$0.75 / Each
701927	004964-00	Z64	Nut;Hex;Flange;M10x1.25P;Black Zinc	No	Model Compatibility List	$2.00 / Each
714884	1000319422	Z100	Frame Fix Plate;;;painting;;Iced Sliver;	No	Model Compatibility List	$16.87 / Each
707824	1000096017	Z101	Rubber Pad;Fixing;GM40	No	Model Compatibility List	$2.39 / Each

View Drawing

Chat with us

Matrix Commercial - G7-S51 PY - 2009

Exploded Diagrams

general Info

Customer Service

About us

Address
