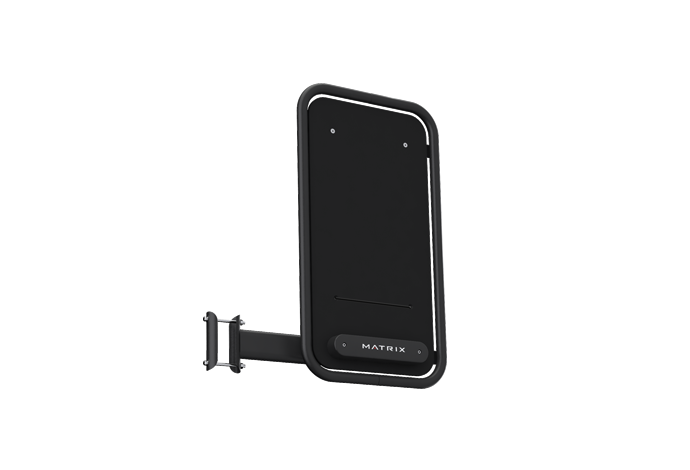

Matrix Commercial - GFTCB - 2015

Repair Parts for Matrix Commercial GFTCB GFTCB,Connexus,Magnetic Chalkboard

Brand: Matrix Commercial

Category: Functional

Type: Strength Systems

Model Name: GFTCB

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Nut;Nylon;M8x1.25P;Chromed 701901 004929-00 F12 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

702030 005062-00 B21 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

707640 1000093965 Z22 Screw;SH;M8X1.25PX70L-20L;;HS;G12.9;;;BP No Model Compatibility List $3.64 / Each

708386 1000102584 Z05 Screw;Hex;M10x1.5Px20L;Cr Plate;G12.9 No Model Compatibility List $1.38 / Each

Nut;Nylon;M10x1.5P;G12.9;CHM 708730 1000105174 Z09 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

709980 1000205448 C47 PLASTIC COVER;-;-;-;;;GM59; No Model Compatibility List $3.64 / Each

9
Screw;Socket Head;M10X1.5PX155L-20;;Hex 713874 1000309154 Z24 Screw;Socket Head;M10X1.5PX155L-20;;Hex No Model Compatibility List $8.42 / Each

2
718908 1000354163 S11 chalk board;;t=15;;;GT01; No Model Compatibility List $245.02 / Each

1
718909 1000354164 S12 Elastic Rope;;;;;;GT01; No Model Compatibility List $10.11 / Each

1
718921 1000354230 S10 Support Base;;;ABS/PA757;Q520-7-3 MATTE; No Model Compatibility List $28.70 / Each

3
719241 1000358291 S14 Cap;;Diam.12;;;GT01 No Model Compatibility List $2.18 / Each

9
719455 1000361720 Z21 Screw;Flat Head;M8x1.25Px30;;Hex Socket; No Model Compatibility List $1.66 / Each

2
719584 1000362715 S16 Boot;;;PE;BL/Black C;;GT01; No Model Compatibility List $2.18 / Each

4,5,6
Cap;;;PVC;BL/Black C;;GT01; 719585 1000362717 G15 Cap;;;PVC;BL/Black C;;GT01; No Model Compatibility List $2.18 / Each

9,4,5,6
719631 1000363352 V06 Instructional Labe;;267x203;;;;;TRX No Model Compatibility List $30.39 / Each

1
719632 1000363353 V07 Instructional Labe;Function;267x203;;;;; No Model Compatibility List $30.39 / Each

1
719633 1000363354 V08 Instructional Labe;Function;267x203;;;;; No Model Compatibility List $30.39 / Each

1
719634 1000363355 V09 Instructional Labe;Function;267x203;;;;; No Model Compatibility List $32.08 / Each

1
719635 1000363356 V10 Instructional Labe;Function;267x203;;;;; No Model Compatibility List $30.39 / Each

1
719636 1000363358 V11 Instructional Labe;Function;267x203;;;;; No Model Compatibility List $30.39 / Each

1
719637 1000363359 V12 Instructional Labe;Function;267x203;;;;; No Model Compatibility List $30.39 / Each

1
719638 1000363360 V14 Instructional Labe;Function;267x203;;;;; No Model Compatibility List $30.39 / Each

1
LOGO Label;;connexus;;;;;GT01 719752 1000365161 V01 LOGO Label;;connexus;;;;;GT01 No Model Compatibility List $5.90 / Each

1
720006 1000367784 AS2 Support Tube Welding Set;;;painting;;Bla No Model Compatibility List $48.98 / Each

3
