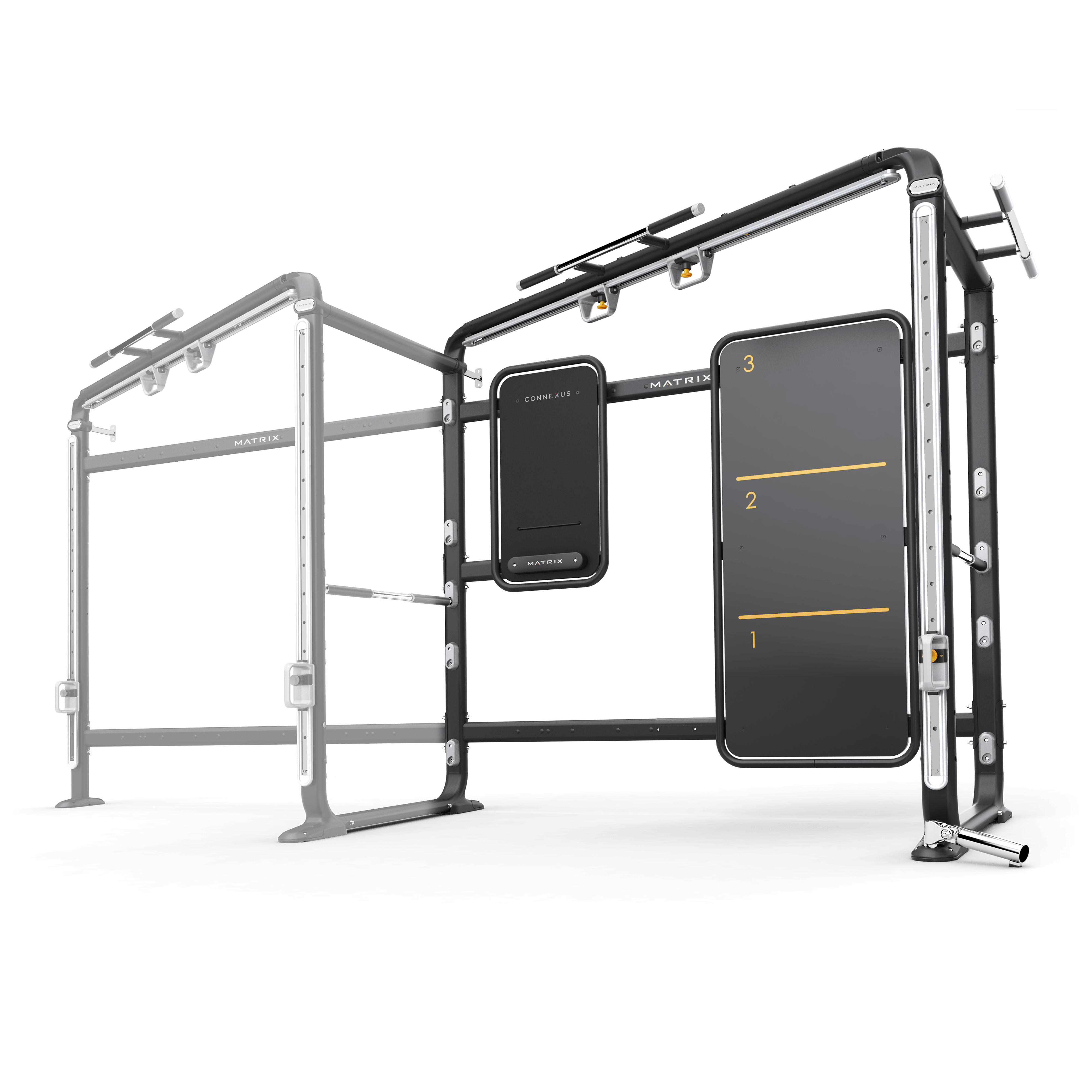

Matrix Commercial - GFTEXP - 2015

Repair Parts for Matrix Commercial GFTEXP GFTEXP,GT03

Brand: Matrix Commercial

Category: Functional

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

GFTEXP,GT03

Model Name: GFTEXP

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16967.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700180	000590-C	D39	Foam Grip;30.4x5.0x110L	No	Model Compatibility List	$10.84 / Each	11
700207	000664-AA	D38	Foam Grip;Q31.8X320L	No	Model Compatibility List	$6.14 / Each	11
701484	004529-AD	Z27	Screw;Hex Socket;Round;M10x1.5Px40L	No	Model Compatibility List	$3.69 / Each	2
701836	004855-AC	Z14	Set Screw;M6X1.0PX4L	No	Model Compatibility List	$1.79 / Each
701986	005024-A	Z10	Washer;Flat;5.2X16.0X1.0T;;BZN;	No	Model Compatibility List	$1.66 / Each
702030	005062-00	Z05	Washer;Flat;10.2x19x2.0T;Chromed	No	Model Compatibility List	$1.59 / Each
702722	009372-E	D14	Cap;Grip;GM02	No	Model Compatibility List	$13.36 / Each
705465	049256-AB	Z03	Screw;Hex Socket;Round;M10x1.5Px20L;Cr;	No	Model Compatibility List	$1.79 / Each
707842	1000096289	Z11	Screw;SH;M10x110L-15L;-;HS;-;CHM;BP;G12.	No	Model Compatibility List	$5.90 / Each	2
707946	1000097206	Z06	Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP	No	Model Compatibility List	$2.00 / Each
708040	1000098175	Z09	Screw;BH;Diam.X4x10L;SM;PH;-;BZN;POT;-;B	No	Model Compatibility List	$1.85 / Each	2
708082	1000099212	Z01	Screw;SH;M6x1.0Px15L;-;HS;-;CHM;-;-;	No	Model Compatibility List	$0.86 / Each
708669	1000104698	Z12	Screw;RND;M10x1.5Px95L;HS;G8.8;CHM;BP	No	Model Compatibility List	$8.03 / Each
708673	1000104703	Z07	Screw;RND;M5x0.8Px10L;CT;HS;-;CHM;-;G8.8	No	Model Compatibility List	$1.66 / Each	2
708730	1000105174	Z13	Nut;Nylon;M10x1.5P;G12.9;CHM	No	Model Compatibility List	$1.79 / Each
709008	1000108191	Z26	Screw;RND;M10x1.5Px75L;MT;HS;CST;CHM;BP	No	Model Compatibility List	$9.10 / Each
709069	1000108801	Z08	Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8	No	Model Compatibility List	$1.79 / Each
711198	1000217438	J23	Handle Pull Pin;;;TPP;Black Orange;;GM59	No	Model Compatibility List	$13.49 / Each
712494	1000229173	Z04	Screw;SH;M10x x35L;-;HS;-;CHM;-;G12.9;	No	Model Compatibility List	$3.02 / Each	2
713705	1000306719	V05	Warning Label;;;;;;;Bolt down required;	No	Model Compatibility List	$3.35 / Each	2
713707	1000306748	L01	Foam;;Diam.30.4X5.0TX280L;Grip;FW229	No	Model Compatibility List	$13.49 / Each	11
713740	1000307173	G13	Plastic Cover;Nut;;;;;;	No	Model Compatibility List	$1.66 / Each
713874	1000309154	Z24	Screw;Socket Head;M10X1.5PX155L-20;;Hex	No	Model Compatibility List	$8.42 / Each	2
718888	1000354055	H02	Pin;ADJ SET;;SPHC;t=4;CHM;GT01;vertical;	No	Model Compatibility List	$168.97 / Each	12,13,14
718889	1000354056	H03	Cap;;130g;;Anodizing/Sanding;	No	Model Compatibility List	$21.94 / Each	9
718890	1000354058	H04	Grip;Grip;;;Anodizing/Sanding;	No	Model Compatibility List	$74.33 / Each	11
718891	1000354059	H07	Pull Pin;Adjustable;;	No	Model Compatibility List	$20.25 / Each	12,13,14
718892	1000354060	H08	Rubber Plate;Stopper;;NBR;Q520-7-3 MATTE	No	Model Compatibility List	$6.73 / Each
718893	1000354061	C05	Buckle;;201g;;Anodizing/Sanding;	No	Model Compatibility List	$30.39 / Each	1
718894	1000354065	2	Buckle Assembly;arm rest;;;GT01;;	No	Model Compatibility List	$50.67 / Each	3
718895	1000354087	H10	Pin;;;SPHC;horizontal;CHM;GT01;	No	Model Compatibility List	$217.98 / Each	12,13,14
718896	1000354096	5	Handlebar Set;Semi-Assy;up;;;GT01;;	No	Model Compatibility List	$388.67 / Each	11
718898	1000354101	6	Handle set;Semi-Assy;down;;;GT01;;	No	Model Compatibility List	$343.04 / Each	11
718899	1000354108	C13	Decal Plate;Base;up;ABS/PA757;CHM;;GT01;	No	Model Compatibility List	$13.49 / Each	7,3
718900	1000354109	C17	Decal;;;Light Silver;AL;;;GT01;	No	Model Compatibility List	$6.73 / Each	7,3
718910	1000354168	H14	Pad;;;NBR;BL/Black C;;GT01;ROM??	No	Model Compatibility List	$12.40 / Each	4,5,6,12,13,14
718914	1000354199	H01	Elliptical Track;;;long 1836;AL 6063;Ano	No	Model Compatibility List	$339.66 / Each	15,3,4,5,6
718915	1000354200	H05	DryLin;;;;;;GT01;JUMO-01-16;IGUS	No	Model Compatibility List	$28.70 / Each	1
718916	1000354201	H06	Nut Cap;;;ABS/PA757;Q520-7-3;;GT01;	No	Model Compatibility List	$3.35 / Each	2,9
718917	1000354204	H09	Elliptical Track;;;long 2389;AL 6063;Ano	No	Model Compatibility List	$0.00 / Each Out Of Stock	15,3,4,5,6
718923	1000354258	AC4	Support Base-Extrawork;;;Cr Plate;Diam.3	No	Model Compatibility List	$253.47 / Each	3
719024	1000355222	C19	Foot Pad;Base;down;NBR;;;GT01;	No	Model Compatibility List	$60.81 / Each	9,3,12,13,14
719034	1000355258	G10	Rubber Pad;;;NBR;BL/Black C;380x180x1.4;	No	Model Compatibility List	$33.77 / Each	4,5,6,12,13,14
719149	1000356410	Not Shown	Hardware Set;Semi-Assy;;;;GT03;	No	Model Compatibility List	$84.47 / Each	1
719152	1000356449	V01	EN LABEL;;;;;;;GT03	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
719240	1000358289	Z02	Screw;Socket Head;M4x0.7Px8L;;Hex Socket	No	Model Compatibility List	$1.66 / Each
719245	1000358324	G11	Fixing Plate;;;painting;;Black Matte;GT0	No	Model Compatibility List	$50.67 / Each	3,4,5,6
719456	1000361721	Z30	Screw;Button Head;M10x1.5Px20;;Hex Socke	No	Model Compatibility List	$3.35 / Each	2
719514	1000362265	V04	Warning Label;;Functional trainer cage;;	No	Model Compatibility List	$5.90 / Each	3
719582	1000362703	C21	Adjustable Plate;;;painting;;Black Matte	No	Model Compatibility List	$23.63 / Each	3,4,5,6
719585	1000362717	G15	Cap;;;PVC;BL/Black C;;GT01;	No	Model Compatibility List	$2.18 / Each	9,4,5,6
719630	1000363349	V02	Warning Label;PULL PIN;40x47;;;;;GT01	No	Model Compatibility List	$6.73 / Each	12,13,14
719654	1000363442	4	ADJ Start Set;Semi-Assy;;horizontal;;GT0	No	Model Compatibility List	$750.33 / Each	1
719656	1000363448	1	Adjustment Grip Set;Semi-Assy;;;;GT01;;	No	Model Compatibility List	$52.36 / Each	11
719658	1000363492	AG1	Connect Tube-Extrawork;;;;Black Matte;GT	No	Model Compatibility List	$130.10 / Each	3,4,5,6
719662	1000363526	AC1	base set;;2;Painting;;Black Matte;GT01;	No	Model Compatibility List	$780.75 / Each	3,4,5,6
719665	1000363538	G03	ConnectingTube;;;Painting;;Black Matte;G	No	Model Compatibility List	$42.22 / Each	3,4,5,6
719666	1000363542	G02	Connect Plate;;;Painting;;Black Matte;GT	No	Model Compatibility List	$42.22 / Each	3,4,5,6
719667	1000363546	AG2	ConnectingTube;;D;painting;;Black Matte;	No	Model Compatibility List	$131.79 / Each	3,4,5,6
719668	1000363554	C14	Cover;;;Painting;;Black Matte;GT01;	No	Model Compatibility List	$84.47 / Each	9,4,5,6
719672	1000363602	AB2	Frame Set;;;Painting;;Black Matte;GT02;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
719673	1000363606	AC5	base set;;3;Painting;;Black Matte;GT03;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
719674	1000363610	AB3	Frame Set;;;Painting;;Black Matte;GT03;	No	Model Compatibility List	$185.87 / Each	3,4,5,6
722509	1000393222	B39	Spring;Compression;1.3x12.7x38Lx7;SWP;	No	Model Compatibility List	$1.66 / Each
726981	086451	Z24	Screw;Hex Socket;Round;M10x1.5Px25L	No	Model Compatibility List	$1.12 / Each
728998	Order Components Separately	3	Seat Post Adjustment Set	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
729024	Order Kit 2	C22	Motor set;Semi-Assy;;;;TM701-1US;;Servic	No	Model Compatibility List	$0.00 / Each Out Of Stock	10
729030	Order Kit 5 or 6	E03	Grip-Exreawork;;down;electroplating;31.	No	Model Compatibility List	$0.00 / Each Out Of Stock	11
