Matrix Commercial - GFTLM - 2015

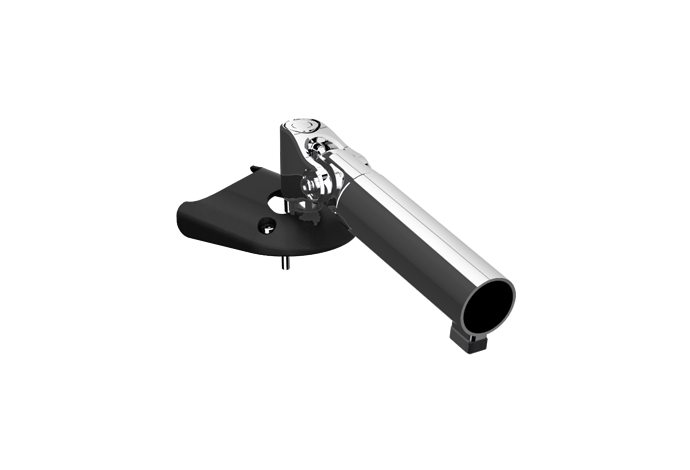

Repair Parts for Matrix Commercial GFTLM GFTLM,Connexus,Landmine Attachment

Brand: Matrix Commercial

Category: Functional

Type: Strength Systems

Model Name: GFTLM

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
BOLT SH M8X16 701427 004476-Z Z15 BOLT SH M8X16 No Model Compatibility List $1.66 / Each

Set Screw;M6X1.0PX4L 701836 004855-AC Z06 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

Washer;Flat;20.2X35X1.5T;Black Zinc 701991 005029-00 C09 Washer;Flat;20.2X35X1.5T;Black Zinc No Model Compatibility List $2.00 / Each

2,4,5,6
Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro 702006 005043-7 Z28 Washer;Flat;Diam.X10xDiam.X30x2.0T;;Chro No Model Compatibility List $1.66 / Each

Screw;Socket Head;M10x1.5Px12L;;Hex Sock 706421 062234-00 Z17 Screw;Socket Head;M10x1.5Px12L;;Hex Sock No Model Compatibility List $2.18 / Each

2
Screw;SH;M6X1.0PX12L;;HS;G8.8;;; 707621 1000093752 Z16 Screw;SH;M6X1.0PX12L;;HS;G8.8;;; No Model Compatibility List $0.34 / Each

2
Decal;Pinch Point ;MS21KM-G3 709081 1000109127 V02 Decal;Pinch Point ;MS21KM-G3 No Model Compatibility List $1.77 / Each

Rubber Plate;Stopper;;NBR;Q520-7-3 MATTE 718892 1000354060 H08 Rubber Plate;Stopper;;NBR;Q520-7-3 MATTE No Model Compatibility List $6.73 / Each

Weight Lifting Mast-Exreawork;;;Cr Plate 718901 1000354116 AN1 Weight Lifting Mast-Exreawork;;;Cr Plate No Model Compatibility List $148.69 / Each

3,10
Weight Lifting Mast Set;;;;GT01;;?? 718902 1000354134 AN02 Weight Lifting Mast Set;;;;GT01;;?? No Model Compatibility List $197.70 / Each

3,10
Connect Base Set;;;;GT01;;Black Matte 718903 1000354139 AN07 Connect Base Set;;;;GT01;;Black Matte No Model Compatibility List $86.16 / Each

3,4,5,6
Swivel Axle-Exreawork;;;Cr Plate;Diam.20 718904 1000354142 N09 Swivel Axle-Exreawork;;;Cr Plate;Diam.20 No Model Compatibility List $25.32 / Each

8,3
Stopper Cover-Exreawork;;;Cr Plate;Diam. 718905 1000354143 N11 Stopper Cover-Exreawork;;;Cr Plate;Diam. No Model Compatibility List $13.49 / Each

9,3
Cover;;;painting;;Black Matte;GT01;land 718920 1000354225 C15 Cover;;;painting;;Black Matte;GT01;land No Model Compatibility List $168.97 / Each

9,4,5,6
Shim;Supt Tube;;NBR;BL/Black C;;FW232; 719081 1000355724 B08 Shim;Supt Tube;;NBR;BL/Black C;;FW232; No Model Compatibility List $3.35 / Each

3,4,5,6
Decal;;landmine;;;;;GT01 719150 1000356443 V16 Decal;;landmine;;;;;GT01 No Model Compatibility List $2.18 / Each

7,3
View Drawing
