Matrix Commercial - GFTMB - 2015

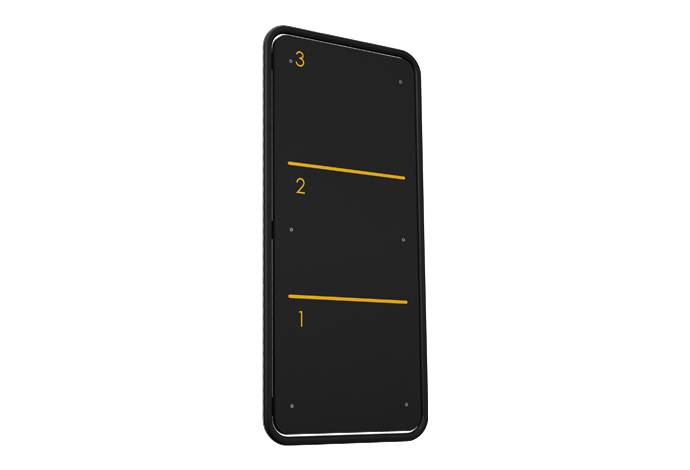

Repair Parts for Matrix Commercial GFTMB GFTMB,Connexus,Med Ball Target

Brand: Matrix Commercial

Category: Functional

Type: Strength Systems

Model Name: GFTMB

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Screw;Hex Socket;Sink;M8x1.25Px45L 701556 004584-A L03 Screw;Hex Socket;Sink;M8x1.25Px45L Yes Model Compatibility List $2.00 / Each

2
Nut;Nylon;M8x1.25P;Chromed 701901 004929-00 F12 Nut;Nylon;M8x1.25P;Chromed No Model Compatibility List $2.00 / Each

708386 1000102584 Z05 Screw;Hex;M10x1.5Px20L;Cr Plate;G12.9 No Model Compatibility List $1.38 / Each

med ball target board;;t=25.4;;;GT01; 718906 1000354151 S05 med ball target board;;t=25.4;;;GT01; No Model Compatibility List $422.47 / Each

1
Cushion;;;SBR;BL/Black C;t=6;GT01; 718907 1000354152 S06 Cushion;;;SBR;BL/Black C;t=6;GT01; No Model Compatibility List $42.22 / Each

3,4,5,6
LABEL;;1;;;;;GT01 719719 1000364059 V14 LABEL;;1;;;;;GT01 No Model Compatibility List $2.18 / Each

1
LABEL;;2;;;;;GT01 719720 1000364060 V17 LABEL;;2;;;;;GT01 No Model Compatibility List $2.18 / Each

1
LABEL;;3;;;;;GT01 719721 1000364061 V18 LABEL;;3;;;;;GT01 No Model Compatibility List $2.18 / Each

1
Decal;;;;;;;GT01 719722 1000364062 V19 Decal;;;;;;;GT01 No Model Compatibility List $6.73 / Each

7,3
LOGO Label;;173x15;;;;;MATRIX 719723 1000364063 V20 LOGO Label;;173x15;;;;;MATRIX No Model Compatibility List $5.90 / Each

1
View Drawing
