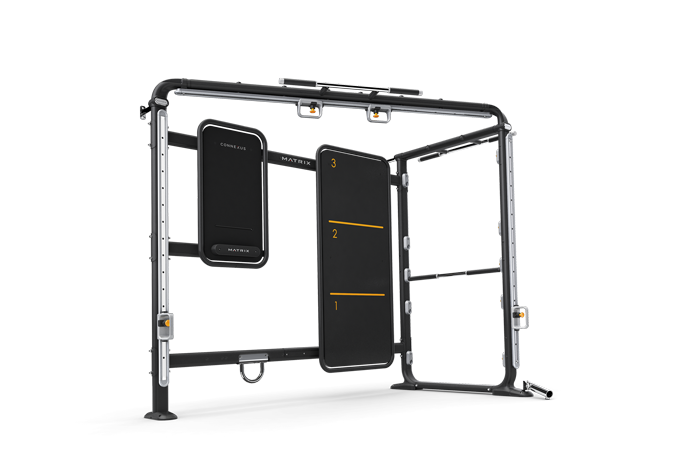

Matrix Commercial - GFTWM - Perimeter - 2015

Repair Parts for Matrix Commercial GFTWM - Perimeter GFTWM,GT02

Brand: Matrix Commercial

Category: Functional

Type: Strength Systems

Model Name: GFTWM - Perimeter

Version: 2015

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
D 700180 000590-C D39 Foam Grip;30.4x5.0x110L No Model Compatibility List $10.84 / Each

11
D 700207 000664-AA D38 Foam Grip;Q31.8X320L No Model Compatibility List $6.14 / Each

11
Z 701484 004529-AD Z27 Screw;Hex Socket;Round;M10x1.5Px40L No Model Compatibility List $3.69 / Each

2
Z 701836 004855-AC Z14 Set Screw;M6X1.0PX4L No Model Compatibility List $1.79 / Each

Z 701986 005024-A Z10 Washer;Flat;5.2X16.0X1.0T;;BZN; No Model Compatibility List $1.66 / Each

702030 005062-00 Z05 Washer;Flat;10.2x19x2.0T;Chromed No Model Compatibility List $1.59 / Each

D 702722 009372-E D14 Cap;Grip;GM02 No Model Compatibility List $13.36 / Each

Z 705465 049256-AB Z03 Screw;Hex Socket;Round;M10x1.5Px20L;Cr; No Model Compatibility List $1.79 / Each

Z 707842 1000096289 Z11 Screw;SH;M10x110L-15L;-;HS;-;CHM;BP;G12. No Model Compatibility List $5.90 / Each

2
Z 707946 1000097206 Z06 Screw;SH;M8X1.25PX25L;;HS;;CHM;;BP No Model Compatibility List $2.00 / Each

Z 708040 1000098175 Z09 Screw;BH;Diam.X4x10L;SM;PH;-;BZN;POT;-;B No Model Compatibility List $1.85 / Each

2
Z 708082 1000099212 Z01 Screw;SH;M6x1.0Px15L;-;HS;-;CHM;-;-; No Model Compatibility List $0.86 / Each

Z 708668 1000104697 Z28 Screw;RND;M10x1.5Px90L;HS;G8.8;CHM;BP No Model Compatibility List $3.98 / Each

2
Z 708669 1000104698 Z12 Screw;RND;M10x1.5Px95L;HS;G8.8;CHM;BP No Model Compatibility List $8.03 / Each

Z 708673 1000104703 Z07 Screw;RND;M5x0.8Px10L;CT;HS;-;CHM;-;G8.8 No Model Compatibility List $1.66 / Each

2
Z 708730 1000105174 Z13 Nut;Nylon;M10x1.5P;G12.9;CHM No Model Compatibility List $1.79 / Each

Z 709008 1000108191 Z26 Screw;RND;M10x1.5Px75L;MT;HS;CST;CHM;BP No Model Compatibility List $9.10 / Each

Z 709069 1000108801 Z08 Screw;RND;M5x0.8Px15L;HS;CHM;BP;G8.8 No Model Compatibility List $1.79 / Each

J 711198 1000217438 J23 Handle Pull Pin;;;TPP;Black Orange;;GM59 No Model Compatibility List $13.49 / Each

Z 712494 1000229173 Z04 Screw;SH;M10x x35L;-;HS;-;CHM;-;G12.9; No Model Compatibility List $3.02 / Each

2
V 713705 1000306719 V05 Warning Label;;;;;;;Bolt down required; No Model Compatibility List $3.35 / Each

2
713707 1000306748 L01 Foam;;Diam.30.4X5.0TX280L;Grip;FW229 No Model Compatibility List $13.49 / Each

11
G 713740 1000307173 G13 Plastic Cover;Nut;;;;;; No Model Compatibility List $1.66 / Each

Z 713874 1000309154 Z24 Screw;Socket Head;M10X1.5PX155L-20;;Hex No Model Compatibility List $8.42 / Each

2
H 718888 1000354055 H02 Pin;ADJ SET;;SPHC;t=4;CHM;GT01;vertical; No Model Compatibility List $168.97 / Each

12,13,14
H 718889 1000354056 H03 Cap;;130g;;Anodizing/Sanding; No Model Compatibility List $21.94 / Each

9
C 718893 1000354061 C05 Buckle;;201g;;Anodizing/Sanding; No Model Compatibility List $30.39 / Each

1
2 718894 1000354065 2 Buckle Assembly;arm rest;;;GT01;; No Model Compatibility List $50.67 / Each

3
5 718896 1000354096 5 Handlebar Set;Semi-Assy;up;;;GT01;; No Model Compatibility List $388.67 / Each

11
6 718898 1000354101 6 Handle set;Semi-Assy;down;;;GT01;; No Model Compatibility List $343.04 / Each

11
C 718899 1000354108 C13 Decal Plate;Base;up;ABS/PA757;CHM;;GT01; No Model Compatibility List $13.49 / Each

7,3
C 718900 1000354109 C17 Decal;;;Light Silver;AL;;;GT01; No Model Compatibility List $6.73 / Each

7,3
H 718910 1000354168 H14 Pad;;;NBR;BL/Black C;;GT01;ROM?? No Model Compatibility List $12.40 / Each

4,5,6,12,13,14
H 718914 1000354199 H01 Elliptical Track;;;long 1836;AL 6063;Ano No Model Compatibility List $339.66 / Each

15,3,4,5,6
718923 1000354258 AC4 Support Base-Extrawork;;;Cr Plate;Diam.3 No Model Compatibility List $253.47 / Each

3
C 719024 1000355222 C19 Foot Pad;Base;down;NBR;;;GT01; No Model Compatibility List $60.81 / Each

9,3,12,13,14
G 719034 1000355258 G10 Rubber Pad;;;NBR;BL/Black C;380x180x1.4; No Model Compatibility List $33.77 / Each

4,5,6,12,13,14
719060 1000355407 C23 Foot Pad;;;NBR;;PQ520-7-3;GT02; No Model Compatibility List $60.81 / Each

9,3,12,13,14
719148 1000356409 Not Shown Hardware Set;Semi-Assy;;;;GT02; No Model Compatibility List $135.17 / Each

1
719151 1000356446 V01 EN LABEL;;;;;;;GT02 No Model Compatibility List $1.66 / Each

1
Z 719240 1000358289 Z02 Screw;Socket Head;M4x0.7Px8L;;Hex Socket No Model Compatibility List $1.66 / Each

G 719245 1000358324 G11 Fixing Plate;;;painting;;Black Matte;GT0 No Model Compatibility List $50.67 / Each

3,4,5,6
Z 719456 1000361721 Z30 Screw;Button Head;M10x1.5Px20;;Hex Socke No Model Compatibility List $3.35 / Each

2
C 719582 1000362703 C21 Adjustable Plate;;;painting;;Black Matte No Model Compatibility List $23.63 / Each

3,4,5,6
719583 1000362706 C24 Adjustable Plate;;;painting;;Black Matte No Model Compatibility List $18.56 / Each

3,4,5,6
G 719585 1000362717 G15 Cap;;;PVC;BL/Black C;;GT01; No Model Compatibility List $2.18 / Each

9,4,5,6
4 719654 1000363442 4 ADJ Start Set;Semi-Assy;;horizontal;;GT0 No Model Compatibility List $750.33 / Each

1
1 719656 1000363448 1 Adjustment Grip Set;Semi-Assy;;;;GT01;; No Model Compatibility List $52.36 / Each

11
A 719658 1000363492 AG1 Connect Tube-Extrawork;;;;Black Matte;GT No Model Compatibility List $130.10 / Each

3,4,5,6
A 719662 1000363526 AC1 base set;;2;Painting;;Black Matte;GT01; No Model Compatibility List $780.75 / Each

3,4,5,6
A 719663 1000363530 AB1 Frame Set;;1;Painting;;Black Matte;GT01; No Model Compatibility List $280.51 / Each

3,4,5,6
G 719665 1000363538 G03 ConnectingTube;;;Painting;;Black Matte;G No Model Compatibility List $42.22 / Each

3,4,5,6
G 719666 1000363542 G02 Connect Plate;;;Painting;;Black Matte;GT No Model Compatibility List $42.22 / Each

3,4,5,6
A 719667 1000363546 AG2 ConnectingTube;;D;painting;;Black Matte; No Model Compatibility List $131.79 / Each

3,4,5,6
C 719668 1000363554 C14 Cover;;;Painting;;Black Matte;GT01; No Model Compatibility List $84.47 / Each

9,4,5,6
719670 1000363594 AC3 base set;;3;Painting;;Black Matte;GT02; No Model Compatibility List $888.91 / Each

3,4,5,6
719671 1000363598 AC2 base set;;2;Painting;;Black Matte;GT02; No Model Compatibility List $981.86 / Each

3,4,5,6
719672 1000363602 AB2 Frame Set;;;Painting;;Black Matte;GT02; No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
B 722509 1000393222 B39 Spring;Compression;1.3x12.7x38Lx7;SWP; No Model Compatibility List $1.66 / Each

Screw;Hex Socket;Round;M10x1.5Px25L 726981 086451 Z24 Screw;Hex Socket;Round;M10x1.5Px25L No Model Compatibility List $1.12 / Each

728998 Order Components Separately 3 Seat Post Adjustment Set No Model Compatibility List $0.00 / Each
Out Of Stock 		12,13,14
729012 Order Kit 1 V04 Console Base Set;Semi-Assy;;;;TM701-1US; No Model Compatibility List $0.00 / Each
Out Of Stock
729024 Order Kit 2 C22 Motor set;Semi-Assy;;;;TM701-1US;;Servic No Model Compatibility List $0.00 / Each
Out Of Stock 		10
