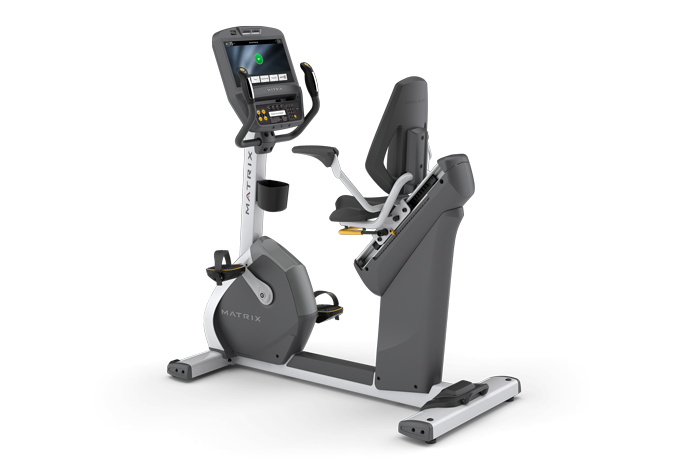

Matrix Commercial - H7xe-05 - 2016

Repair Parts for Matrix Commercial H7xe-05 CB93,EP620,EP620C,EP620E_1,EP620E_2,EP620E_3,EP620E_4,EP620E_5

Brand: Matrix Commercial

Category: Hybrid

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

CB93,EP620,EP620C,EP620E_1,EP620E_2,EP620E_3,EP620E_4,EP620E_5

Model Name: H7xe-05

Version: 2016

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
700024	000041-AA	J19		Transport Wheel	Yes	Model Compatibility List	$9.10 / Each
700313	000932-E	181		Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted.	No	Model Compatibility List	$1.66 / Each
700360	001130-00	D41		Cover;Crank Arm	No	Model Compatibility List	$1.90 / Each
700571	001681-A	Q18		Fix Pillar;PP;TM81	No	Model Compatibility List	$1.90 / Each
700689	001800-DA	I04		Security Block;Nylon; 6+30%FIBER(BLACK)	No	Model Compatibility List	$8.42 / Each
700924	002782-C	Not Shown		Power Cord;External(USA);3000,14AWG;110V(non-nema)	Yes	Model Compatibility List	$72.98 / Each
701032	003383-A	N94		Ferrite Choke;FH0900B-2;Lian Ci;TM38	No	Model Compatibility List	$9.10 / Each
701146	004050-A	T07		Pedal Strap Set(includes both sides);Rub	No	Model Compatibility List	$36.48 / Each
701269	004330-00	B28		Screw;Phillip;Round;M6x1.0Px25L(Tooth8L)	No	Model Compatibility List	$1.66 / Each
701285	004354-00	J13		SCREW;BH;M5X0.8PX12L;;PH;;BAN;;	Yes	Model Compatibility List	$1.66 / Each
701289	004356-AB	183		Screw;Phillip;BH;M4x0.7Px12L;BED;	No	Model Compatibility List	$1.66 / Each	2
701308	004369-00	P17		Screw;Phillip;BH;M5x0.8Px15L;BED;	No	Model Compatibility List	$2.00 / Each
701312	004370-00	Q15		Screw;Phillip;BH;M5x0.8Px10L;;Zn-BL	No	Model Compatibility List	$2.00 / Each
701318	004374-00	S09		Screw;Phillip;BH;M5x0.8Px10L;Gap;;Zn-BL	No	Model Compatibility List	$2.00 / Each
701389	004446-00	H25		Screw;Round;Hex Socket;M4X0.7PX16L	No	Model Compatibility List	$1.66 / Each
701390	004447-AB	I21		Screw;Hex Socket;Round;M5x0.8Px12L;Adher	No	Model Compatibility List	$1.43 / Each
701402	004456-00	D36		Screw;Round;Hex Socket;M5x0.8Px16L	No	Model Compatibility List	$1.79 / Each
701413	004463-00	S06		Screw;Hex Socket;Round;M6x1.0Px16L	No	Model Compatibility List	$1.79 / Each
701420	004469-00	H23		SCREW;SH;M6X1.0PX6L;;HS;;;;	No	Model Compatibility List	$1.66 / Each
701426	004475-00	M11		SCREW;SH;M8X1.25PX15L;;HS;;BZN;;	No	Model Compatibility List	$0.52 / Each
701437	004482-AC	Z21		Screw;Hex Socket;Round;M8x1.25Px20L;BED;	No	Model Compatibility List	$2.00 / Each
701440	004483-00	D35		Screw;Round Hex Socket;M8x1.25Px25L	No	Model Compatibility List	$1.79 / Each
701501	004538-00	Z11		Screw;Hex Socket;Round;M8X1.25PX20L(Chromed)	No	Model Compatibility List	$2.91 / Each
701535	004566-00	D10		Screw;Plain;Hex Socket; M5X0.8PX10L	No	Model Compatibility List	$1.66 / Each
701574	004608-00	I17		Screw;Phillip;BH;Tapped;3x10L	No	Model Compatibility List	$2.00 / Each
701631	004653-00	G07		Screw;Round;PH;Tapped;4X12L	No	Model Compatibility List	$2.00 / Each
701658	004695-AB	U05		Screw;Hex Socket;Flat;M8x1.25Px12L	No	Model Compatibility List	$2.00 / Each
701866	004889-00	P55		Nut;Hex;M5x0.8P;Nickel	No	Model Compatibility List	$2.00 / Each
701924	004957-00	R09		Nut;Lock;M25X1.5P;SS41;BAN	Yes	Model Compatibility List	$3.64 / Each
701944	004979-00	J18		Insert Nut;Hex;NHS-8125-3.0(M8x1.25P)	No	Model Compatibility List	$1.79 / Each
701945	004980-A	B21		Insert Nut;Hex;NHS-580-3.0(M5X0.8P)	Yes	Model Compatibility List	$1.79 / Each
701951	004987-00	R05		Key;Round;Dual End;6X6X12L	No	Model Compatibility List	$1.66 / Each
701955	004991-00	I12		Key;Round;Dual-End;6X6X20L	No	Model Compatibility List	$2.37 / Each
701997	005035-00	J17		Washer;Flat;8.2x18x1.4T	No	Model Compatibility List	$2.00 / Each
702046	005075-00	S05		Washer;Flat;6.2X16X2.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each
702049	005077-00	B30		Washer;Flat;6.2X12X1.0T;Black Zinc	No	Model Compatibility List	$1.85 / Each
702128	005155-A	H24		Washer;Flat;6.2x12.0x2.0T;Black Zinc	No	Model Compatibility List	$1.79 / Each
702131	005157-A	N153		Washer;Flat;4.3x12.0x1.0T;Black Zinc	No	Model Compatibility List	$1.79 / Each
702178	005220-00	J14		Washer;Wavy;20.7x29.1x.3T	No	Model Compatibility List	$2.00 / Each
702237	005362-00	I15		C-Clip;External;S-16	No	Model Compatibility List	$1.59 / Each
702240	005365-00	I14		C-Clip;External;S-20	No	Model Compatibility List	$1.79 / Each
702241	005366-00	R07		C-Clip;External;S-25	No	Model Compatibility List	$1.59 / Each
702299	005811-00	P47		Cable Tie;Nylon;Black;160L	No	Model Compatibility List	$1.51 / Each
702303	005841-C	I05		Nylon Cord; 6	No	Model Compatibility List	$12.27 / Each
702325	006078-00	V11		Decal;Grounding;TM08	No	Model Compatibility List	$1.90 / Each
702507	008311-00	I10		Cover;Spring;;SPC;1.5t;Zinc Plate;AR01;	No	Model Compatibility List	$3.35 / Each
702509	008322-00	I06		Fix Plate, Steel Rope SPC 1.6T	No	Model Compatibility List	$1.77 / Each
702589	008864-A	N151		Screw;Special;Round;2.9x1.06Px7L(Hi-Lo)	No	Model Compatibility List	$1.79 / Each
702591	008866-A	N152		Screw;Special;Round;4.0x1.34Px12L(Hi-Lo	No	Model Compatibility List	$1.66 / Each
702592	008867-A	N158		SCREW;RND;Diam.4.0X1.34PX25L;;PH;1022;BZ	No	Model Compatibility List	$1.66 / Each	2
702841	011923-A	D22		WASHER;LCK;Diam.10.0XDiam.18.0X3.0T;S45C	No	Model Compatibility List	$1.66 / Each
703809	017657-00	U07		Spacer;Generator Shoulder;Right	Yes	Model Compatibility List	$1.90 / Each
703852	018652-B	B20		Screw;SH;M6X1.0PX16.5L-8L;;HS;CRMO;BAN;;	No	Model Compatibility List	$3.64 / Each
703853	018653-A	G16		Screw;SH;M8X1.25PX22.5L-8L;CRMO;BAN;	No	Model Compatibility List	$1.79 / Each
703962	020005-00	N95		Screw;Phillip;Round;M3x6L;;Zn-BL	No	Model Compatibility List	$1.79 / Each
703990	020069-00	J16		Screw;SH;M8X1.25PX12L;HS;BP;G12.9;	Yes	Model Compatibility List	$1.79 / Each
704160	020367-00	B26		Nut;Hex;M6x1.0P;SS41;Black Annodized;	No	Model Compatibility List	$8.42 / Each
704167	020387-A	H11		SCREW;HH;M8X1.25PX40L-20L ;;HE;;;;P-T	No	Model Compatibility List	$1.66 / Each
704192	020465-A	U06		Washer;Flat;10.2x25x2.0T	No	Model Compatibility List	$2.00 / Each
705752	056008-A	W37		Ground Wire;Pulse Grip;100L;(KST FDFNYD2-250-1 HSG	No	Model Compatibility List	$3.35 / Each	4,5,6,12,13,14,11
705777	056225-A	53		Ferrite;PART OF #79 CABLE;NOT ORDERABLE;	No	Model Compatibility List	$8.42 / Each
706354	061339-B	W56		Fan;DC12V/0.3A PMB1297PYB3-AY;EP70	Yes	Model Compatibility List	$117.29 / Each
706754	065248-A	W73		TV Coax Adaptor;Female;F-A028-NBX7-C	Yes	Model Compatibility List	$7.00 / Each
706800	065712-A	P53		Screw;;Umbrella Cross;M5x0.8Px25L;	No	Model Compatibility List	$1.85 / Each
706993	068134-A	Q09		Clip;C-Shaped;M5 Tapped;A-00163-16;	No	Model Compatibility List	$1.66 / Each
710100	1000206777	P32		C Safe+TV Connect Wire;200(TKP H20J2-15x	No	Model Compatibility List	$40.51 / Each
710102	1000206779	W66		Console Cable;250(MOLEX,50-57-9408+MOLEX,	No	Model Compatibility List	$56.58 / Each
710103	1000206783	Not Shown		E-ORT CONNECT WIRE;400(AMP569532x2);	No	Model Compatibility List	$47.87 / Each	4,5,6
710168	1000207111	N24		CONTROL BOARD;QUICK KEY;U109A1;H001;EP30	No	Model Compatibility List	$16.87 / Each
710289	1000208535	AN51		Heart Rate Board Set;SALUTRON 8600;EP93C;	No	Model Compatibility List	$300.61 / Each
710313	1000209244	Not Shown		NET WIRE;400(TKP H6630R1-08,AMP 569532);	No	Model Compatibility List	$32.08 / Each
710454	1000210330	P03		Wire;Connect;USB;250(JST,XAP-06V-1)x2;	No	Model Compatibility List	$19.16 / Each
710483	1000210553	N16		USB;EP90B	No	Model Compatibility List	$14.40 / Each	1
710607	1000211294	N98		Screw;FH;M3X0.5PX30L;-;PH;BZN;	No	Model Compatibility List	$1.66 / Each	2
710678	1000212322	N25		Shim;Rubber;D;NBR;BLACK;TM507C;	No	Model Compatibility List	$1.66 / Each	4,5,6
710769	1000213447	D19		ENDCAP;TUBE;31.8;FK01003;EP609	No	Model Compatibility List	$1.66 / Each
710794	1000213669	W02		UCB;DISPLAYLCM;H001S015;TM521;Coating;	No	Model Compatibility List	$365.01 / Each	1
710798	1000213752	W04		Control Board;USB;H001;U10CA1;	No	Model Compatibility List	$27.69 / Each
710880	1000214924	P08		Battery;650(FDFNYD2-187)X2 VHR-2N+FUSE	Yes	Model Compatibility List	$32.89 / Each
711554	1000221258	Z42		Washer;ARC;8.2X19.0X1.5T;SST;	No	Model Compatibility List	$1.79 / Each
712072	1000226494	W04		Control Board;USB;Extra-work;H001;;;TM52	No	Model Compatibility List	$23.63 / Each
712079	1000226524	N27		Torsional Spring;-;USB;SUS304;TM521	No	Model Compatibility List	$3.35 / Each
712097	1000226648	AB1		CONSOLE Reinforce Tube;PAINTING;BLACK;EP	No	Model Compatibility List	$164.24 / Each	7,3,4,5,6
712102	1000226667	N55		COVER;CONSOLE;U;ABS/PA746;DG/80435;EP612	No	Model Compatibility List	$67.57 / Each	7,9
712107	1000226718	N54		COVER;CONSOLE;RE;ABS/PA746;DG/80435;EP61	No	Model Compatibility List	$33.77 / Each	7,9
712282	1000228099	P04		PWR Switch Set;;;;;;;550+140(JST,VHR-3N+	Yes	Model Compatibility List	$25.32 / Each
712376	1000228647	W92		Control Board;INVERTER;;TDK TBD584NR-1;;	No	Model Compatibility List	$337.97 / Each	7
712379	1000228651	AN36		BOOK RACK;-;PR;-;EP614;	No	Model Compatibility List	$27.01 / Each
712380	1000228653	N18		Cover;IPOD JACK;;ABS/PA746;Gray/80435;;E	No	Model Compatibility List	$1.66 / Each	9,4,5,6
712382	1000228655	W61		CONNECT;TV KEY;400(H6630R1-08+H6630R1-10	No	Model Compatibility List	$15.18 / Each
712385	1000228660	W101		LVDS Wire;;;;;;;15.6 inch;EP614	No	Model Compatibility List	$92.92 / Each	4,5,6
712386	1000228662	W97		WIFI Aerial;;Left;;;;;IVX0035-A225BX;EP6	No	Model Compatibility List	$33.77 / Each	1
712387	1000228663	W98		WIFI Aerial;;Right;;;;;IVX0035-A405WX;EP	No	Model Compatibility List	$33.77 / Each	1
712391	1000228688	N82		SCREW;BH;M5X0.8PX12L;PH;BAN;	No	Model Compatibility List	$1.66 / Each
712398	1000228705	W52		CONTROL BOARD;C-SAFE;U11AA2;H001;COATING	No	Model Compatibility List	$33.77 / Each	7
712425	1000228809	W104		Fan;;12VDC;0.2A;AFB0512HHB	No	Model Compatibility List	$92.92 / Each	8,4,5,6
712426	1000228810	W99		Isloation Plate;Inverter;;SECC;0.5T;;EP6	No	Model Compatibility List	$59.12 / Each	3
712428	1000228812	W47		TUNER CONTROL WIRE;250;(JST,XAP-06V-1+US	No	Model Compatibility List	$15.18 / Each	7,4,5,6
712429	1000228813	W45		Wire;Inverter;100(JST PAP-02V-S+ACES,872	No	Model Compatibility List	$10.11 / Each	4,5,6
712430	1000228814	W27		HEART RATE RECEIVER BOARD;SALUTRON 8600	No	Model Compatibility List	$182.49 / Each
712431	1000228815	W66		Pulse CON;300mm;(2510A-03+XAP-03)	No	Model Compatibility List	$8.42 / Each
712433	1000228817	W68		Wire;Ipod;500(JAM RJW20-18MP+TKP,H20J2-1	No	Model Compatibility List	$33.77 / Each	4,5,6
712434	1000228821	W116		Decal;;WES 7 32Bits;;;;;TM521/EP614	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3
712519	1000229325	W83		LCM Wire;170;(HRS DF13-30DS-1.25CX2)	No	Model Compatibility List	$20.25 / Each	7,4,5,6,12,13,14
712520	1000229327	W85		USB Ground Wire;50;(GEM,99471BS-2+GEM,99	No	Model Compatibility List	$15.18 / Each
712551	1000229467	W53		CONSOLE CONTROL BOARD;H001;COATING;EP611	No	Model Compatibility List	$32.84 / Each	7
712598	1000229663	Q07		Cover;;Right-Rear;ABS/PA757;Gray/80435;;	No	Model Compatibility List	$33.77 / Each
712599	1000229664	Q08		Cover;;Left-Rear;ABS/PA757;Gray/80435;;C	No	Model Compatibility List	$33.77 / Each
712641	1000230015	14		Stabilizer Tube Set;;front;;U-3x/5x/7x-0	No	Model Compatibility List	$253.47 / Each
712645	1000230023	15		Stabilizer Tube Set;;back;;U-3x/5x/7x-05	No	Model Compatibility List	$337.97 / Each
712659	1000230081	Not Shown		Network signal extend wire;600;(TKP H663	Yes	Model Compatibility List	$38.97 / Each	9,4,5,6
712661	1000230086	Not Shown		TV PWR EXT;600;(TKP H6630R1-04(PITCH 3.0	No	Model Compatibility List	$38.97 / Each	4,5,6
712662	1000230088	I08		Bearing;Dry;GFM-1618-09;;IGS;	No	Model Compatibility List	$3.35 / Each
712666	1000230110	G02		Arm Rest Set-Exreawork;;right;muffle;Ves	No	Model Compatibility List	$84.47 / Each
712667	1000230112	G03		Arm Rest Set-Exreawork;;left;muffle;;CB9	No	Model Compatibility List	$84.47 / Each
712709	1000230317	1		console mast set;;;;H-3x/5x/7x-05-F;;	No	Model Compatibility List	$253.47 / Each
712710	1000230320	3		Handlebar Set;;;;H-3x/5x/7x-05-F;;	No	Model Compatibility List	$337.97 / Each
712711	1000230323	9		Slide Frame Set;seat;;;H-3x/5x/7x-05-F;	No	Model Compatibility List	$557.67 / Each
712712	1000230325	7		Adjust the handle group;;;H-3x/5x/7x-05-	No	Model Compatibility List	$101.37 / Each
712713	1000230334	AG8		Arm Rest set;;;painting;BP-920S;MATRIX/S	No	Model Compatibility List	$92.92 / Each
712714	1000230339	I09		Rope Pulley;H-3x/5x/7x-04-F;	No	Model Compatibility List	$27.01 / Each
712716	1000230353	T07		Pedal;w/ Belt;L/R;JD-61A;Black1;;RB307;	Yes	Model Compatibility List	$91.23 / Each
712717	1000230354	22		Fixed chipset;Idler;;;U-3x/5x/7x-05-F;;	Yes	Model Compatibility List	$59.12 / Each
712730	1000230457	13		Spiral Spring Set;;;;H-3x/5x/7x-05-F;;	No	Model Compatibility List	$92.92 / Each
712735	1000230479	S01		Generator;;350W;480rpm;50.6VA;3??V;	Yes	Model Compatibility List	$784.81 / Each
712736	1000230480	S02		Controller Generator U-3x/5x/7x-04	Yes	Model Compatibility List	$638.79 / Each
712866	1000231078	Q26		SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
712869	1000231121	N86		SCREW;BH;(##10.5);M5X0.8PX15L;-;PH;-;BAN	No	Model Compatibility List	$1.66 / Each	2
712940	1000231589	Not Shown		SCREW;BH;M3X0.5PX6L;CT;PH;SST;BAN;	No	Model Compatibility List	$1.66 / Each	2
713015	1000232303	Q15		Cover;Arm Rest;front;ABS/PA757;Gray/8043	No	Model Compatibility List	$8.42 / Each
713016	1000232306	D27		Torsional Spring;;?p3.5x?p32.5x2Nx12.5L;	No	Model Compatibility List	$9.10 / Each
713023	1000232453	AD5		Location Set;;;welding;Zinc;CB93;	No	Model Compatibility List	$33.77 / Each
713183	1000233828	W90		Console GND;150;99471BS-2+KST,FDFNYD2-25	No	Model Compatibility List	$0.00 / Each Out Of Stock
713302	1000300861	AN15		cover-Extrawork;console;back;Print;PR;EP	No	Model Compatibility List	$47.29 / Each
713325	1000301559	W89		Touch Switch;;;;;;;ADV1700021122-01;EP61	No	Model Compatibility List	$21.94 / Each	4,5,6
713328	1000301587	W87		SDRAM;;SO-DIMM DDR2 2G;Adventech; D/C, NO REPL: Part will show as orderable until stock is depleted.	No	Model Compatibility List	$414.02 / Each	1
713343	1000301796	P13		Network Signal Extend Wire - 1300L(3	Yes	Model Compatibility List	$33.77 / Each
713344	1000301797	P16		Digital COMM;;;;;;;1350;MOLEX,50-57-9408	No	Model Compatibility List	$36.48 / Each
713362	1000301924	C12		Screw;Hex Socket;Socket Head;M8x1.25Px16	No	Model Compatibility List	$1.66 / Each
713365	1000301935	Q20		Rubber Pad;Frame;-;NBR;BL/Black C;CB93;	No	Model Compatibility List	$21.94 / Each
713366	1000301937	D12		Spacing Sleeve;Roller;;SS41;White Zinc;C	No	Model Compatibility List	$3.35 / Each
713367	1000301941	Z51		Screw;Hex Socket;Round Head;M8x1.25Px60L	No	Model Compatibility List	$3.64 / Each
713372	1000301961	D02		Roller;Adjust;;;BL/Black C;POM;RB307;	No	Model Compatibility List	$3.35 / Each
713373	1000301962	D29		Position bolt;Roller;;;Black Annodized;R	No	Model Compatibility List	$8.42 / Each
713375	1000301967	H05		Fixing Plate;AL Rail;;SS41;9.0t;BED;RB30	No	Model Compatibility List	$21.94 / Each
713376	1000301968	H06		ADJ plate;;;SPHC;4.0t;BED;RB307;	No	Model Compatibility List	$3.35 / Each
713377	1000301969	B40		Decal;Rail;;;PVC;C;;RB307	No	Model Compatibility List	$3.35 / Each
713378	1000301970	B39		Decal;Rail;;;PVC;B;;RB307	No	Model Compatibility List	$3.35 / Each
713379	1000301971	B19		Spacing Sleeve;Guide Rail;;SS41;White Zi	No	Model Compatibility List	$3.35 / Each
713382	1000302035	P102		Adapter - In AC90-264VAC; Out DC12V/5A	Yes	Model Compatibility List	$118.27 / Each
713383	1000302039	5		Heart Sensor Set;Grip;right;;CB93;;	Yes	Model Compatibility List	$91.23 / Each
713385	1000302043	6		Heart Sensor Set;Grip;left;;CB93;;	Yes	Model Compatibility List	$91.23 / Each
713387	1000302047	Q13		Cover;Back;;ABS/PA757;Gray/80435;;CB93;	No	Model Compatibility List	$8.42 / Each
713388	1000302049	AQ1		cover-Extrawork;frame;right;Print;;RB307	No	Model Compatibility List	$91.23 / Each
713389	1000302050	AQ2		cover-Extrawork;frame;left;Print;;RB307;	No	Model Compatibility List	$84.47 / Each
713390	1000302051	Q12		End Cap;Frame;Rear-Right;ABS/PA746;Gray/	No	Model Compatibility List	$3.64 / Each
713391	1000302052	Q14		End Cap;Frame;Rear-Left;ABS/PA757;Gray/8	No	Model Compatibility List	$3.64 / Each
713392	1000302053	Q11		Cover Back TPR;BL/Black C;;RB307;	Yes	Model Compatibility List	$16.87 / Each
713394	1000302121	Q03		Cover;Frame;back;ABS/PA757;SL/GY/80547;;	No	Model Compatibility List	$16.87 / Each
713419	1000302343	W63		Connect;;;;;150(TKP,H20J2-15+JST,XAP-08V	No	Model Compatibility List	$11.80 / Each
713433	1000303128	N29		Foam;-;48x5x3.0t;Black;-;TM524	No	Model Compatibility List	$1.66 / Each
713449	1000303372	P49		Protect Bushing;-;-;-;BL/Black C;GEQ-262	No	Model Compatibility List	$1.66 / Each
713451	1000303374	P45		TV Power;;;;;;;1300L(SCD-554DCS103BB1G+H	Yes	Model Compatibility List	$21.94 / Each
713452	1000303375	P01		TV Signal Wire;;;;;1350L;FM-0086-NBG7x2;	No	Model Compatibility List	$16.87 / Each
713482	1000304292	P11		Console Board GND;;;;;;;1350(KST,STRV5-5	No	Model Compatibility List	$16.87 / Each
713483	1000304301	G20		Pulse sensor wire;;;;;;;700+750;TKP,H663	No	Model Compatibility List	$33.77 / Each
713487	1000304346	P10		Adjustable Cable Clamp;Adjustable;ATC-26	No	Model Compatibility List	$3.35 / Each
713488	1000304368	P21		Fixing Plate;Adaptor;;SPHC;150x53x1.5T;P	No	Model Compatibility List	$8.42 / Each
713491	1000304372	Z12		Washer;Sawtooth;Diam.8.5XDiam.18.0X2.0T;	No	Model Compatibility List	$1.66 / Each
713498	1000304387	U10		Spring Extension 15.8x2.5x83.0Lx23.75N	Yes	Model Compatibility List	$16.87 / Each
713502	1000304402	Q16		Fixing Plate;End Cap;;SPHC;2.0t;WZN;CB93	No	Model Compatibility List	$3.35 / Each
713503	1000304403	B16		Cushion;Frame;;NBR;BL/Black C;;CB93;	No	Model Compatibility List	$8.42 / Each
713504	1000304405	B17		Grip Extrawork Dipping PVC;Black;CB93;	Yes	Model Compatibility List	$42.22 / Each
713507	1000304423	R10		Belt;POLY-V;POLYESTER;420-J10;Wu De Fu	No	Model Compatibility List	$50.67 / Each
713515	1000304460	Q04		Frame Cover;-;F;painting;BP-920S;MATRIX	No	Model Compatibility List	$84.47 / Each
713518	1000304477	Q21		Direct keys;;;ABS/PA746;137C/80395;;CB93	No	Model Compatibility List	$3.35 / Each
713519	1000304478	Q10		Screw;Button Head;M5x0.8Px12L;-;Phillip;	No	Model Compatibility List	$1.79 / Each
713532	1000304669	P22		Insulation Plate;;;;;PET/FR700;0.25mm;CB	No	Model Compatibility List	$3.35 / Each
713639	1000306032	D30		Spacer;Adjutable Handlebar;;Stainless;;C	No	Model Compatibility List	$3.35 / Each
713640	1000306044	R06		Washer;Flat;25.4x34x1.2t;Zinc plate;;R	No	Model Compatibility List	$1.66 / Each
713662	1000306192	P06		MCB power wire;;;;;;;300(TKP,H6630R1-06x	No	Model Compatibility List	$18.23 / Each
713669	1000306300	12		Guide Rail set;;;H-3x/5x/7x-05-F;CB93-US	No	Model Compatibility List	$337.97 / Each
713672	1000306357	W100		Fixed chipset;;;CF;EP614;;	No	Model Compatibility List	$42.22 / Each	1
713735	1000307152	D23		Seat Pad Set;;;with CARB Label;CB93;;	No	Model Compatibility List	$84.47 / Each
713736	1000307153	D24		Back Pad Set;;;with CARB Label;CB93;;	No	Model Compatibility List	$168.97 / Each
713771	1000307911	N31		Controller;Touch Sensor;;EXC208056TAG;;;	No	Model Compatibility List	$506.97 / Each	7,8
713792	1000308337	19		shield set;Guide Rail;right;;R-3x/5x/7x-	No	Model Compatibility List	$36.48 / Each
713793	1000308338	20		shield set;Guide Rail;left;;R-3x/5x/7x-0	No	Model Compatibility List	$36.48 / Each
713795	1000308343	D39		Nut;Hex;M10X1.5P,SST;G10;Stainless Steel	No	Model Compatibility List	$1.66 / Each
713870	1000309034	W49		Head Phone Board;;;;;;;300L(TKP H20Y1-08	No	Model Compatibility List	$33.77 / Each	1
713881	1000309219	P09		Battery WP1.2-12;12V 1.2Ah;	Yes	Model Compatibility List	$72.98 / Each
713909	1000309511	W31		VA Module;;;;S001;USB2.0;;EP614;	No	Model Compatibility List	$337.97 / Each	1
713910	1000309516	N152b		Tape;;;40x10x0.2;;EP614	No	Model Compatibility List	$0.00 / Each Out Of Stock
714408	1000314450	D34		Nut;Acorn Cap;M10x1.5P;Stainless Steel;;	No	Model Compatibility List	$3.35 / Each
714409	1000314451	D32		Screw;Socket Head;M10x1.5Px30L;;Hex Sock	No	Model Compatibility List	$3.35 / Each
714410	1000314452	Z41		Screw;Socket Head;M8x1.25Px50L-30L;P-T;H	No	Model Compatibility List	$3.35 / Each
714411	1000314455	G37		Screw;BH;M4x0.7Px20L;;PH;SST;;;;	No	Model Compatibility List	$1.66 / Each
714412	1000314460	Z43		Washer;Spring Lock;Diam.8.5xDiam.13.5x1.	No	Model Compatibility List	$1.66 / Each
714457	1000315067	W48		H/P;;;;;;;350(TKP,2510A-06+TKP,H6630R1-0	No	Model Compatibility List	$16.87 / Each
714458	1000315068	W36		Console GND;;;;;;;200(KST,FDFNYD2-250-1+	No	Model Compatibility List	$8.42 / Each
714780	1000318254	W35		Console GND;;;;;;;(KST,FDFNYD5-250+KST,F	No	Model Compatibility List	$8.42 / Each	7
714781	1000318255	W53		Exchange Board;Console;;U115A4/H001;;;E	Yes	Model Compatibility List	$50.67 / Each
714785	1000318272	W52		Connect Board;C-SAFE;;H002;;;EP614;	No	Model Compatibility List	$42.22 / Each
714801	1000318316	H02		ADJ plate;Slipping Seat;;;SS41;WZN;CB93;	No	Model Compatibility List	$42.22 / Each
714802	1000318317	H21		Fixing Base;;FN-0208/30x23mm;;	No	Model Compatibility List	$8.42 / Each
714803	1000318318	H22		Support Block;;FN-0208/42x10mm;	No	Model Compatibility List	$3.35 / Each
714842	1000318711	H16		Screw;Oval Head;M6x1.0Px20L;;Hex Socket;	No	Model Compatibility List	$1.66 / Each
714874	1000319375	J21		Cap;;;PVC;BL/Black C;;;	No	Model Compatibility List	$1.66 / Each
715325	1000323981	Not Shown		Service Hardware Kit;;;US;HUR-3x/5x/7x-0	No	Model Compatibility List	$38.84 / Each Out Of Stock
715777	1000328112	Not Shown		Assembly Tool;;180x26x3;S45C;BED;CB93	No	Model Compatibility List	$9.10 / Each
716086	1000332112	W121		Connect;;;;;;;HDMI;HDMI TYPE A+TKP,H10J5	No	Model Compatibility List	$104.75 / Each	1
716111	1000332751	2		Heat Sink;;;HEAT SINK SET;TM521;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716640	1000338282	W57		capture card;;;;;;EP614;HDMI C353;	No	Model Compatibility List	$937.92 / Each	9
716641	1000338307	W88		WiFi;EWM-W135H01E;Adventech;;	No	Model Compatibility List	$163.90 / Each	1
717677	1000346722	21		Drive axle set;;L/F;crank;S-BOM;;CB93;;NEW	No	Model Compatibility List	$401.52 / Each
717678	1000346723	21		Transmission set;;S-BOM;;CB93;;NE	No	Model Compatibility List	$199.39 / Each
717682	1000346727	16		crank set;;right;NEW;CB92;;	Yes	Model Compatibility List	$67.57 / Each
717683	1000346728	17		crank set;;left;NEW;CB92;;	Yes	Model Compatibility List	$84.47 / Each
717796	1000347710	W79		Tuner Signal Wire;;;;;;;200(TKP,H20J2-6+	No	Model Compatibility List	$31.02 / Each	4,5,6
717892	1000348432	W120		Extend;;;;;;;;HDMI;2000(HDMI TYPE Ax2);A	No	Model Compatibility List	$40.53 / Each	9
717921	1000348662	N51		Cover;Overlay;;PC510;Gray/80435;;EP619;	No	Model Compatibility List	$0.00 / Each Out Of Stock
717923	1000348667	N54		Cover;Console;back;ABS PA746;Gray/80435;	No	Model Compatibility List	$37.15 / Each	7,9,4,5,6
717924	1000348668	N52		Console Cover;Service;front;PC510;Gray/8	No	Model Compatibility List	$89.54 / Each
717925	1000348669	N53		Console Cover;Service;back;ABS PA746;Gra	No	Model Compatibility List	$15.18 / Each
717926	1000348670	AN16		cover-Extrawork;USB;;Print;;EP619;	No	Model Compatibility List	$3.35 / Each
717927	1000348672	N27		Torsional Spring;;;SUS304;;EP619;	No	Model Compatibility List	$1.66 / Each
717928	1000348673	N28		Fixing Block;USB;;ABS PA746;Gray/80435;;	No	Model Compatibility List	$1.66 / Each
717932	1000348688	W70		Exchanged Board;Keypad;;U143A3/H001;;;EP	No	Model Compatibility List	$33.77 / Each
717935	1000348695	Not Shown		Repair Cover;Earphone;front;PC510;Gray/8	No	Model Compatibility List	$25.32 / Each
717936	1000348697	Not Shown		TV Support Bracker Set;;;English/EP619-U	No	Model Compatibility List	$346.42 / Each	3,4,5,6
718662	1000352783	W51		Control Board;Console;;H001/U143A1;V2.2;	No	Model Compatibility List	$967.33 / Each	7
718663	1000352790	W58		Quickly Key Wire;;;;;;;250(TKP,H254M2-2x	No	Model Compatibility List	$54.73 / Each	9,4,5,6
718664	1000352791	W66		Digital COMM;;;;;;;400(MOLEX,50-57-9408+	No	Model Compatibility List	$50.67 / Each	1
718757	1000353342	W28		Ipod Extend Wire;;;;;;300(MF1512S0017+JA	No	Model Compatibility List	$72.98 / Each	9,4,5,6
718929	1000354340	W45		Pulse Sensor;;;;;;;250mm(H2510A-06N,TKP,	No	Model Compatibility List	$16.41 / Each
719179	1000356725	AN4		cover-Extrawork;Overlay;;Print;;EP624;	No	Model Compatibility List	$84.47 / Each	9
719182	1000356740	Not Shown		Quickly Key Wire;;;;;;;200+250(TKP,H254M	No	Model Compatibility List	$18.56 / Each	9,4,5,6
719186	1000356785	W01		Control Board;;;H001;V2.3;;EP624;	No	Model Compatibility List	$895.67 / Each	7
719560	1000362459	AN9		Overlay Set;Entertainment;;No/English;EP	No	Model Compatibility List	$101.37 / Each	1
719561	1000362460	Not Shown		Overlay Set;Entertainment;;English;EP619	No	Model Compatibility List	$168.97 / Each	1
719562	1000362481	AN8		Overlay Set;Program;;English;EP622;;key	No	Model Compatibility List	$304.17 / Each	9
719567	1000362540	W123		Network Signal;;;;;;;200(AMP,554720+AMP,	No	Model Compatibility List	$27.35 / Each
719804	1000365782	W11		Earphone board set;;;;EP91;;	No	Model Compatibility List	$29.17 / Each
719868	1000366472	Not Shown		WIFI Wireness module Set;;;;EP619/EP623;	No	Model Compatibility List	$532.32 / Each
719870	1000366515	W24		Earphone board set;;;;EP620;	No	Model Compatibility List	$42.22 / Each
719883	1000366596	Z41		Screw;Socket Head;M5x0.8Px12L;;Hex Socke	No	Model Compatibility List	$1.43 / Each
720289	1000371172	W51		Control Board Module;IR;;H001;V1.0;;EP61	No	Model Compatibility List	$113.15 / Each
720290	1000371175	W14		Signal CONN;;;;;;;250(TKP,H6630R1-06 +TK	No	Model Compatibility List	$23.71 / Each	1
720291	1000371177	W15		Connect;;;;IR;;;300(3.5+JST,XAP-03V-1);E	No	Model Compatibility List	$16.41 / Each
720292	1000371184	W16		receiver;;;HD BaseT/R014-EXT-VAIR3L-L-RX	No	Model Compatibility List	$1062.98 / Each
720293	1000371185	Not Shown		Power Adapter;HDBaseT Receiver;IPTV;;;;DC5V/3A	No	Model Compatibility List	$50.67 / Each
720294	1000371186	W18		Power Extend;;;;;;;300(3.0 4pin+mini din	No	Model Compatibility List	$16.41 / Each
720295	1000371189	Not Shown		Power Adapter;HDBaseT Transmitter;IPTV;;;;DC5V/3A	No	Model Compatibility List	$50.67 / Each
720296	1000371193	N55		Fixing Plate;TV;;SECC;1.5T;;EP614E;	No	Model Compatibility List	$6.73 / Each
720432	1000372651	21		Console Set;;;English/19C8860802/GUI6.8/	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
721086	1000380493	N66		Overlay Set;TV;;key pad;EP623D;;	No	Model Compatibility List	$219.67 / Each	9,4,5,6,12,13,14
721087	1000380499	21		Console Set;;;ES/H001/V1.002;EP624D;	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
721088	1000380500	AN8		Overlay Set;Program;;English;EP624D;;key	No	Model Compatibility List	$0.00 / Each Out Of Stock	9
721130	1000380801	W110		Memory Card;;TS8GCF220I;8GB;Transcend;;	No	Model Compatibility List	$1137.08 / Each	9
721171	1000381156	Not Shown		Overlay Set;Entertainment;;NO;EP623D;;	No	Model Compatibility List	$84.47 / Each	1
721756	1000385415	2		Control Board;;;HF-A11-0;V2.050;;;	No	Model Compatibility List	$517.11 / Each
722281	1000390571	Not Shown		Manual;Manipulate;;English;;EP619;	No	Model Compatibility List	$18.23 / Each
722510	1000393224	W106		TV Stick Set;;;US / KITS - SBOM;EP620;;	No	Model Compatibility List	$392.05 / Each
723628	1000410717	7		PCB;;;Second hand;;;T7xi(TM521);	No	Model Compatibility List	$3.90 / Each	1
725318	069851	W33		Console TV Cable Extended Wire;250L(FM-0086-N	Yes	Model Compatibility List	$10.14 / Each
725395	070817	Z31		Screw;SH;M8X1.25PX20L;;HS;;CHM;;	No	Model Compatibility List	$0.99 / Each
726549	082734	P59		Washer;Senated;M5.3X10X0.6;Zinc Plate	No	Model Compatibility List	$1.79 / Each
726550	082736	Z82		Washer;Flat;8.2X16.0X2.0T;;BZN;	No	Model Compatibility List	$1.66 / Each
726554	082795	Z61		Spacing Ring;Bearing;SS41;	No	Model Compatibility List	$3.64 / Each
726594	0000083278	Z22		USB Cover;USB-03	No	Model Compatibility List	$1.90 / Each
726614	083502	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
726928	0000086064	N33		Cover;Console;Right;ABS/PA-746;BL;TM501;	No	Model Compatibility List	$3.35 / Each
726929	0000086065	N34		Cover;Console;Left;ABS/PA-746;BL;TM501;	Yes	Model Compatibility List	$3.35 / Each
726971	086279	Z62		SCREW;SH;M10X1.5PX25L;;HS;;BAN;;	No	Model Compatibility List	$1.66 / Each
726972	086280	KIT		Decal;Weight Plate;LBS;GM204	No	Model Compatibility List	$38.74 / Each
727017	0000086684	W13		Speaker Set;AK-402808BC-3T+280+XAP-02;TM	No	Model Compatibility List	$17.65 / Each
727024	086721	N151		SCREW;RND;M2X0.5PX6L;;PH;;BZN;;	No	Model Compatibility List	$1.33 / Each
727025	0000086724	N35		Cover;Console Display;TV Rack;Printing;T	No	Model Compatibility List	$47.63 / Each
727076	0000087056	N13		Vent;Fan;ABS/PA-746;Pantone:877C;TM501;	No	Model Compatibility List	$45.24 / Each
727351	0000088743	N81		Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T	No	Model Compatibility List	$1.79 / Each
727358	0000088790	N52		Anti-Slippery Pad;TPR+30%PP;BL;MX-E5XC-F	No	Model Compatibility List	$9.10 / Each
727362	088806	W70		Grip Pulse Ground Wire;200L(KST FDFNYD2-	No	Model Compatibility List	$8.42 / Each
727375	0000088923	C11		Bottle Holder Set;Console Mast;ABS/PA746;BL	Yes	Model Compatibility List	$15.52 / Each
727424	089112	W28		Spacer;Support;MEA-05;PINGOOD;	No	Model Compatibility List	$1.66 / Each
727425	089113	W29		Fix Plate;SPHC;1.6t;BED;T5x-02;	No	Model Compatibility List	$8.42 / Each
727437	089190	N18		Cover;IPOD Fixing;ABS/PA746;80435;MX-E5X	No	Model Compatibility List	$3.35 / Each
727474	089506	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
727533	089832	R08		BEARING;BALL;6205LUZ(TUTZ)/C3;#25X#52X15	No	Model Compatibility List	$16.87 / Each
727534	089835	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
727543	0000089849	W45		Wire;Hand Pulse Sensor;350L(2510A-06,TKP	No	Model Compatibility List	$20.90 / Each
727961	0000092217	W75		Heart Rate Power Wire;250L(2510A-03+XAP-	No	Model Compatibility List	$9.13 / Each
728026	0000092696	N202		Fixing Plate;Fan;0.8t;T5x-02;	No	Model Compatibility List	$9.10 / Each
728132	093219	AB1		RIGHT MAIN FRAME SET	No	Model Compatibility List	$589.11 / Each
728135	093224	D17		BEARING;DRY;WFM-1618-09;;JT7000;IGS;;;	No	Model Compatibility List	$8.42 / Each
728169	093378	38		Nut;Nylon;M6x1.0P;;Zn-BL	No	Model Compatibility List	$1.66 / Each
728256	093798	U08		Screw;BH;M5X0.8PX13L;;PH;Zn Plate	No	Model Compatibility List	$1.66 / Each
728270	093912	V10		Decal;Swirl Spring;H5x-F;	No	Model Compatibility List	$1.66 / Each
728371	094425	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
728376	094434	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
728450	0000094929	J11		Cap;Stabilizer;Left-Front;ABS/PA757;P804	Yes	Model Compatibility List	$12.04 / Each
728498	0000095100	J12		Cap;Stabilizer;Right-Front;ABS/PA757;P80	Yes	Model Compatibility List	$9.44 / Each
728541	095229	W05		Pulse Receiver Set;Salutron 4600;EP603	No	Model Compatibility List	$305.11 / Each
728542	0000095231	W04		Control Board;USB;H001;U105A5;EP603;	No	Model Compatibility List	$28.29 / Each
728600	0000095575	N203		Tape;Foam;One-Sided;50x15x1.5T;	No	Model Compatibility List	$1.66 / Each
728614	0000095638	J15		Foot Pad;Adjustable;M12X58H;12.9;EP304;	Yes	Model Compatibility List	$33.85 / Each
728616	095641	N157		SCREW;RND;#X4.0X1.34PX8L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
728977	N/A	AB10		Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,,1,,1
729026	Order Kit 21	D02		Cylinder;Slipping Base;POM;White;AR06D;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,12,13,14
729052	Order Parts Separately	11		Frame Assembly	No	Model Compatibility List	$0.00 / Each Out Of Stock
729118	Part of Kit 1	W16		Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729124	Part of Kit 12	H01		Lower Handlebar Set;Left;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729125	Part of Kit 13	I03		Link Arm;Right;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729127	Part of Kit 14	AJ3		Crank Pin Sleeve;Aluminum Casting;EP525-	No	Model Compatibility List	$0.00 / Each Out Of Stock
729129	Part of Kit 15	AJ4		Link Arm;Left;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729133	Part of Kit 16	T01		Stabilizer;Front;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729134	Part of Kit 16 or 17	T05		Screw;;;;;;;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729135	Part of Kit 17	T02		Transmission Axle;42CrMo;EP217	No	Model Compatibility List	$0.00 / Each Out Of Stock
729137	Part of Kit 19	Q06		Crank Sleeve;Pedal Arm;-;-;ADC12;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729140	Part of Kit 20	Q05		BEARING;BALL;6003ZZ;17X35X10T;;TPI;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729141	Part of Kit 21	R03		Axle;Transmission;42CRMO;-;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729144	Part of Kit 22	U04		Generator;-;8.0KG EP537-1US;-;-;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729152	Part of Kit 3	G08		Pedal Arm;Right;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729177	Part of Kit 5 or 6	N202		Side Rail;yellow;TM380	No	Model Compatibility List	$0.00 / Each Out Of Stock
729194	Part of Kit 7	G10		Incline Arm;Left;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729201	Part of Kit 9	AD4		Upper Handlebar Set;Right;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729298	ZMF4001447	21		Console IPTV, HURESAC-7xi, RC	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,4,5,6
729301	ZMF4001697	21		Console, Bx HURE-3x RC	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
729302	ZMF4001698	21		Console, Bx HURE-3x w/ WIFI RC	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
729303	ZMF4001699	21		Console, Bx HURE-3x w/ 900 RC	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
712381	1000228654	W62		CONNECT;USB;150(JST,XAP-06V-1)X2;EP614;	No	Model Compatibility List	$8.42 / Each
020069-00	020069-00	J16	1	SCREW, SH, M8X1.25PX12L, HS, BP, G12.9	Yes	Model Compatibility List	$6.99 / Each
1034766	1000208238	AN15	1	Cover, Console, back, (Used)	Yes	Model Compatibility List	$39.00 / Each	7,9,4,5,6
1036673	0000089849			Wire;Hand Pluse Sensor;350L(2510A-06,TKP	Yes	Model Compatibility List	$6.99 / Each
1020604	004483-00	D35		Front Roller Screw M8-1.25"x25mm	No	Model Compatibility List	$11.99 / Each
941989	004370-00	Q15		Screw (New)	No	Model Compatibility List	$12.00 / Each
986204	004374-00	S09		Button Head Phillip Screw (New)	No	Model Compatibility List	$12.99 / Each Out Of Stock
911958	004608-00	I17		Rower Button Head Phillip Screw 3x10L (New)	No	Model Compatibility List	$12.99 / Each

View Drawing

Chat with us

Matrix Commercial - H7xe-05 - 2016

Exploded Diagrams

general Info

Customer Service

About us

Address
