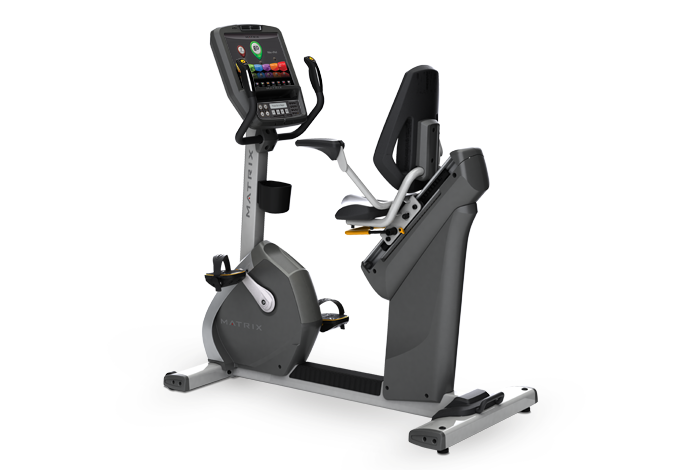

Matrix Commercial - H7xe-05 - 2014

Repair Parts for Matrix Commercial H7xe-05 PCB93-US-F,EP613

Brand: Matrix Commercial

Category: Hybrid

Type: Stationary Bikes

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

PCB93-US-F,EP613

Model Name: H7xe-05

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Quantity On Model	Part Description	Available Used	Model Compatibility List	New price
700313	000932-E	181		Cap;C-Safe;Black;CB32 D/C, NO REPL: Part will show as orderable until stock is depleted.	No	Model Compatibility List	$1.66 / Each
701032	003383-A	N94		Ferrite Choke;FH0900B-2;Lian Ci;TM38	No	Model Compatibility List	$9.10 / Each
701272	004336-00	N56		Screw;RND;M3X0.5PX10L;;PH;;BZN;;	No	Model Compatibility List	$1.66 / Each
701286	004355-00	H09		Screw;Oval;PH; M4X0.7PX10L	No	Model Compatibility List	$2.00 / Each
701300	004364-00	N11		Screw;Oval Head;M5x0.8Px12L	No	Model Compatibility List	$2.00 / Each
701332	004385-00	N85		Screw;BH;M5X0.8PX12L;;PH;;BAN;;	Yes	Model Compatibility List	$1.79 / Each
701390	004447-AB	I21		Screw;Hex Socket;Round;M5x0.8Px12L;Adher	No	Model Compatibility List	$1.43 / Each
701605	004627-00	N83		Screw;Phillip;BH;Tapped;5x12L	No	Model Compatibility List	$2.00 / Each
701947	004983-A	C07		Insert Nut;Hex;NKHS-8125-2.5(M8x1.25P)	No	Model Compatibility List	$1.79 / Each
702066	005094-00	N156		Washer;Flat;3.2x8.0x1.0T;Black Zinc	No	Model Compatibility List	$2.00 / Each
702131	005157-A	N153		Washer;Flat;4.3x12.0x1.0T;Black Zinc	No	Model Compatibility List	$1.79 / Each
702589	008864-A	N151		Screw;Special;Round;2.9x1.06Px7L(Hi-Lo)	No	Model Compatibility List	$1.79 / Each
702590	008865-B	N154		Screw;Special;Round;2.9x1.06Px12L(Hi-Lo	No	Model Compatibility List	$1.79 / Each
702591	008866-A	N152		Screw;Special;Round;4.0x1.34Px12L(Hi-Lo	No	Model Compatibility List	$1.66 / Each
702592	008867-A	N158		SCREW;RND;Diam.4.0X1.34PX25L;;PH;1022;BZ	No	Model Compatibility List	$1.66 / Each	2
702795	010515-00	W19		Copper Pillar;M3x12L	No	Model Compatibility List	$1.66 / Each	1
703962	020005-00	N95		Screw;Phillip;Round;M3x6L;;Zn-BL	No	Model Compatibility List	$1.79 / Each
704993	028601-BR	Not Shown		TV Signal Wire 800 (5CFx2 EP68-P21B-2940 U5X	Yes	Model Compatibility List	$19.40 / Each	4,5,6
705752	056008-A	W37		Ground Wire;Pulse Grip;100L;(KST FDFNYD2-250-1 HSG	No	Model Compatibility List	$3.35 / Each	4,5,6,12,13,14,11
706354	061339-B	W56		Fan;DC12V/0.3A PMB1297PYB3-AY;EP70	Yes	Model Compatibility List	$117.29 / Each
706696	064626-00	Z03		Screw;Hex Socket;Round;M8x1.25Px15L;Adhe	No	Model Compatibility List	$2.00 / Each	2
706754	065248-A	W73		TV Coax Adaptor;Female;F-A028-NBX7-C	Yes	Model Compatibility List	$7.00 / Each
706978	067774-A	N35		Power Cord;FH33.3x8.25x16.4(FH0900B);TM95	No	Model Compatibility List	$8.42 / Each	4,5,6
709609	1000201693	N96		Exchange connectorl; KST DWTSFSOLR;	No	Model Compatibility List	$1.01 / Each	1
710096	1000206771	N07		Program Keypad;19KEY;EP603	No	Model Compatibility List	$95.08 / Each	9,12,13,14
710099	1000206774	P01		Hand Pulse Sensor Wire;250(TKP,2510A-06+	No	Model Compatibility List	$19.58 / Each	4,5,6,12,13,14
710100	1000206777	P32		C Safe+TV Connect Wire;200(TKP H20J2-15x	No	Model Compatibility List	$40.51 / Each
710102	1000206779	W66		Console Cable;250(MOLEX,50-57-9408+MOLEX,	No	Model Compatibility List	$56.58 / Each
710103	1000206783	Not Shown		E-ORT CONNECT WIRE;400(AMP569532x2);	No	Model Compatibility List	$47.87 / Each	4,5,6
710107	1000206787	P03		USB Connect Wire;A;200(JST,XAP-06V-1x2);	No	Model Compatibility List	$18.46 / Each	4,5,6
710155	1000206973	N04		Service Cover;Console;PAINTING;MATRIX SL	No	Model Compatibility List	$73.53 / Each	7,9
710164	1000207104	P38		LI Battery;2200MA/H;EP606;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
710166	1000207108	P36		Battery Con Wire;200(TKP H110-03S+TKP H6	No	Model Compatibility List	$14.14 / Each	4,5,6
710169	1000207112	21		Console Set;H001S001;EP603;-;EN;	Yes	Model Compatibility List	$2.60 / Each	7
710268	1000208207	W18		Inverter Board Set;TM503;T7xe;	No	Model Compatibility List	$220.27 / Each	1
710276	1000208238	AN15		Cover;Console;Back;Printing;EP	Yes	Model Compatibility List	$88.63 / Each	7,9,4,5,6
710277	1000208248	AN4		Cover;Overlay;15 INCH;PR;OV;EP92F;	No	Model Compatibility List	$138.66 / Each	9
710288	1000208534	P05		Quick Key Con Wire;250(TKP,H6630R1-06+TK	No	Model Compatibility List	$18.85 / Each	9,4,5,6
710289	1000208535	AN51		Heart Rate Board Set;SALUTRON 8600;EP93C;	No	Model Compatibility List	$300.61 / Each
710307	1000208781	N15		Plastic BASE;U;ABS/PA746;PA:60461;T7x-03	No	Model Compatibility List	$3.35 / Each	9,3
710313	1000209244	Not Shown		NET WIRE;400(TKP H6630R1-08,AMP 569532);	No	Model Compatibility List	$32.08 / Each
710480	1000210495	N10		Overlay;Manipulate;Upper;ENGLISH;EP603;	No	Model Compatibility List	$45.11 / Each	1
710482	1000210497	N38		PC Spacer;205x60x1.6mm;EP605	No	Model Compatibility List	$9.44 / Each	2,3,4,5,6
710483	1000210553	N16		USB;EP90B	No	Model Compatibility List	$14.40 / Each	1
710485	1000210573	Not Shown		Plastic Cover;ABS/PA746;DG/80435;EP604;	No	Model Compatibility List	$38.04 / Each	9
710486	1000210574	N12		Rubber;A;NBR;BLACK;EP603	No	Model Compatibility List	$1.66 / Each	4,5,6
710487	1000210575	N13		Rubber;B;NBR;BLACK;EP603;	No	Model Compatibility List	$1.66 / Each	4,5,6
710607	1000211294	N98		Screw;FH;M3X0.5PX30L;-;PH;BZN;	No	Model Compatibility List	$1.66 / Each	2
710678	1000212322	N25		Shim;Rubber;D;NBR;BLACK;TM507C;	No	Model Compatibility List	$1.66 / Each	4,5,6
710794	1000213669	W02		UCB;DISPLAYLCM;H001S015;TM521;Coating;	No	Model Compatibility List	$365.01 / Each	1
710798	1000213752	W04		Control Board;USB;H001;U10CA1;	No	Model Compatibility List	$27.69 / Each
711125	1000216905	N14		Cover;USB;PAINT;EP603;	No	Model Compatibility List	$16.22 / Each	9
711146	1000217094	W21		Wire;NET;550(TKP,H6630R1-08AMP 569532)	Yes	Model Compatibility List	$3.35 / Each	4,5,6
711996	1000224836	W69		CONSOLE GND WIRE;130+220(KST,FDFNYD2-250	No	Model Compatibility List	$9.10 / Each	7,4,5,6
712006	1000224909	AB1		Extrawork;Base Set;Console;BED;EP603	No	Model Compatibility List	$108.13 / Each	7,3
712072	1000226494	W04		Control Board;USB;Extra-work;H001;;;TM52	No	Model Compatibility List	$23.63 / Each
712079	1000226524	N27		Torsional Spring;-;USB;SUS304;TM521	No	Model Compatibility List	$3.35 / Each
712082	1000226528	N27		Fixing Plate;TUNER;SECC;1.0t;TM521;	No	Model Compatibility List	$8.42 / Each	3
712091	1000226590	AN8		Documentation;Overlay;TV;English;PET/A18	No	Model Compatibility List	$36.48 / Each	4,5,6
712092	1000226591	W05		Key;TV;20key;Picard;	No	Model Compatibility List	$127.74 / Each	9,4,5,6
712104	1000226689	AN31		Overlay Set;TV;-;English;EP613	No	Model Compatibility List	$182.49 / Each	4,5,6
712270	1000228043	Not Shown		TV PWR EXT;400(H6630R1-04 ##DC##?2.	No	Model Compatibility List	$23.71 / Each	4,5,6
712301	1000228300	Not Shown		MO;WIFI WIRE;EP91C/EP92F/EP94C	No	Model Compatibility List	$464.72 / Each	4,5,6
712376	1000228647	W92		Control Board;INVERTER;;TDK TBD584NR-1;;	No	Model Compatibility List	$337.97 / Each	7
712377	1000228648	N51		Face Plate Cover;;;PC510;Gray/80435;15.6	No	Model Compatibility List	$93.57 / Each	9,3,4,5,6
712378	1000228650	W95		Tape;singleside;3M VHB;1.6T;EP614;-	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
712379	1000228651	AN36		BOOK RACK;-;PR;-;EP614;	No	Model Compatibility List	$27.01 / Each
712380	1000228653	N18		Cover;IPOD JACK;;ABS/PA746;Gray/80435;;E	No	Model Compatibility List	$1.66 / Each	9,4,5,6
712382	1000228655	W61		CONNECT;TV KEY;400(H6630R1-08+H6630R1-10	No	Model Compatibility List	$15.18 / Each
712383	1000228657	W93		TFT LCD Set;15.6 inch;;;;;EP614;	No	Model Compatibility List	$1.30 / Each	1
712384	1000228659	3		Overlay Set;Touch panel;;15.6 Inch;EP614	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
712385	1000228660	W101		LVDS Wire;;;;;;;15.6 inch;EP614	No	Model Compatibility List	$92.92 / Each	4,5,6
712386	1000228662	W97		WIFI Aerial;;Left;;;;;IVX0035-A225BX;EP6	No	Model Compatibility List	$33.77 / Each	1
712387	1000228663	W98		WIFI Aerial;;Right;;;;;IVX0035-A405WX;EP	No	Model Compatibility List	$33.77 / Each	1
712391	1000228688	N82		SCREW;BH;M5X0.8PX12L;PH;BAN;	No	Model Compatibility List	$1.66 / Each
712425	1000228809	W104		Fan;;12VDC;0.2A;AFB0512HHB	No	Model Compatibility List	$92.92 / Each	8,4,5,6
712426	1000228810	W99		Isloation Plate;Inverter;;SECC;0.5T;;EP6	No	Model Compatibility List	$59.12 / Each	3
712427	1000228811	W79		Tuner Signal Wire;200;(TKP,H20J2-6+Mini	No	Model Compatibility List	$18.56 / Each	4,5,6
712428	1000228812	W47		TUNER CONTROL WIRE;250;(JST,XAP-06V-1+US	No	Model Compatibility List	$15.18 / Each	7,4,5,6
712429	1000228813	W45		Wire;Inverter;100(JST PAP-02V-S+ACES,872	No	Model Compatibility List	$10.11 / Each	4,5,6
712430	1000228814	W27		HEART RATE RECEIVER BOARD;SALUTRON 8600	No	Model Compatibility List	$182.49 / Each
712431	1000228815	W66		Pulse CON;300mm;(2510A-03+XAP-03)	No	Model Compatibility List	$8.42 / Each
712433	1000228817	W68		Wire;Ipod;500(JAM RJW20-18MP+TKP,H20J2-1	No	Model Compatibility List	$33.77 / Each	4,5,6
712477	1000229037	Not Shown		OVERLAY SET;TV;EP604;-;	No	Model Compatibility List	$182.49 / Each	4,5,6
712519	1000229325	W83		LCM Wire;170;(HRS DF13-30DS-1.25CX2)	No	Model Compatibility List	$20.25 / Each	7,4,5,6,12,13,14
712520	1000229327	W85		USB Ground Wire;50;(GEM,99471BS-2+GEM,99	No	Model Compatibility List	$15.18 / Each
712551	1000229467	W53		CONSOLE CONTROL BOARD;H001;COATING;EP611	No	Model Compatibility List	$32.84 / Each	7
712866	1000231078	Q26		SCREW;BH;?X5X1.6PX12L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
712867	1000231080	W27		Wire;Ipod;550(JST XADR-16+PAP-06/-10);T7	No	Model Compatibility List	$32.84 / Each	4,5,6
712881	1000231182	W107		Nut;Hex;3/8 Inch-32UNEF-2B,2.4T;;;	No	Model Compatibility List	$1.66 / Each	2
712940	1000231589	Not Shown		SCREW;BH;M3X0.5PX6L;CT;PH;SST;BAN;	No	Model Compatibility List	$1.66 / Each	2
712941	1000231590	N75		Fixing Plate;15.6 inch;;SPCC;1.5T;;EP614	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
713008	1000232274	W47		GND;-;-;Yellow/Green1;I-POD;18AWG;200mm;	No	Model Compatibility List	$8.42 / Each	1
713051	1000232817	P03		USB Wire;-;-;500+550;(JST XAP-06V-1X2+KS	No	Model Compatibility List	$13.49 / Each	4,5,6
713135	1000233231	N46		FIXING PLATE;15 INCH;SPCC;0.8t;T-7xe-04-	No	Model Compatibility List	$33.77 / Each	3
713147	1000233262	1		Panel Board Set;15 inch;-;-;TFT LCD;EP61	No	Model Compatibility List	$1688.70 / Each Out Of Stock	7
713302	1000300861	AN15		cover-Extrawork;console;back;Print;PR;EP	No	Model Compatibility List	$47.29 / Each
713325	1000301559	W89		Touch Switch;;;;;;;ADV1700021122-01;EP61	No	Model Compatibility List	$21.94 / Each	4,5,6
713328	1000301587	W87		SDRAM;;SO-DIMM DDR2 2G;Adventech; D/C, NO REPL: Part will show as orderable until stock is depleted.	No	Model Compatibility List	$414.02 / Each	1
713419	1000302343	W63		Connect;;;;;150(TKP,H20J2-15+JST,XAP-08V	No	Model Compatibility List	$11.80 / Each
713433	1000303128	N29		Foam;-;48x5x3.0t;Black;-;TM524	No	Model Compatibility List	$1.66 / Each
713591	1000305367	W90		GND;;;;;;150;(GEM,99492BS-2+KST,FDFNYD2-	No	Model Compatibility List	$8.42 / Each	1
713672	1000306357	W100		Fixed chipset;;;CF;EP614;;	No	Model Compatibility List	$42.22 / Each	1
713771	1000307911	N31		Controller;Touch Sensor;;EXC208056TAG;;;	No	Model Compatibility List	$506.97 / Each	7,8
713870	1000309034	W49		Head Phone Board;;;;;;;300L(TKP H20Y1-08	No	Model Compatibility List	$33.77 / Each	1
713908	1000309510	W82		Cable clamp;;PL-3-V0;;;pingood	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
713909	1000309511	W31		VA Module;;;;S001;USB2.0;;EP614;	No	Model Compatibility List	$337.97 / Each	1
714457	1000315067	W48		H/P;;;;;;;350(TKP,2510A-06+TKP,H6630R1-0	No	Model Compatibility List	$16.87 / Each
714458	1000315068	W36		Console GND;;;;;;;200(KST,FDFNYD2-250-1+	No	Model Compatibility List	$8.42 / Each
714780	1000318254	W35		Console GND;;;;;;;(KST,FDFNYD5-250+KST,F	No	Model Compatibility List	$8.42 / Each	7
714781	1000318255	W53		Exchange Board;Console;;U115A4/H001;;;E	Yes	Model Compatibility List	$50.67 / Each
714785	1000318272	W52		Connect Board;C-SAFE;;H002;;;EP614;	No	Model Compatibility List	$42.22 / Each
715314	1000323618	W20		Control Board Set;LMM;;;EP613;;	No	Model Compatibility List	$1558.70 / Each	7
716106	1000332745	W111		Heat Sink;;;117.5x113.5x21;AL;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716107	1000332747	W112		Heat sink;;25x25x2t;TM521;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716108	1000332748	W113		Heat sink;;10x10x2t;TM521;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716109	1000332749	W114		Heat sink;;8x8x2t;TM521;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716111	1000332751	2		Heat Sink;;;HEAT SINK SET;TM521;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
716629	1000337906	Not Shown		Manual;Assembly;;English;;EP617	No	Model Compatibility List	$16.87 / Each	3
716641	1000338307	W88		WiFi;EWM-W135H01E;Adventech;;	No	Model Compatibility List	$163.90 / Each	1
717796	1000347710	W79		Tuner Signal Wire;;;;;;;200(TKP,H20J2-6+	No	Model Compatibility List	$31.02 / Each	4,5,6
718757	1000353342	W28		Ipod Extend Wire;;;;;;300(MF1512S0017+JA	No	Model Compatibility List	$72.98 / Each	9,4,5,6
719170	1000356656	W108		Fixing Plate;TV Tuner;;Zinc Plate;;;TM52	No	Model Compatibility List	$3.35 / Each
719421	1000361164	Not Shown		RFID SET;Semi-Assy;;;;EP614D;;	No	Model Compatibility List	$1.30 / Each	1
719804	1000365782	W11		Earphone board set;;;;EP91;;	No	Model Compatibility List	$29.17 / Each
719870	1000366515	W24		Earphone board set;;;;EP620;	No	Model Compatibility List	$42.22 / Each
721130	1000380801	W110		Memory Card;;TS8GCF220I;8GB;Transcend;;	No	Model Compatibility List	$1137.08 / Each	9
722510	1000393224	W106		TV Stick Set;;;US / KITS - SBOM;EP620;;	No	Model Compatibility List	$392.05 / Each
723181	1000404540	W24/W58		Earphone board set;;;;Earphone board set	No	Model Compatibility List	$67.57 / Each	1
723628	1000410717	7		PCB;;;Second hand;;;T7xi(TM521);	No	Model Compatibility List	$3.90 / Each	1
724734	1000425274	AW1		Tuner Module;;;REV 2.0;S20170417;;US for	No	Model Compatibility List	$588.09 / Each	1
725318	069851	W33		Console TV Cable Extended Wire;250L(FM-0086-N	Yes	Model Compatibility List	$10.14 / Each
726397	0000081594	W101		Pulse Wire;150(FDFNYD2-250-1+546BS-2);TM	No	Model Compatibility List	$3.64 / Each
726594	0000083278	Z22		USB Cover;USB-03	No	Model Compatibility List	$1.90 / Each
726832	085415	W33		LVDS Wire;15 Inch TFT LCD;410(HRS DF14H-20P+D	No	Model Compatibility List	$27.59 / Each
726885	085779	AM1		Elevator Motor;AC;110V/123mm;JM03;only	Yes	Model Compatibility List	$354.87 / Each
726928	0000086064	N33		Cover;Console;Right;ABS/PA-746;BL;TM501;	No	Model Compatibility List	$3.35 / Each
726929	0000086065	N34		Cover;Console;Left;ABS/PA-746;BL;TM501;	Yes	Model Compatibility List	$3.35 / Each
726993	086533	N47		Bracket;Isolation Board Cover;0.6t;TM503	No	Model Compatibility List	$8.42 / Each
727017	0000086684	W13		Speaker Set;AK-402808BC-3T+280+XAP-02;TM	No	Model Compatibility List	$17.65 / Each
727025	0000086724	N35		Cover;Console Display;TV Rack;Printing;T	No	Model Compatibility List	$47.63 / Each
727041	086852	W38		Rubber Ring;GM-5	No	Model Compatibility List	$1.01 / Each
727076	0000087056	N13		Vent;Fan;ABS/PA-746;Pantone:877C;TM501;	No	Model Compatibility List	$45.24 / Each
727194	087672	Z41		Screw;Hex Socket;Round;M5x0.8Px8L	No	Model Compatibility List	$1.79 / Each
727213	087846	N49		Foam;Overlay;1;315.5x4.0x1.0t;Rubber/BL;	No	Model Compatibility List	$1.66 / Each
727214	087847	V01			No	Model Compatibility List	$0.00 / Each Out Of Stock
727215	087848	V09			No	Model Compatibility List	$0.00 / Each Out Of Stock
727351	0000088743	N81		Screw;TRH;M3x.5Px6L;MT;PH;CST;ZNC;F-T	No	Model Compatibility List	$1.79 / Each
727358	0000088790	N52		Anti-Slippery Pad;TPR+30%PP;BL;MX-E5XC-F	No	Model Compatibility List	$9.10 / Each
727371	088888	N42		insulation Plate;INVETER;PC;8B35;3M-467;	No	Model Compatibility List	$1.82 / Each
727421	089108	W34		Wire;Tuner Signal;JST PAP-12;T7x-01;	No	Model Compatibility List	$31.10 / Each
727424	089112	W28		Spacer;Support;MEA-05;PINGOOD;	No	Model Compatibility List	$1.66 / Each
727425	089113	W29		Fix Plate;SPHC;1.6t;BED;T5x-02;	No	Model Compatibility List	$8.42 / Each
727442	0000089261	N18		Cover;IPOD Fixing;ABS/PA746;Deep Grey 80	No	Model Compatibility List	$3.64 / Each
727469	089486	N12		Bushing;KSS Moveable;KG-008;10M/Reel;	No	Model Compatibility List	$23.63 / Each
727474	089506	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
727514	089691	W02		TV Control Board Set;TM503;T7xe;	No	Model Compatibility List	$400.17 / Each
727543	0000089849	W45		Wire;Hand Pulse Sensor;350L(2510A-06,TKP	No	Model Compatibility List	$20.90 / Each
727544	089851	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
727795	0000091027	W25		LCM Wire;130L(H6630R1-18)x2	No	Model Compatibility List	$26.05 / Each
727796	091028	W30		TV Key Wire;160L(H6630R1-14)x2	No	Model Compatibility List	$8.42 / Each
727858	091621	N41		Fix Plate;Tuner;MX-E7X-C;US;EP91	No	Model Compatibility List	$16.64 / Each
727961	0000092217	W75		Heart Rate Power Wire;250L(2510A-03+XAP-	No	Model Compatibility List	$9.13 / Each
728026	0000092696	N202		Fixing Plate;Fan;0.8t;T5x-02;	No	Model Compatibility List	$9.10 / Each
728371	094425	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
728376	094434	Not Shown			No	Model Compatibility List	$0.00 / Each Out Of Stock
728506	095125	N01		Console Front Cover;Faceplate;ABS/PA746;DG/80435;EP60	No	Model Compatibility List	$93.52 / Each
728507	095126	N02		Console Rear Cover;ABS/PA746;DG/80435;EP603	No	Model Compatibility List	$75.14 / Each
728541	095229	W05		Pulse Receiver Set;Salutron 4600;EP603	No	Model Compatibility List	$305.11 / Each
728542	0000095231	W04		Control Board;USB;H001;U105A5;EP603;	No	Model Compatibility List	$28.29 / Each
728544	095247	W52		C-Safe;E LEAD;3P00DMJE001-0A;EP92F;	No	Model Compatibility List	$104.83 / Each
728550	095295	N03		Cover;Overlay;ABS/PA746;80435;EP603	No	Model Compatibility List	$41.08 / Each
728561	095323	N06		Overlay;Manipulate;Lower;ENGLISH;EP603;	No	Model Compatibility List	$36.48 / Each
728600	0000095575	N203		Tape;Foam;One-Sided;50x15x1.5T;	No	Model Compatibility List	$1.66 / Each
728616	095641	N157		SCREW;RND;#X4.0X1.34PX8L(HI-LO);PH;BZN;	No	Model Compatibility List	$1.66 / Each
729099	Part of Console Set	W94		Overlay;Touch panel;;;15.6#T:9PCT TF1-TP	No	Model Compatibility List	$0.00 / Each Out Of Stock	7
729118	Part of Kit 1	W16		Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729141	Part of Kit 21	R03		Axle;Transmission;42CRMO;-;-;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729777	ZMS4004742	Not Shown		Silicon Plug, 0.25"0.125"0.75" Black	No	Model Compatibility List	$2.29 / Each	4,5,6
712381	1000228654	W62		CONNECT;USB;150(JST,XAP-06V-1)X2;EP614;	No	Model Compatibility List	$8.42 / Each
1034766	1000208238	AN15	1	Cover, Console, back, (Used)	Yes	Model Compatibility List	$39.00 / Each	7,9,4,5,6
1036673	0000089849			Wire;Hand Pluse Sensor;350L(2510A-06,TKP	Yes	Model Compatibility List	$6.99 / Each
701260	004321-00	N59		Round Head Screw M4x0.7Px10L (New)	No	Model Compatibility List	$12.99 / Each

View Drawing

Chat with us

Matrix Commercial - H7xe-05 - 2014

Exploded Diagrams

general Info

Customer Service

About us

Address
