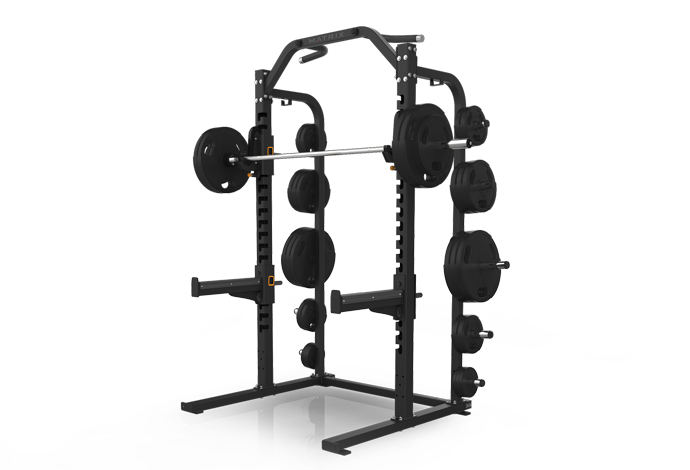

Matrix Commercial - Half Rack - 2013

Repair Parts for Matrix Commercial Half Rack VYPR25YY,VYPR26,VYPR27,VYPR28,VYAS1006

Brand: Matrix Commercial

Category: Racks & Platforms

Type: Strength Systems

Model Name: Half Rack

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
Z 713814 1000308428 Z23 3/8" NUT No Model Compatibility List $1.43 / Each

713820 1000308438 Z27 SCREW;HH;.375-16 x 3.00;ZN; No Model Compatibility List $3.02 / Each

Z 713826 1000308444 Z24 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

713838 1000308466 B41 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

Z 713935 1000309773 Z1 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

B 713937 1000309841 B30 2" X 3" END CAP No Model Compatibility List $7.28 / Each

S 713938 1000309842 Spotter Stand 3 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

S 714008 1000310115 Safety Bar 4 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

J 714033 1000310313 J Hook Z3 1/4" BLACK FLAT WASHER No Model Compatibility List $1.43 / Each

Z 714101 1000312084 Z29 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
714102 1000312086 Z28 SCREW;HH;.375-16 x 4.25;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock
714103 1000312087 Spotter Stand 6 SCREW;HH;.375-16 x 4.50;ZN; No Model Compatibility List $0.00 / Each
Out Of Stock 		2
P 714152 1000312231 Pull Up Bar B3 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714160 1000312247 K4 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 K5 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 K6 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 K7 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 K8 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
S 714236 1000312711 Safety Bar 6 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

S 714279 1000313142 Safety Bar 7 1/4" ABS No Model Compatibility List $16.87 / Each

714283 1000313151 Safety Bar 2 1/4" ABS No Model Compatibility List $21.94 / Each

714284 1000313155 J Hook Z4 1/4"-20 UNC X 20 No Model Compatibility List $2.18 / Each

1
714285 1000313156 J Hook Z5 NUT;NLK;.250-20;BLACK;TALL; No Model Compatibility List $2.18 / Each

714286 1000313161 Safety Bar 8 LABEL, J-HOOK SELECTOR No Model Compatibility List $3.25 / Each

714322 1000313646 AB4 WELDMENT, RH POST No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714323 1000313647 AB3 WELDMENT, LH POST No Model Compatibility List $0.00 / Each
Out Of Stock 		3,12,13,14
714327 1000313680 Spotter Stand 5 SCREW;HH;.375-16 x 5.50;ZN; No Model Compatibility List $5.04 / Each

2
714538 1000315894 V2 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

714644 1000316674 AB12 WELDMENT, REAR BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
714645 1000316675 AB12 WELDMENT, REAR BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714646 1000316676 AB12 WELDMENT, REAR BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
714647 1000316724 J Hook B6 ROUND KNOB-SPRING PIN ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock 		2,3,12,13,14
714649 1000316731 Safety Bar 5 2" Tubing Extrusion No Model Compatibility List $0.00 / Each
Out Of Stock
P 714766 1000318109 Pull Up Kit 1 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

714771 1000318165 Kit 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
716975 1000340650 AB5 Chin Up Bar;Assy;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		1
716976 1000340651 AB5 Chin Up Bar;Assy;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
716977 1000340652 AB5 Chin Up Bar;Assy;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717231 1000343278 Spot Stand L Se Spotter Stand Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717232 1000343279 Spot Stand R Se Spotter Stand Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
717323 1000344063 B40 End Cap;Plastic;3" x 3"; No Model Compatibility List $6.73 / Each

717377 1000344562 V2 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

717444 1000345210 B42 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

717763 1000347398 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
717764 1000347399 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717765 1000347400 Pull Up Bar Set WELDMENT, STRAIGHT CHIN UP BAR;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
717914 1000348617 V31 Decal, D47 lower No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717915 1000348618 V30 Decal, Varsity PR No Model Compatibility List $0.00 / Each
Out Of Stock 		7,3
717931 1000348681 Safety Bar 3 1" Grip;3.25" Long;Closed End No Model Compatibility List $0.00 / Each
Out Of Stock
718749 1000353136 K3 1.25" Grip;Order by 1" increments; No Model Compatibility List $0.00 / Each
Out Of Stock
719680 1000363753 V39 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
719681 1000363756 V39 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock
720799 1000376087 Safe Bar Left Safety Bar Set;Black Ridge; No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
720800 1000376088 Safe Bar Right Safety Bar Set;Black Ridge; No Model Compatibility List $0.00 / Each
Out Of Stock 		9,4,5,6
720942 1000378600 AB6 WELDMENT, LH WEIGHT STORAGE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720943 1000378601 AB6 WELDMENT, LH WEIGHT STORAGE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720944 1000378602 AB6 WELDMENT, LH WEIGHT STORAGE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720945 1000378615 AB7 WELDMENT, RH WEIGHT STORAGE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720946 1000378616 AB7 WELDMENT, RH WEIGHT STORAGE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720947 1000378617 AB7 WELDMENT, RH WEIGHT STORAGE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720948 1000378629 J Hook Set L J Hook Set;Left;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720949 1000378630 J Hook Set R J Hook Set;Right;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock 		4,5,6
720950 1000378632 AB1 WELDMENT, LH BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720951 1000378633 AB1 WELDMENT, LH BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720952 1000378634 AB1 WELDMENT, LH BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720953 1000378647 AB2 WELDMENT, RH BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
720954 1000378648 AB2 WELDMENT, RH BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
720955 1000378649 AB2 WELDMENT, RH BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
721552 1000384006 V40 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
722596 1000395247 J Hook B2 HDPE Insert;J Hook No Model Compatibility List $0.00 / Each
Out Of Stock 		1
723204 1000404970 Pull Up AB1A Weldment;Pull Up Bar;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock 		3
723205 1000404971 Pull Up AB1A Weldment;Pull Up Bar;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
723206 1000404972 Pull Up AB1A Weldment;Pull Up Bar;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock 		3,4,5,6
729008 Order J Hook Set J Hook AB1 Weldment;J Hook No Model Compatibility List $0.00 / Each
Out Of Stock 		3
729063 Order Safety Bar Set Safety Bar 1 WELDMENT, LH SAFETY No Model Compatibility List $0.00 / Each
Out Of Stock 		9,3
729066 Order Spotter Stand Set Spotter Stand 2 Weldment;Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock 		3
View Drawing
