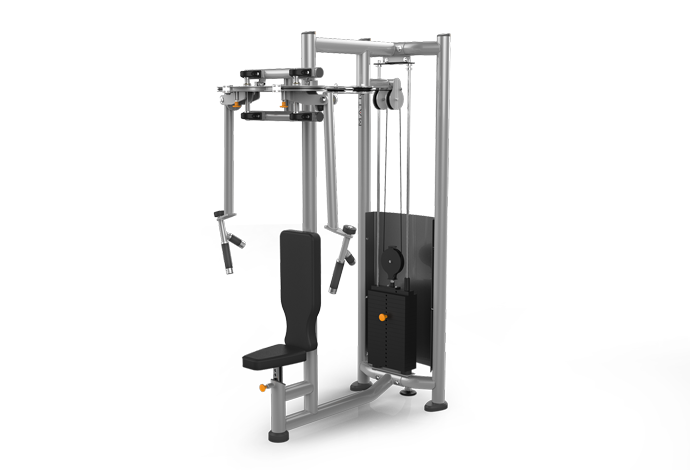

Matrix Commercial - MG-936-02 - N/A

Repair Parts for Matrix Commercial MG-936-02 MGTS10,MGTS37

Brand: Matrix Commercial

Category: Multi Station

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGTS10,MGTS37

Model Name: MG-936-02

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price

718779	1000353447	AB1	WELDMENT FRAME 900 SERIES WEIGHT STACK;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock
722626	1000396357	AB2	WELDMENT CENTER FS936;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
722627	1000396358	AB2	Weldment;Center;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
722628	1000396359	AB2	Weldment;Center;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
724561	1000422081	AB3	WELDMENT SEAT T 9 HOLES;Chrome	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,3,12,13,14
717146	1000341926	AB5	4" Foot (Short)	No	Model Compatibility List	$0.00 / Each Out Of Stock	9,3
720316	1000371529	AB6	WELDMENT ARM ASSEMBLY (LEFT);Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
720317	1000371530	AB6	Weldment;Arm Assy;Left;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
720318	1000371531	AB6	Weldment;Arm Assy;Left;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
717536	1000345955	AB7	Selector Plate;Pec Deck;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717537	1000345956	AB7	Selector Plate;Pec Deck;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
717538	1000345957	AB7	Selector Plate;Pec Deck;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
717533	1000345937	AB8	Selector Plate Assy;Pec Deck;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
717534	1000345938	AB8	Selector Plate Assy;Pec Deck;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
717535	1000345939	AB8	Selector Plate Assy;Pec Deck;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
716018	1000331090	AB9	WELDMENT ARM ASSEMBLY (RIGHT);Iced Silve	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721279	1000381491	AB13	WELDMENT CAM ASSEMBLY (Left);Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721280	1000381492	AB13	Weldment;Cam Assy;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721281	1000381493	AB13	Weldment;Cam Assy;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
722147	1000388099	AB14	WELDMENT CAM ASSEMBLY (RIGHT);Iced Silve	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
722148	1000388100	AB14	Cam Assy;Right;936;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
722149	1000388101	AB14	Cam Assy;Right;936;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
724684	1000423449	B4	Weight Stack Bracket;900 SRS;	No	Model Compatibility List	$0.00 / Each Out Of Stock
716019	1000331130	B16	Cable Assembly	No	Model Compatibility List	$206.15 / Each	3,4,5,6
715263	1000321910	B17	5/8" GUIDE ROD - 76"	No	Model Compatibility List	$211.22 / Each
717650	1000346601	B19	Stabilizer Foot;Black Ridge	No	Model Compatibility List	$45.60 / Each
717500	1000345600	B49	5/8# Single Split Collar	No	Model Compatibility List	$10.92 / Each
714153	1000312233	B55	3" ROUND END CAP	No	Model Compatibility List	$6.73 / Each
714018	1000310273	B56	4" FOOT (SHORT)	No	Model Compatibility List	$20.05 / Each
714156	1000312237	B57	3" FOOT	No	Model Compatibility List	$16.87 / Each
714040	1000310339	B58	ROUND WEIGHT STACK BUMPER	No	Model Compatibility List	$5.90 / Each Out Of Stock
713801	1000308375	B59	1" PILLOW BLOCK	No	Model Compatibility List	$62.04 / Each	1
717779	1000347532	B60	4.5" Pulley for Rope / Cable	No	Model Compatibility List	$18.56 / Each
713986	1000310083	B61	2" ROUND END CAP	No	Model Compatibility List	$5.04 / Each
716648	1000338388	B62	Plug;Seat Post	No	Model Compatibility List	$0.00 / Each Out Of Stock
713996	1000310095	B63	1/2" OD x 1/4" ID Plastic Spacer - 1"	No	Model Compatibility List	$1.33 / Each
713824	1000308442	B64	SCREW;SET; .3125-18 X 1.00;SS	No	Model Compatibility List	$1.43 / Each
713806	1000308417	B66	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
713988	1000310085	B67	1"ID x 1 1/4"OD" FLANGED BUSHING	No	Model Compatibility List	$10.92 / Each
713810	1000308421	B68	HALF-ROUND RUBBER BUMPER	No	Model Compatibility List	$29.99 / Each
714176	1000312298	B69	1/2" BRASS BUSHING	No	Model Compatibility List	$5.04 / Each
713832	1000308450	B70	1" Round Finishing Cap	No	Model Compatibility List	$3.35 / Each	9
720993	1000379407	B71	Spring Pin Assy;Body Spring Pin;	No	Model Compatibility List	$35.46 / Each
717215	1000342962	B72	Stack Guard;Grey	No	Model Compatibility List	$493.45 / Each
714740	1000317727	B75	5/8" RUBBER GROMMET	No	Model Compatibility List	$9.49 / Each
714511	1000315514	J12	Back Pad	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6,12,13,14
716016	1000330985	J15	Bottom Pad;Blank	No	Model Compatibility List	$0.00 / Each Out Of Stock	12,13,14
729261	See Pad Matrix	J15	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
713977	1000310010	K1	COLLAR, TUBE, 31.8MM	No	Model Compatibility List	$15.18 / Each
713976	1000310009	K2	CAP, END TUBE, 31.8MM	No	Model Compatibility List	$7.28 / Each
714766	1000318109	Kit 1	HAND GRIP 1.25 DIA 0-12"LONG	No	Model Compatibility List	$48.98 / Each
713975	1000310008	Not Shown	ROUND LEVELER BOOT	No	Model Compatibility List	$5.04 / Each	3
721634	1000384891	Pulley 1	Weldment;Head Plate Pulley	No	Model Compatibility List	$0.00 / Each Out Of Stock
721921	1000386597	Pulley 2	HCS 1/4"-20 x 3.00" Zinc	No	Model Compatibility List	$0.00 / Each Out Of Stock
714246	1000312876	Pulley 3	SCREW;HH;.375-16 x 3.25;ZN;	No	Model Compatibility List	$3.74 / Each
713984	1000310019	Pulley 4	SCREW;HH;.500-13 x 2.00;ZN;	No	Model Compatibility List	$3.02 / Each
713939	1000309846	Pulley 7	1/2" JAM NUT	No	Model Compatibility List	$1.43 / Each
714126	1000312159	Pulley 8	1/2 - 13 NUT	No	Model Compatibility List	$1.33 / Each
713940	1000309847	Pulley 11	WASHER, .50 OD X .38 ID X .05	No	Model Compatibility List	$1.43 / Each
714189	1000312326	Pulley 12	4" CABLE PULLEY - 3/8" HOLE	No	Model Compatibility List	$27.01 / Each
721920	1000386596	Pulley Set	WEIGHT STACK PULLEY ASSEMBLY	No	Model Compatibility List	$217.98 / Each
714302	1000313470	V20	Decal, ROM	No	Model Compatibility List	$5.04 / Each	7,3
714465	1000315136	V21	6000 STACK DECALS, MEDIUM	No	Model Compatibility List	$30.39 / Each
719682	1000363760	V22	Warning Label;Frame;;;PC;;English;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719683	1000363766	V22	Warning Label;Frame;;;PC;;French;GM40	No	Model Compatibility List	$5.04 / Each
721552	1000384006	V23	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
714538	1000315894	V24	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
717377	1000344562	V24	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
714193	1000312342	V25	DECAL,WARNING: BOLT DOWN;English	No	Model Compatibility List	$0.00 / Each Out Of Stock
714915	1000319630	V25	DECAL,WARNING: BOLT DOWN;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,2,3
714916	1000319631	V25	DECAL,WARNING: BOLT DOWN;German	No	Model Compatibility List	$0.00 / Each Out Of Stock	7,2,3
713842	1000308473	V26	Lable, hand pinch	No	Model Compatibility List	$3.02 / Each
719338	1000359953	V72	Warning Label;Anti Falling Down;MS24B;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719705	1000364025	V72	Warning Label;Anti Falling Down;MS24B;;;	No	Model Compatibility List	$0.00 / Each Out Of Stock
714507	1000315510	V73	Label, Rom 6036 Clockwise	No	Model Compatibility List	$10.11 / Each	1
714508	1000315511	V74	Label, Rom 6036 C-Clockwise	No	Model Compatibility List	$8.42 / Each	1
714038	1000310334	Weight Stack 1	6000 TOP PLATE	No	Model Compatibility List	$78.47 / Each
714041	1000310343	Weight Stack 2	Orange SELECTOR PIN w/ 6 1/2" CORD	No	Model Compatibility List	$25.53 / Each
714240	1000312817	Weight Stack 3	5/16" SPLIT LOCK WASHER	No	Model Compatibility List	$1.33 / Each
714118	1000312127	Weight Stack 4	BHS 5/16" - 1"	No	Model Compatibility List	$5.46 / Each
720762	1000375851	Weight Stack 7	Weldment;19x Center Stick;	No	Model Compatibility List	$0.00 / Each Out Of Stock
714249	1000312880	Weight Stack 8	CAST IRON	No	Model Compatibility List	$104.75 / Each
716020	1000331131	Weight Stack Set	WEIGHT STACK 190# 18+1 w/o PULLEY	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,3,4,5,6
713935	1000309773	Z1	Screw Set;M6x1.0Px5L;BP;POT	No	Model Compatibility List	$3.28 / Each
714127	1000312161	Z27	NUT;NLK;.500-13;ZN;TALL;	No	Model Compatibility List	$1.43 / Each
713814	1000308428	Z28	3/8" NUT	No	Model Compatibility List	$1.43 / Each
713997	1000310096	Z29	1/4" SPLIT LOCK WASHER	No	Model Compatibility List	$1.33 / Each
713991	1000310088	Z32	Washer, Curved, 1/2"	No	Model Compatibility List	$3.02 / Each
714109	1000312099	Z33	HCS 1/2-13 x 4 1/4"	No	Model Compatibility List	$5.04 / Each
713943	1000309851	Z34	SCREW;HH;.375-16 x 2.25;ZN;	No	Model Compatibility List	$2.18 / Each
714079	1000311963	Z36	Screw;HH;.375-16x1.25;Zinc	No	Model Compatibility List	$0.00 / Each Out Of Stock
713998	1000310097	Z37	SCREW;HH;.250-20 x 2.00;ZN;	No	Model Compatibility List	$1.33 / Each
713967	1000309953	Z38	SCREW;HH;.313-18 x 1.25;ZN;	No	Model Compatibility List	$2.37 / Each
713819	1000308437	Z39	SCREW;HH;.375-16 x 1.50;ZN;	No	Model Compatibility List	$2.37 / Each
713950	1000309858	Z41	3/4" FLAT WASHER	No	Model Compatibility List	$1.33 / Each
713817	1000308435	Z42	1 21/64" O.D. x 1 1/64" I.D. 14GA	No	Model Compatibility List	$2.37 / Each	1
713946	1000309854	Z44	NUT;NLK;.250-20;ZN;	No	Model Compatibility List	$1.43 / Each
714235	1000312700	Z45	7/16" FLAT WASHER	No	Model Compatibility List	$2.44 / Each
713818	1000308436	Z47	WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06	No	Model Compatibility List	$1.43 / Each
713805	1000308416	Z65	1" Ext. SNAP RING	No	Model Compatibility List	$2.37 / Each	2
714506	1000315505	Z71	SCREW; BH; .50-13 X 1.00	No	Model Compatibility List	$2.18 / Each	2
714016	1000310219	Z73	SCREW;HH;.250-20 x 0.75;ZN;	No	Model Compatibility List	$1.33 / Each
