Matrix Commercial - MG-A301-02 - 2013

Repair Parts for Matrix Commercial MG-A301-02 MGFW232

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGFW232

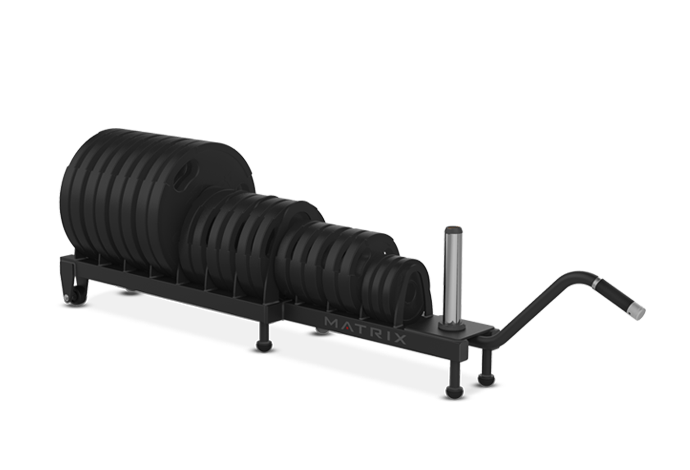

Model Name: MG-A301-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16455.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713806	1000308417	B5	2" x 2" END CAP	No	Model Compatibility List	$5.46 / Each
713810	1000308421	B3	HALF-ROUND RUBBER BUMPER	No	Model Compatibility List	$29.99 / Each
713818	1000308436	Z7	WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06	No	Model Compatibility List	$1.43 / Each
713821	1000308439	B6	NUT;NLK;.375-16;ZN;	No	Model Compatibility List	$1.43 / Each	2
713824	1000308442	Z9	SCREW;SET; .3125-18 X 1.00;SS	No	Model Compatibility List	$1.43 / Each
713839	1000308467	B10	End cap - weight horn	No	Model Compatibility List	$5.90 / Each
713840	1000308469	B13	CAP, END TUBE, 25.4MM ID	No	Model Compatibility List	$11.80 / Each
713935	1000309773	Z16	Screw Set;M6x1.0Px5L;BP;POT	No	Model Compatibility List	$3.28 / Each
713938	1000309842	B4	1 1/2" X 2" END CAP	No	Model Compatibility List	$5.04 / Each	9
714170	1000312280	B2	2.5" WHEEL	No	Model Compatibility List	$7.28 / Each	8
714538	1000315894	Z8	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
714604	1000316332	AB1	Main weldment;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
714605	1000316333	AB1	Main weldment;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714606	1000316334	AB1	Main weldment;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714672	1000316932	B11	1" Grip;Order by 1" increments	No	Model Compatibility List	$0.00 / Each Out Of Stock
714764	1000318101	Kit 1	HAND GRIP 1.0" 0-12"LONG	No	Model Compatibility List	$45.60 / Each
717377	1000344562	V14	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
720070	1000368439	V17	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
720071	1000368441	V17	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
720237	1000369933	B12	Tube Collar;25.4MM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
721552	1000384006	V15	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock

View Drawing
