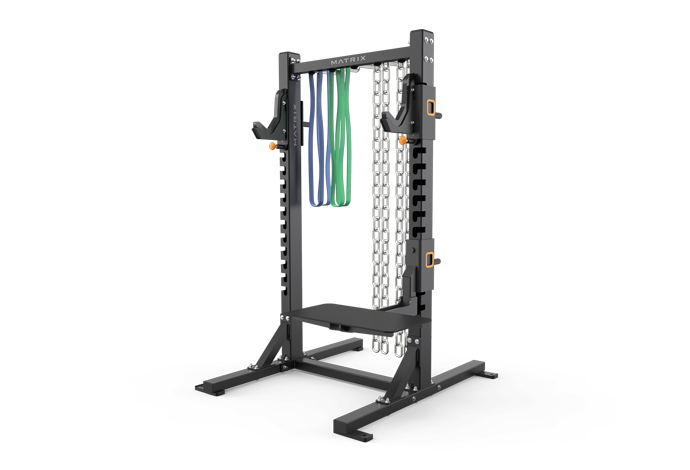

Matrix Commercial - MG-A303-02 - 2013

Repair Parts for Matrix Commercial MG-A303-02 MGAS1085

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGAS1085

Model Name: MG-A303-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16456.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713814	1000308428	Z14	3/8" NUT	No	Model Compatibility List	$1.43 / Each
713820	1000308438	Z12	SCREW;HH;.375-16 x 3.00;ZN;	No	Model Compatibility List	$3.02 / Each
713826	1000308444	Z9	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each
713834	1000308452	B15	7" RUBBER FOOT	No	Model Compatibility List	$14.59 / Each	9,3
713838	1000308466	B20	Flat Bumper - Weight Horn	No	Model Compatibility List	$3.02 / Each
713839	1000308467	B16	End cap - weight horn	No	Model Compatibility List	$5.90 / Each
714031	1000310307	Z10	SCREW;HH;.375-16 x 1.00;ZN;SAE 5	No	Model Compatibility List	$2.37 / Each
714102	1000312086	Z11	SCREW;HH;.375-16 x 4.25;ZN;	No	Model Compatibility List	$0.00 / Each Out Of Stock
714538	1000315894	V17	DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame	No	Model Compatibility List	$6.73 / Each
714609	1000316350	AB7	Support;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
714611	1000316410	AB1	Cross Brace Weldment;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
717377	1000344562	V17	Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame	No	Model Compatibility List	$15.18 / Each
717443	1000345209	Z13	Screw;HH;.375-16x5.00;Zinc	No	Model Compatibility List	$0.00 / Each Out Of Stock	2
719680	1000363753	V19	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719681	1000363756	V19	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock
720759	1000375842	AB2	Base Assy;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
720760	1000375844	AB3	Base;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
720761	1000375850	AB6	Storage Assy;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	4,5,6
721373	1000382651	AB5	Upright Assy;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721374	1000382653	AB4	Upright Assy;Black Ridge	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721552	1000384006	V18	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
722170	1000388459	B8	End Cap;TPU;101.6x76.2x4.75T;(850-092)	No	Model Compatibility List	$0.00 / Each Out Of Stock	9

View Drawing
