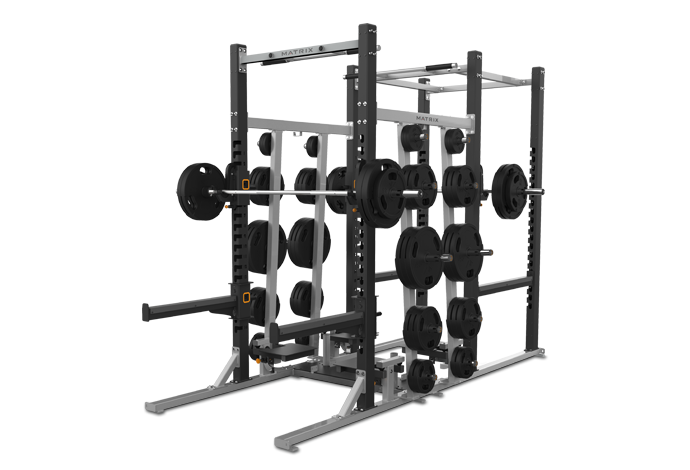

Matrix Commercial - MG-A47691-04 - 2014

Parts not in the list may no longer be available new, we may have it used - you can send us an inquiry support@hydrafitnessexchange.com

Search on this page by part name

Image  Catalog # MPN Part List Key Quantity On Model Part Description Notes Available Used Model Compatibility List New price
HALF-ROUND RUBBER BUMPER 713810 1000308421 B12 HALF-ROUND RUBBER BUMPER No Model Compatibility List $29.99 / Each

SPRING PIN ASSEMBLY 713811 1000308424 B7 SPRING PIN ASSEMBLY No Model Compatibility List $45.60 / Each

3/8 713814 1000308428 Z34 3/8" NUT No Model Compatibility List $1.43 / Each

WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 713818 1000308436 Z19 WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06 No Model Compatibility List $1.43 / Each

WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 713826 1000308444 Z9 WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06 No Model Compatibility List $1.43 / Each

713838 1000308466 B3 Flat Bumper - Weight Horn No Model Compatibility List $3.02 / Each

Screw Set;M6x1.0Px5L;BP;POT 713935 1000309773 Z16 Screw Set;M6x1.0Px5L;BP;POT No Model Compatibility List $3.28 / Each

1 1/2 713938 1000309842 B40 1 1/2" X 2" END CAP No Model Compatibility List $5.04 / Each

9
1/2 713939 1000309846 Spotter Stand 1 1/2" JAM NUT No Model Compatibility List $1.43 / Each

WASHER, .50 OD X .38 ID X .05 713940 1000309847 Z66 WASHER, .50 OD X .38 ID X .05 No Model Compatibility List $1.43 / Each

713976 1000310009 K2 CAP, END TUBE, 31.8MM No Model Compatibility List $7.28 / Each

713977 1000310010 K1 COLLAR, TUBE, 31.8MM No Model Compatibility List $15.18 / Each

FHSCS 1/4 714008 1000310115 KZ2 FHSCS 1/4"-20 X 1/2" No Model Compatibility List $1.33 / Each

SCREW;HH;.375-16 x 1.00;ZN;SAE 5 714031 1000310307 Z10 SCREW;HH;.375-16 x 1.00;ZN;SAE 5 No Model Compatibility List $2.37 / Each

714096 1000312068 Z31 SCREW;HH;.313-18 x 2.25;ZN; No Model Compatibility List $2.18 / Each

2
714098 1000312072 Z8 HHB 5/16-16 x 2 3/4" No Model Compatibility List $2.18 / Each

1
3/8 714101 1000312084 Spot Stand Z7 3/8" x 4" BOLT No Model Compatibility List $3.02 / Each

2
1 1/2 714152 1000312231 B24 1 1/2" Round End Cap No Model Compatibility List $2.18 / Each

9
714160 1000312247 B4.1 End cap - weight horn 2.5lbs No Model Compatibility List $5.04 / Each

9,3
714161 1000312249 B4.2 End cap - weight horn 5lbs No Model Compatibility List $5.04 / Each

9,3
714162 1000312250 B4.3 End cap - weight horn 10lbs No Model Compatibility List $5.04 / Each

9,3
714163 1000312253 B4.4 End cap - weight horn 25lbs No Model Compatibility List $5.04 / Each

9,3
714164 1000312254 B4.5 End cap - weight horn 45lbs No Model Compatibility List $5.04 / Each

9,3
1/2 714176 1000312298 Z15 1/2" BRASS BUSHING No Model Compatibility List $5.04 / Each

1/4 714236 1000312711 Z37 1/4" x 1/2" BUTTON HEAD No Model Compatibility List $1.46 / Each

714275 1000313121 Support Bar 1 WELDMENT, SAFETY BAR No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
714280 1000313143 B21 1/4" ABS No Model Compatibility List $13.49 / Each

1
714316 1000313566 B16 DIAMOND PLATE No Model Compatibility List $386.98 / Each

3
714538 1000315894 V47 DECAL MATRIX 11X1 - Black for Blue Moon, Iced Silver, Blood Red, White, Sunburst Orange, Fence Green, or Yellow frame No Model Compatibility List $6.73 / Each

714545 1000315951 AB1 WELDMENT, BASE;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714546 1000315952 AB1 WELDMENT, BASE;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714547 1000315953 AB1 WELDMENT, BASE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714548 1000315991 Spotter Stand Kit Le SUB-ASSEMBLY; SPOT STAND LEFT No Model Compatibility List $679.35 / Each

3
714549 1000315992 Spotter Stand Kit Ri SUB-ASSEMBLY; SPOT STAND RIGHT No Model Compatibility List $679.35 / Each

3
714550 1000315993 B49 2" TUBING EXTRUSION No Model Compatibility List $103.06 / Each

1
714551 1000316003 AB21 Weldment;Lower Base LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714552 1000316004 AB1 WELDMENT, LOWER BASE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714553 1000316005 AB1 WELDMENT, LOWER BASE LH:Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714555 1000316014 AB2 WELDMENT, LOWER BASE RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714556 1000316015 AB2 WELDMENT, LOWER BASE RH:Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714557 1000316016 AB2 WELDMENT, LOWER BASE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714609 1000316350 AB7 Support;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714629 1000316616 AB2 WELDMENT, N BASE LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714630 1000316617 AB2 WELDMENT, N BASE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714631 1000316618 AB3 WELDMENT, BASE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714632 1000316626 AB3 WELDMENT, BASE RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714633 1000316627 AB3 WELDMENT, BASE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714634 1000316628 AB2 WELDMENT, BASE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714635 1000316636 AB5 WELDMENT, WEIGHT STORAGE RH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714636 1000316637 AB5 WELDMENT, WEIGHT STORAGE RH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714637 1000316638 AB5 WELDMENT, WEIGHT STORAGE RH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714638 1000316646 AB4 WELDMENT, WEIGHT STORAGE LH;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
714639 1000316647 AB4 WELDMENT, WEIGHT STORAGE LH;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714640 1000316648 AB4 WELDMENT, WEIGHT STORAGE LH;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
714641 1000316656 AB8 WELDMENT, CENTER BRACE;Iced Silver No Model Compatibility List $317.69 / Each

3,4,5,6
714642 1000316657 AB8 WELDMENT, CENTER BRACE;Black Glossy No Model Compatibility List $317.69 / Each

3,4,5,6
714643 1000316658 AB8 WELDMENT, CENTER BRACE;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
HAND GRIP 1.25 DIA 0-12 714766 1000318109 2 HAND GRIP 1.25 DIA 0-12"LONG No Model Compatibility List $48.98 / Each

714771 1000318165 1 WEIGHT HORN SET No Model Compatibility List $18.56 / Each

3
716150 1000333567 Spotter Left 1 Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock
1
716151 1000333568 Spotter Right 1 Spotter Stand No Model Compatibility List $0.00 / Each
Out Of Stock
1
717334 1000344130 AB7 Weldment; Upright No Model Compatibility List $0.00 / Each
Out Of Stock
3
717335 1000344131 AB6 Weldment; Upright No Model Compatibility List $0.00 / Each
Out Of Stock
3
717337 1000344140 Pull Up AB1A WELDMENT; PULL-UP BAR No Model Compatibility List $0.00 / Each
Out Of Stock
3
717377 1000344562 V47 Decal;Matrix;Grey for Black Matte, Black Ridge, Black Glossy, Moss Green, or Blue Streak frame No Model Compatibility List $15.18 / Each

717443 1000345209 Z13 Screw;HH;.375-16x5.00;Zinc No Model Compatibility List $0.00 / Each
Out Of Stock
2
717444 1000345210 3 7/16" HOLE PLUG; NYLON No Model Compatibility List $1.33 / Each

717445 1000345211 Pull Up Bar Set UPPER PULL UP BAR; 690 SERIES No Model Compatibility List $0.00 / Each
Out Of Stock
1
718748 1000353135 K3 1.25" ID Rubber Grip (858-324) No Model Compatibility List $0.00 / Each
Out Of Stock
11
718955 1000354751 AB10 WELDMENT, BACK SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
718956 1000354752 AB10 WELDMENT, BACK SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
718957 1000354753 AB10 WELDMENT, BACK SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
718958 1000354764 AB20 WELDMENT, SUPPORT;Iced Silver No Model Compatibility List $0.00 / Each
Out Of Stock
3
718959 1000354765 AB20 WELDMENT, SUPPORT;Black Glossy No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
718960 1000354766 AB20 WELDMENT, SUPPORT;Lace White No Model Compatibility List $0.00 / Each
Out Of Stock
3,4,5,6
718961 1000354777 Spotter Stand 4 Screw;HH;.500-13 x 7.5;ZN No Model Compatibility List $0.00 / Each
Out Of Stock
2
718962 1000354778 Support Bar Set SAFETY SUPPORT BAR ASSEMBLY No Model Compatibility List $0.00 / Each
Out Of Stock
9,3
719680 1000363753 V15 Warning Label;Plate Loaded; No Model Compatibility List $0.00 / Each
Out Of Stock
719681 1000363756 V15 Warning Label;Plate Loaded;French No Model Compatibility List $0.00 / Each
Out Of Stock
721552 1000384006 V13 Serial Number Label;4" x 1.5";3M; No Model Compatibility List $0.00 / Each
Out Of Stock
722170 1000388459 B8 End Cap;TPU;101.6x76.2x4.75T;(850-092) No Model Compatibility List $0.00 / Each
Out Of Stock
9
724743 1000426421 J Hook Set J Hook Set;Pair;Black Ridge No Model Compatibility List $0.00 / Each
Out Of Stock
4,5,6
724745 1000426423 AB15 Safety Bar Pair Set; No Model Compatibility List $0.00 / Each
Out Of Stock
9
View Drawing
