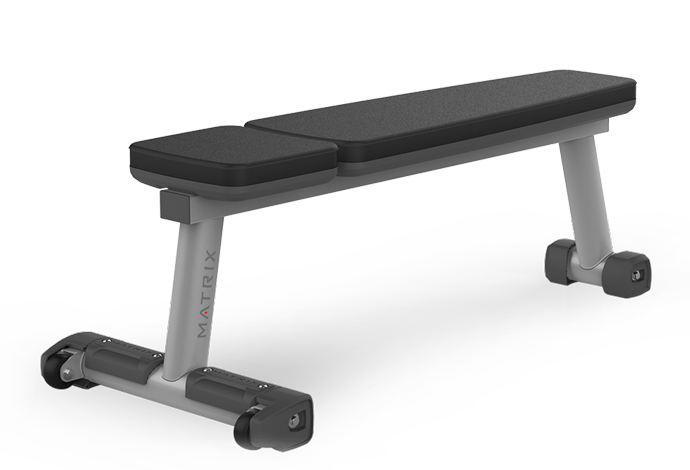

Matrix Commercial - MG-A59-02 - 2013

Repair Parts for Matrix Commercial MG-A59-02 MGFW264

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

MGFW264

Model Name: MG-A59-02

Version: 2013

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16463.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
713818	1000308436	Z12	WASHER;FLT;USS;Diam.0.344XDiam.0.875X.06	No	Model Compatibility List	$1.43 / Each
713826	1000308444	Z13	WASHER;FLT;USS;Diam.0.406XDiam.1.000X.06	No	Model Compatibility List	$1.43 / Each
713830	1000308448	Z15	5/16" X 1 1/2" BOLT	No	Model Compatibility List	$1.43 / Each
713831	1000308449	Z17	NUT;NLK;.313-18;ZN;	No	Model Compatibility List	$1.33 / Each
713937	1000309841	B11	2" X 3" END CAP	No	Model Compatibility List	$7.28 / Each
713949	1000309857	Z18	BHSCS 3/8 x 3/4"	No	Model Compatibility List	$3.02 / Each	1
714095	1000312066	Z14	SCREW;HH;.313-18 x 2.00;ZN;	No	Model Compatibility List	$2.18 / Each	2
714099	1000312076	Z16	SCREW;HH;.375-16 x 0.75;ZN;	No	Model Compatibility List	$1.33 / Each
714142	1000312205	J8	Head Pad Plastic Cover	No	Model Compatibility List	$13.49 / Each	9,12,13,14
714143	1000312207	J7	BACK PAD PLASTICS	No	Model Compatibility List	$35.46 / Each	9,4,5,6,12,13,14
714157	1000312241	C4	RIGHT - END CAP	No	Model Compatibility List	$8.42 / Each	9
714158	1000312243	C5	END CAP - LEFT	No	Model Compatibility List	$8.42 / Each	9
714159	1000312245	B3	End Cap	No	Model Compatibility List	$10.92 / Each	9
714166	1000312260	B6	GUARD - FRAME	No	Model Compatibility List	$8.42 / Each	9,3
714170	1000312280	B2	2.5" WHEEL	No	Model Compatibility List	$7.28 / Each	8
714589	1000316282	V20	DECAL,MATRIX LOGO 6.5 X .56(166MM)	No	Model Compatibility List	$0.00 / Each Out Of Stock
719680	1000363753	V19	Warning Label;Plate Loaded;	No	Model Compatibility List	$0.00 / Each Out Of Stock
719681	1000363756	V19	Warning Label;Plate Loaded;French	No	Model Compatibility List	$0.00 / Each Out Of Stock
721457	1000383321	AB1	WELDMENT, MAIN FRAME, A59;Iced Silver	No	Model Compatibility List	$0.00 / Each Out Of Stock	3
721458	1000383322	AB1	WELDMENT, MAIN FRAME, A59;Black Glossy	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721459	1000383323	AB1	WELDMENT, MAIN FRAME, A59;Lace White	No	Model Compatibility List	$0.00 / Each Out Of Stock	3,4,5,6
721552	1000384006	V21	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J9	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock

View Drawing
