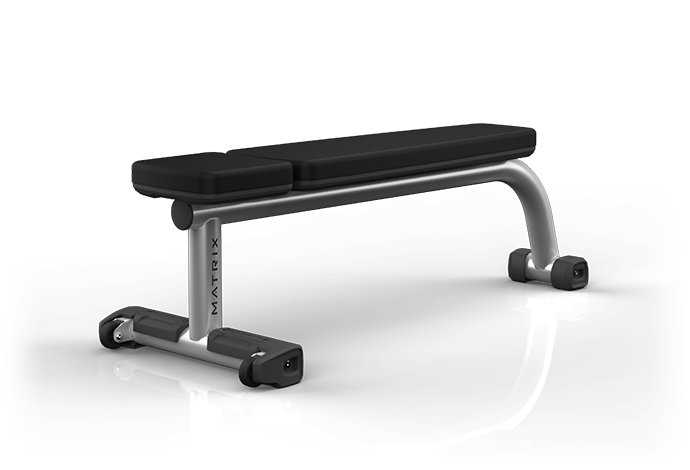

Matrix Commercial - MG-A59-03 - N/A

Repair Parts for Matrix Commercial MG-A59-03 A59-03,FW209

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

A59-03,FW209

Model Name: MG-A59-03

Version: N/A

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16464.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
700447	001401-A	C40	End Cap;76.2	No	Model Compatibility List	$3.64 / Each	9
701668	004702-00	Z03	Screw;Flat Hex Socket;M8x1.25Px20L	No	Model Compatibility List	$2.00 / Each	2
701901	004929-00	Z04	Nut;Nylon;M8x1.25P;Chromed	No	Model Compatibility List	$2.00 / Each
702098	005130-00	Z02	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
704126	020292-00	Z01	Screw;Button Head;M8X1.25PX55L-20L;;Hex	No	Model Compatibility List	$1.85 / Each
704193	020465-AB	Z05	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
713540	1000304915	Not Shown	Label set;Semi-Assy;;FW209-KM	No	Model Compatibility List	$10.11 / Each	1
713543	1000304988	B12	End Cap;Supt Tube;;;FW225-KM	No	Model Compatibility List	$10.92 / Each
713545	1000304993	C12	Cover;Back Cover;;ABS	No	Model Compatibility List	$38.99 / Each
713547	1000305004	C14	Plastic Cover;Back Cover;;	No	Model Compatibility List	$13.49 / Each	9,4,5,6
713567	1000305186	C20	Foot Pad;;;NYLON66+G15%;FW210-KM	No	Model Compatibility List	$8.42 / Each
713568	1000305187	C09	Foot Pad;;;NYLON66+G15%;FW210-KM	No	Model Compatibility List	$8.42 / Each
713569	1000305188	C13	Cover;;;NYLON66+G15%;FW210-KM;MATRIX	No	Model Compatibility List	$9.10 / Each
713704	1000306716	V07	Warning Label;;;;;;;Working Bench;	No	Model Compatibility List	$8.42 / Each	1
713794	1000308342	Z06	Screw;Hex;Hex Head;M10x1.5Px35L;Machine	No	Model Compatibility List	$1.66 / Each
713848	1000308754	V15	Logo Label;FW201-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
714867	1000318892	Q03	Plastic Pad;;;SBR;;;FW212-KM;	No	Model Compatibility List	$1.66 / Each	9,12,13,14
715272	1000322607	V07	Warning Label;;Working Bench;;;;French;F	No	Model Compatibility List	$8.42 / Each	1
715643	1000327628	AB1	base set;;;painting;;Iced Sliver;FW209;	No	Model Compatibility List	$294.03 / Each	3
715644	1000327635	AB1	base set;;;painting;;Lace White;FW209;	No	Model Compatibility List	$295.72 / Each	3,4,5,6
715645	1000327636	AB1	base set;;;painting;;Black Glossy;FW209;	No	Model Compatibility List	$295.72 / Each	3,4,5,6
721552	1000384006	Not Shown	Serial Number Label;4" x 1.5";3M;	No	Model Compatibility List	$0.00 / Each Out Of Stock
725263	103403	L05	Rear Carriage Roller; Nylon+30%G;TM369	Yes	Model Compatibility List	$15.29 / Each
728977	N/A	V30	Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,,1,,1
729261	See Pad Matrix	J02	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
