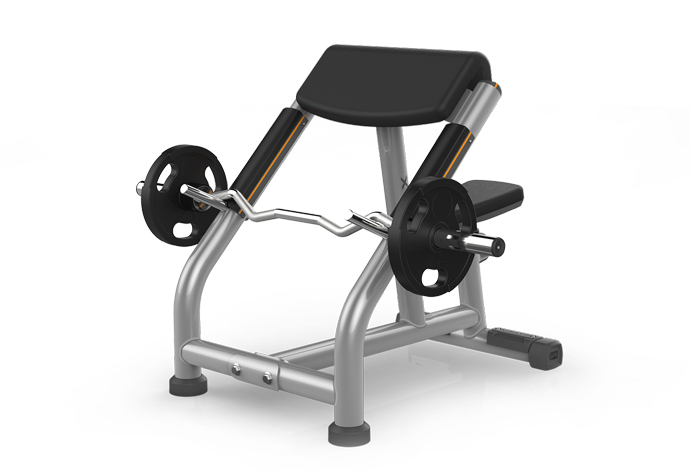

Matrix Commercial - MG-A62-03 - 2014

Repair Parts for Matrix Commercial MG-A62-03 FW224

Brand: Matrix Commercial

Category: Freeweight

Type: Strength Systems

Model Number:

Model Numbers are Unique Identifiers, they are important because they lead you to access diagrams and part lists specific to the version of a given model equipment you own. Bottom line, they help you get the right part. Note: Sometimes we put a serial prefix in this field to elicit versioning, and if this field is blank that means the model name alone will suffice for part selection.

FW224

Model Name: MG-A62-03

Version: 2014

Exploded Diagrams

Click To See ALL Available Parts Diagrams For This Machine

16468.0-base.pdf

VIEWS

Catalog #	MPN	Part List Key	Part Description	Available Used	Model Compatibility List	New price
701522	004555-AB	Z07	Screw;Hex Socket;Round;M10x1.5Px25L;Cr;A	Yes	Model Compatibility List	$4.00 / Each
701524	004556-AB	Z12	Screw;Hex Socket;Round;M12x1.75Px25L;Cr;	No	Model Compatibility List	$1.79 / Each
701668	004702-00	Z03	Screw;Flat Hex Socket;M8x1.25Px20L	No	Model Compatibility List	$2.00 / Each	2
702056	005084-00	Z02	Washer;Flat;5.3X10.0X1.0T;Chromed	No	Model Compatibility List	$2.00 / Each
702098	005130-00	Z17	Washer;Flat;8.4x15.5x1.6T;Chromed	No	Model Compatibility List	$2.00 / Each
702102	005132-00	Z11	Washer;Flat;13x26x2.5T;Chromed	No	Model Compatibility List	$1.79 / Each	7,2,12,13,14
702505	008234-C	C65	Bushing;Fixed Plate	No	Model Compatibility List	$9.10 / Each
704014	020104-AC	Z06	Screw;Hex Socket;Round;M10x1.5Px30L;Cr;	No	Model Compatibility List	$3.64 / Each	2
704186	020453-Z	Z13	Washer;Flat;Diam.20.5xDiam.30x2.5t;;;	No	Model Compatibility List	$3.35 / Each	2
704193	020465-AB	Z08	Washer;Flat;M10.2X25PX2.0T;Chromed	No	Model Compatibility List	$1.79 / Each
705163	038449-A	B30	Clip;Tapped Hole;FE;M5;YZN	No	Model Compatibility List	$9.10 / Each
708091	1000099499	Z16	Screw;SH;M8X1.25PX14L;;HS;;CHM;;SP	No	Model Compatibility List	$1.66 / Each	2
708654	1000104681	Z15	Circlip;External C Type;S-20;BAN	No	Model Compatibility List	$1.77 / Each	2
708730	1000105174	Z10	Nut;Nylon;M10x1.5P;G12.9;CHM	No	Model Compatibility List	$1.79 / Each
709019	1000108308	D17	Cu Bushing;20x26x16t;GM46	No	Model Compatibility List	$9.80 / Each	8
709730	1000202479	J03	Plastic Cover;-;POM;-;;;GM02C;	No	Model Compatibility List	$10.32 / Each	9
709731	1000202480	J04	Sleeve;65.0X124;	No	Model Compatibility List	$88.79 / Each	3
709732	1000202481	C80	Plastic Cover;Rubber	No	Model Compatibility List	$7.80 / Each	9
709860	1000204043	Z04	Screw;SET;M8X1.25PX35L;MT;HS;G8.8;CHM;	No	Model Compatibility List	$0.70 / Each	2
711335	1000220031	Z01	Screw;Thin Head;M8x1.25Px35L;-;HS;-;CHM;	No	Model Compatibility List	$1.66 / Each	2
711692	1000222320	Z05	Screw;SH;M5x25L;-;HS;-;CHM;BP;-;	No	Model Compatibility List	$1.66 / Each
713539	1000304912	B18	Food Pad;ADJ Base;;PP;BL/Black C;FW201;	No	Model Compatibility List	$42.22 / Each	3,4,5,6,12,13,14
713541	1000304951	B17	Rubber Sleeve;Foot Pad;;PVC Anti-fire;Gr	No	Model Compatibility List	$8.42 / Each	9,3,12,13,14
713543	1000304988	B12	End Cap;Supt Tube;;;FW225-KM	No	Model Compatibility List	$10.92 / Each
713569	1000305188	C10	Cover;;;NYLON66+G15%;FW210-KM;MATRIX	No	Model Compatibility List	$9.10 / Each
713585	1000305258	B06	End Cap;;;ABS 746;Diam.76.2;FW202-KM	No	Model Compatibility List	$3.64 / Each	9
713593	1000305377	C07	Cover;Back Cover;;PA746;FW203-KM	No	Model Compatibility List	$11.80 / Each	9,4,5,6
713596	1000305393	C12	Stopper Pin;;;45#;Chrome;FW203-KM	No	Model Compatibility List	$18.56 / Each	7,12,13,14
713598	1000305397	C13	Spring;Recoil (constant force);Diam.2.0X	No	Model Compatibility List	$1.66 / Each	2
713599	1000305398	C15	Spring;Recoil (constant force);Diam.2.0X	No	Model Compatibility List	$1.66 / Each	2
713608	1000305673	AH1	Support set;Semi-Assy;;Adjustable;Cr;FW2	No	Model Compatibility List	$138.55 / Each	3
713643	1000306098	C66	Plastic Cover;Adjust Machine;;ABS/PA757;	No	Model Compatibility List	$3.35 / Each	9,4,5,6
713644	1000306099	AJ1	grip-Extrawork;Adjustable;;Cr Plate;FW20	No	Model Compatibility List	$35.46 / Each	3,11
713704	1000306716	V02	Warning Label;;;;;;;Working Bench;	No	Model Compatibility List	$8.42 / Each	1
713770	1000307876	V03	LOGO Label;LOGO;;;;;;FW201-KM	No	Model Compatibility List	$0.00 / Each Out Of Stock	1
713885	1000309232	B11	Hanging Rod;;Up;45#;;FW224-KM;	No	Model Compatibility List	$25.32 / Each	3
714331	1000313739	V04	Adjustable Indication Decal;;;;;;;FW224-	No	Model Compatibility List	$3.35 / Each	7,3
714424	1000314670	Q02	Plastic Cover;;;PP;;;FW213-KM;	No	Model Compatibility List	$14.59 / Each	9
715272	1000322607	V02	Warning Label;;Working Bench;;;;French;F	No	Model Compatibility List	$8.42 / Each	1
715658	1000327662	C23	Connect Plate;;;painting;;Iced Sliver;FW	No	Model Compatibility List	$11.80 / Each	3
715659	1000327665	C23	Connect Plate;;;painting;;Black Glossy;F	No	Model Compatibility List	$11.80 / Each	3,4,5,6
715660	1000327666	C23	Connect Plate;;;painting;;Lace White;FW2	No	Model Compatibility List	$11.80 / Each	3,4,5,6
715790	1000328205	AB1	Frame Set;;;painting;;Iced Sliver;FW224;	No	Model Compatibility List	$430.92 / Each	3
715791	1000328208	AB1	Frame Set;;;painting;;Black Glossy;FW224	No	Model Compatibility List	$430.92 / Each	3,4,5,6
715792	1000328209	AB1	Frame Set;;;painting;;Lace White;FW224;	No	Model Compatibility List	$430.92 / Each	3,4,5,6
715793	1000328211	1	Base Set;;;;FW224-KM;;###	No	Model Compatibility List	$331.21 / Each	3
715798	1000328408	1	Base Set;;;;FW224-KM;;Black Glossy	No	Model Compatibility List	$331.21 / Each	3,4,5,6
715799	1000328410	1	Base Set;;;;FW224-KM;;Lace White	No	Model Compatibility List	$331.21 / Each	3,4,5,6
719876	1000366552	Q03	Rubber Plate;Buffer;;NBR;;;FW213;	No	Model Compatibility List	$65.68 / Each	3
725389	070791	Z10	SCREW;SH;M10X1.5PX105L;;HS;;CHM;;	No	Model Compatibility List	$6.73 / Each
728977	N/A	V01	Console Mast,Old version (4 holes on front)	No	Model Compatibility List	$0.00 / Each Out Of Stock	8,,1,,1
729118	Part of Kit 1	AC1	Stabilizer Frame;Rear;B;Panting;MM330;EP212	No	Model Compatibility List	$0.00 / Each Out Of Stock
729261	See Pad Matrix	J50	Elbow Pad;;PU;Black;;FW213-KM;	No	Model Compatibility List	$0.00 / Each Out Of Stock
